16" x 40" Lg Spindle Bore Gear Head Lathe w/ Acu-Rite 203 DRO, 10HP, 230/460V 3PH(GH-1640ZX)

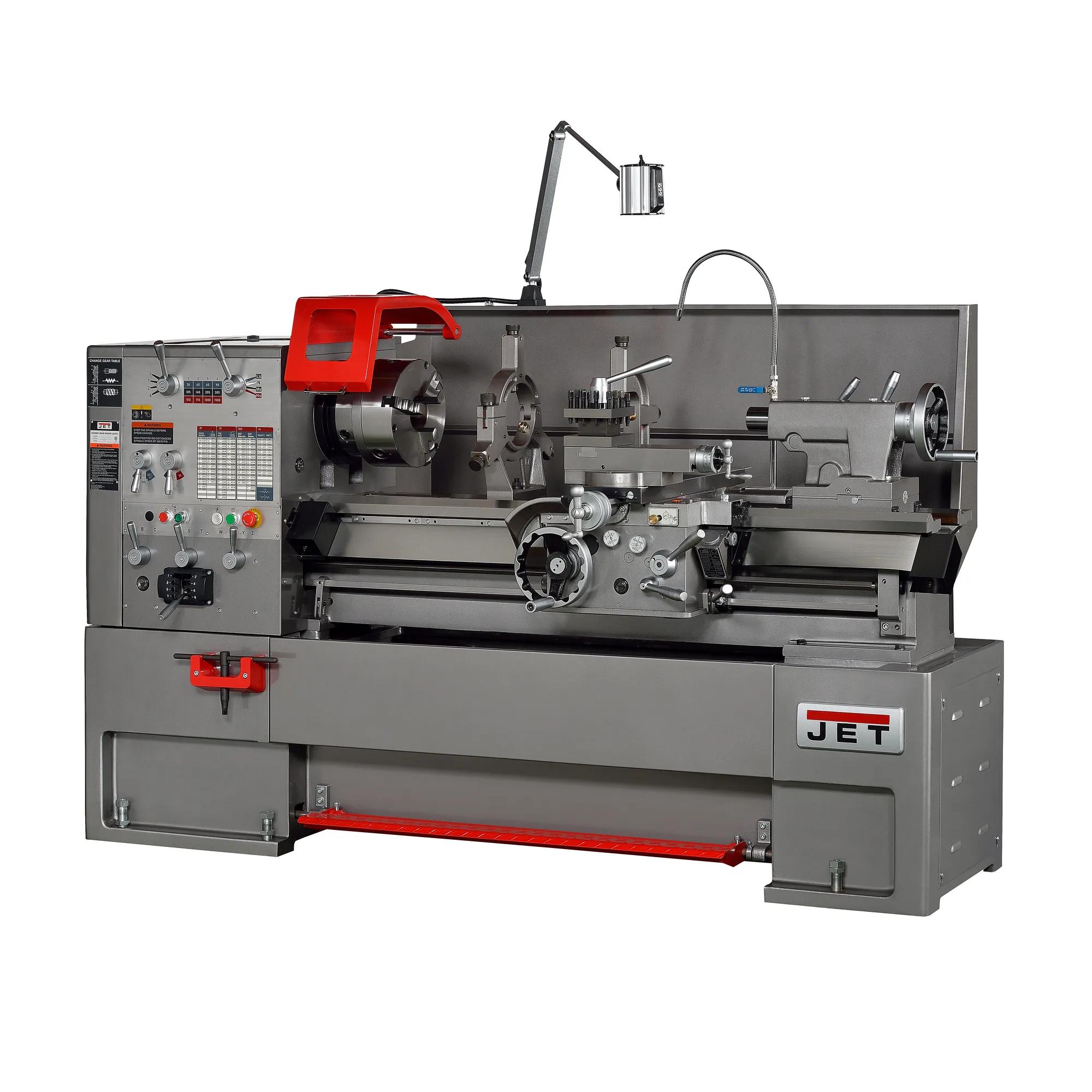

The JET GH-1640ZX 16x40 Large Spindle Bore ZX Gear Head Lathe is built for shops that need 16" of swing and dependable, all-day turning performance without cutting corners on operator safety.

The GH-1640ZX's 40" distance between centers and 3-1/8" spindle bore give operators the reach and through-capacity needed for longer shafts and bar stock passed directly through the headstock.

The geared head is turned by a 10 HP Three-Phase motor, offering 12 spindle speeds spanning 26-1500 RPM for flexibility across materials and cut depths.

As configured here, the GH-1640ZX includes a Acu-Rite 203 digital readout for precise, at-a-glance positioning that reduces reliance on manual dial counting.

Standard industrial safety features include:

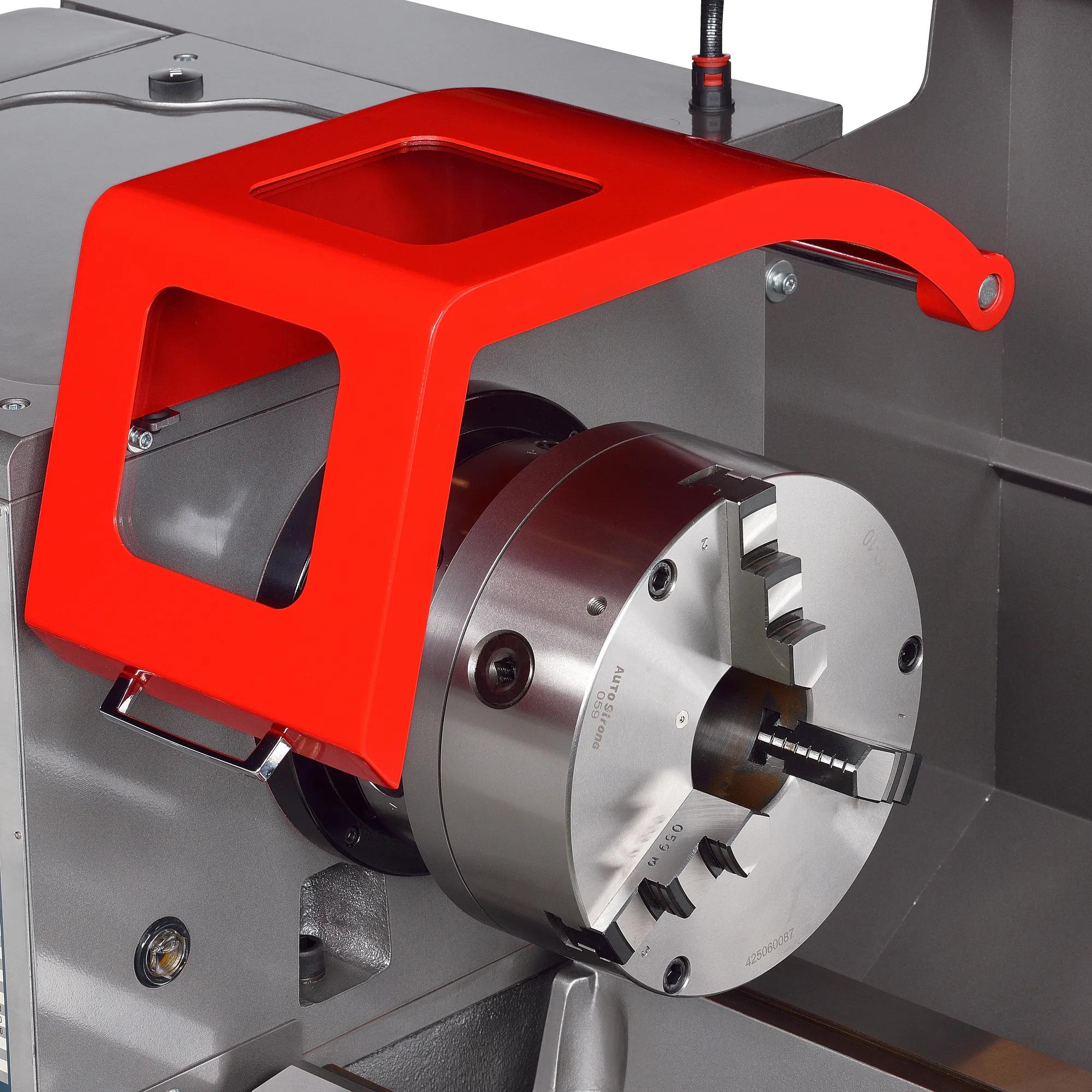

• Chuck guard at the point of operation
• Full-length splash guard
• Lead screw cover to keep debris out of the drive mechanism
• Integrated coolant system
• UL 987 certified electrical system

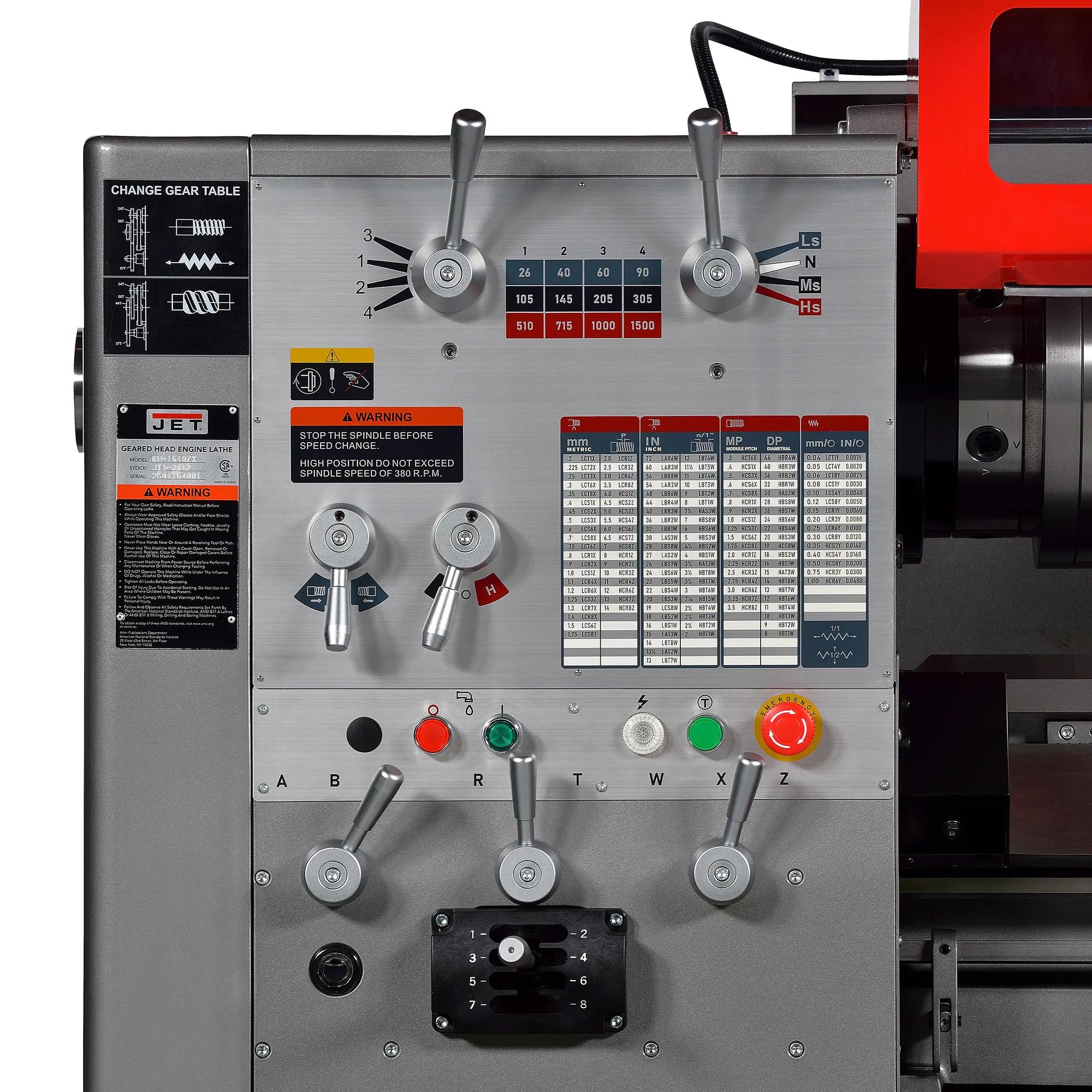

• Electronic chuck key holder to reduce the risk of a key left in the chuck

A pre-shipment inspection and 2-year parts and labor warranty stand behind every GH-1640ZX, backed by JET's nationwide authorized service network.

The GH-1640ZX is well suited for industrial OEMs, large-scale repair facilities, and heavy fabrication shops.

OPTIONAL ACCESSORIES

• Collet Closer (Optional)
• Taper Attachment Kit (Optional)
