26" x 80" Lg Spindle Bore Gear Head Lathe w/ Acu-Rite 203 DRO, 15HP, 230/460V 3PH(GH-2680ZH)

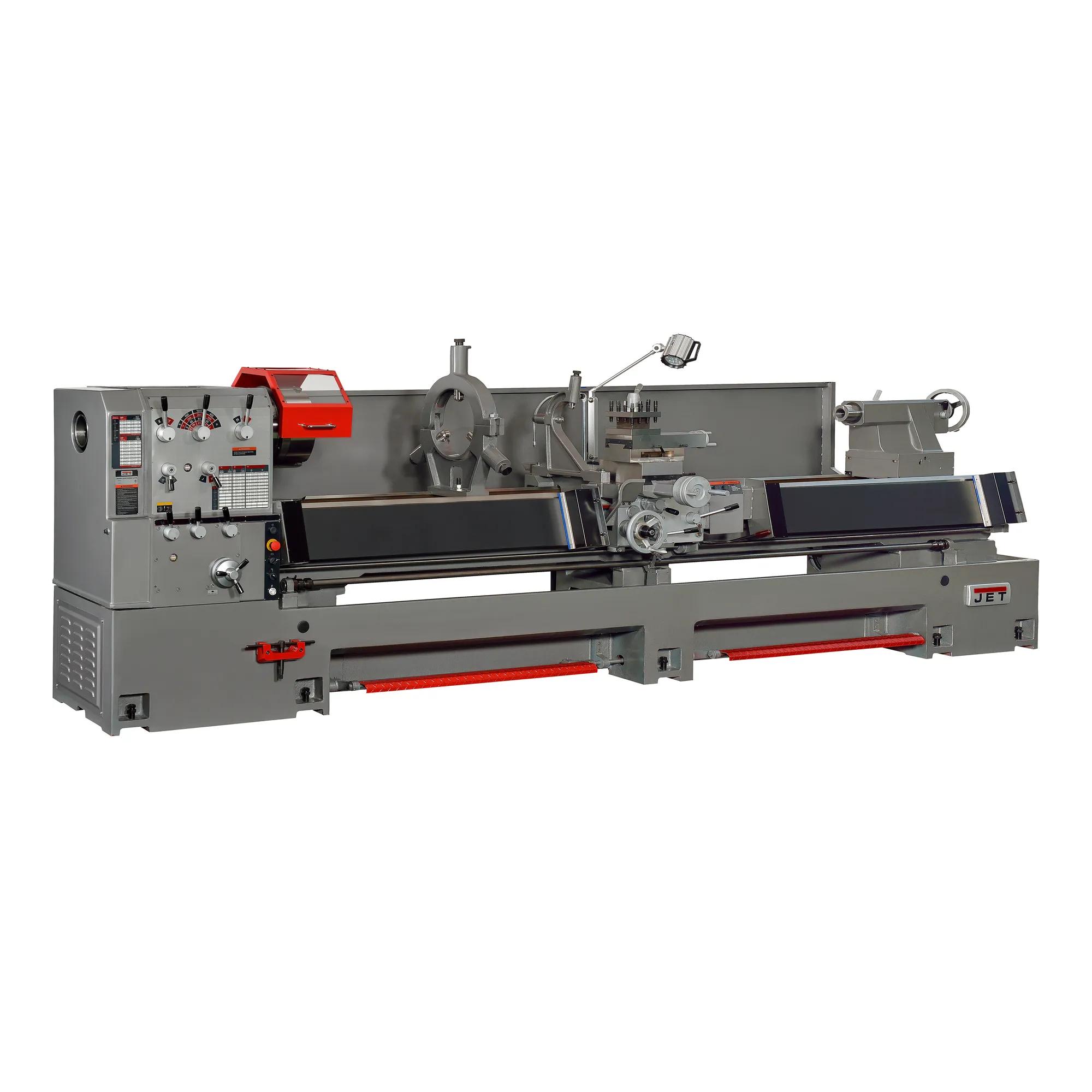

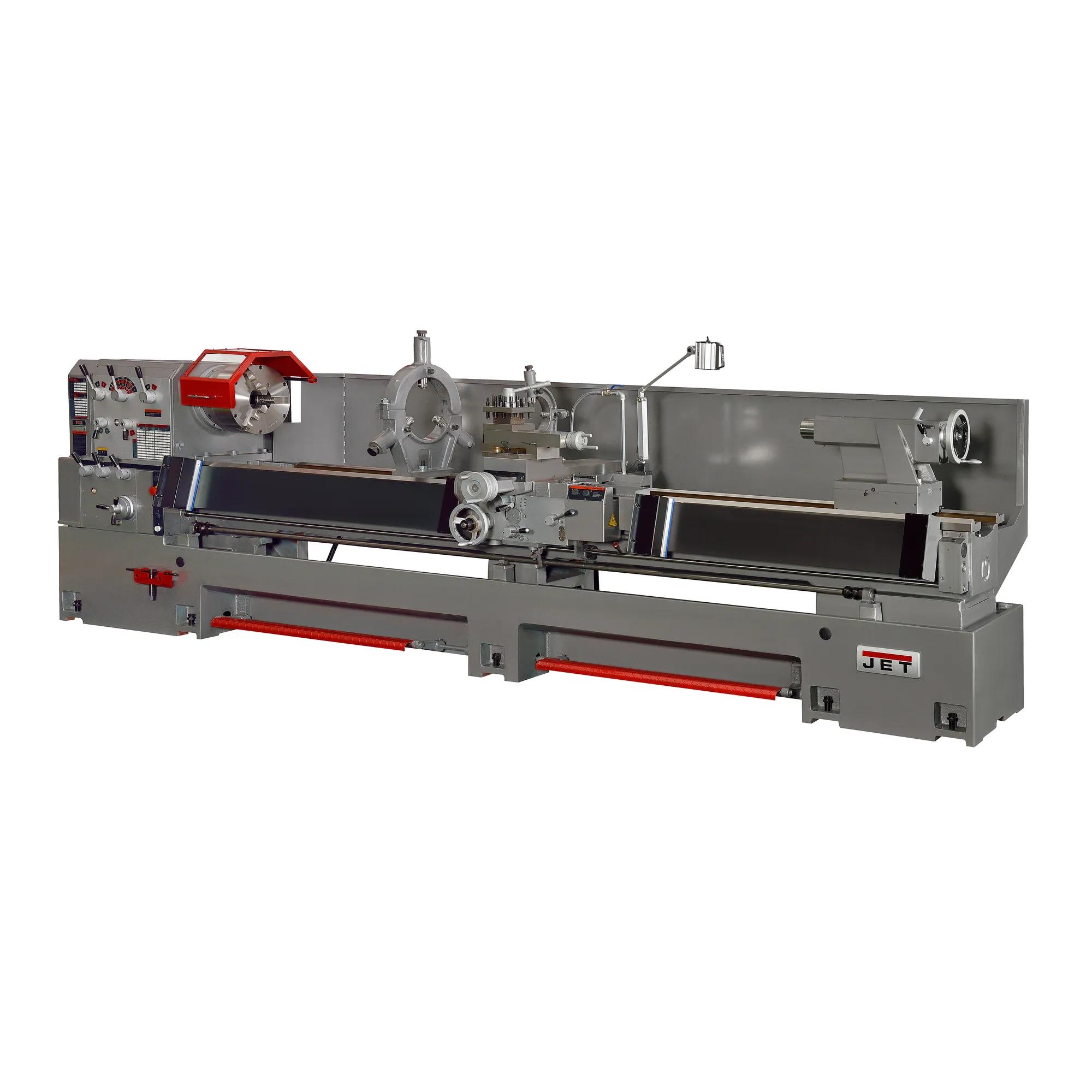

For shops that measure success in uptime, the JET GH-2680ZH 26x80 Large Spindle Bore ZH Industrial Gear Head Lathe delivers a 26" swing and a drivetrain built to run shift after shift without losing accuracy.

Capacity is where the GH-2680ZH stands out, with a 4-1/2" spindle bore for larger stock and 80" between centers for long shafts, rollers, and cylindrical parts.

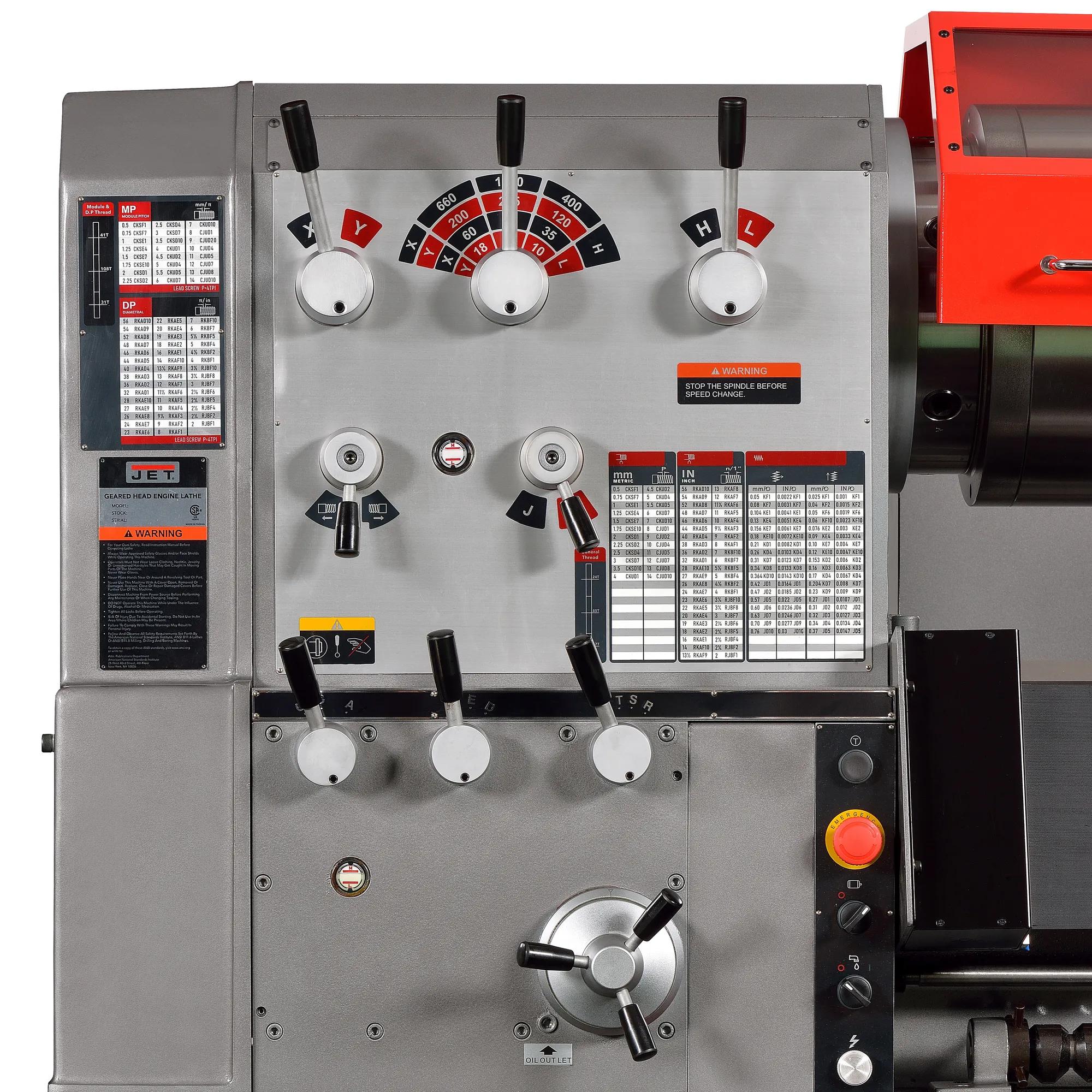

A 15 HP Three-Phase motor and 12-speed gear head combine to cover a 10-1000 RPM speed range, from heavy roughing to fine finish passes.

This particular GH-2680ZH package is equipped with a Acu-Rite 203 digital readout, giving the operator real-time positional feedback to cut setup time and reduce scrap.

Standard industrial safety features include:

• Electronic chuck key holder to reduce the risk of a key left in the chuck
• Foot brake for rapid spindle stopping

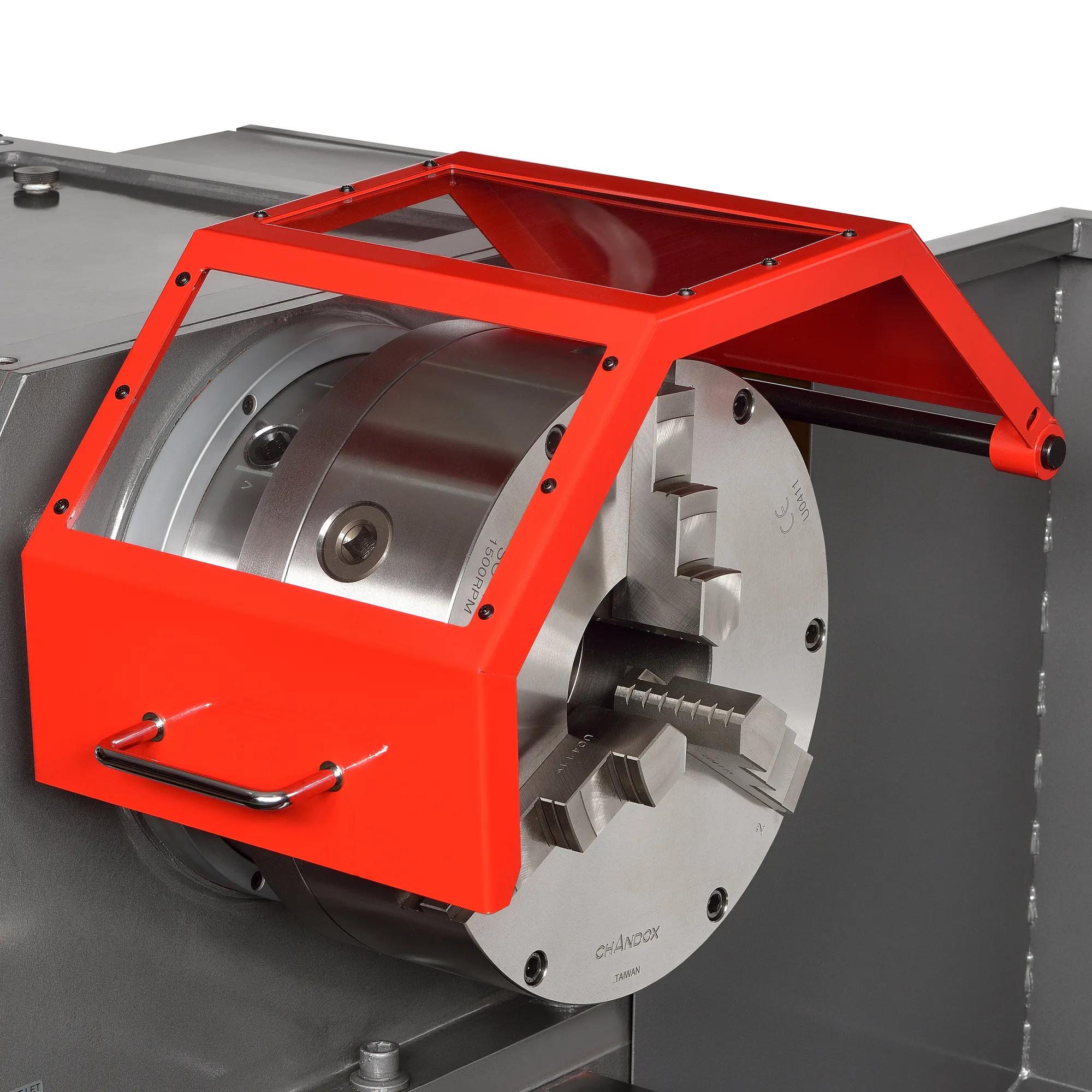

• Chuck guard at the point of operation
• Full-length splash guard
• Lead screw cover to keep debris out of the drive mechanism
• Integrated coolant system

Ownership costs stay predictable thanks to JET's 2-year parts and labor warranty on the GH-2680ZH, plus a pre-shipment inspection on every unit.

Shops in oil and gas equipment manufacturing and large-diameter roll and shaft turning rely on the GH-2680ZH for consistent, repeatable turning work, as do power generation and energy contractors.

OPTIONAL ACCESSORIES

• Collet Closer (Optional)
• Taper Attachment Kit (Optional)
