6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)
6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)

6" Helical Head Benchtop Jointer, 1HP, 115V 1PH(JJ-6HHBT)

Stock Number: JT9-718600

0 Reviews

No reviews yet.

  • 1 HP, 115V, single-phase
  • 6" jointing capacity

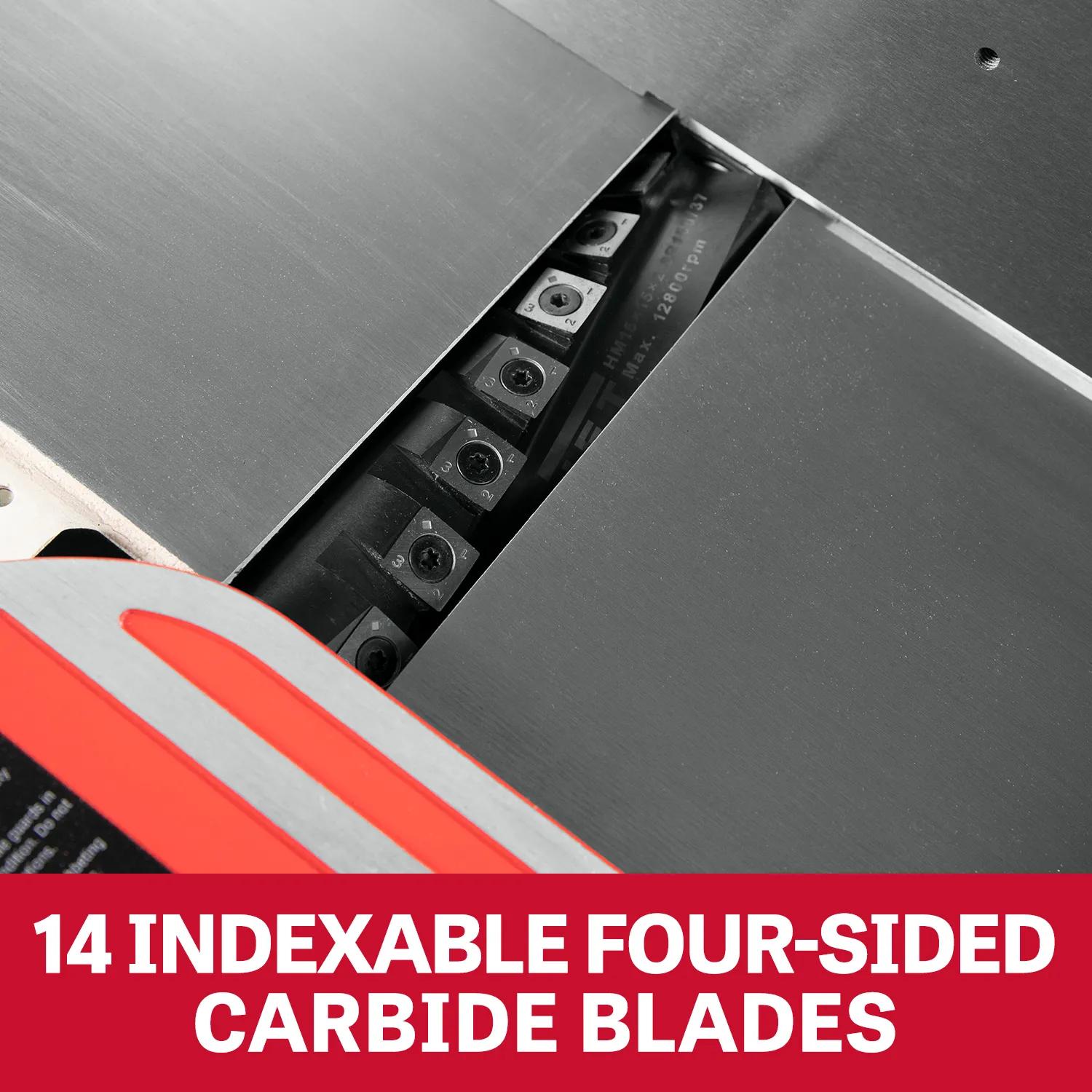

  • 14-knife helical head
  • 10,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Where rough lumber meets shop-ready stock. Engineered around shops where rough lumber turns into shop-ready stock, the JJ-6HHBT earns its place. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Five years of warranty stand behind every pass.

Features

  • Continuous-duty 14-knife helical head supports production-grade finishes across production cabinetry.
  • 6-inch jointing width — delivering panel-grade jointing in one setup.
  • Premium-grade 1 HP drive delivers consistent torque for full-capacity production runs.
  • Cast iron frame castings match the structural mass for the rigidity precision work demands.
  • Heat-treated feed gears hold spec — transmitting power without slop or drift across working shops.
  • Production-spec CSA/cUS listing — covering electrical safety compliance regulated sites actually verify across regulated industrial sites.

Specifications

  • SKU
    JT9-718600

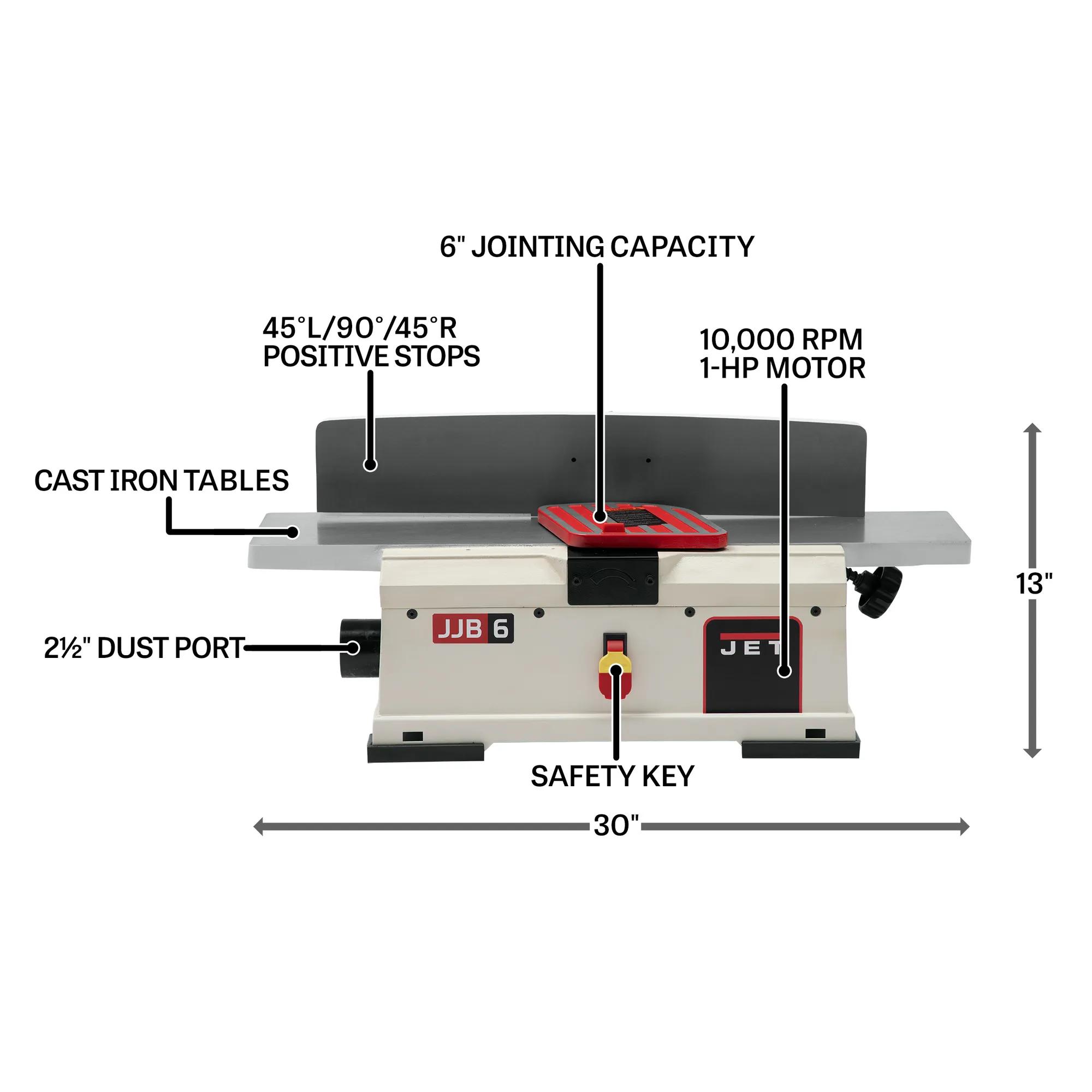

  • Assembled Dimensions
    30 x 20 x 13 in.
  • Coating
    None
  • Cuts Per Minute
    Continuous
  • Cutterhead Diameter
    2 in.
  • Cutterhead Speed
    10000 RPM
  • Cutting Capacity - Width
    6 in.

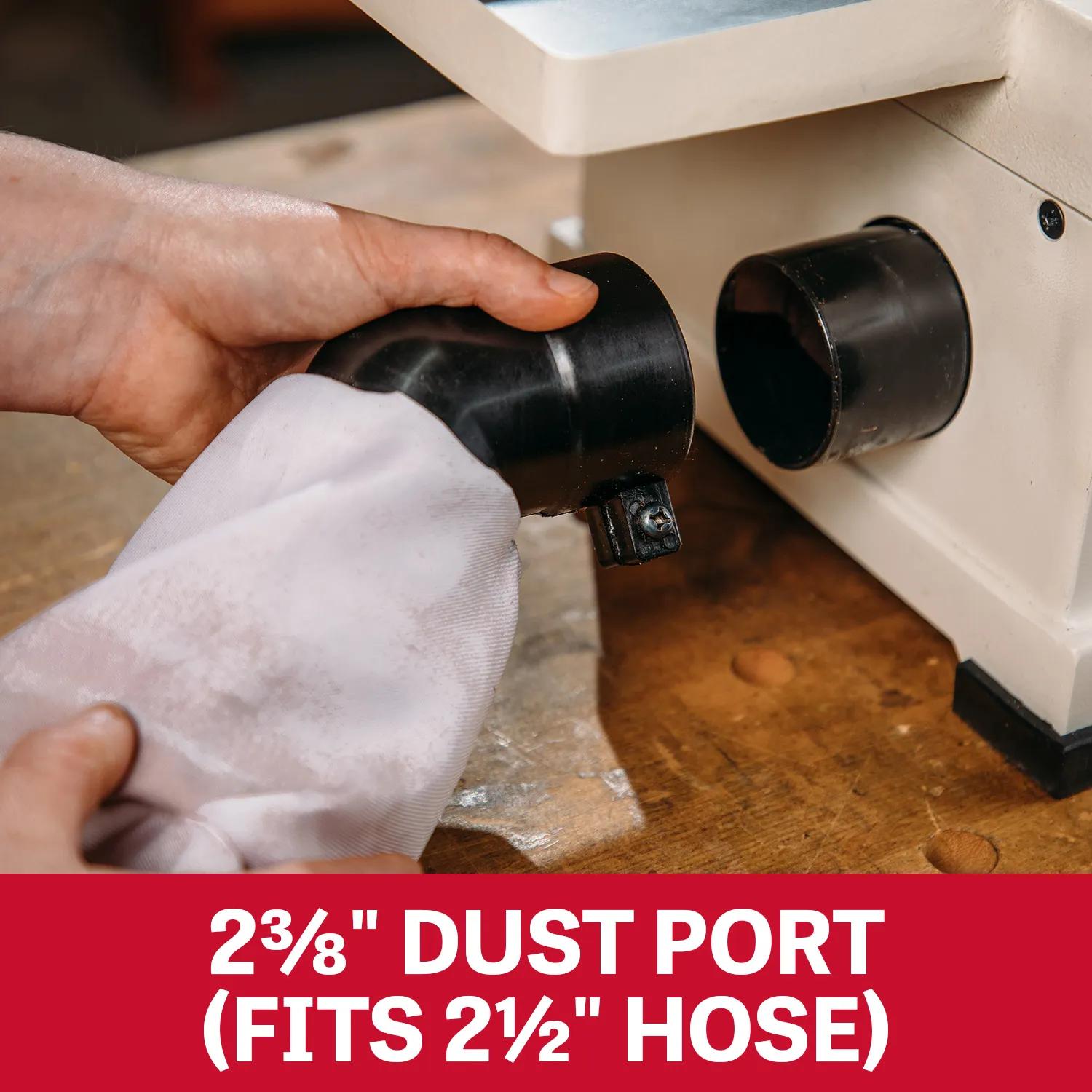

  • Dust Port Outside Diameter
    2-1/2 in.

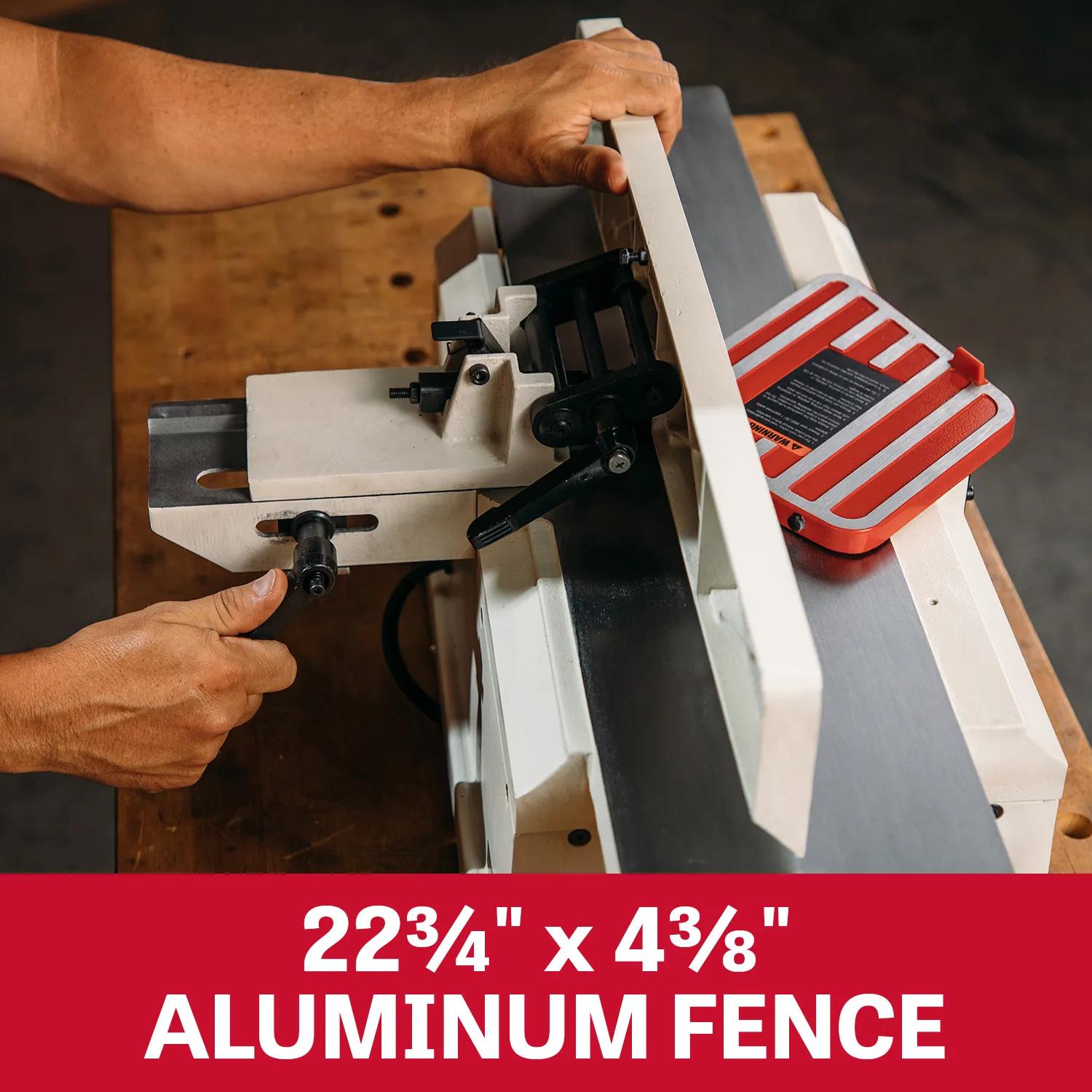

  • Fence Size L X H
    22-3/4 x 4-3/8 in.

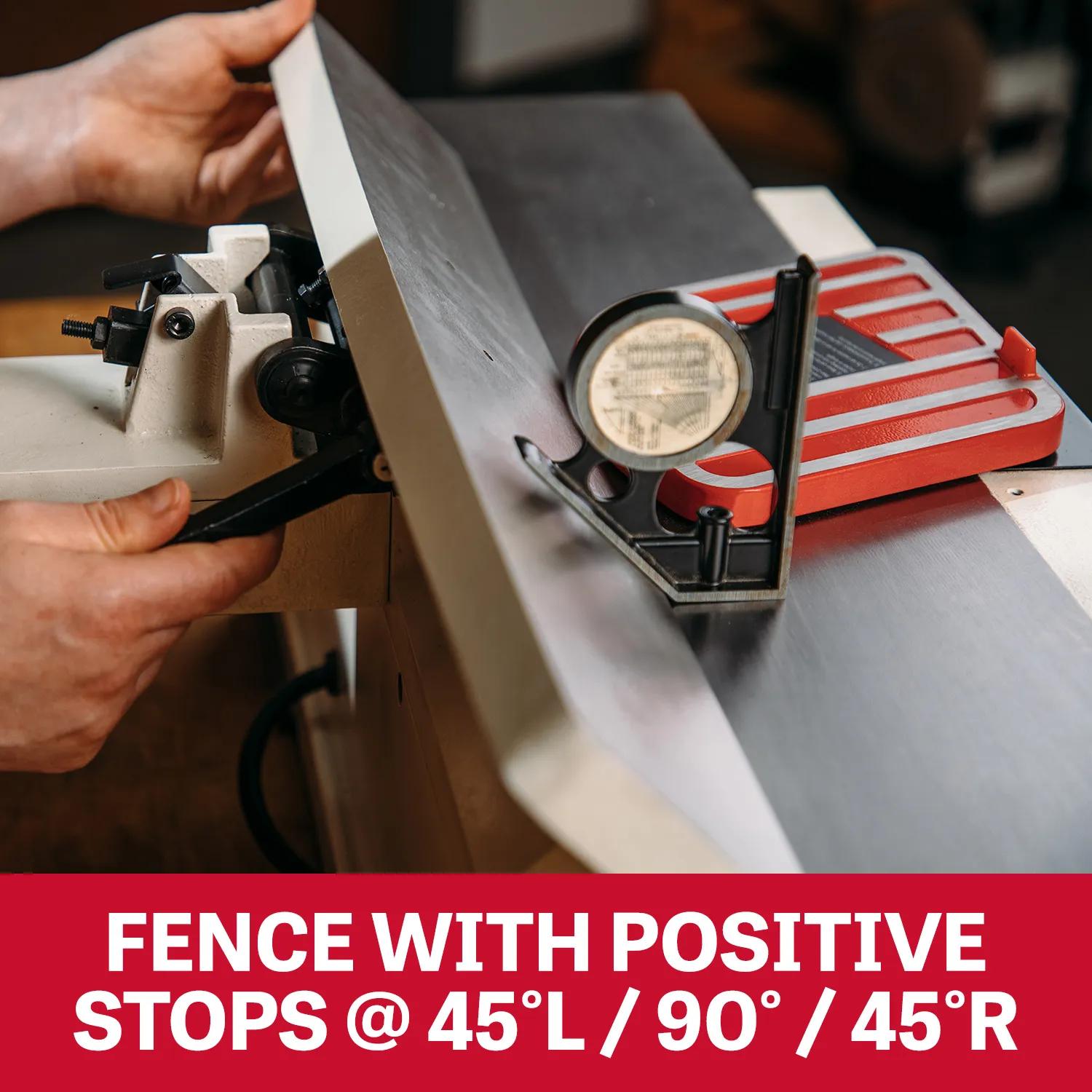

  • Fence Tilt
    -45 Deg. to +45 Deg.

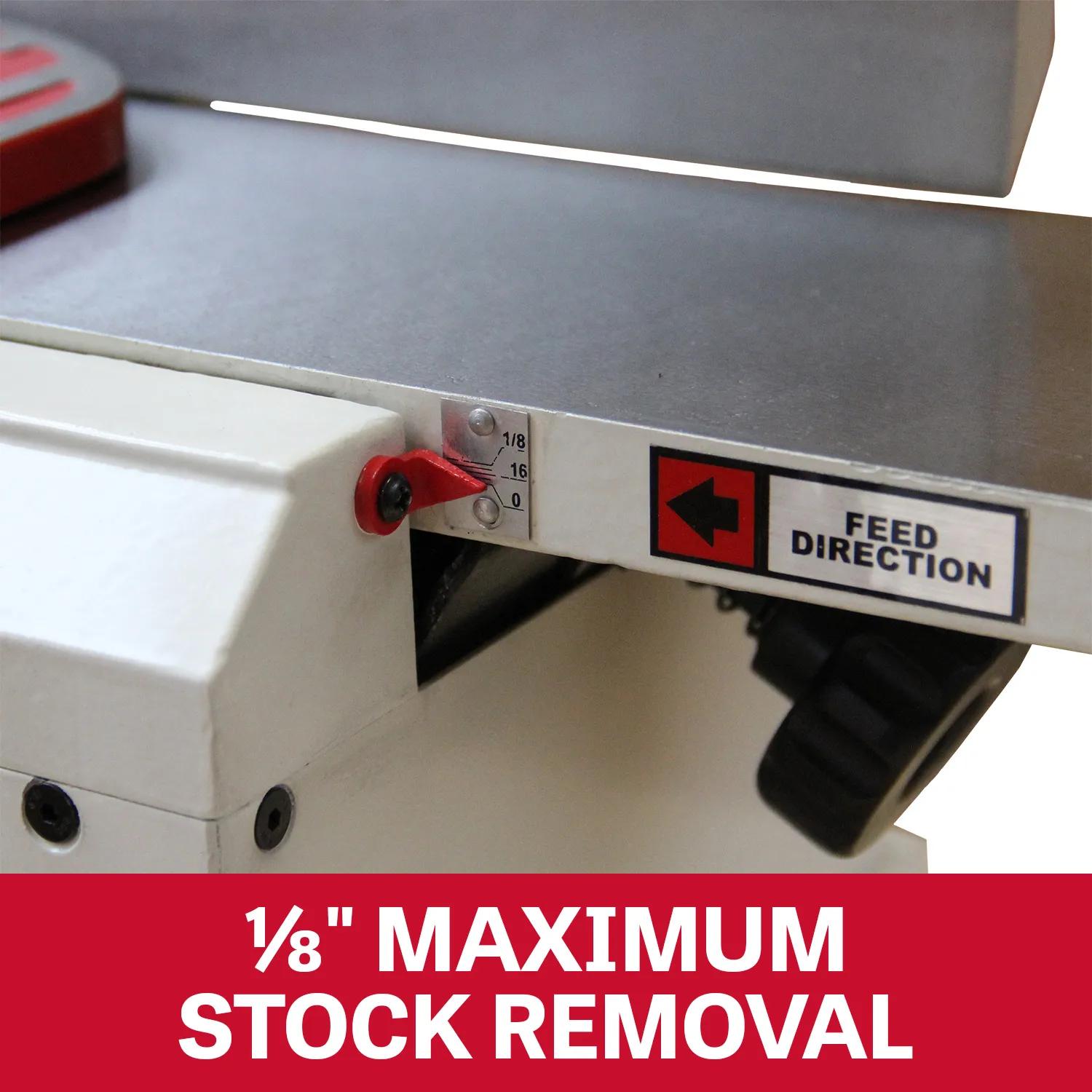

  • Full Width Depth Of Cut
    1/8 in.
  • Height
    13 in.
  • Horse Power
    1.1 HP
  • Infeed Table Length
    14 in.
  • Input Power
    115 V 1 Ph
  • Maximum Board Thickness
    6 in.
  • Maximum Board Width
    6 in.
  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    6 in.
  • Model Number
    JJ-6HHBT
  • Motor Amps
    15 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Knives
    14
  • Old Material Number
    718600
  • Outfeed Table Length
    13.625 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Rabbeting Ledge
    3-1/8 x 8-3/4 in.
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    71
  • SAP Net weight
    67
  • Table Height
    Variable
  • Table Size
    28-5/8 x 6-1/4 in.
  • Type of Cutterhead
    Helical Head
  • UPC
    731325840902
  • Warranty
    Five Years
