10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)
10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)
10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)
10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)
10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)
10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)
10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)

10" Jointer / Planer Combo w/ Stand, 1.5HP, 120V 1PH(JJP-10BTOS)

Stock Number: JT9-707410

0 Reviews

No reviews yet.

  • 1.5 HP, 120V, single-phase
  • 10" planing capacity

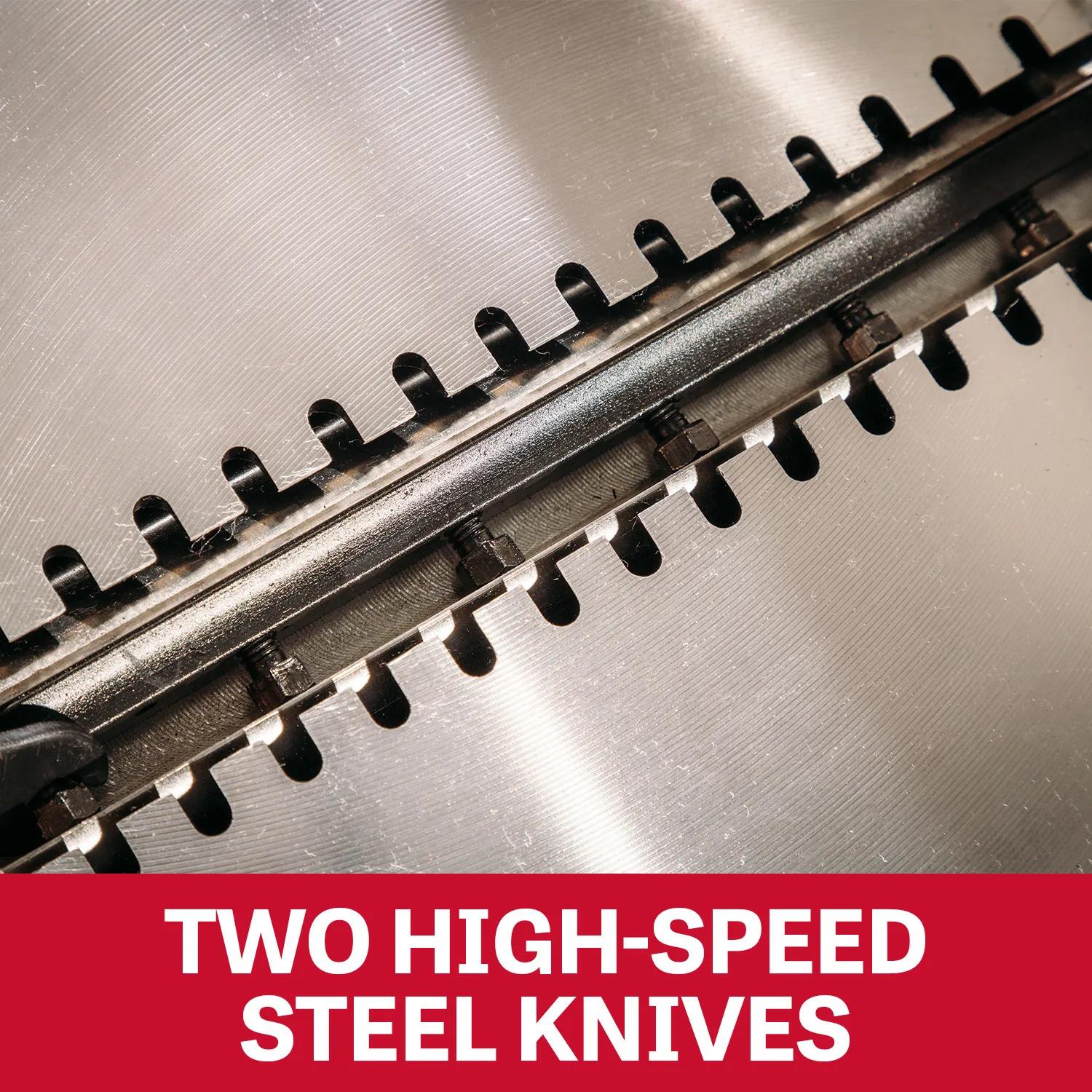

  • 2-knife cutterhead
  • 9,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Built for the cuts that turn raw stock into finished material. Designed for shops where rough lumber turns into shop-ready stock, the JJP-10BTOS stands up to the duty cycle. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long run — and warrantied for it.

Features

  • Engineered 10-inch planing capacity covers production-grade widths for production-grade planing capacity.
  • 1.5 HP, 120V single-phase induction motor — running quieter and cooler than equivalent open-frame designs, sized without thermal drift across long cycles.
  • Reversible 2-knife design — doubling knife life with reversible steel construction.
  • Heat-treated cast iron tables resist deflection — staying true under loads that warp lighter castings.
  • Factory-tested hardened and ground transmission gears deliver dimensional stability for power-transmission accuracy production work depends on.
  • Shop-rated CSA/cUS listing — covering electrical safety compliance regulated sites actually verify across regulated industrial sites.

Specifications

  • SKU
    JT9-707410
  • Amp Draw (amps)
    15 A
  • Assembled Dimensions
    37-1/2 x 18-1/2 x 44 in.
  • Coating
    None
  • Cuts Per Minute
    18000
  • Cutterhead Speed
    9000 RPM
  • Cutting Capacity - Width
    10 in.

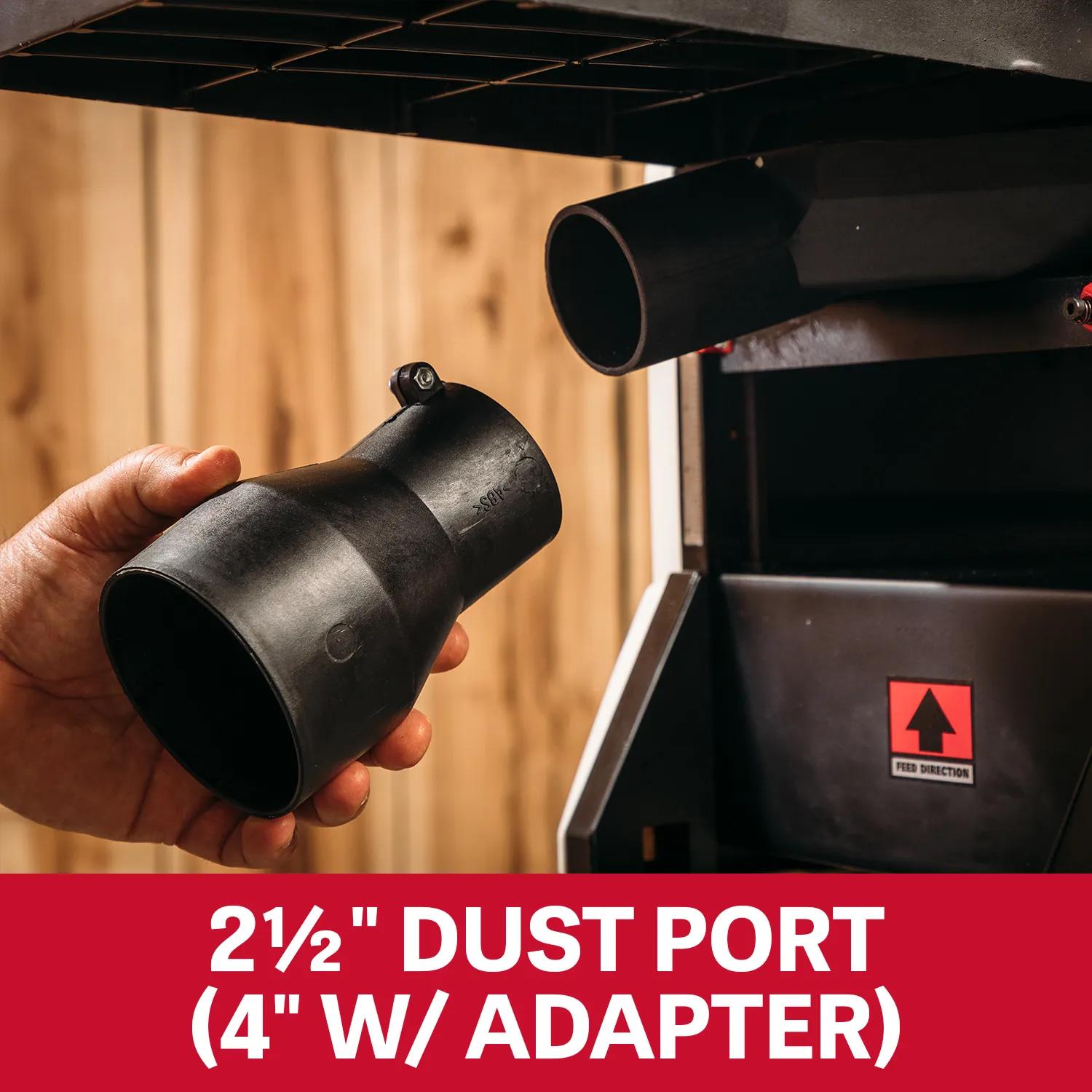

  • Dust Port Outside Diameter
    2.5 or 4 in.
  • Feed Rate
    19.5 FPM
  • Fence Size L X H
    25 x 4-7/8 in.

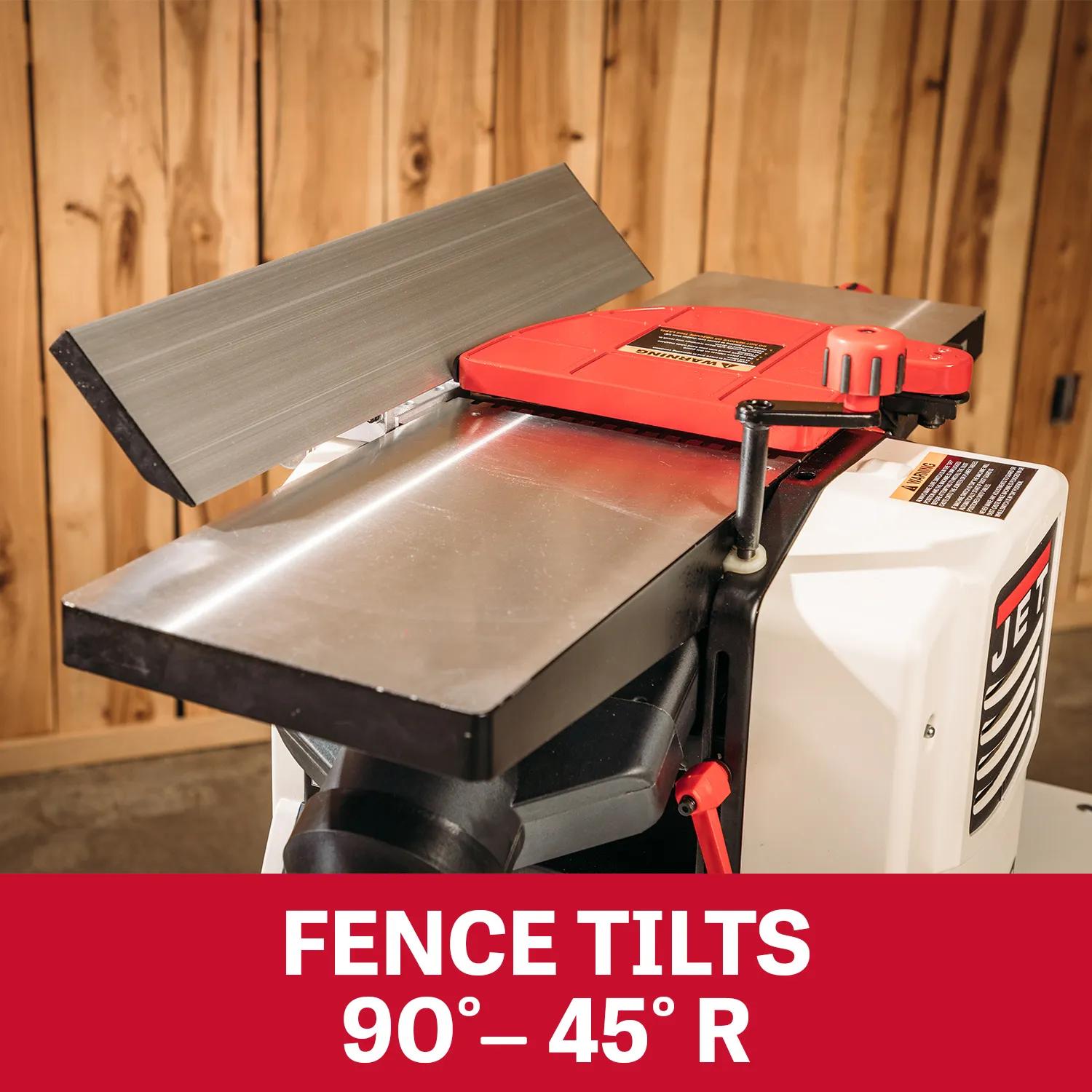

  • Fence Tilt
    90 Deg. to 45 Deg. R
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    Variable
  • Horse Power
    1.5 HP
  • Infeed Table Length
    18 in.
  • Input Power
    120 V 1 Ph
  • Jointer Cutting Capacity
    10 x 1/8 in.
  • Knife Size
    10-1/4 x 0.65 x 0.06 in.
  • Maximum Board Thickness
    4.5 in.
  • Maximum Board Width
    10 in.
  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    6 in.
  • Model Number
    JJP-10BTOS
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    120 V
  • Number of Knives
    2
  • Old Material Number
    707410
  • Outfeed Table Length
    18 in.
  • Planer Cutting Capacity
    10 x 4-1/2 in.
  • Positive Stops
    90 Deg. and 45 Deg. R
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    400 - 400 CFM
  • SAP Gross Weight
    83.8
  • SAP Net weight
    73.9
  • Style Type
    Benchtop
  • Table Size
    Planer: 10-3/4 x 10-1/2 in., Jointer: 36 x 10-1/4 in.
  • Type of Cutterhead
    Straight Knife
  • UPC
    662756072139
  • Warranty
    Five Years
