8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)
8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)
8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)
8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)
8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)
8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)
8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)

8" Jointer / Planer Bench Top Combo, 1.5HP, 120V 1PH(JJP-8BT)

Stock Number: JT9-707400

0 Reviews

No reviews yet.

  • 1.5 HP, 120V, single-phase
  • 8" planing capacity
  • 2-knife cutterhead
  • 9,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Where rough lumber meets shop-ready stock. The JJP-8BT fits cabinet and furniture makers running daily — and the cycle counts they generate. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Five years of warranty stand behind every pass.

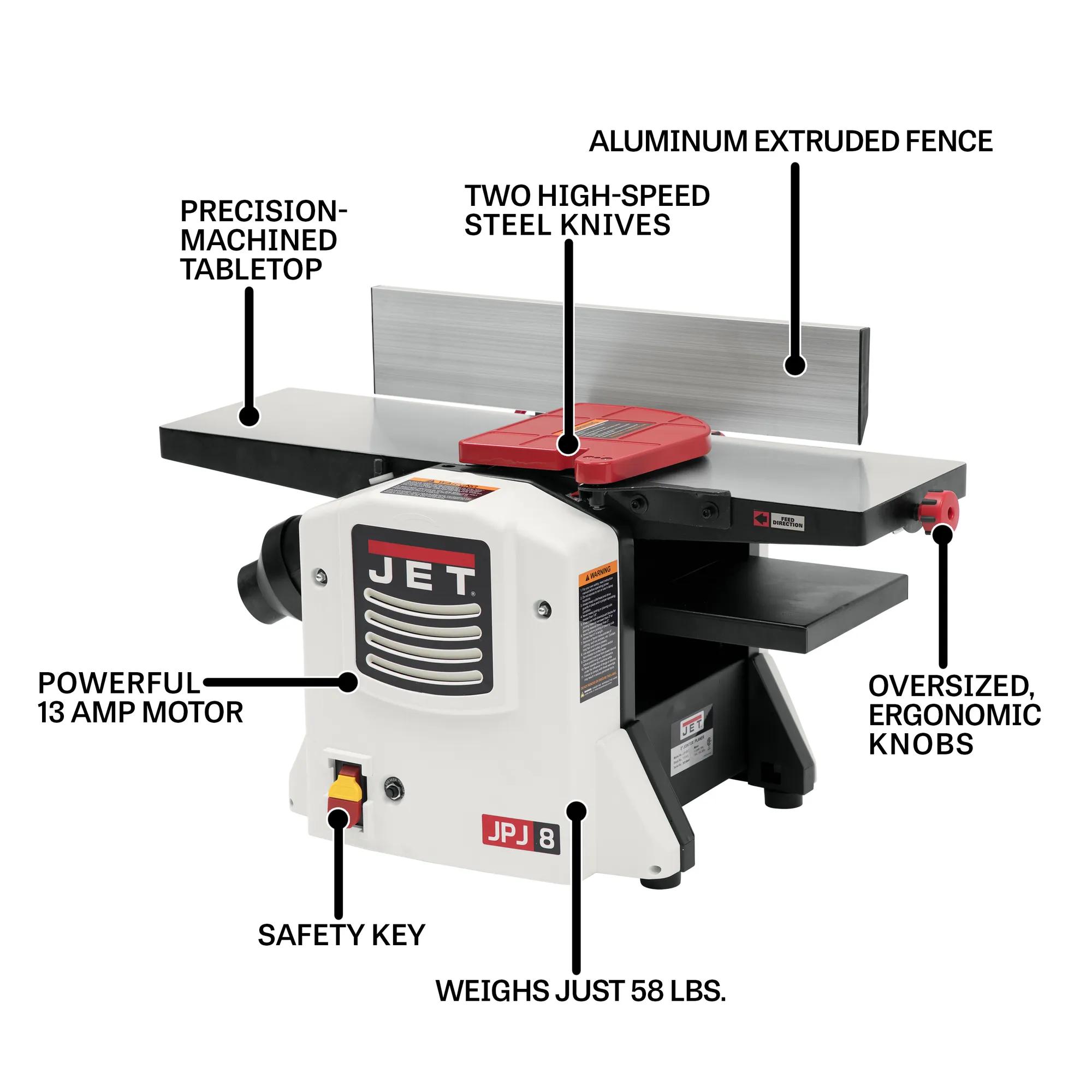

Features

  • 8-inch planing capacity handles full-width board work for the standard board widths production shops run.
  • Continuous-duty 1.5 HP drive delivers consistent torque for the working loads daily production generates.
  • 2-knife straight cutterhead — handling the cycle counts production planing generates.
  • Cast iron table castings hold reference flat for vibration dampening welded steel can't match.
  • Heavy-duty hardened and ground power-train components deliver dimensional stability for power transmission consistency across cycles.
  • Standard CSA/cUS certification covers regulated procurement for facilities with strict procurement and safety compliance.

Specifications

  • SKU
    JT9-707400
  • Amp Draw (amps)
    15 A
  • Assembled Dimensions
    31 x 16-1/2 x 18-1/2 in.
  • Coating
    None
  • Cuts Per Minute
    18000
  • Cutterhead Speed
    9000 RPM
  • Cutting Capacity - Width
    8 in.

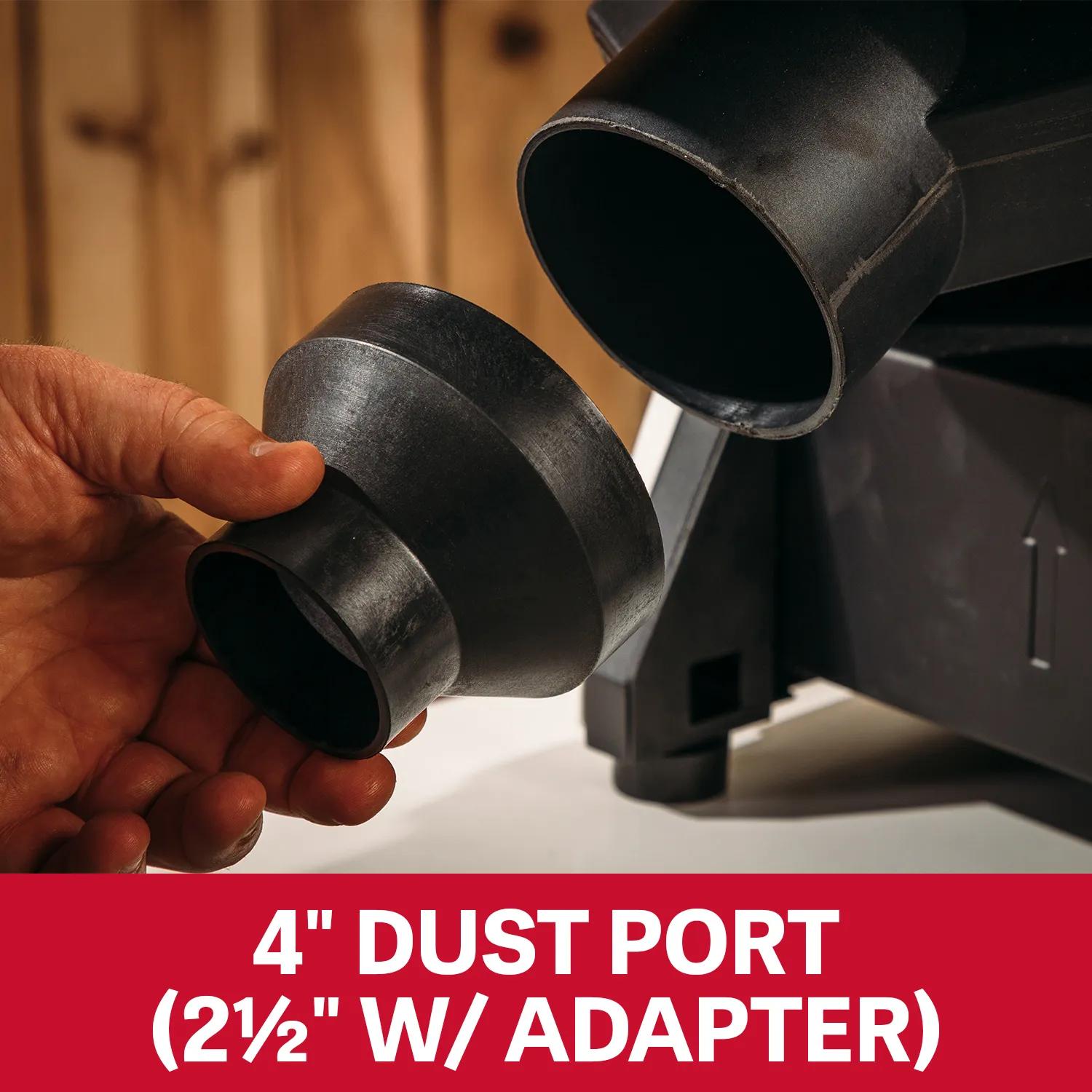

  • Dust Port Outside Diameter
    2.5 or 4 in.
  • Feed Rate
    19.5 FPM
  • Fence Size L X H
    21 x 4-1/8 in.

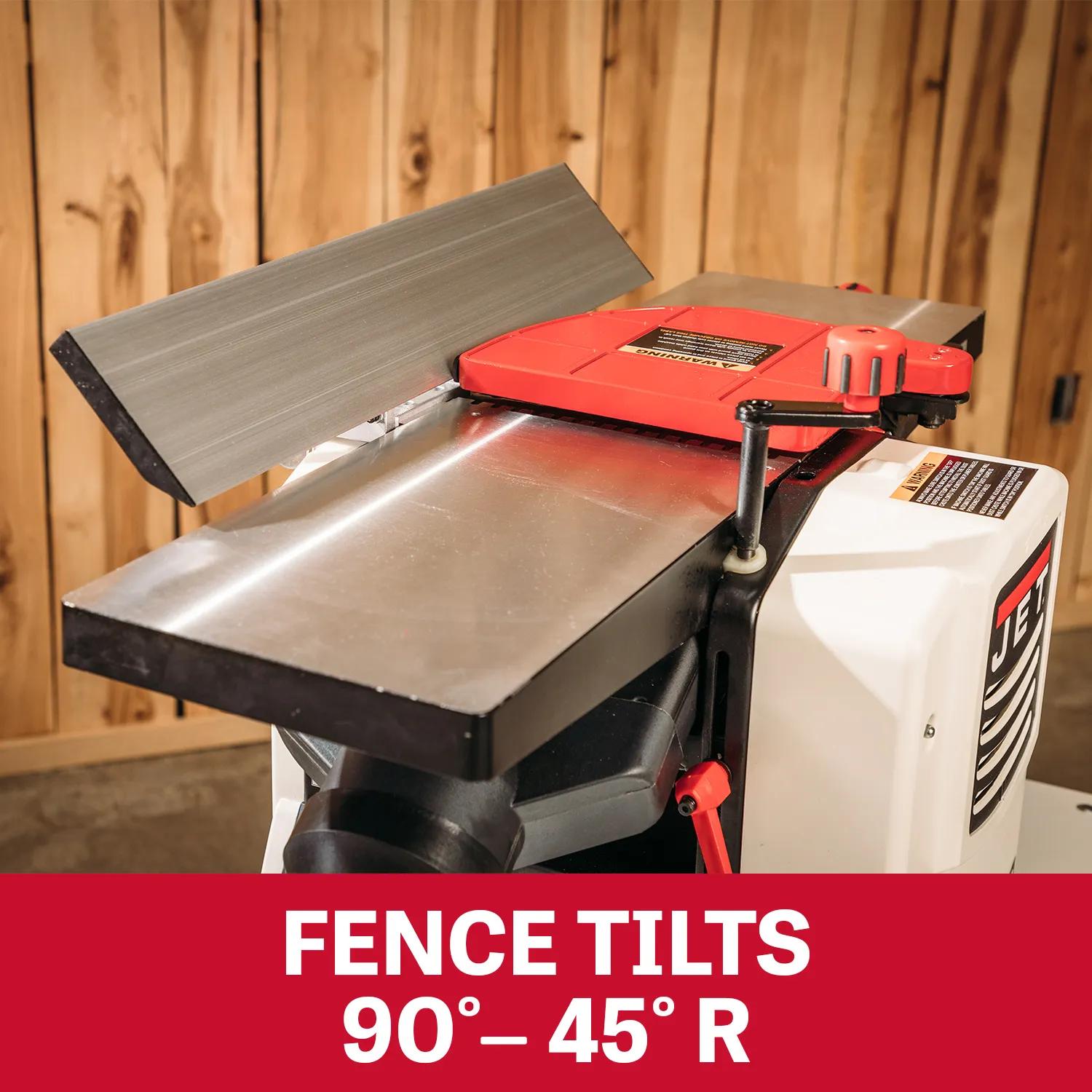

  • Fence Tilt
    90 Deg. to 45 Deg. R
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    Variable
  • Horse Power
    1.5 HP
  • Infeed Table Length
    14 in.
  • Input Power
    120 V 1 Ph
  • Jointer Cutting Capacity
    8 x 1/8 in.

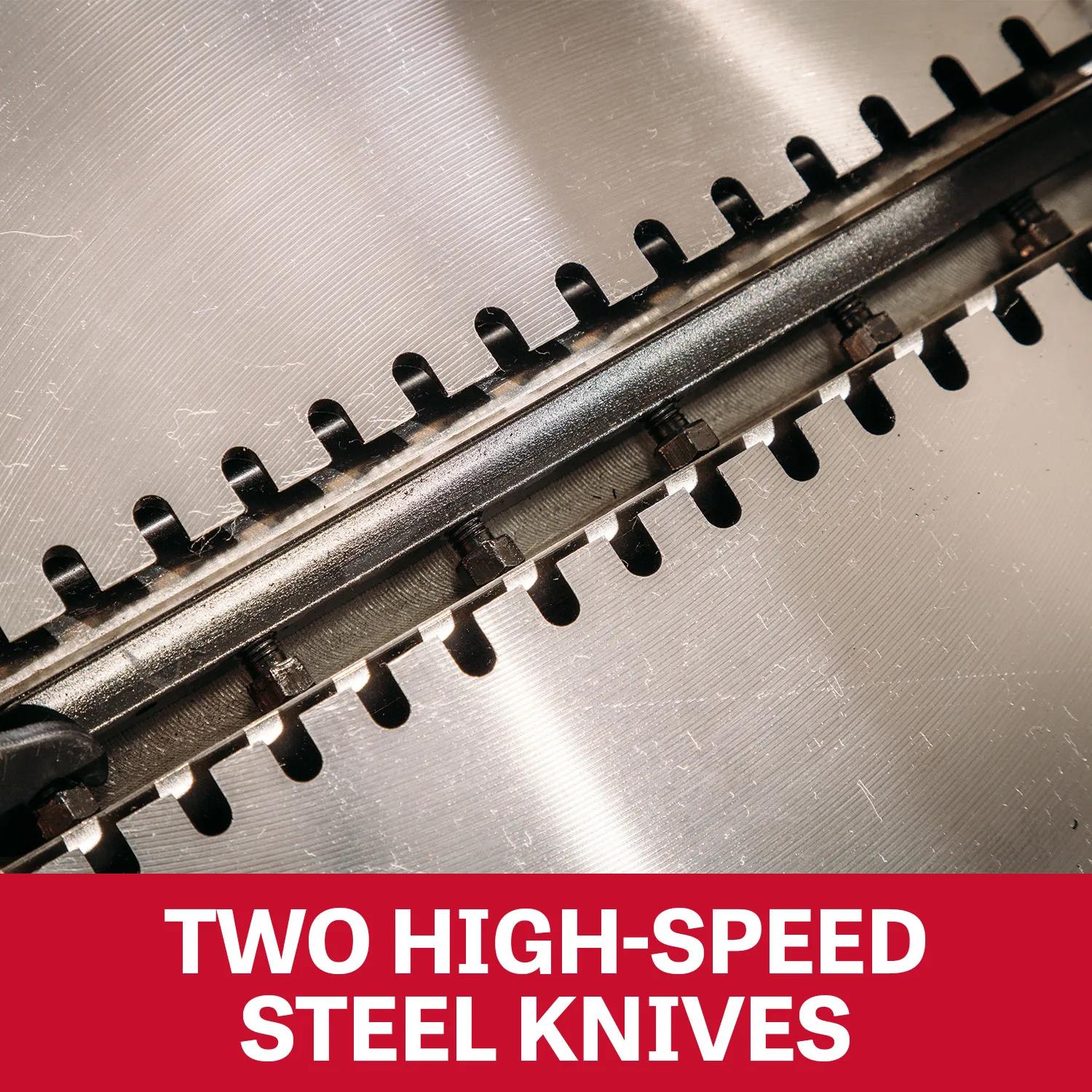

  • Knife Size
    8-1/4 x 0.65 x 0.06 in.
  • Maximum Board Thickness
    4.5 in.
  • Maximum Board Width
    8 in.
  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    6 in.
  • Model Number
    JJP-8BT
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    120 V
  • Number of Knives
    2
  • Old Material Number
    707400
  • Outfeed Table Length
    14 in.
  • Planer Cutting Capacity
    8 x 4-1/2 in.
  • Positive Stops
    90 Deg. and 45 Deg. R
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    400 - 400 CFM
  • SAP Gross Weight
    68.3
  • SAP Net weight
    58.4
  • Style Type
    Benchtop
  • Table Size
    Planer: 10-5/8 x 8-1/2 in., Jointer: 29 x 8-1/4 in.
  • Type of Cutterhead
    Straight Knife
  • UPC
    662756072122
  • Warranty
    Five Years
