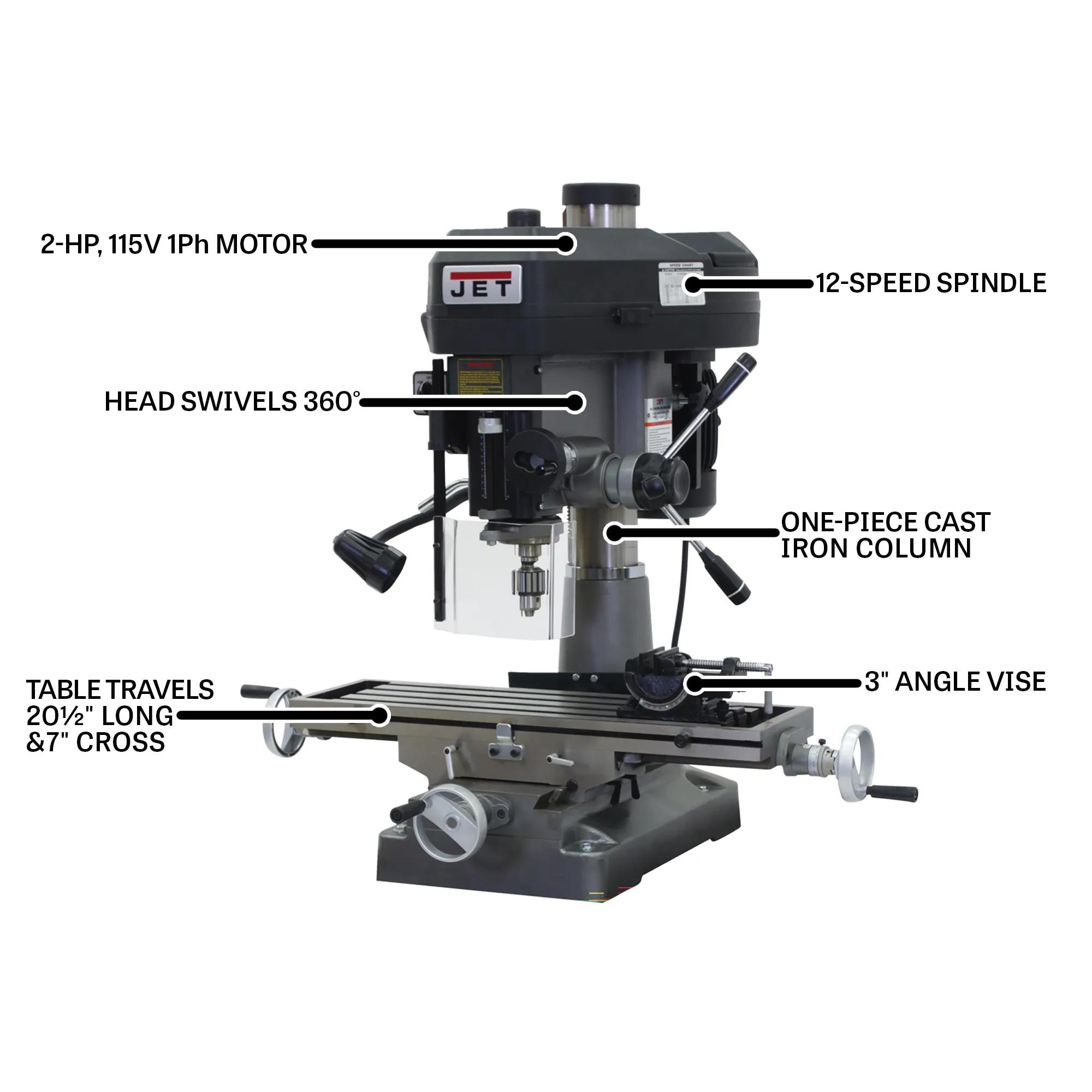

9" x 32" Mill/Drill w/ X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18)
9" x 32" Mill/Drill w/ X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18)
9" x 32" Mill/Drill w/ X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18)

9" x 32" Mill/Drill w/ X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18)

Stock Number: JT9-350119

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9-1/2" x 32-1/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW

Product Details

Rigid construction, accurate cuts, repeatable results. The JMD-18 fits shops that hold tolerance through full production runs — and the cycle counts they generate. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Industrial-grade 2 HP single-phase drive — running quieter and cooler than equivalent open-frame designs, built for production environments.
  • Generous 9-1/2 in. x 32-1/4 in. table surface — delivering the fixture mounting flexibility production work demands across production fabrication.
  • Shop-rated R-8 spindle interface — delivering tooling compatibility shops already own.
  • Industrial 5-inch spindle travel — putting deep-hole work in reach without secondary setups across production milling.
  • 150 - 3,000 RPM envelope delivers the speed range for the working envelope production cutting generates.
  • Meehanite-cast main castings dampen vibration — running cooler under sustained loads than commercial-grade castings.

Specifications

  • SKU
    JT9-350119
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    42-1/2 x 39-3/4 x 43-1/2 in.
  • Base Size
    15-3/4 x 23-3/4 in.
  • Collet Size
    4-1/2 in.
  • Face Mill Capacity
    3 in.
  • Head Movement
    360 Deg.
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Maximum Table Travel
    20-1/2 in.
  • Model Number
    JMD-18
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Spindle Speeds
    12
  • Old Material Number
    350119
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Range Of Spindle Speeds
    150 - 3000 RPM
  • SAP Gross Weight
    737
  • SAP Net weight
    670
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Mill/Drill
  • Swing
    15-7/8 in.
  • T-Slot Centers
    2-1/8 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    7 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Size
    9-1/2 x 32-1/4 in.
  • UPC
    731325177497
  • Warranty
    Two Years
  • Work Table Weight Capacity
    400 lbs
