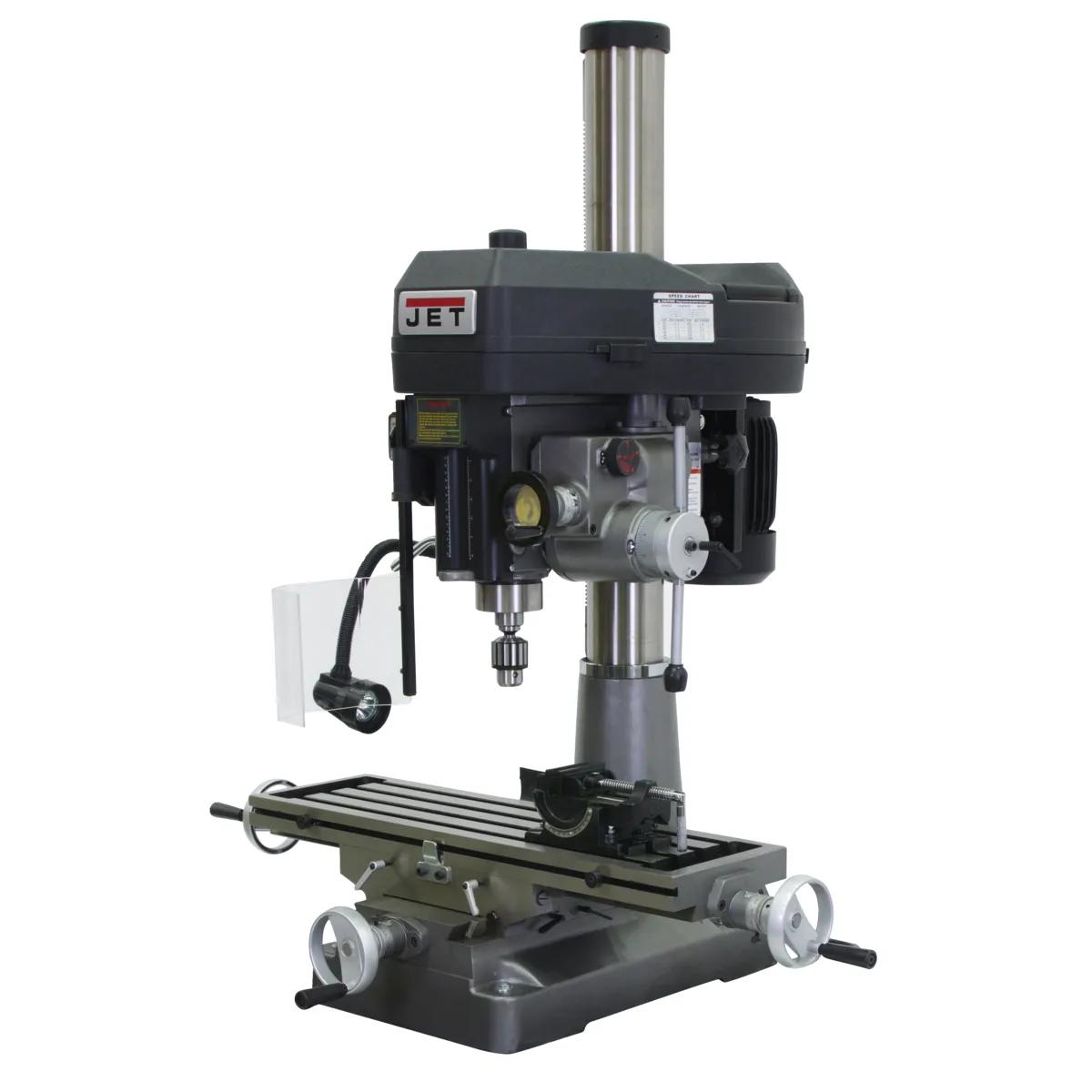

9" x 32" Mill/Drill w/ ACU-RITE 203 DRO & X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18PFN)

Stock Number: JT9-350120

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9-1/2" x 31-3/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Where setups become parts. The JMD-18PFN is built for industrial machining environments running long-cycle production. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Premium-grade 2 HP single-phase induction motor delivers torque for the operating envelope production demands.
  • Industrial 9-1/2 in. x 31-3/4 in. table — putting larger-part milling in reach without compromise, sized for the table-bolt patterns production shops already drill.
  • Tolerance-grade R-8 spindle interface — fitting the tooling library production shops already maintain.
  • 5-inch spindle travel covers the vertical reach for the depth-of-cut production schedules generate.
  • Variable spindle speeds across 150 - 3,000 RPM eliminate speed compromises for slow torque-heavy work and high-speed finishing in one machine.
  • Certified Meehanite column castings handle structural authority for the structural authority production turning demands.

Specifications

  • SKU
    JT9-350120
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    42-1/2 x 39-3/4 x 51-1/2 in.
  • Base Size
    15-3/4 x 23-3/4 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    Acu-Rite 203
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Pully
  • Face Mill Capacity
    3 in.
  • Head Movement
    360 Deg.
  • Maximum Distance Spindle To Table
    26 in.
  • Maximum Table Travel
    20-1/2 in.
  • Number of Spindle Speeds
    12
  • Old Material Number
    350120
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Down Feed Rate
    0.0047, 0.007, 0.01 IPR
  • Range Of Spindle Speeds
    150 - 3000 RPM
  • SAP Gross Weight
    847
  • SAP Net weight
    660
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Mill/Drill
  • Swing
    15-7/8 in.
  • T-Slot Centers
    2-1/8 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    7 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Size
    9-1/2 x 31-3/4 in.
  • UPC
    662755518683
  • Warranty
    Two Years
  • Work Table Weight Capacity
    400 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
