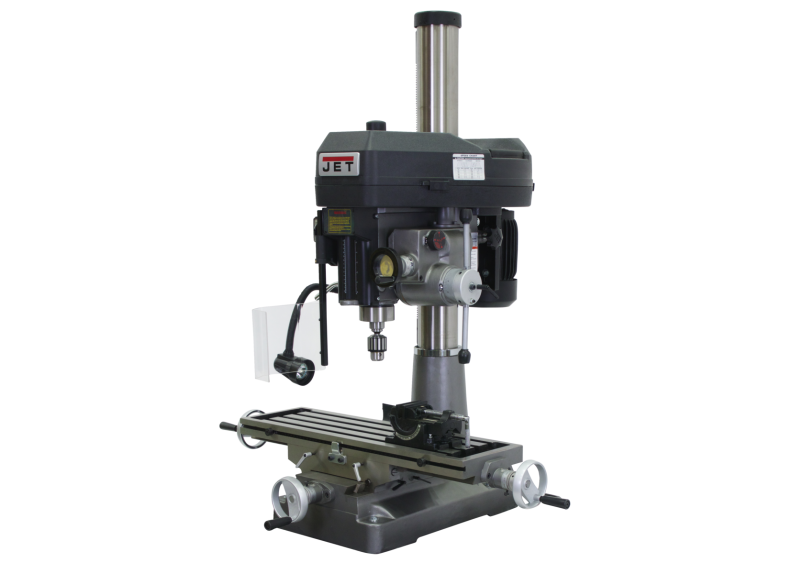

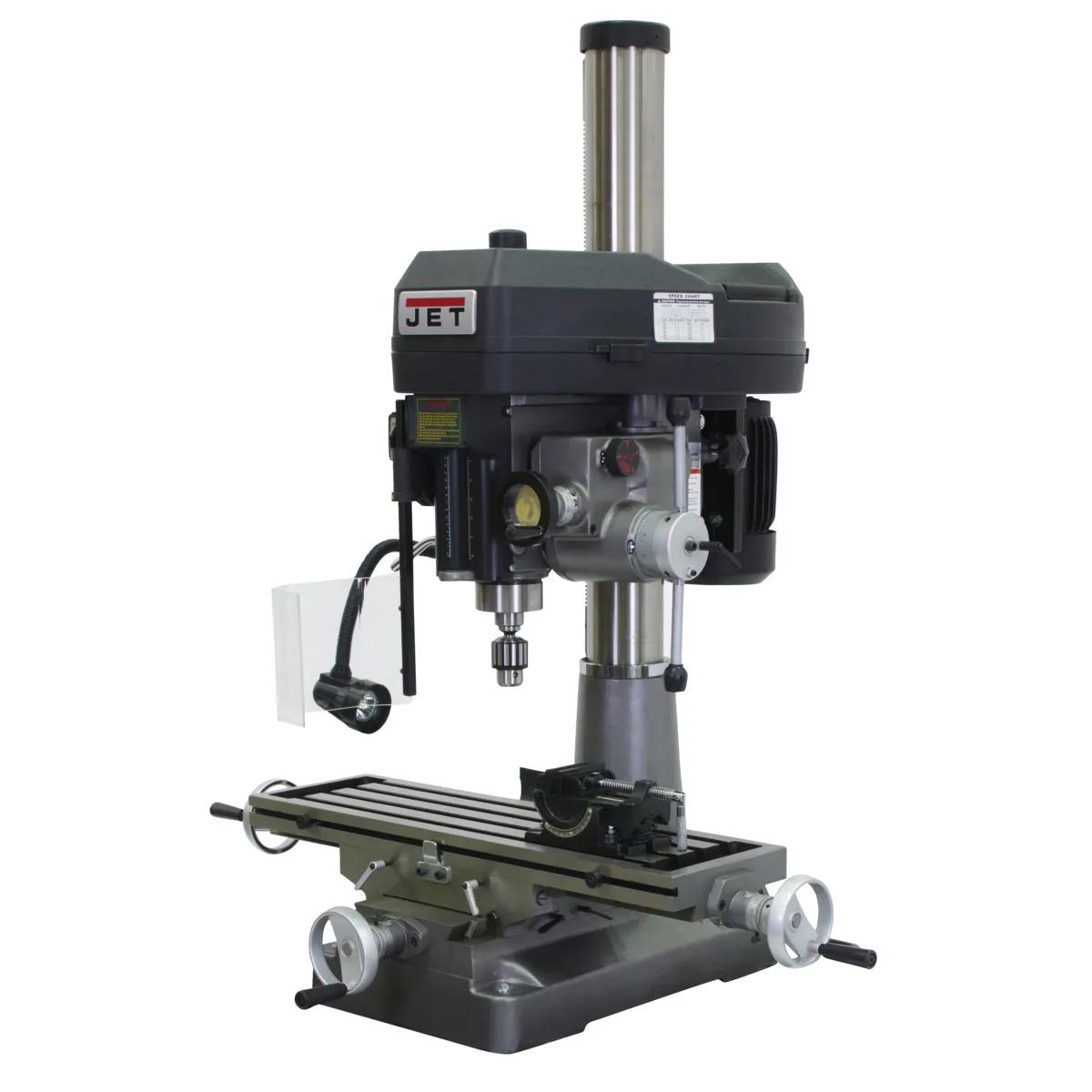

9" x 32" Mill/Drill w/ NMS800 DRO & X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18PFN)

Stock Number: JT9-350129

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9-1/2" x 31-3/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built around the spindle, the table, and the operator who runs them. The JMD-18PFN answers the work generated by shops that hold tolerance through full production runs. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Brushless induction design at 2 HP delivers reliable output for mixed-material work envelopes.
  • Production-grade 9-1/2 in. x 31-3/4 in. table accommodates production setups for the workpiece sizes production milling demands.
  • Premium-grade R-8 spindle interface — accepting the end mills, drill chucks, and collets this market depends on.
  • Production-spec 5-inch spindle travel — expanding the operating envelope without compromise across professional cutting environments.
  • Shop-rated 150 - 3,000 RPM range — eliminating the speed compromises older designs forced.
  • Industrial-spec Meehanite saddle castings — delivering structural authority commercial-grade iron lacks, sized for the cycle counts production turning generates.

Specifications

  • SKU
    JT9-350129
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    42-1/2 x 39-3/4 x 51-1/2 in.
  • Base Size
    15-3/4 x 23-3/4 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    Newall NMS800
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Pully
  • Face Mill Capacity
    3 in.
  • Head Movement
    360 Deg.
  • Maximum Distance Spindle To Table
    26 in.
  • Maximum Table Travel
    20-1/2 in.
  • Number of Spindle Speeds
    12
  • Old Material Number
    350129
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Down Feed Rate
    0.0047, 0.007, 0.01 IPR
  • Range Of Spindle Speeds
    150 - 3000 RPM
  • SAP Gross Weight
    710
  • SAP Net weight
    710
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Mill/Drill
  • Swing
    15-7/8 in.
  • T-Slot Centers
    2-1/8 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    7 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Size
    9-1/2 x 31-3/4 in.
  • UPC
    662755514432
  • Warranty
    Two Years
  • Work Table Weight Capacity
    400 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
