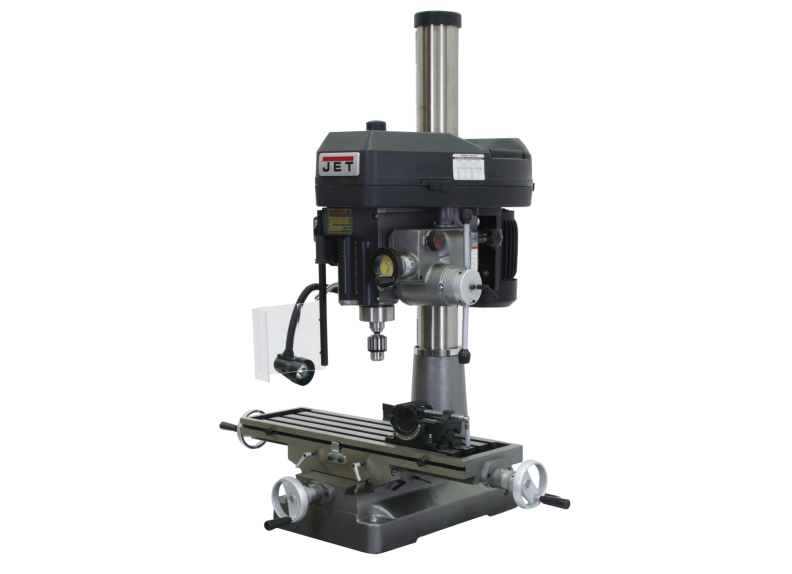

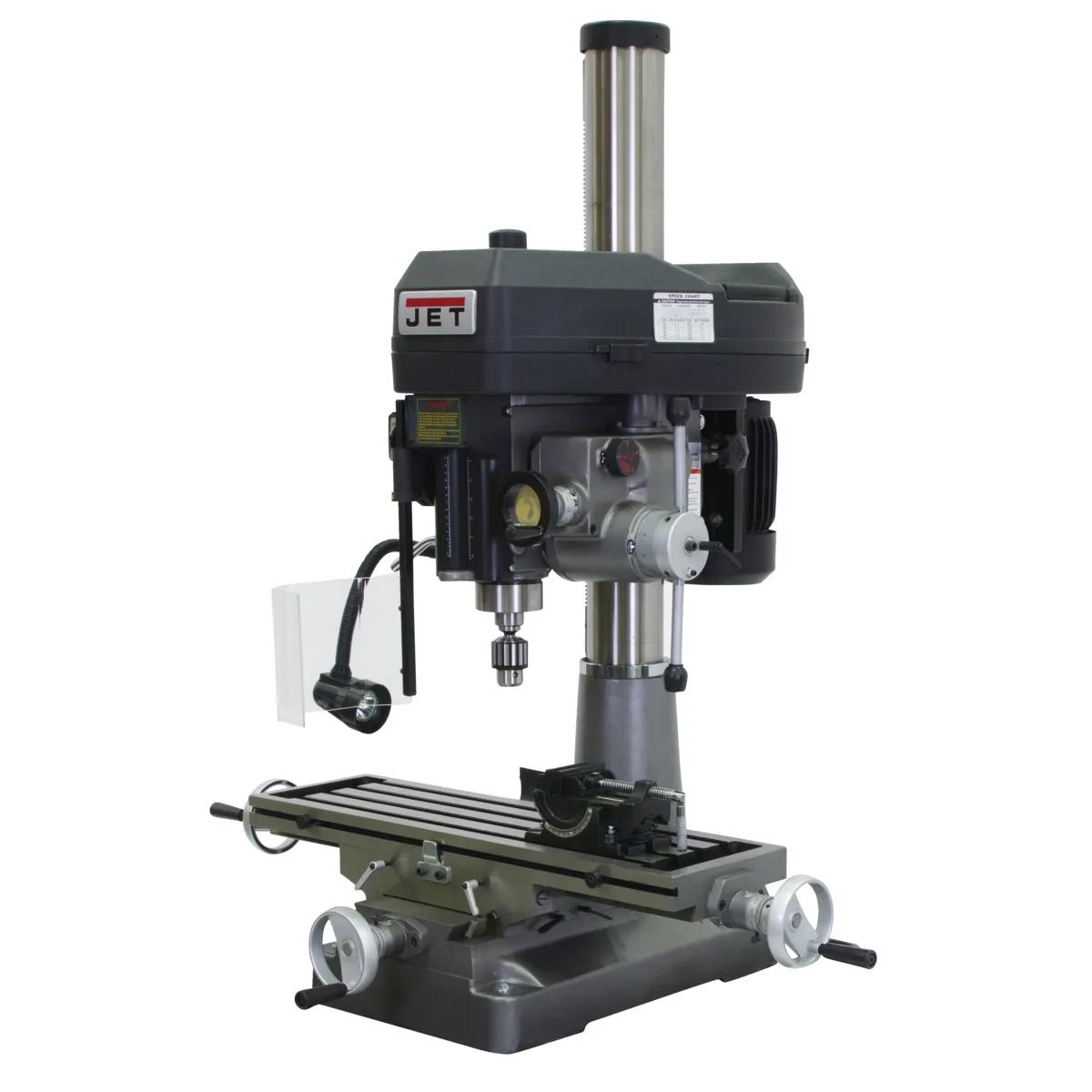

9" x 32" Mill/Drill w/ X-Axis Table Powerfeed, 2HP, 115/230V 1PH(JMD-18PFN)

Stock Number: JT9-350140

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9-1/2" x 31-3/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. Engineered around machinists who measure success in tenths, the JMD-18PFN earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Working-grade 2 HP drive matches consistent torque for the duty cycles production schedules generate.
  • Factory-tested 9-1/2 in. x 31-3/4 in. table accommodates production setups for the workpiece sizes production milling demands.
  • R-8 spindle taper matches the standard end-mill library for the tooling library every production operator already maintains.
  • Industrial-spec 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across industrial drilling.
  • Heavy-duty 150 - 3,000 RPM range — delivering the speed envelope production cutting demands.
  • Premium Meehanite reference surfaces earn their place for stability where commercial-grade iron warps.

Specifications

  • SKU
    JT9-350140
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    42-1/2 x 39-3/4 x 51-1/2 in.
  • Base Size
    15-3/4 x 23-3/4 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    No
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Pully
  • Face Mill Capacity
    3 in.
  • Head Movement
    360 Deg.
  • Maximum Distance Spindle To Table
    26 in.
  • Maximum Table Travel
    20-1/2 in.
  • Number of Spindle Speeds
    12
  • Old Material Number
    350140
  • Power Feed
    No
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Down Feed Rate
    0.0047, 0.007, 0.01 IPR
  • Range Of Spindle Speeds
    150 - 3000 RPM
  • SAP Gross Weight
    740
  • SAP Net weight
    649
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Mill/Drill
  • Swing
    15-7/8 in.
  • T-Slot Centers
    2-1/8 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    7 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Size
    9-1/2 x 31-3/4 in.
  • UPC
    731325449846
  • Warranty
    Two Years
  • Work Table Weight Capacity
    400 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
