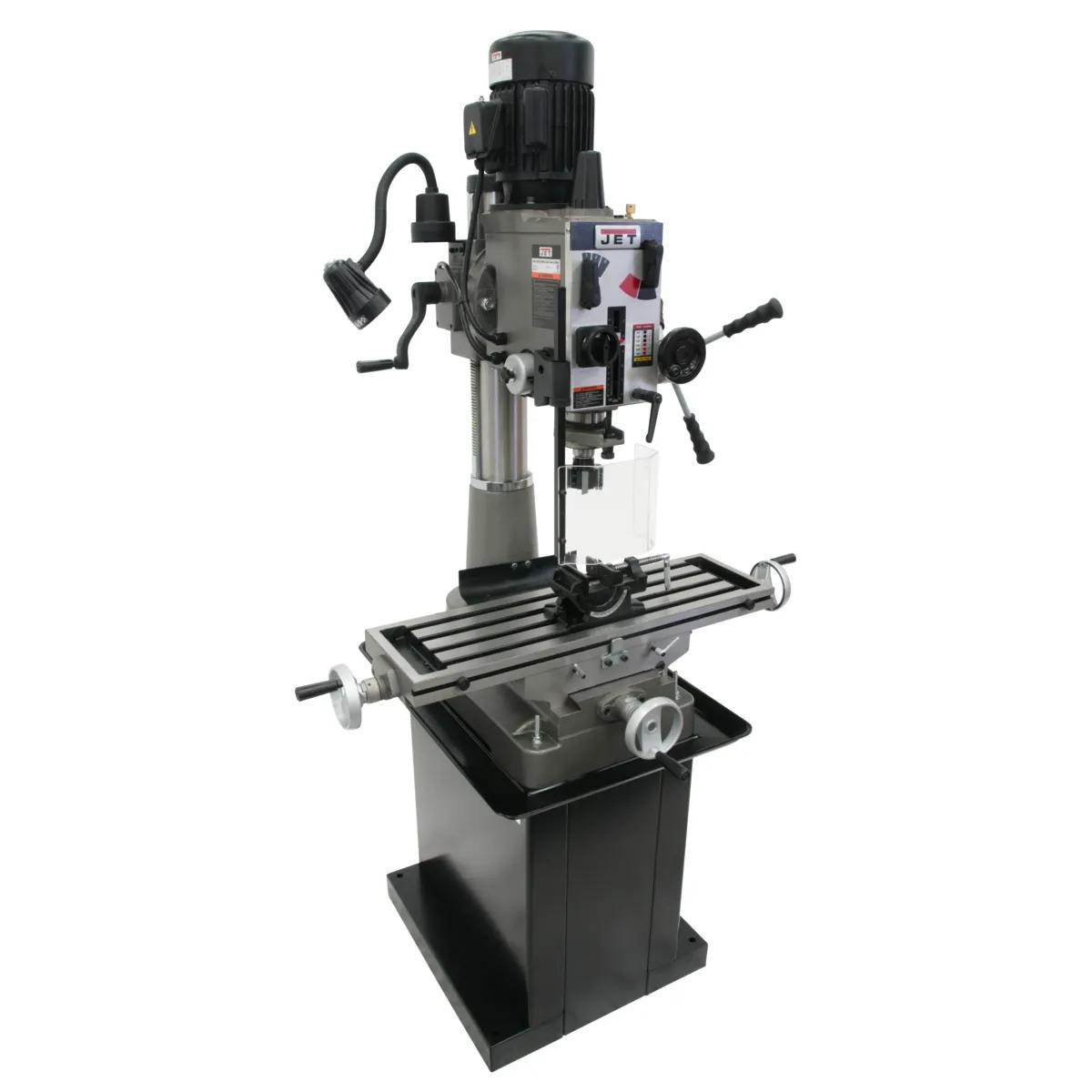

9" x 32" Geared Head Mill/Drill w/ NMS300 2-Axis DRO, 1.5HP, 115/230V 1PH(JMD-40GH)

Stock Number: JT9-351144

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 32-1/4" x 9-1/2" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Rigid construction, accurate cuts, repeatable results. The JMD-40GH fits production shops that turn programs into parts daily — and the cycle counts they generate. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

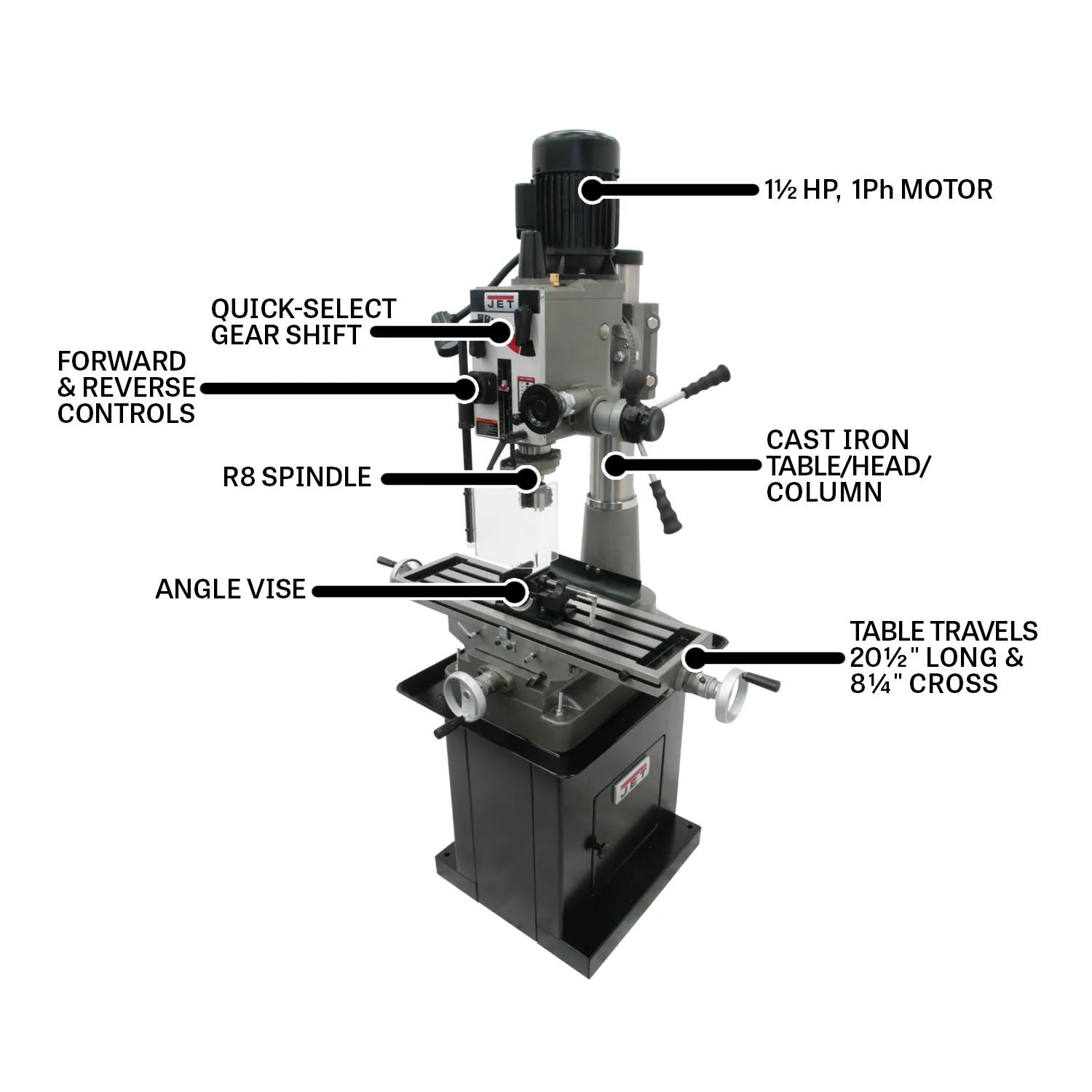

Features

  • Production-spec 1.5 HP drive delivers consistent torque for the operating envelope production demands.
  • Shop-rated 32-1/4 in. x 9-1/2 in. table accommodates production setups for the workpiece envelope production milling targets.
  • Factory-tested R-8 spindle interface — accepting the end mills, drill chucks, and collets this market depends on.
  • The 5-inch spindle stroke — delivering vertical reach production work actually requires.
  • Certified Meehanite knee castings handle structural authority for the cycle counts production turning generates.
  • Heat-treated and surface-ground spindle gears resist wear across production cutting environments.

Specifications

  • SKU
    JT9-351144
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    28 x 39-1/4 x 42-1/2 in.
  • Base Size
    24-1/4 in. x 15-15/16 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    2-Axis Newall NMS300
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Geared Head
  • Face Mill Capacity
    4 in.
  • Head Material
    Cast Iron
  • Head Movement
    90 Deg. left, 30 Deg. right; 360 Deg. pivot
  • Maximum Distance Spindle To Table
    15-3/4 in.
  • Maximum Table Travel
    20-1/2 in.
  • Motor Amps
    20 A
  • Motor Speed
    1720 RPM
  • Motor Type
    Enclosed
  • Number of Spindle Speeds
    6
  • Old Material Number
    351144
  • Power Feed
    No
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Range Of Spindle Speeds
    65, 130, 220, 480, 925, 1550 RPM
  • SAP Gross Weight
    694
  • SAP Net weight
    628
  • Sound Rating Db
    70 dB
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Geared Head Mill/Drill
  • Swing
    20-1/2 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    8-1/4 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Material
    Cast Iron
  • Table Size
    32-1/4 x 9-1/2 in.
  • UPC
    731325709087
  • Warranty
    Two Years
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
