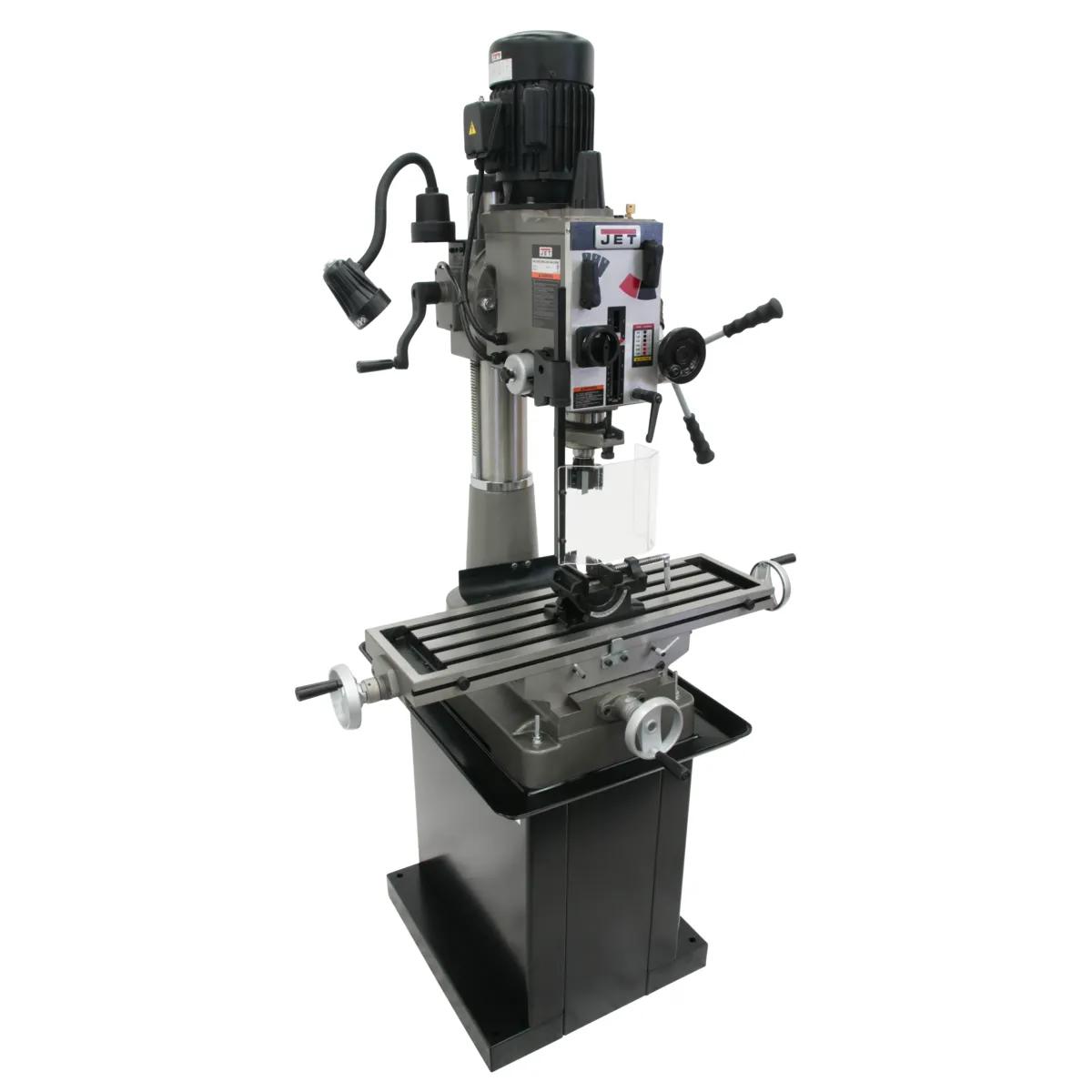

9" x 32" Geared Head Mill/Drill w/ NMS300 2-Axis DRO & X-Powerfeed, 1.5HP, 115/230V 1PH(JMD-40GH)

Stock Number: JT9-351145

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 32-1/4" x 9-1/2" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

From prototype to production, the same mill earns its place. Built around machinists who measure success in tenths, the JMD-40GH delivers production-grade results. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Professional-grade 1.5 HP motor with sealed bearings — delivering full nameplate output across service shops.
  • Continuous-duty 32-1/4 in. x 9-1/2 in. table accommodates production setups for the workpiece sizes production milling demands.
  • Industrial R-8 taper — fitting the tooling library production shops already maintain across production fabrication.
  • 5-inch spindle travel covers the vertical reach for the production drilling capacity industrial work demands.
  • Meehanite main castings deliver the rigidity for the structural authority production turning demands.
  • Hardened-steel knee gears support the working precision without backlash drift that costs you finish quality.

Specifications

  • SKU
    JT9-351145
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    28 x 39-1/4 x 42-1/2 in.
  • Base Size
    24-1/4 in. x 15-15/16 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    2-Axis Newall NMS300
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Geared Head
  • Face Mill Capacity
    4 in.
  • Head Material
    Cast Iron
  • Head Movement
    90 Deg. left, 30 Deg. right; 360 Deg. pivot
  • Maximum Distance Spindle To Table
    15-3/4 in.
  • Maximum Table Travel
    20-1/2 in.
  • Motor Amps
    20 A
  • Motor Speed
    1720 RPM
  • Motor Type
    Enclosed
  • Number of Spindle Speeds
    6
  • Old Material Number
    351145
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Range Of Spindle Speeds
    65, 130, 220, 480, 925, 1550 RPM
  • SAP Gross Weight
    694
  • SAP Net weight
    628
  • Sound Rating Db
    70 dB
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Geared Head Mill/Drill
  • Swing
    20-1/2 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    8-1/4 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Material
    Cast Iron
  • Table Size
    32-1/4 x 9-1/2 in.
  • UPC
    731325709094
  • Warranty
    Two Years
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
