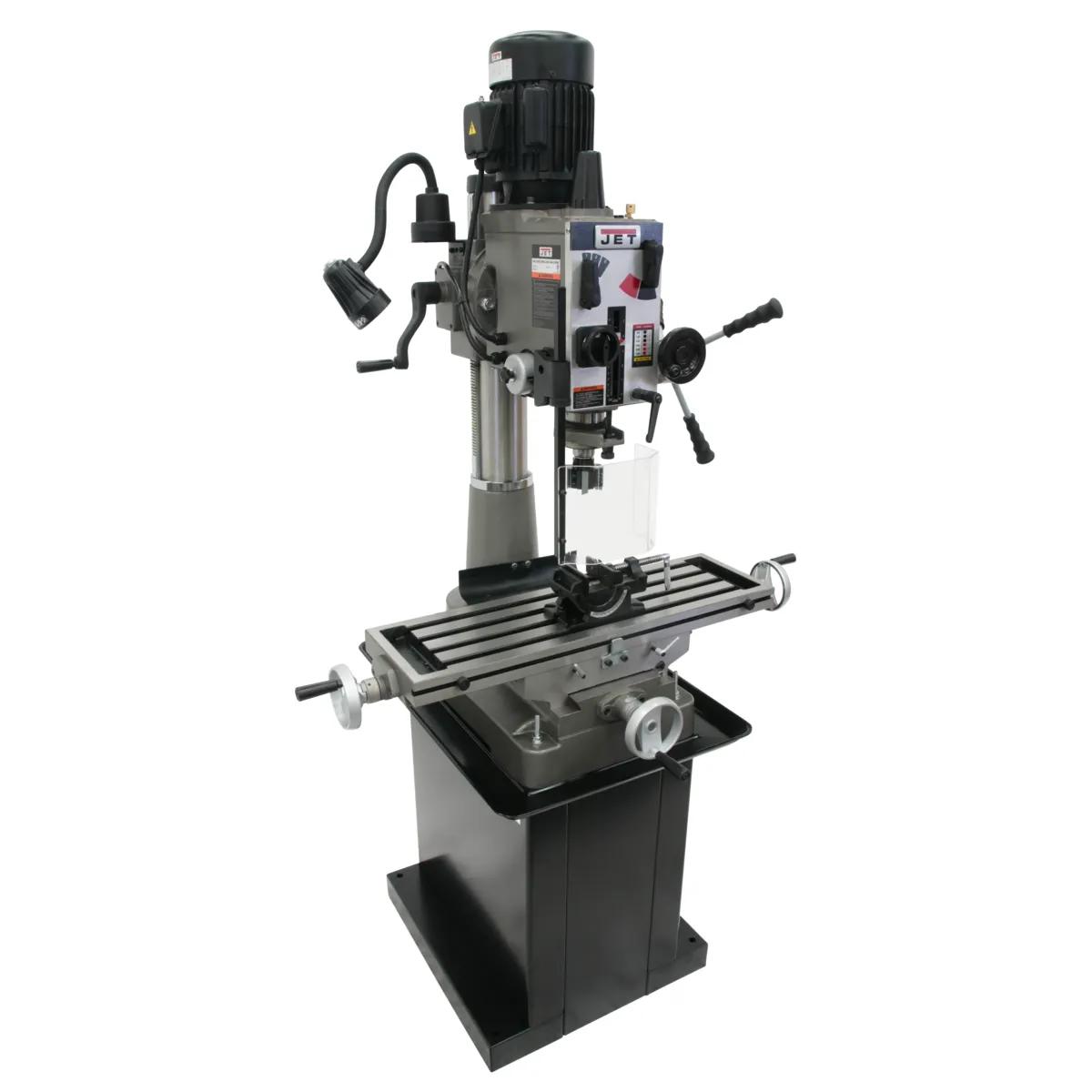

9" x 32" Geared Head Mill/Drill w/ NMS800 2-Axis DRO & X-Powerfeed, 1.5HP, 115/230V 1PH(JMD-40GHPF)

Stock Number: JT9-351141

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 32-1/4" x 9-1/2" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

From prototype to production, the same mill earns its place. The JMD-40GHPF was sized for industrial machining environments running long-cycle production. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Heavy-duty 1.5 HP induction motor — holding RPM under cutting load that would stall lighter motors, engineered for full-capacity production runs.
  • Engineered 32-1/4 in. x 9-1/2 in. table accommodates production setups for the workholding patterns production setups generate.
  • R-8 spindle taper accepts the tooling library for fast tool changes with the standard collet system.
  • Industrial-grade 5-inch spindle travel — expanding the working envelope without sacrificing stroke control across production fabrication.
  • Engineered Meehanite reference surfaces — resisting wear and deflection, sized for stability where commercial-grade iron warps.
  • Industrial hardened power-feed gears — earning their place through service life, not just first-pass tolerance, engineered for finish quality across long production runs.

Specifications

  • SKU
    JT9-351141
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    28 x 39-1/4 x 42-1/2 in.
  • Base Size
    24-1/4 in. x 15-15/16 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    2-Axis Newall NMS800
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Geared Head
  • Face Mill Capacity
    4 in.
  • Head Material
    Cast Iron
  • Head Movement
    90 Deg. left, 30 Deg. right; 360 Deg. pivot
  • Maximum Distance Spindle To Table
    15-3/4 in.
  • Maximum Table Travel
    20-1/2 in.
  • Motor Amps
    20 A
  • Motor Speed
    1720 RPM
  • Motor Type
    Enclosed
  • Number of Spindle Speeds
    6
  • Old Material Number
    351141
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Range Of Spindle Speeds
    65, 130, 220, 480, 925, 1550 RPM
  • SAP Gross Weight
    694
  • SAP Net weight
    628
  • Sound Rating Db
    70 dB
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Geared Head Mill/Drill
  • Swing
    20-1/2 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    8-1/4 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Material
    Cast Iron
  • Table Size
    32-1/4 x 9-1/2 in.
  • UPC
    731325709056
  • Warranty
    Two Years
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
