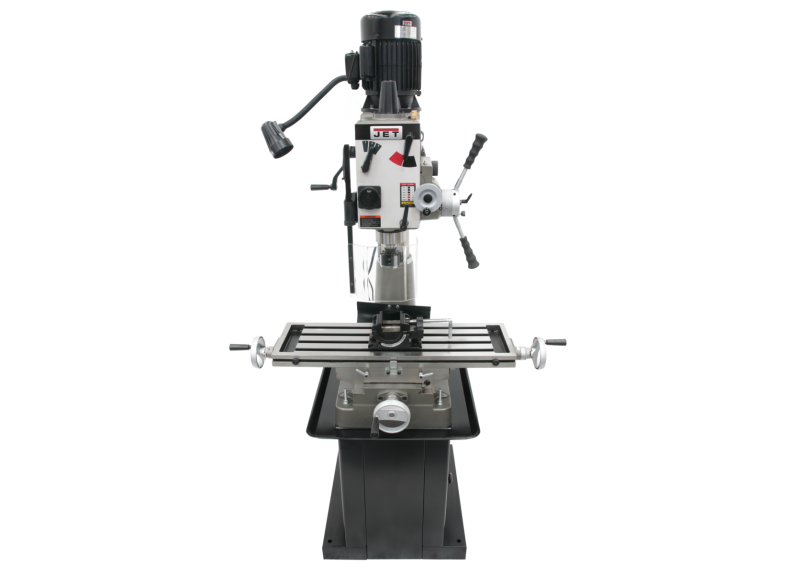

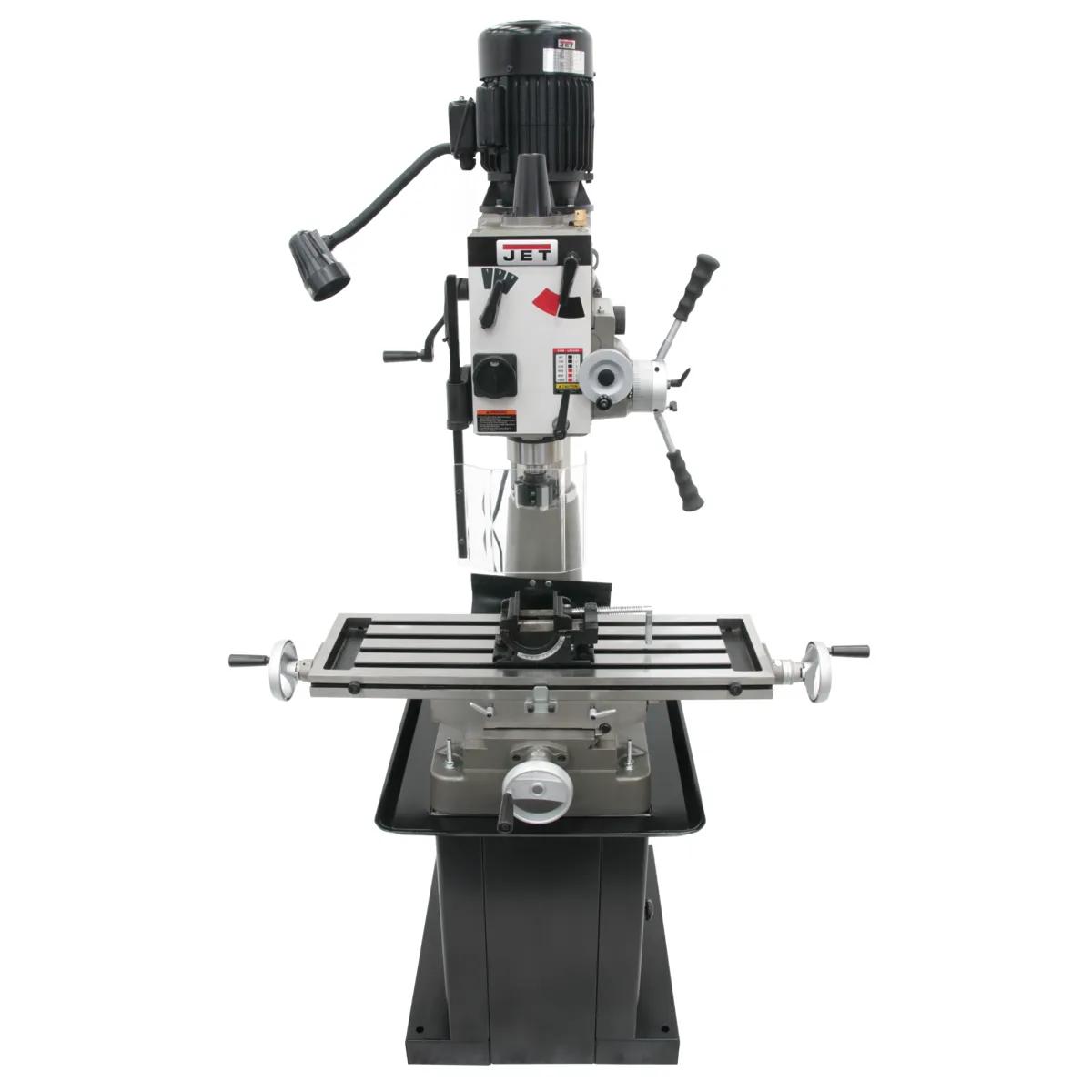

9" x 32" Geared Head Mill/Drill w/ Power Downfeed & NMS800 2-Axis DRO & X-Powerfeed, 1.5HP, 115/230V 1PH(JMD-40GHPF)

Stock Number: JT9-351143

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 32-1/4" x 9-1/2" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Engineered for the long cuts and the tight tolerances. Engineered around fabrication and tool-room work that demands tolerance, the JMD-40GHPF earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • Production-grade 1.5 HP, 115/230V drive — transmitting power without the maintenance brush-motor designs require.
  • Precision-rated 32-1/4 in. x 9-1/2 in. table accommodates production setups for the fixture library production shops already keep.
  • R-8 spindle taper accepts the tooling library for the tooling investment production shops have already made.
  • Industrial-grade 5-inch spindle travel — expanding the operating envelope without compromise across tool-room machining.
  • Working-grade Meehanite main castings — holding reference flat, sized for the precision work production turning generates.
  • Surface-ground Z-axis gears provide dimensional stability without tolerance drift across the warranty period.

Specifications

  • SKU
    JT9-351143
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    28 x 39-1/4 x 42-1/2 in.
  • Base Size
    24-1/4 in. x 15-15/16 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    2-Axis Newall NMS800
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Geared Head
  • Face Mill Capacity
    4 in.
  • Head Material
    Cast Iron
  • Head Movement
    90 Deg. left, 30 Deg. right; 360 Deg. pivot
  • Maximum Distance Spindle To Table
    15-3/4 in.
  • Maximum Table Travel
    20-1/2 in.
  • Motor Amps
    20 A
  • Motor Speed
    1720 RPM
  • Motor Type
    Enclosed
  • Number of Spindle Speeds
    6
  • Old Material Number
    351143
  • Power Feed
    X-Axis/Z-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Down Feed Rate
    0.005, 0.007, 0.010 IPR
  • Range Of Spindle Speeds
    65, 130, 220, 480, 925, 1550 RPM
  • SAP Gross Weight
    721
  • SAP Net weight
    655
  • Sound Rating Db
    70 dB
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Spindle Travel Auto
    4-1/4 in.
  • Style Type
    Geared Head Mill/Drill
  • Swing
    20-1/2 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    8-1/4 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Material
    Cast Iron
  • Table Size
    32-1/4 x 9-1/2 in.
  • UPC
    731325709070
  • Warranty
    Two Years
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
