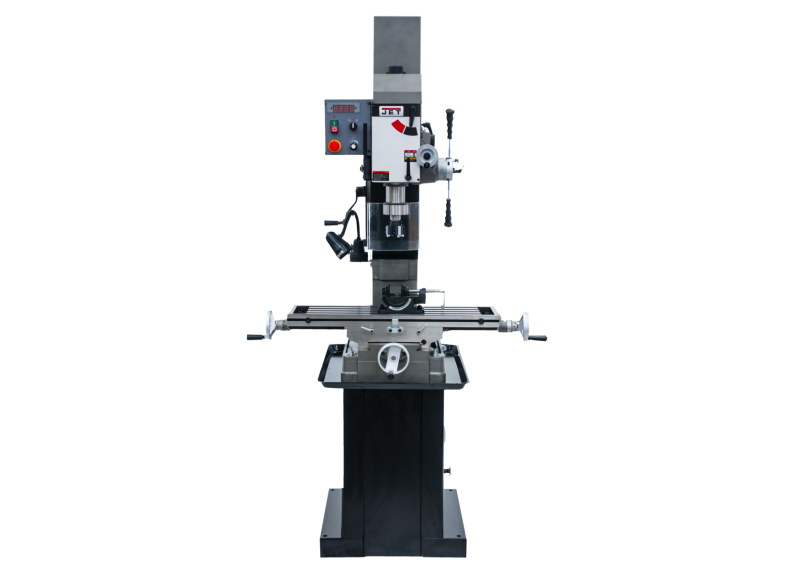

9" x 32" Vari. Speed Geared Head Mill/Drill, 1.5HP, 115/230V 1PH(JMD-45VSPF)

Stock Number: JT9-351050

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 9-1/2" x 32-1/4" table
  • R8 spindle taper
  • 4-1/4" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. Engineered around production shops that turn programs into parts daily, the JMD-45VSPF earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • Tolerance-grade 1.5 HP drive provides consistent torque for mixed-material work envelopes.
  • Working-grade 9-1/2 in. x 32-1/4 in. table accommodates production setups for the table-bolt patterns production shops already drill.
  • R8 spindle interface — accepting the end mills, drill chucks, and collets this market depends on, sized for the tooling investment production shops have already made.
  • The 4-1/4-inch spindle stroke — covering the depth-of-cut envelope production milling generates.
  • Premium Meehanite saddle castings earn their place for the precision work production turning generates.
  • Heat-treated Z-axis gears hold spec — running quieter, cooler, and with less vibration than stock-grade alternatives across production cycles.

Specifications

  • SKU
    JT9-351050
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    29 x 36 x 50 in.
  • Base Size
    26-11/16 x 15-15/16 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    No
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Variable
  • Face Mill Capacity
    4 in.
  • Head Material
    Cast Iron
  • Head Movement
    90 Deg. left, 30 Deg. right
  • Maximum Distance Spindle To Table
    18-1/8 in.
  • Maximum Table Travel
    20-1/2 in.
  • Motor Speed
    1720 RPM
  • Motor Type
    Enclosed
  • Number of Spindle Speeds
    6
  • Old Material Number
    351050
  • Power Feed
    No
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Down Feed Rate
    0.005, 0.007, 0.010 IPR
  • Range Of Spindle Speeds
    65, 130, 220, 480, 925, 1550 RPM
  • Reference Type
    Base Machine
  • SAP Gross Weight
    827
  • SAP Net weight
    761
  • Sound Rating Db
    70 dB
  • Spindle Distance To Table Max
    18-1/8 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    4-1/4 in.
  • Spindle Travel Auto
    4-1/4 in.
  • Style Type
    Variable Speed Mill/Drill
  • Swing
    19-11/16 in.
  • T-Slot Centers
    5/8 x 1 in. (16 x 26mm)
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    8-1/4 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Material
    Cast Iron
  • Table Size
    9-1/2 x 32-1/4 in.
  • UPC
    731325512915
  • Warranty
    Two Years
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
