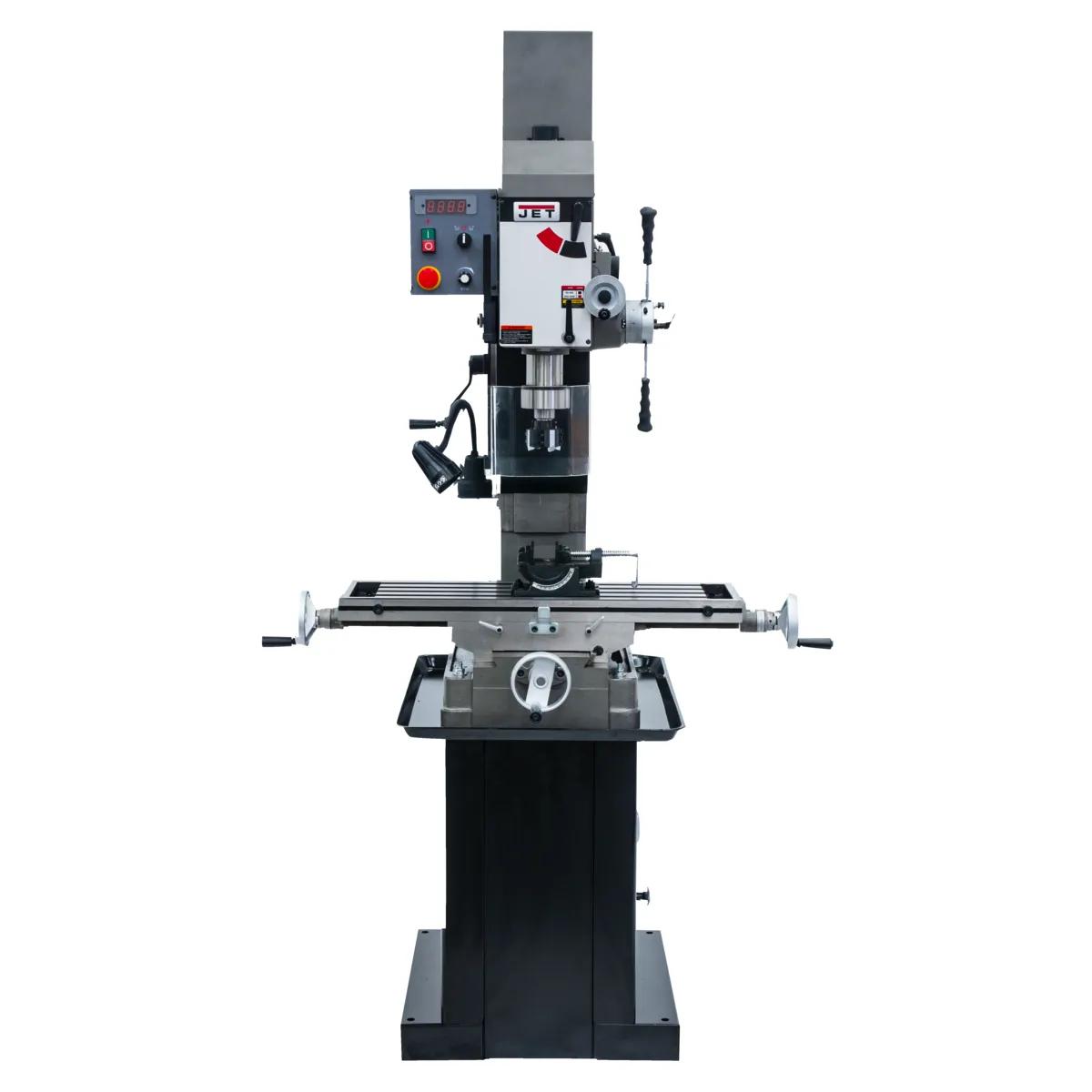

9" x 32" Vari. Speed Geared Head Mill/Drill w/ NMS300 2-Axis DRO & X-Axis Powerfeed, 1.5HP, 115/230V 1PH(JMD-45VSPF)

Stock Number: JT9-351163

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 9-1/2" x 32-1/4" table
  • R8 spindle taper
  • 4-1/4" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built around the spindle, the table, and the operator who runs them. The JMD-45VSPF fits machinists who measure success in tenths — and the cycle counts they generate. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Brushless 1.5 HP motor design fits modern shop priorities for low-maintenance operation across service shops.
  • Working-grade 9-1/2 in. x 32-1/4 in. table accommodates production setups for the workpiece envelope production milling targets.
  • Heavy-duty R8 spindle interface — delivering tooling compatibility shops already own.
  • Production-grade 4-1/4-inch spindle travel — covering the workpiece envelope this machine targets across production milling.
  • Factory-tested Meehanite main castings — dampening vibration that lesser castings transmit straight to the cut, sized for the structural rigidity tolerance-grade work demands.
  • Heat-treated gear sets hold spec — holding tolerance well past the warranty period across production cycles.

Specifications

  • SKU
    JT9-351163
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    29 x 36 x 50 in.
  • Base Size
    26-11/16 x 15-15/16 in.
  • Collet Size
    4-1/2 in.
  • Digital Readout
    2 Axis Newall NMS300
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drive Type
    Variable
  • Face Mill Capacity
    4 in.
  • Head Material
    Cast Iron
  • Head Movement
    90 Deg. left, 30 Deg. right
  • Maximum Distance Spindle To Table
    18-1/8 in.
  • Maximum Table Travel
    20-1/2 in.
  • Motor Speed
    1720 RPM
  • Motor Type
    Enclosed
  • Number of Spindle Speeds
    6
  • Old Material Number
    351163
  • Power Feed
    X-Axis
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Down Feed Rate
    0.005, 0.007, 0.010 IPR
  • Range Of Spindle Speeds
    65, 130, 220, 480, 925, 1550 RPM
  • SAP Gross Weight
    820
  • SAP Net weight
    754
  • Sound Rating Db
    70 dB
  • Spindle Distance To Table Max
    18-1/8 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    4-1/4 in.
  • Spindle Travel Auto
    4-1/4 in.
  • Style Type
    Variable Speed Mill/Drill
  • Swing
    19-11/16 in.
  • T-Slots Number And Size
    4, 5/8 in.
  • Table Cross Travel
    8-1/4 in.
  • Table Longitudal Travel
    20-1/2 in.
  • Table Material
    Cast Iron
  • Table Size
    9-1/2 x 32-1/4 in.
  • UPC
    731325709254
  • Warranty
    Two Years
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
