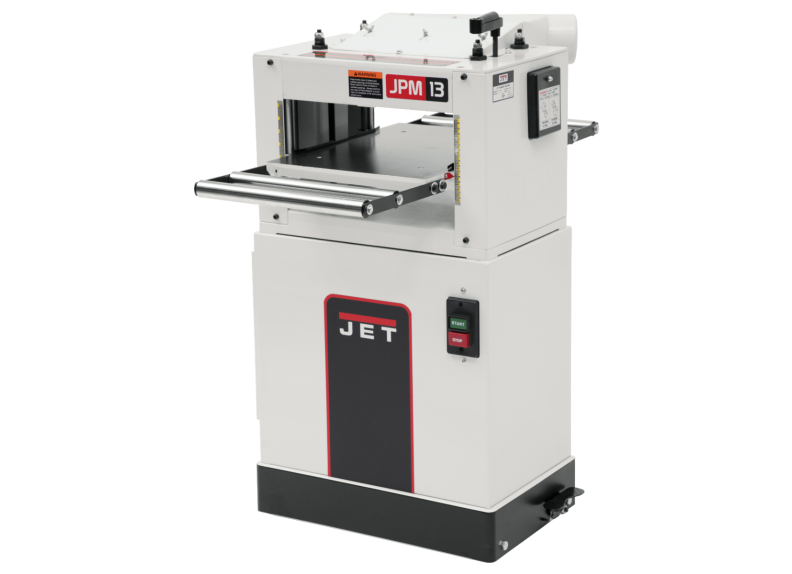

Product Details
Production-grade planing built for shops that depend on it. The JPM-13CS fits shops that need surface quality consistent enough to skip the sander — and the cycle counts they generate. Equipped with a 1-1/2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long run — and warrantied for it.
Features
- 13-inch planing width expands the working envelope for reducing rip-and-glue operations on full-width panels.
- Factory-sealed 1-1/2 HP 115/230V induction motor stands up to production environments.
- 3-knife straight cutterhead — handling the cycle counts production planing generates.

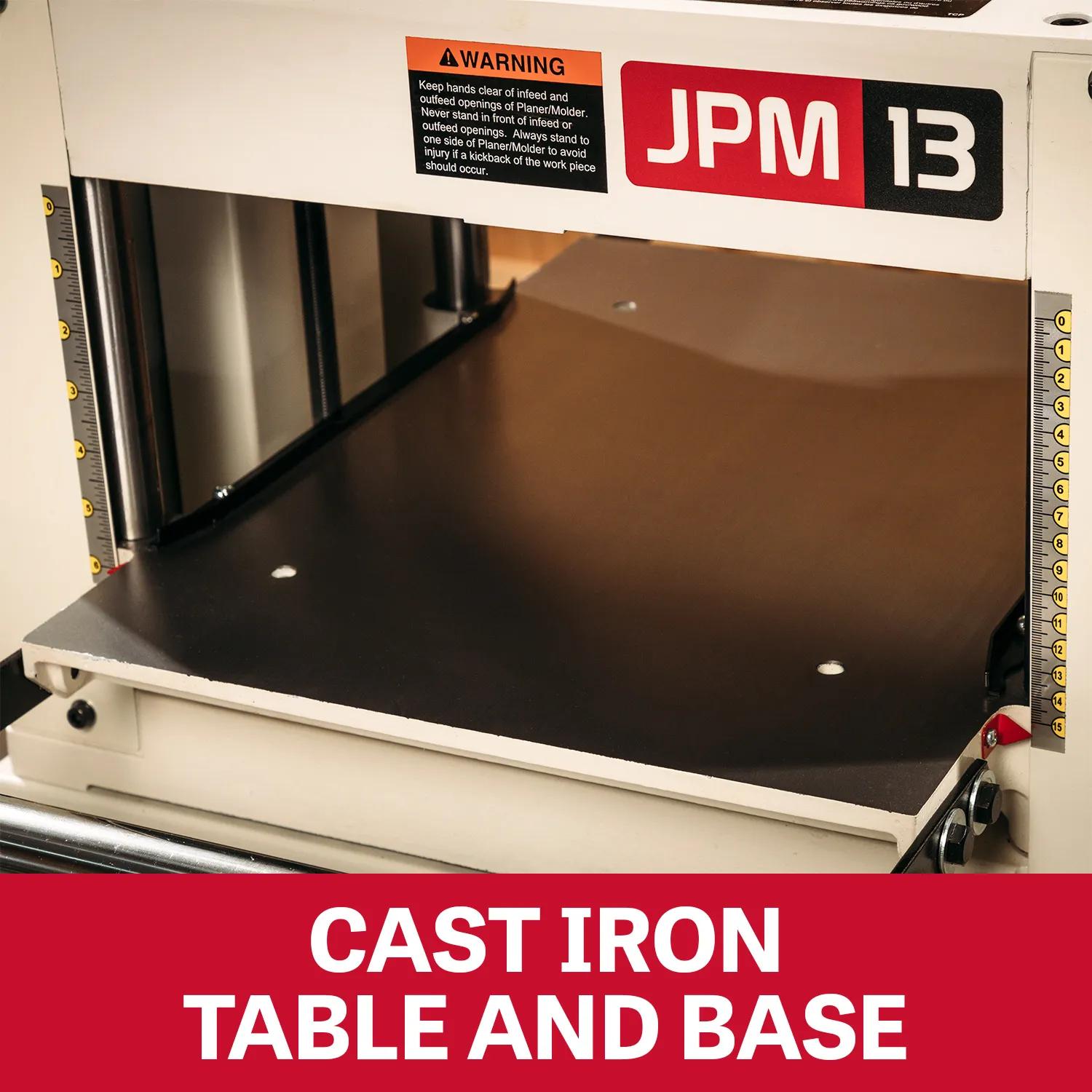

- Cast iron construction in the support castings — holding reference geometry.
- Tolerance-grade hardened and ground drive components deliver dimensional stability for repeatable feed rates across long cycles.
- Professional-grade CSA/cUS listing — delivering the safety documentation procurement actually expects across industrial production environments.
Specifications
- SKUJT9-708524
- Assembled Dimensions23-31/32 x 36-1/2 x 43-1/2 in.
- CoatingNone
- Cutterhead Speed4500 RPM
- Cutting Capacity - Width6 in.

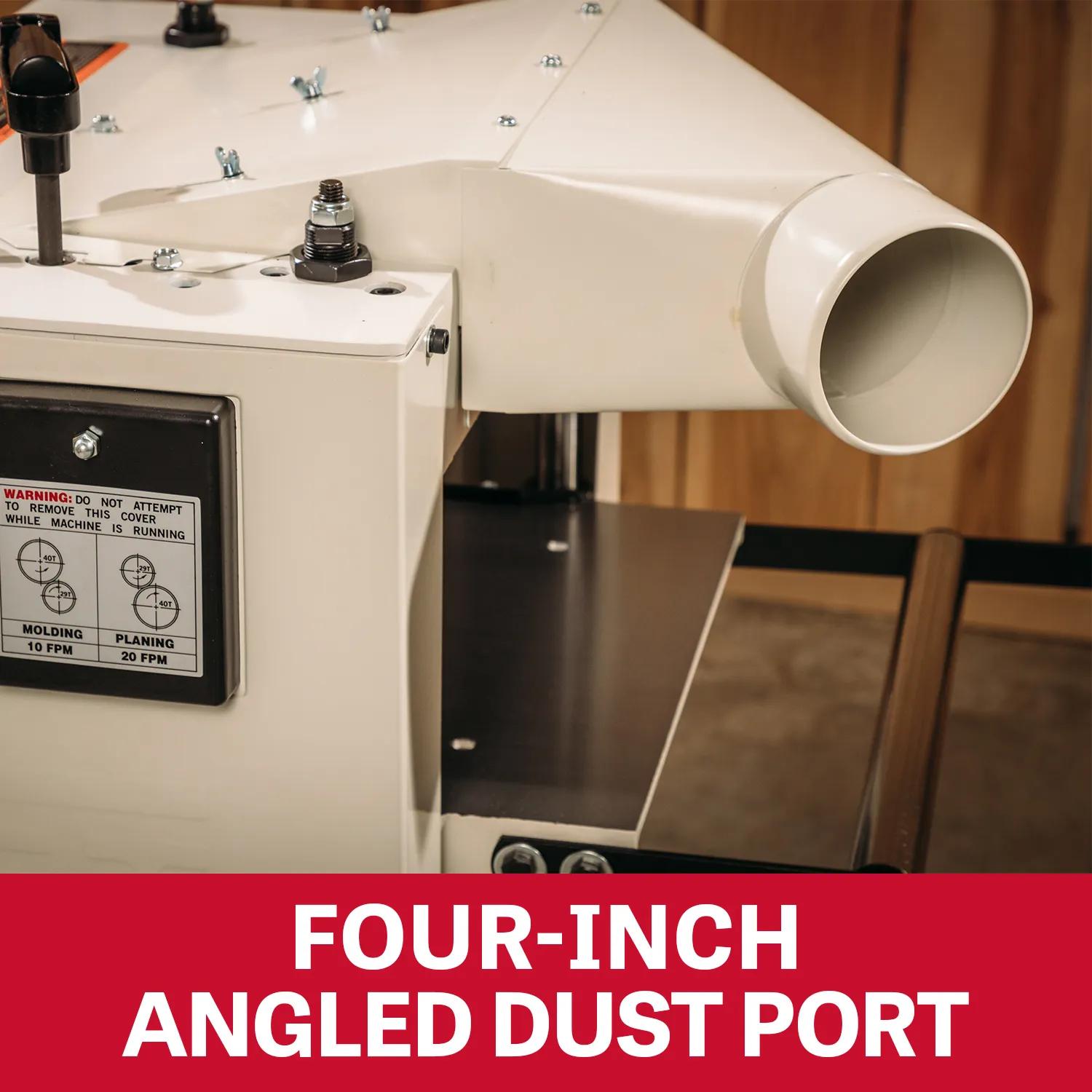

- Dust Port Outside Diameter4 in.
- Feed Rate10 FPM
- Full Width Depth Of Cut1/8 in.
- Height43.5 in.
- Horse Power1.5 HP
- Infeed Table Length8.625 in.
- Input Power115 V 1 Ph

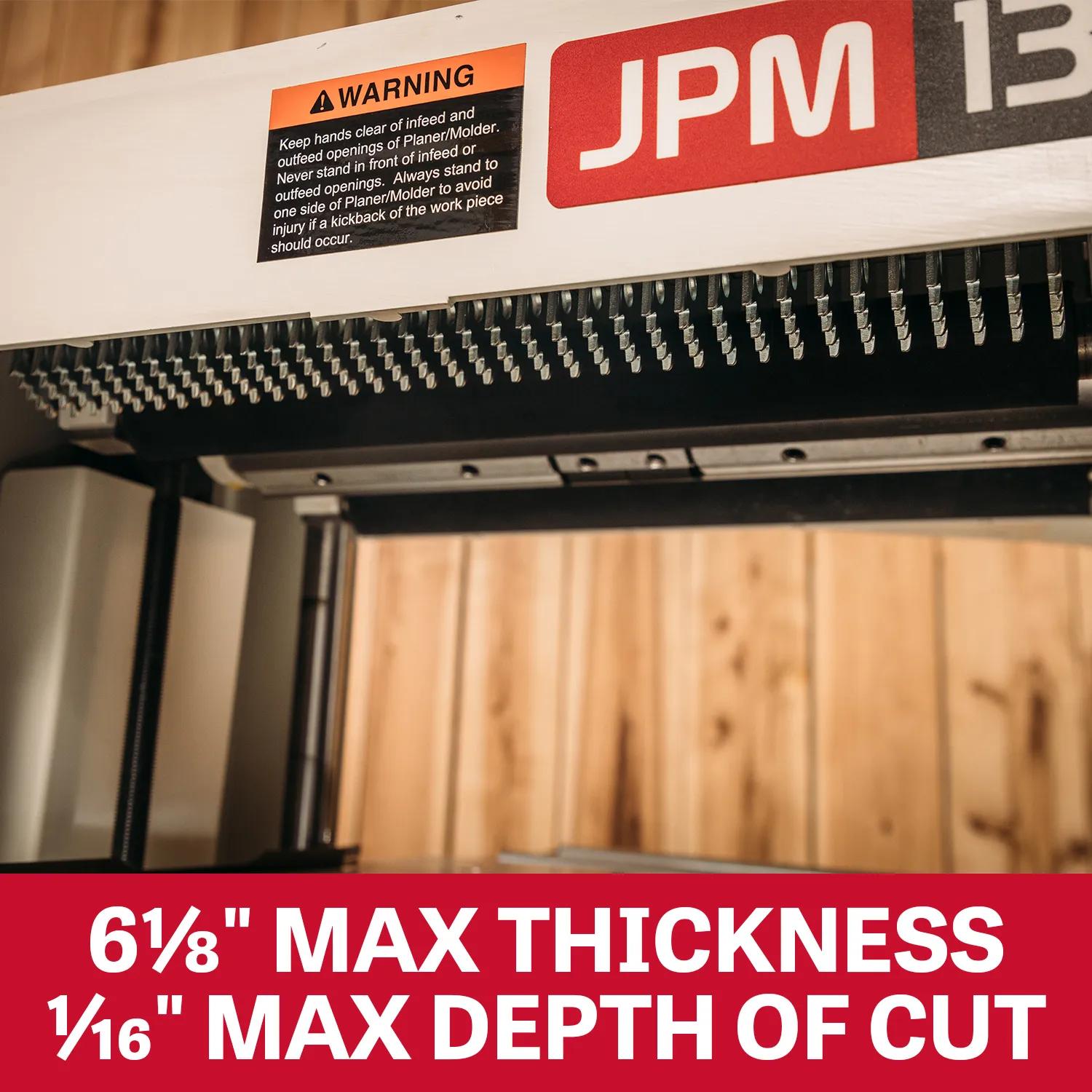

- Maximum Board Thickness6.125 in.
- Maximum Board Width13 in.
- Maximum Depth Of Cut0.0625 in.
- Minimum Board Length14 in.
- Model NumberJPM-13CS
- Motor Amps15 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Number of Knives3
- Old Material Number708524
- Outfeed Table Length8.625 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp30 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight258
- SAP Net weight258
- Style TypePlaner/Molder
- Type of CutterheadStraight Knife
- UPC662755171147
- WarrantyFive Years
