10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)
10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)

10" ProShop II, Table Saw, Steel Wings, Extension 52" Rip, 1.75HP, 115V 1PH(JPS-10-52S)

Stock Number: JT9-725005K

0 Reviews

No reviews yet.

  • 1.75 HP, 115V, single-phase
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Cut quality starts with a saw built for the work. The JPS-10-52S was sized for production sawing across hardwoods, softwoods, and metal stock. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

Features

  • Engineered 1.75 HP single-phase induction drive: delivering full nameplate output, sized for full-shift continuous operation.
  • Industrial-grade saw frame handles blade alignment for the structural rigidity production cutting demands.

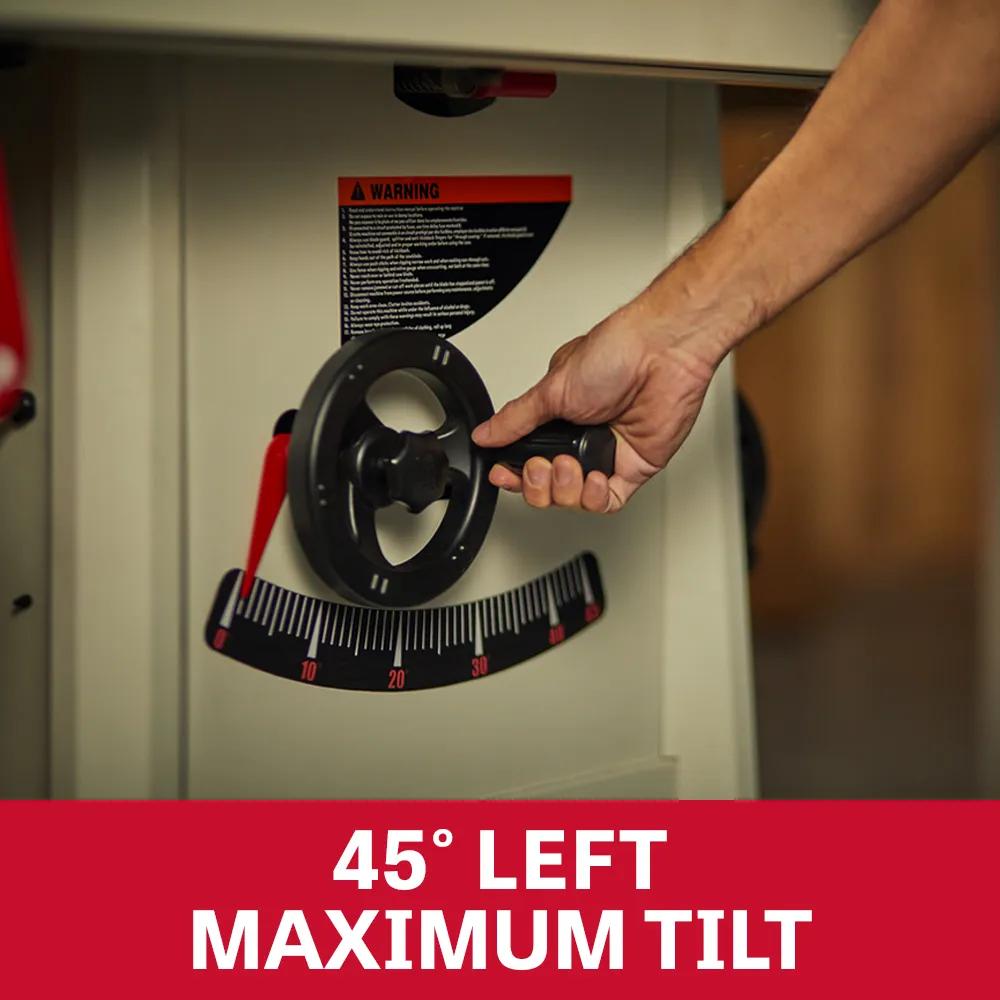

  • Shop-rated tilting table — handling miter and bevel cuts in one setup, engineered for the angled cuts production fabrication actually runs.
  • Industrial-spec cutting envelope provides workpiece sizes for the workpiece sizes production sawing actually runs.
  • Professional-grade cast iron tables earn their place for the operating envelope precision cutting generates.
  • Heat-treated power-train components hold spec — transferring spindle torque without the wear softer drivetrains develop across production cutting environments.

Specifications

  • SKU
    JT9-725005K
  • Arbor Size
    5/8 in.
  • Arbor Speed
    4000 RPM
  • Assembled Dimensions
    82 x 40 x 43 in.
  • Base Size
    82 x 40 in.
  • Blade Diameter
    10 in.
  • Blade Length
    10 in.
  • Blade Size (In.)
    10 in.
  • Blade Speed
    4000 RPM
  • Cutting Capacity - Height
    3 in.
  • Dust Port Outside Diameter
    4 in.
  • Height
    43 in.
  • Horse Power
    1.75 HP
  • Input Power
    115 V 1 Ph
  • Maximum Depth Of Cut
    3.125 in.
  • Maximum Diameter Of Dado
    8 in.
  • Maximum Rip Left Of Blade
    13-1/2 in.
  • Maximum Width Of Dado
    13/16 in.
  • Miter Gauge Type
    T-Slot with Stops
  • Model Number
    JPS-10-52S
  • Motor Amps
    7.4 A
  • Motor HP
    1.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Old Material Number
    725005K
  • Overall Assembled (Bow Lowered)
    82 x 40 x 43 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    312.35
  • SAP Net weight
    285.85
  • Style Type
    Contractor
  • Table Front Of Saw Blade At Maximum Depth of Cut
    8.81 in.
  • Table Height
    34-3/4 in.
  • Table Size
    20 x 27 in.
  • Table Type
    Cast Iron
  • UPC
    731325727531
  • Warranty
    Five Years
