Product Details
Material removal sized for production, finish quality sized for delivery. The JSG-6CS is built for finishing work that has to pass QA review. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.

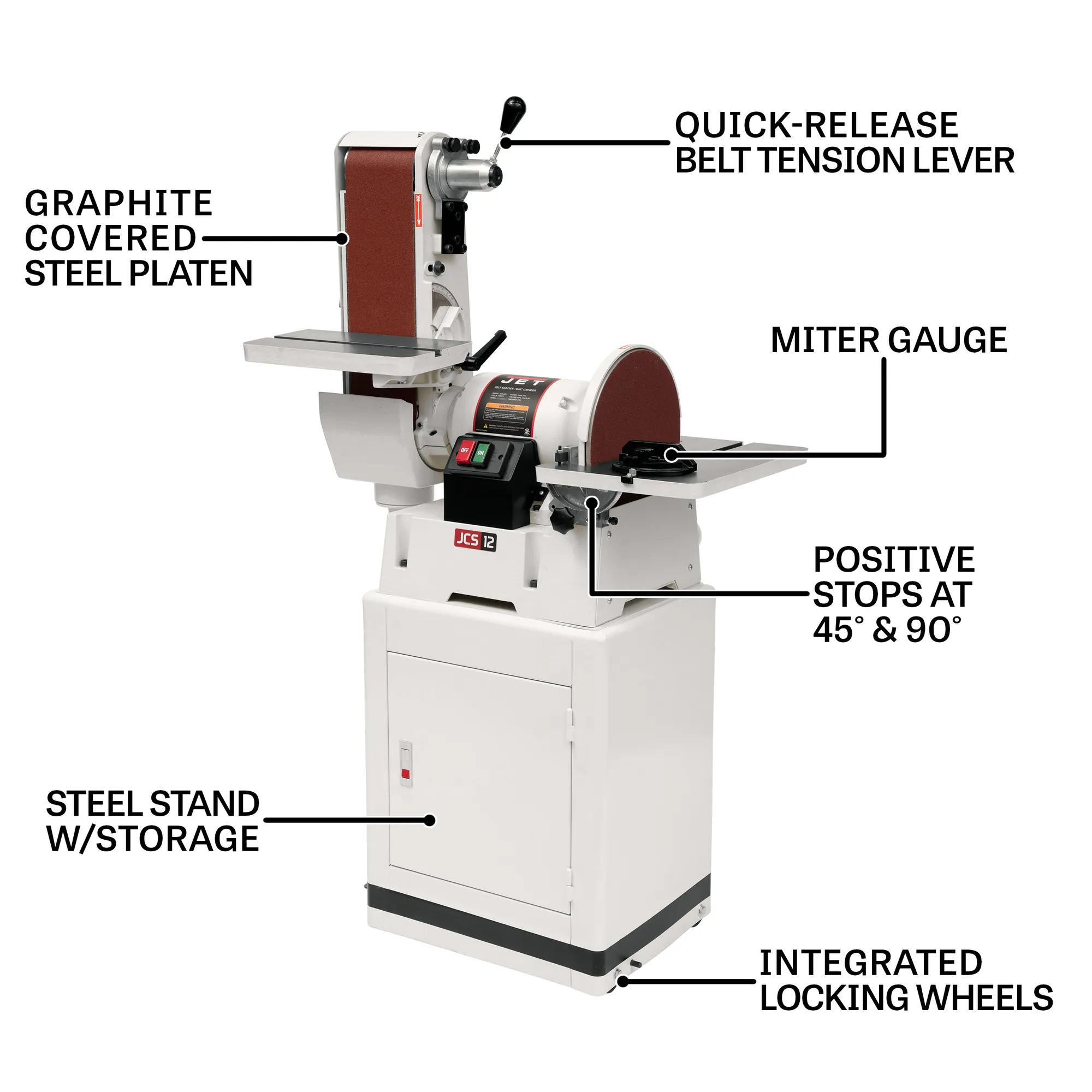

Features
- Engineered 1.5 HP single-phase induction drive: handling startup loads where smaller motors trip, sized for the operating realities of production environments.
- Heavy-duty abrasive belt drive — delivering consistent abrasive contact across professional finishing environments.
- Industrial belt geometry provides abrasive media for the abrasive cycle counts production sanding generates.
- Heavy-duty disc construction — running true at full RPM.
- Professional-grade tilting table — delivering angle-grinding authority production finishing demands across fabrication finishing.

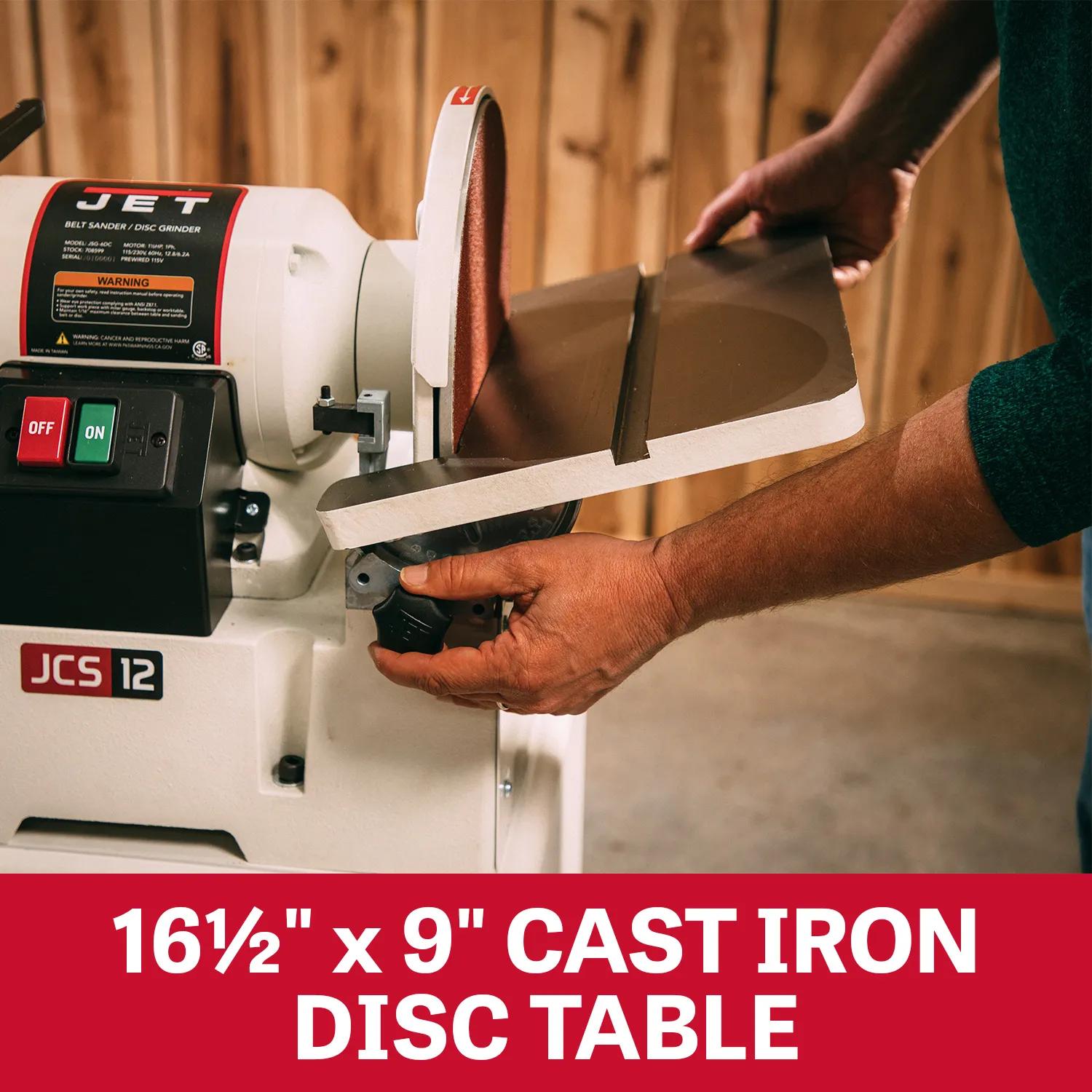

- Cast iron structural components dampen vibration for the rigidity precision work demands.
Specifications
- SKUJT9-708598K
- Abrasive TypeBelt/Disc
- Assembled Dimensions36 x 22 x 57 in.

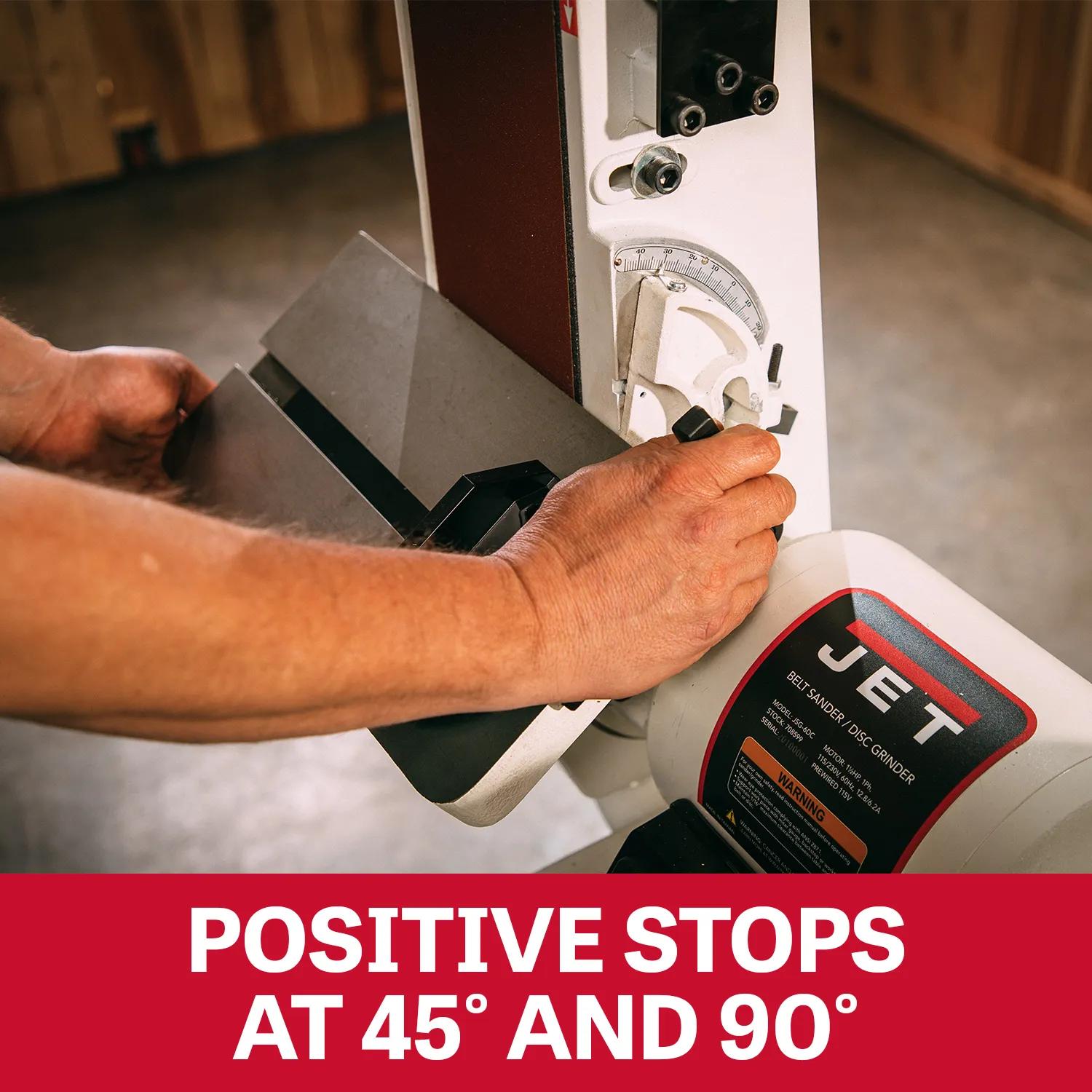

- Belt Tilt Range20 Deg. Up, 45 Deg. Down
- Disc Diameter12 in.

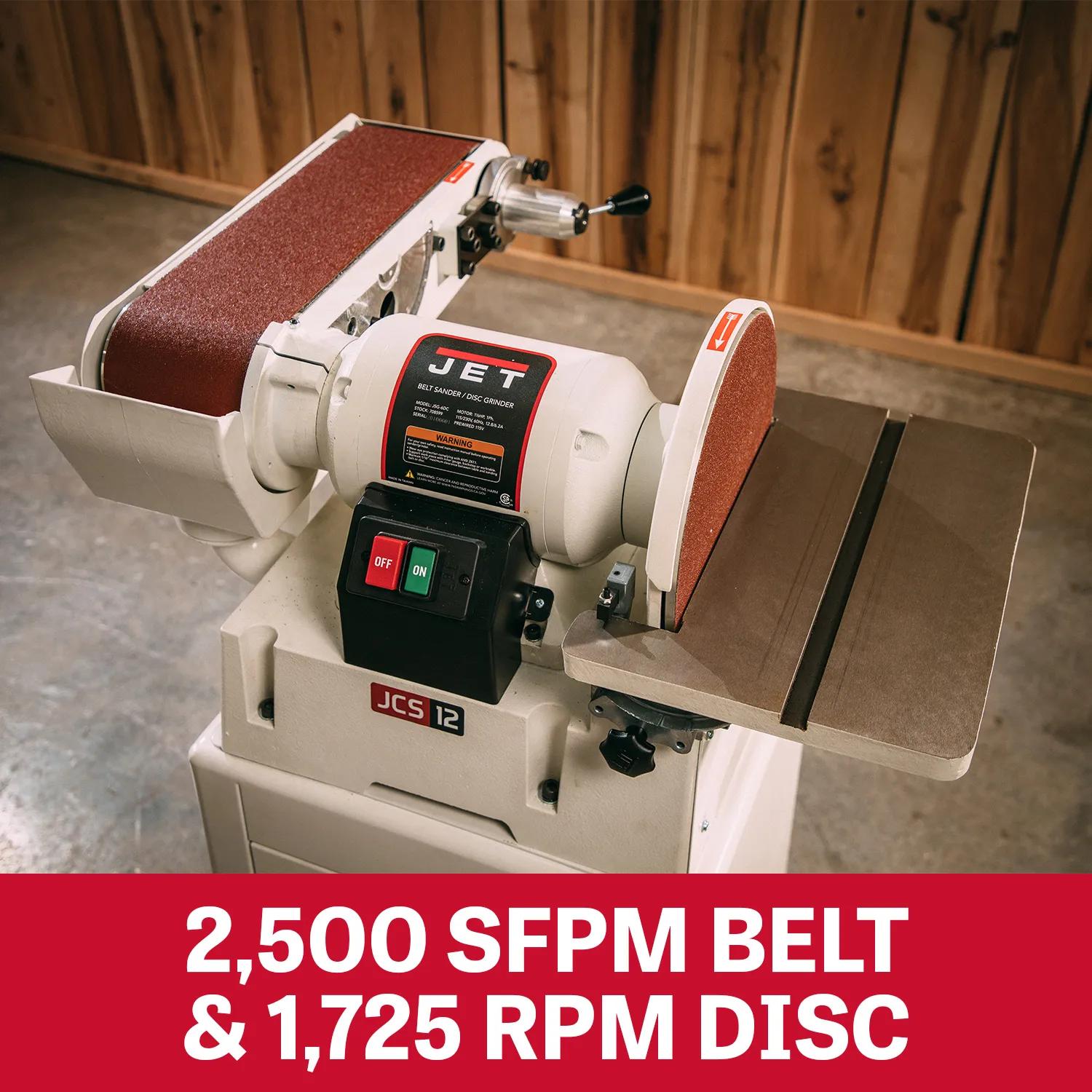

- Disc Speed1725 RPM

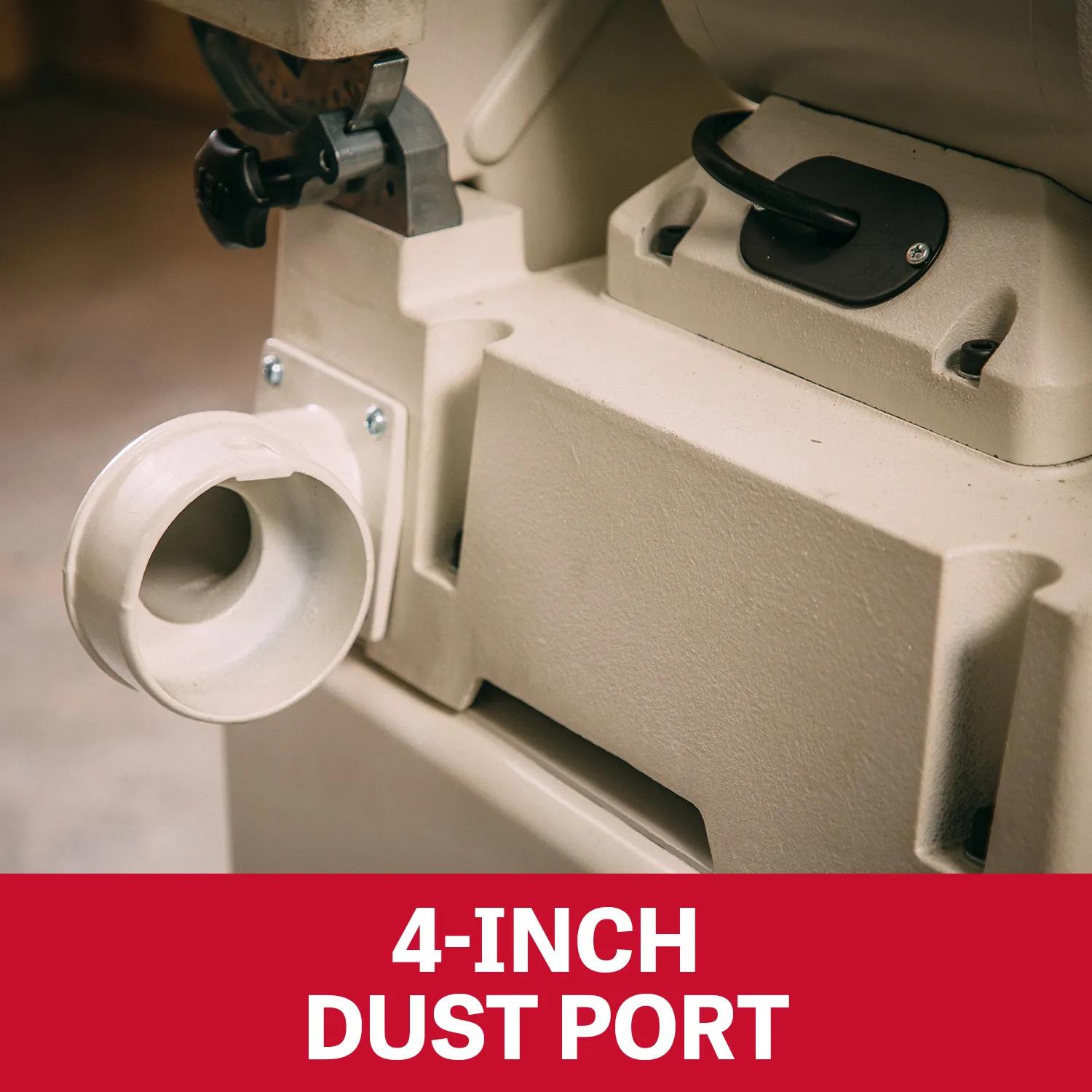

- Dust Port Outside Diameter4 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Model NumberJSG-6CS
- Motor Amps6 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number708598K
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm450 - 450 CFM
- SAP Gross Weight277
- SAP Net weight277
- Style TypeFloorstanding
- Table Height42-1/4 in.
- Table Size14-3/4 x 7-1/2 in.
- Table Tilt (L, R, C)-20 - 45 Deg.
- UPC662755199899
- WarrantyFive Years
