Product Details
Where surface quality gets decided. Designed for industrial finishing environments running long abrasive cycles, the JSG-6DC stands up to the duty cycle. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.
Features
- Brushless 1.5 HP induction motor design means decades of service across tool rooms.
- Abrasive belt geometry was sized for the surface finish production sanding actually targets.
- Precision-rated belt design handles the abrasive cycle counts for the belt-length production finishing depends on.
- Tolerance-grade disc geometry handles flat grinding for repeatable surface contact across the disc face.
- Continuous-duty tilting table — extending the working envelope across industrial finishing.

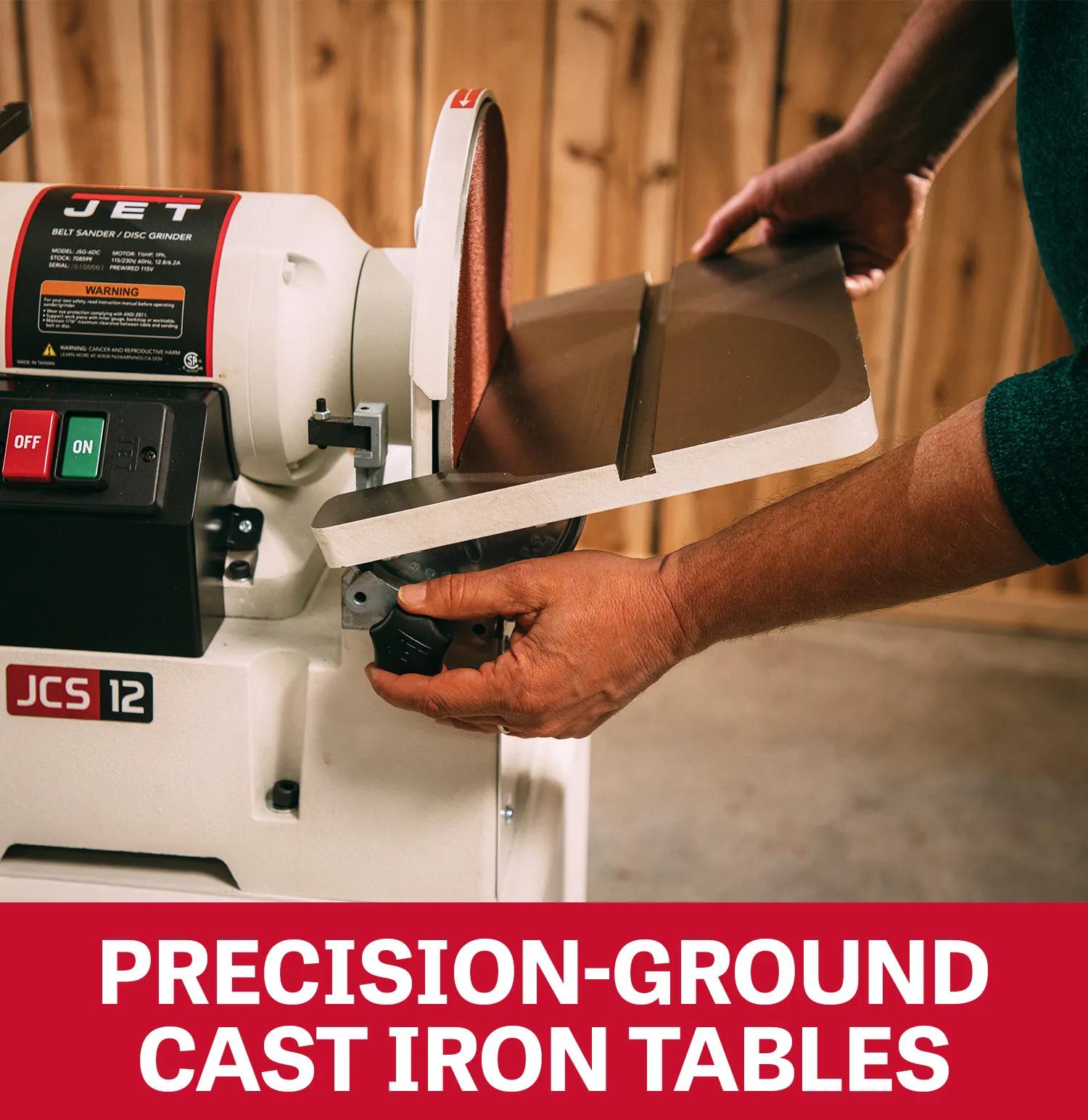

- Industrial cast iron reference surfaces resist deflection for the structural stability shop work demands.
Specifications
- SKUJT9-708599
- Abrasive TypeBelt/Disc
- Assembled Dimensions35 x 22 x 34-1/2 in.
- Belt Size6 x 48 in.
- Belt Tilt Range20 Deg. Up, 45 Deg. Down
- Disc Diameter12 in.

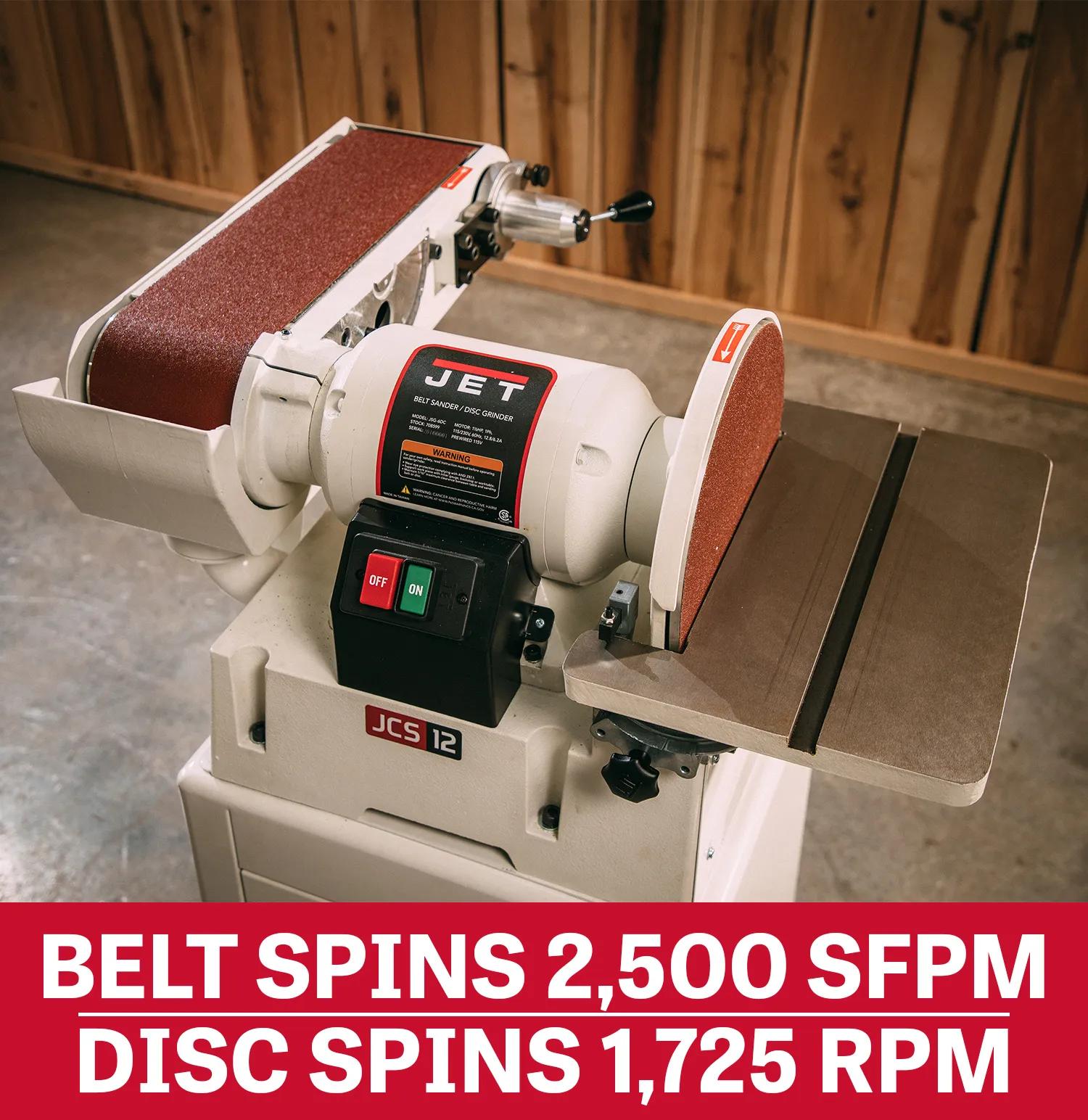

- Disc Speed1725 RPM

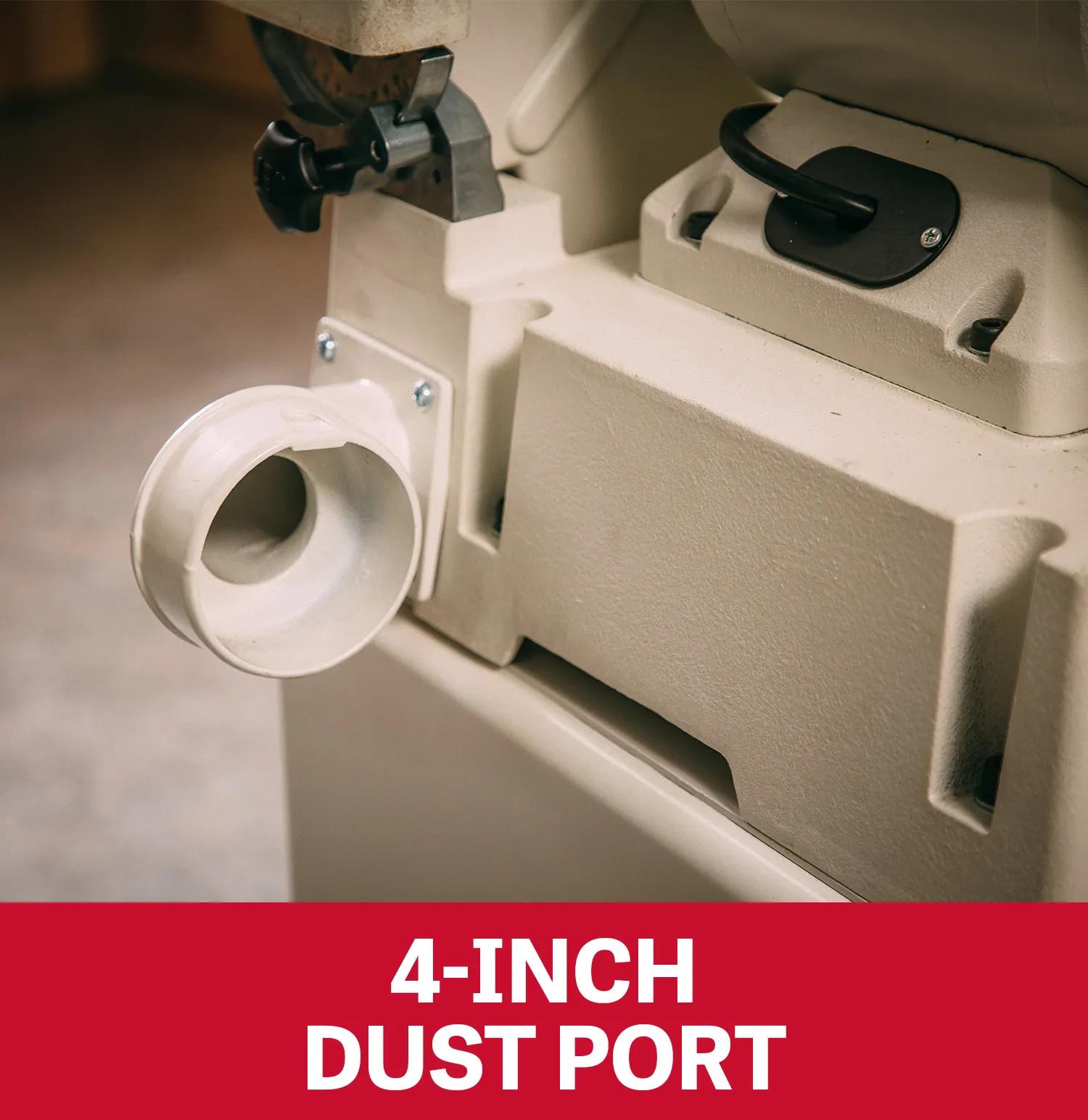

- Dust Port Outside Diameter4 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Model NumberJSG-6DC
- Motor Amps12.8/6.2 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number708599
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm450 - 450 CFM
- SAP Gross Weight215
- SAP Net weight215
- Spindle Speed1725 RPM
- Style TypeBenchtop
- Table HeightVariable
- Table Size14-3/4 x 7-1/2 in.
- Table Tilt (L, R, C)-20 - 45 Deg.
- UPC662755637674
- WarrantyFive Years
