6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)
6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)

6" x 48" Belt / 12" Disc Sander w/ Open Stand, 1.5HP, 115/230V 1PH(JSG-6DCK)

Stock Number: JT9-708599K

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW

Product Details

Engineered for the abrasive cycle counts production work actually generates. The JSG-6DCK answers the work generated by shops where surface finish gets shipped, not reworked. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction, industrial-grade warranty.

Features

  • Tolerance-grade 1.5 HP drive delivers consistent torque for full-shift continuous operation.
  • Industrial abrasive belt drive — matching the surface-finish envelope production sanding generates across industrial sanding environments.
  • Factory-tested belt design handles the abrasive cycle counts for the belt-length production finishing depends on.
  • Disc-grinding architecture — running true at full RPM across professional finishing environments.

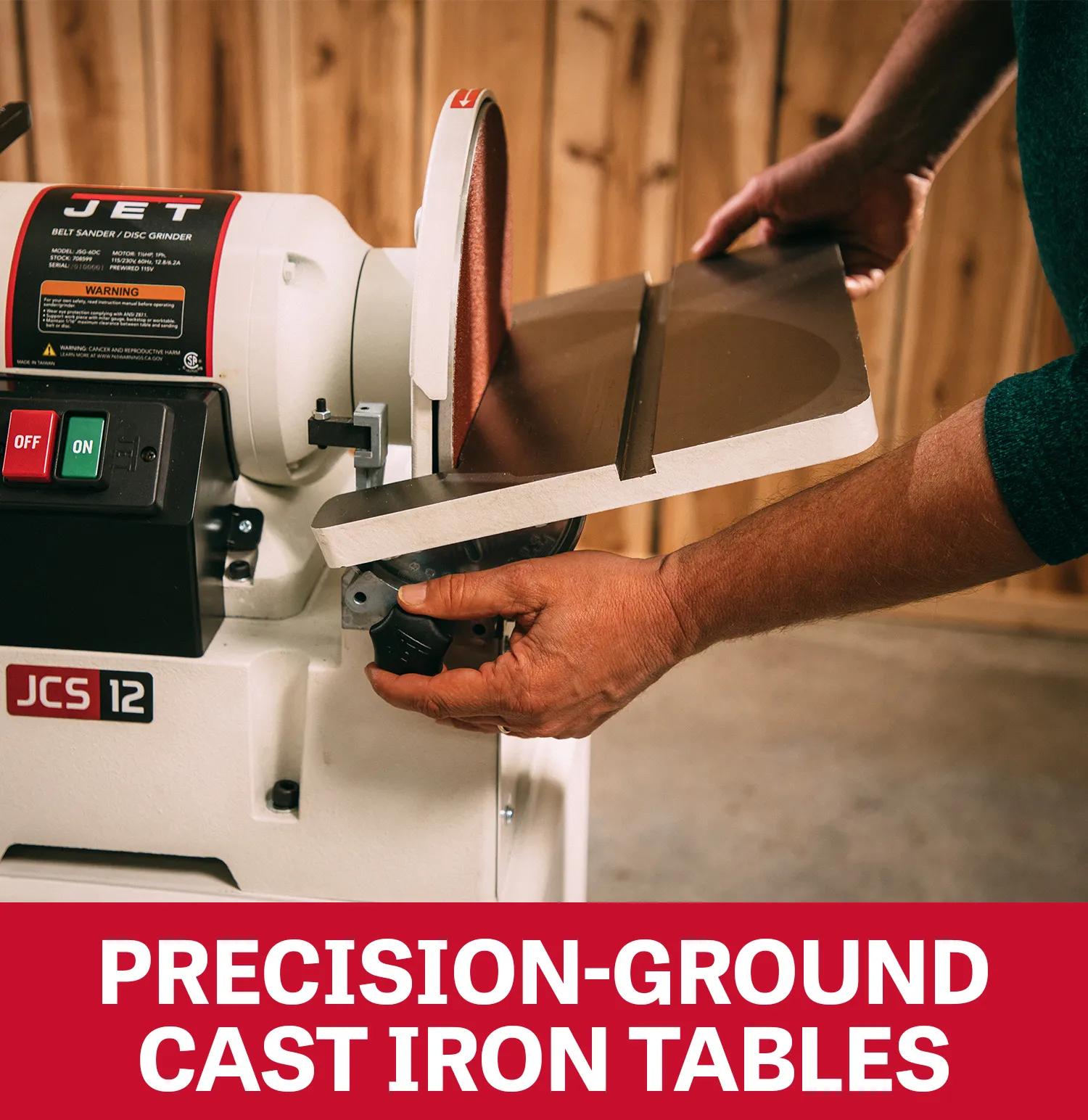

  • Precision-rated tilting table — delivering angle-grinding authority production finishing demands across production grinding.
  • Cast iron load-bearing surfaces cover the structural mass for the structural stability shop work demands.

Specifications

  • SKU
    JT9-708599K
  • Abrasive Type
    Belt/Disc
  • Assembled Dimensions
    36 x 22 x 57 in.
  • Belt Tilt Range
    20 Deg. Up, 45 Deg. Down
  • Disc Diameter
    12 in.
  • Disc Speed

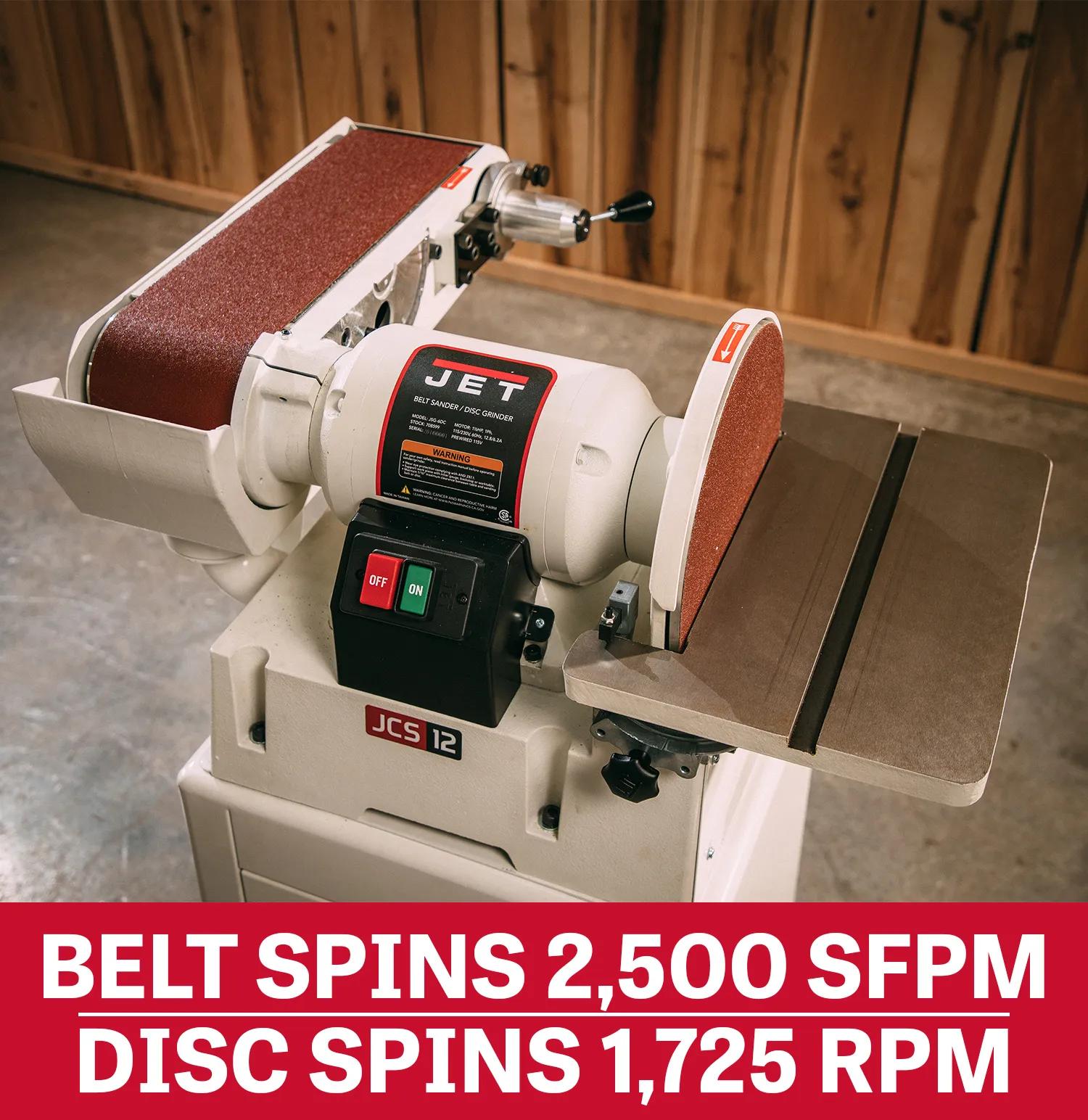

    1725 RPM

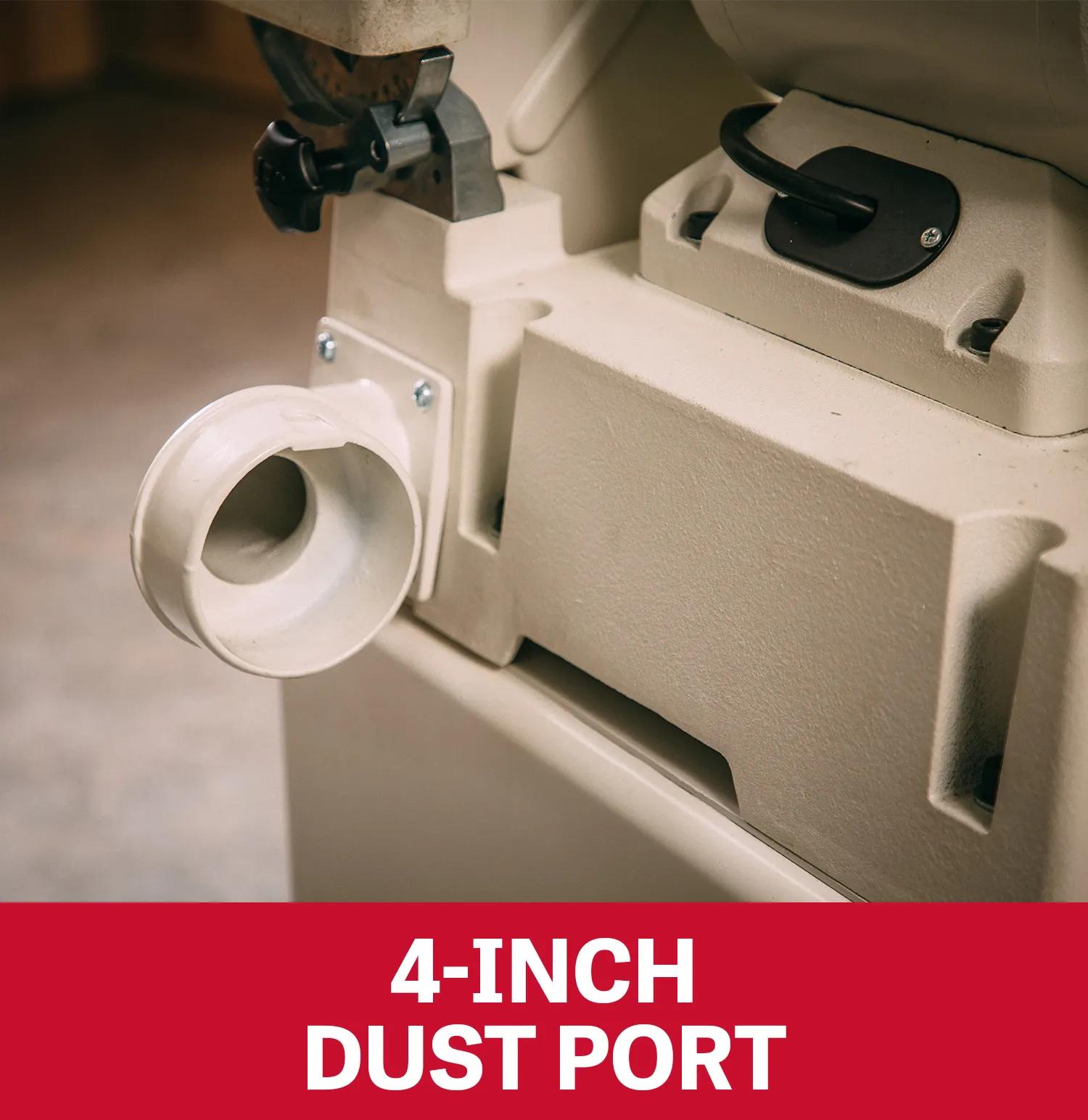

  • Dust Port Outside Diameter
    4 in.
  • Horse Power
    1.5 HP
  • Input Power
    115/230 V 1 Ph
  • Model Number
    JSG-6DCK
  • Motor Amps
    12.8/6.2 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    708599K
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    450 - 450 CFM
  • SAP Gross Weight
    243
  • SAP Net weight
    243
  • Style Type
    Floorstanding
  • Table Height
    42-1/4 in.
  • Table Size
    14-3/4 x 7-1/2 in.
  • Table Tilt (L, R, C)
    -20 - 45 Deg.
  • UPC
    662755147609
  • Warranty
    Five Years
