Product Details
Built for the operators who measure success in finished surfaces. Built around production grinding and sanding cycles, the JSG-96CS delivers production-grade results. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.

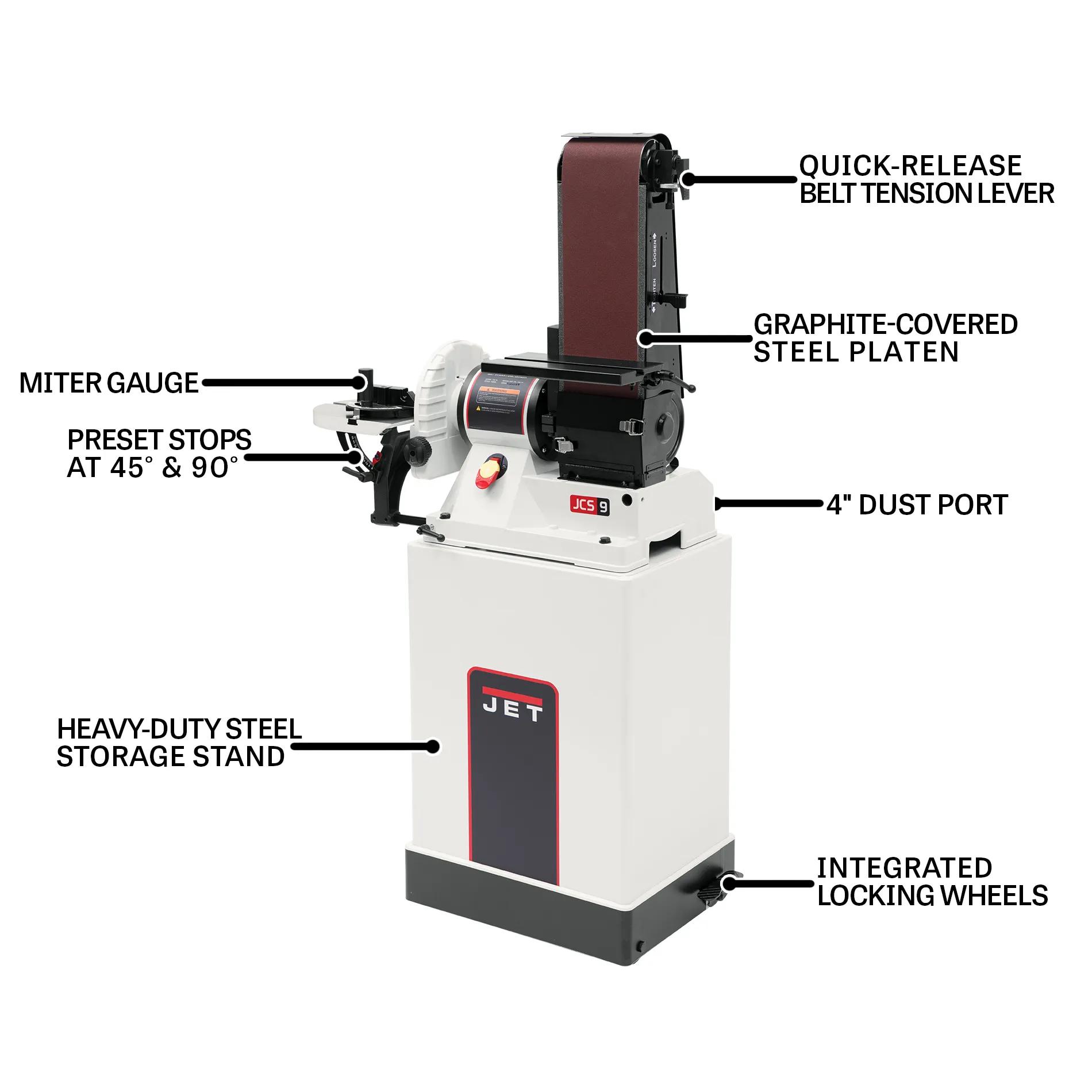

Features
- Industrial-grade 0.75 HP single-phase induction motor delivers torque for the duty range working shops actually run.
- Production-grade belt drive handles abrasive contact for the material removal rates production sanding demands.

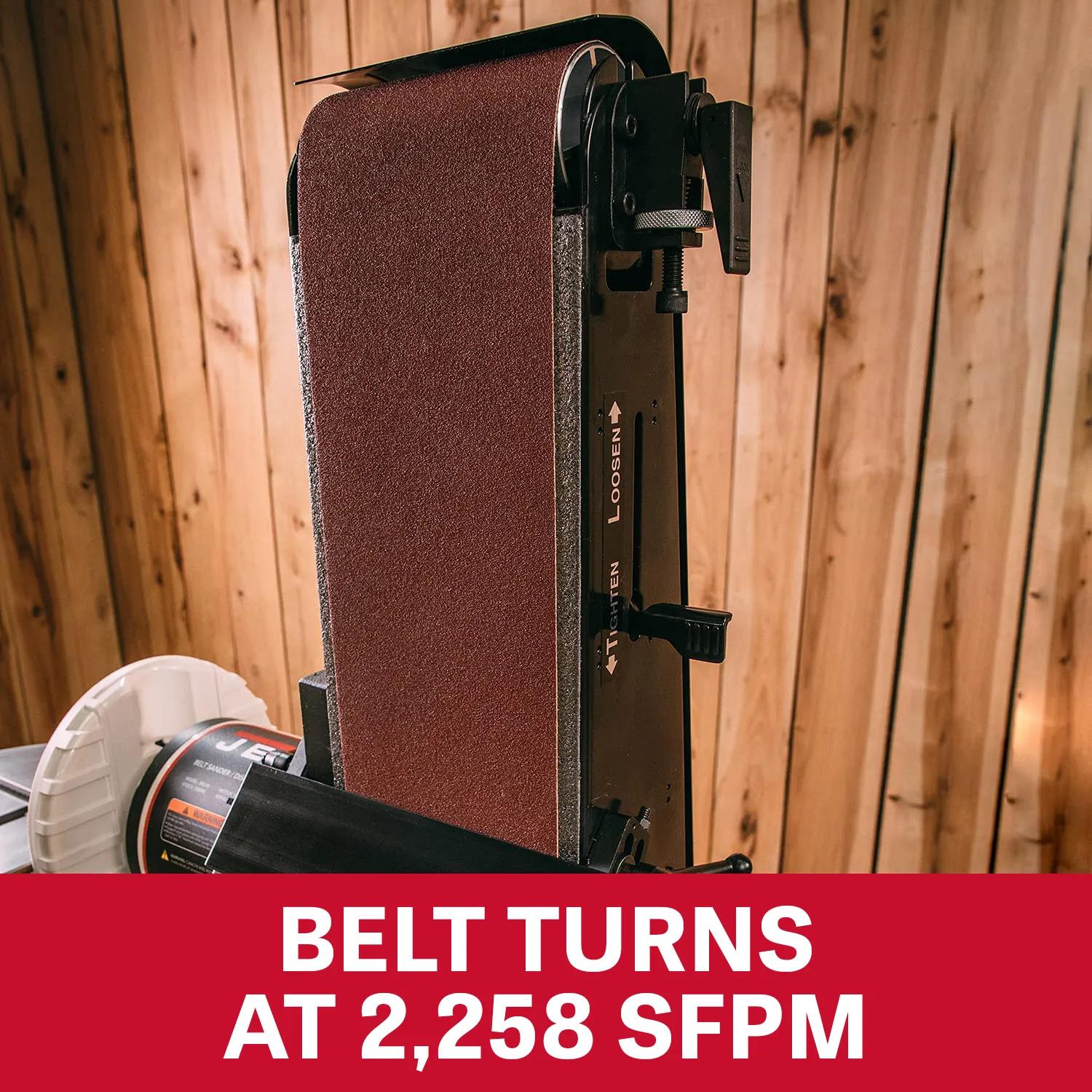

- Belt-tension mechanism — delivering working belt geometry production finishing demands.
- Disc-grinding architecture — running true at full RPM across industrial finishing.

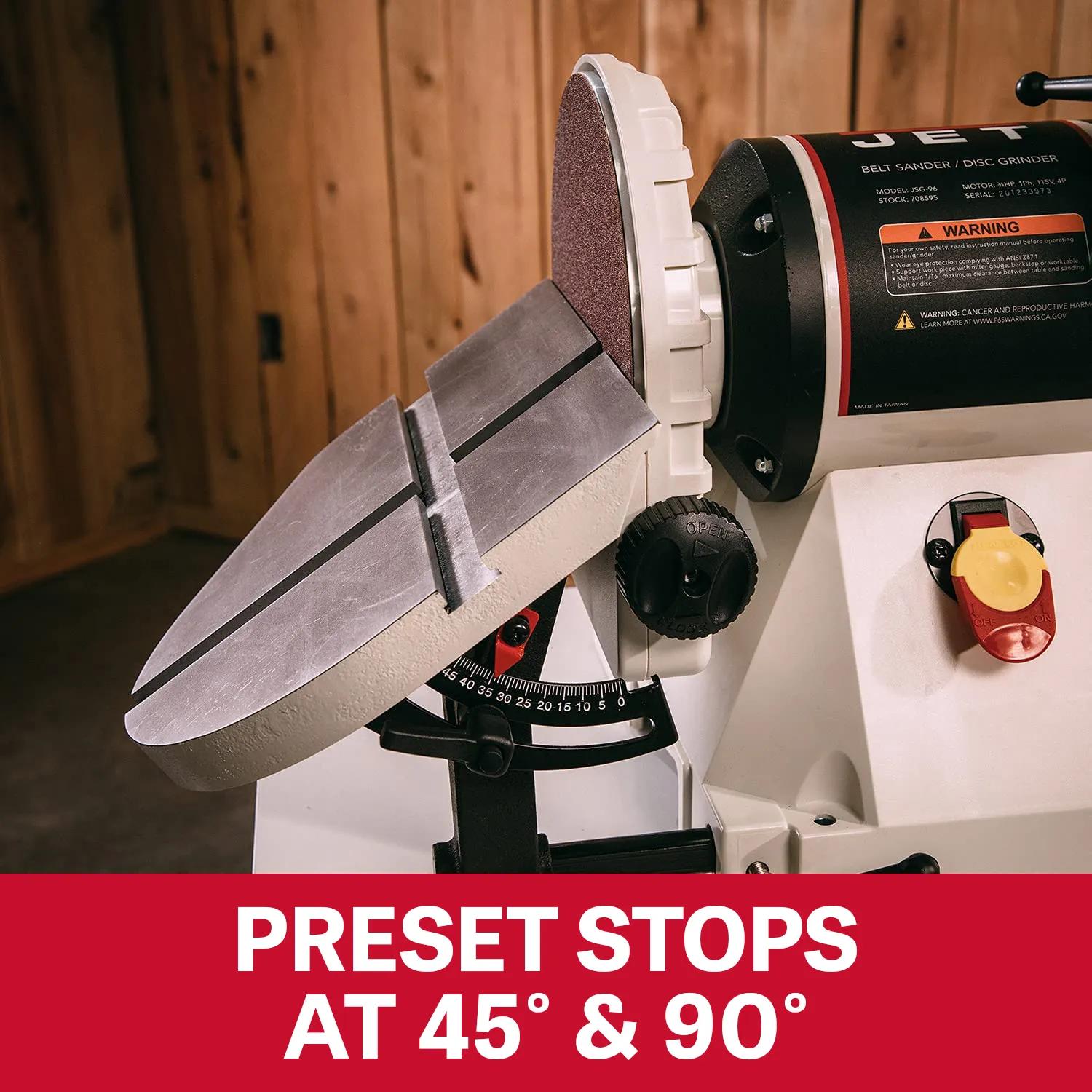

- Tilting-table geometry covers angle work for angled grinding work production fabrication generates.
- Cast iron construction in the main castings — delivering rigidity welded steel can't match.
Specifications
- SKUJT9-708597K
- Abrasive TypeBelt/Disc

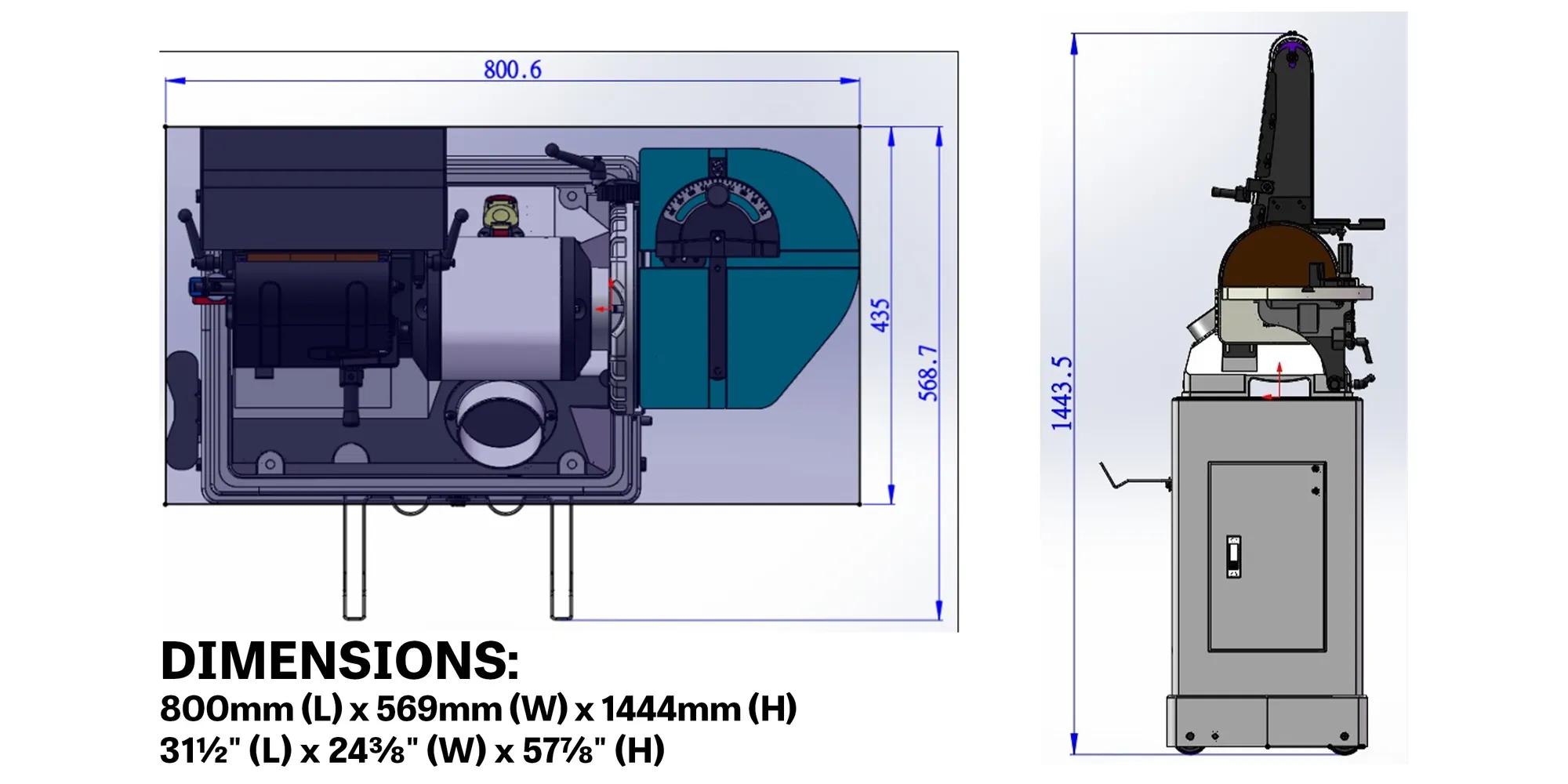

- Assembled Dimensions30.5 x 17 x 53.5 in.
- Belt Tilt Range10 Deg. Up, 45 Deg. Down
- Disc Diameter9 in.

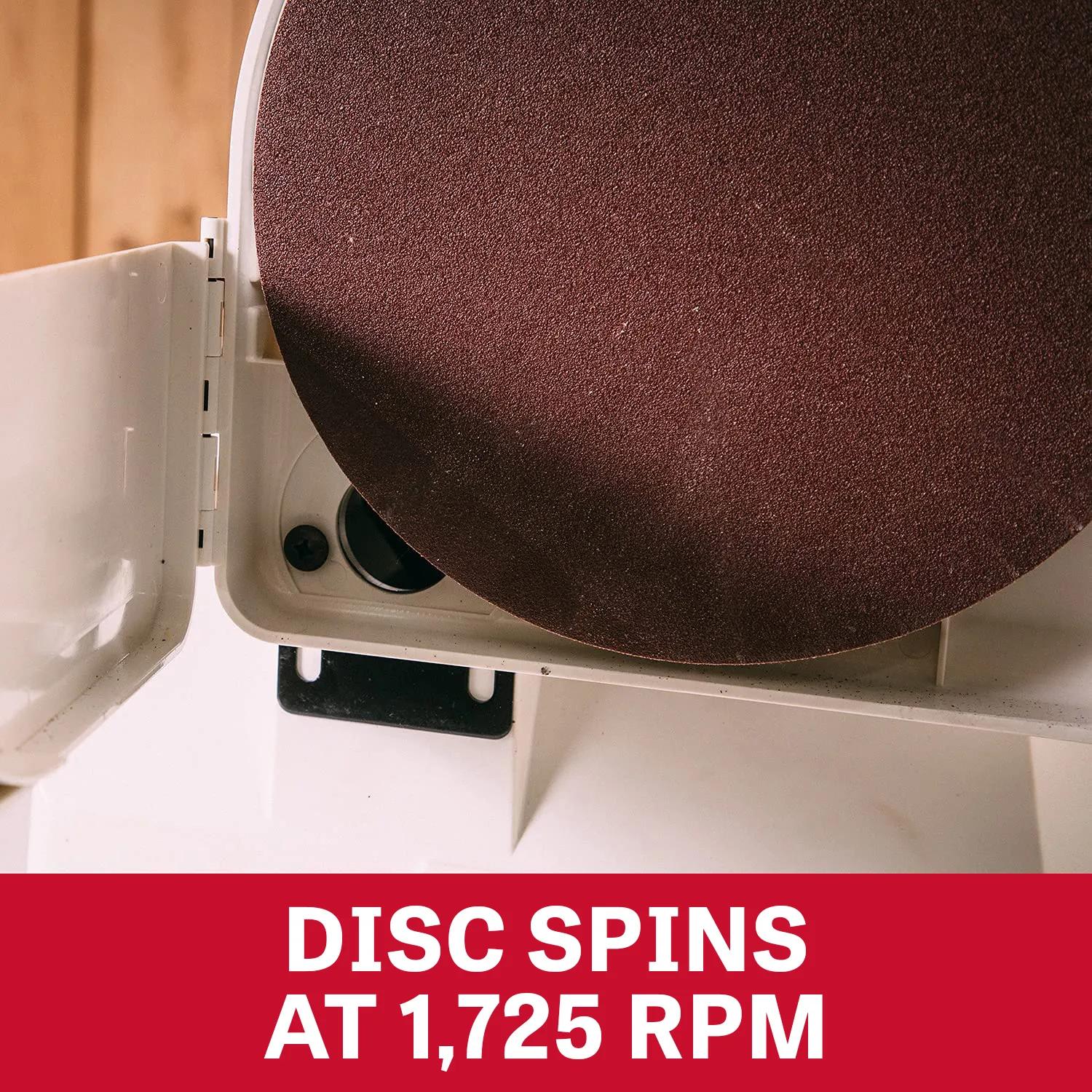

- Disc Speed1725 RPM
- Dust Port Outside Diameter4 in.
- Horse Power0.75 HP
- Input Power115 V 1 Ph
- Model NumberJSG-96CS
- Motor Amps11 A
- Motor HP0.75 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number708597K
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight196
- SAP Net weight196
- Style TypeFloorstanding
- Table Height39 in.
- Table Size11 x 5-1/2 in.
- Table Tilt (L, R, C)90 - 45 Deg.
- UPC662755249280
- WarrantyFive Years
