Product Details
Production-grade grinding and sanding for the work that gets shipped. The JSG-96OS was sized for finishing work that has to pass QA review. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.
Features

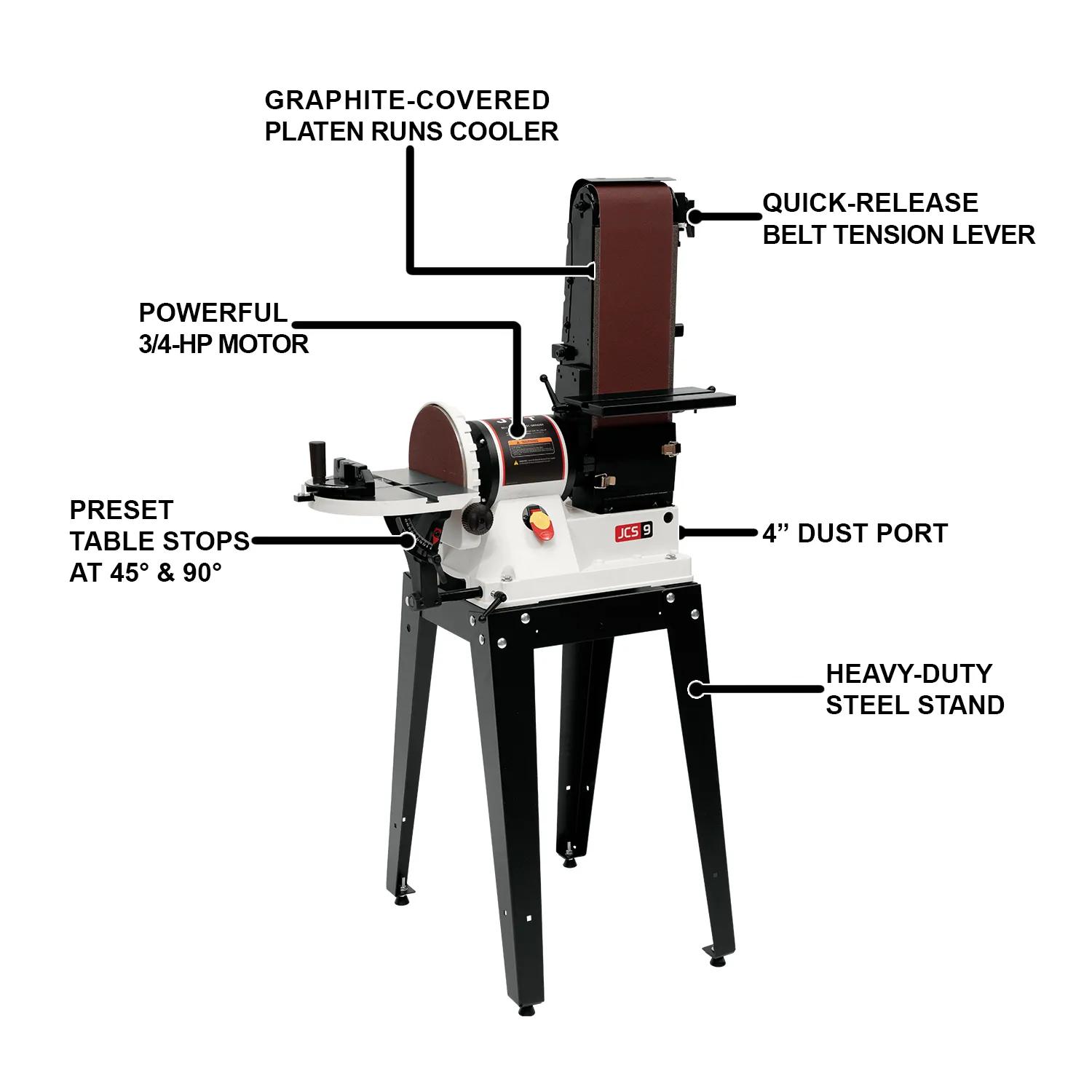

- Heavy-duty 0.75 HP induction motor handles working speed under load — holding RPM under cutting load that would stall lighter motors.
- Production-grade belt drive covers abrasive contact for the material removal rates production sanding demands.
- Industrial belt geometry matches abrasive media for the belt-length production finishing depends on.
- Working-grade disc geometry provides flat grinding for consistent surface finish at full RPM.

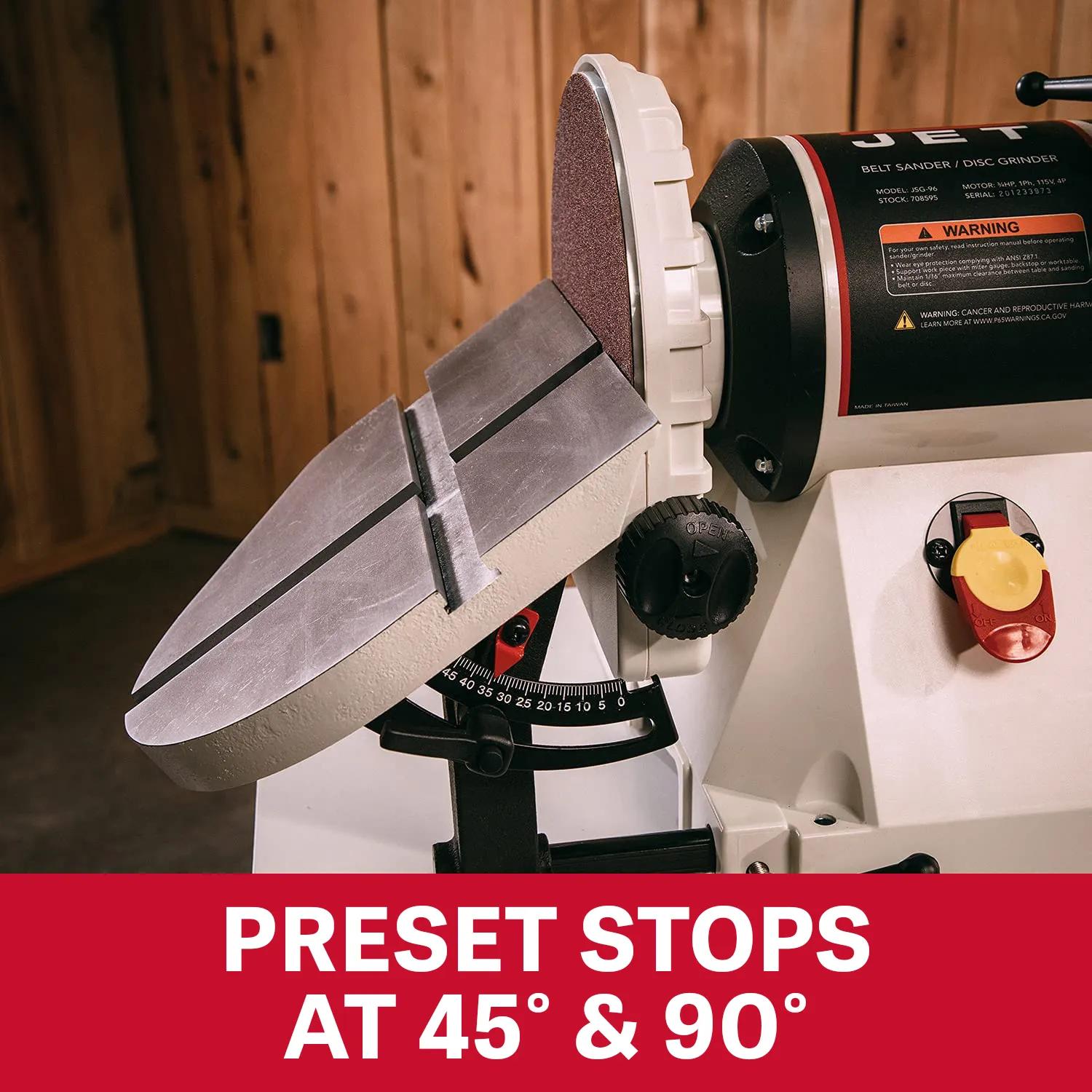

- Tilting-table geometry supports angle work for angled finishing in one setup.
- Cast iron construction in the support castings — holding reference flat under load.
Specifications
- SKUJT9-708596K
- Abrasive TypeBelt/Disc

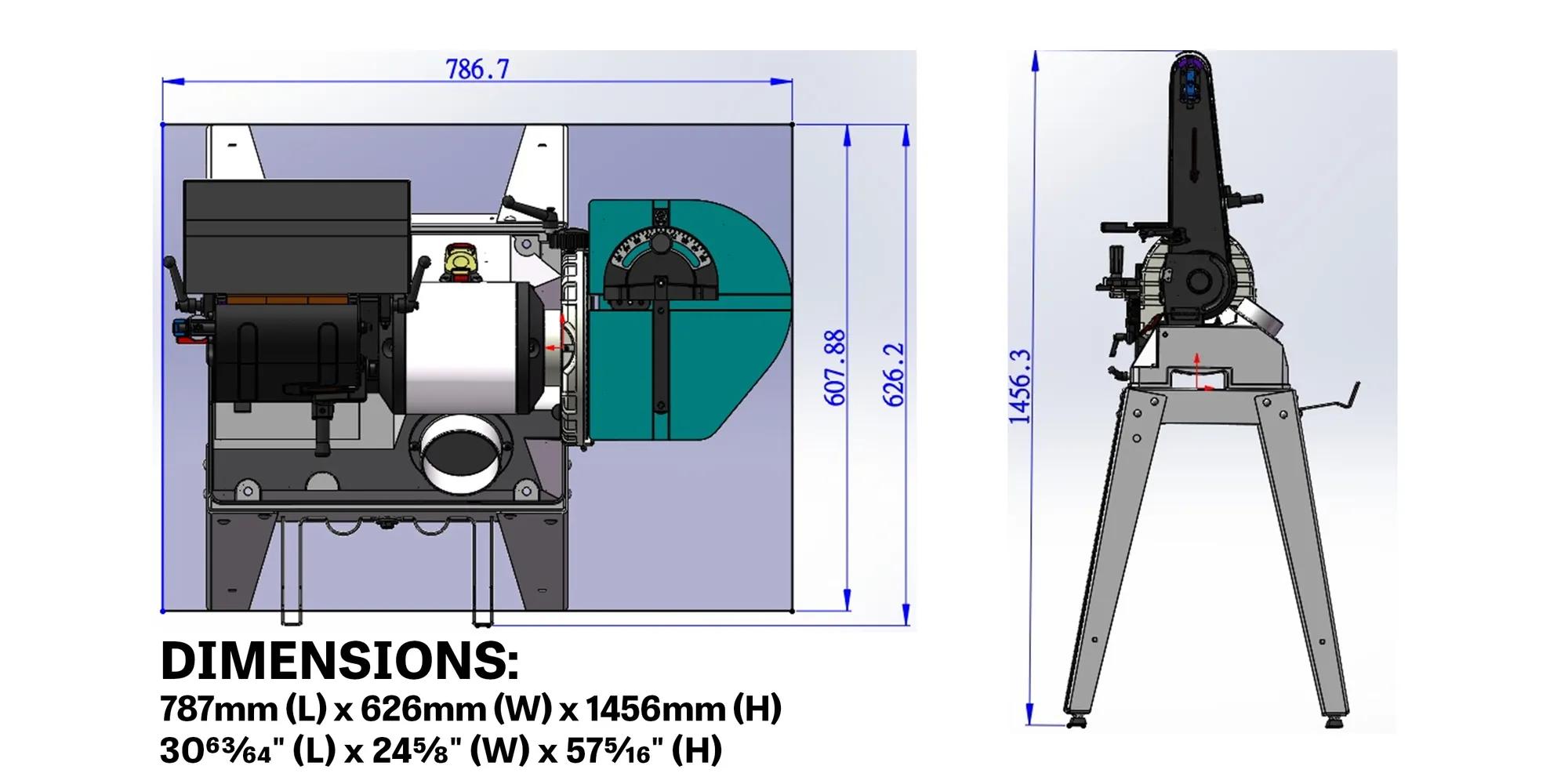

- Assembled Dimensions30.5 x 17 x 53.5 in.
- Belt Tilt Range10 Deg. Up, 45 Deg. Down
- Disc Diameter9 in.

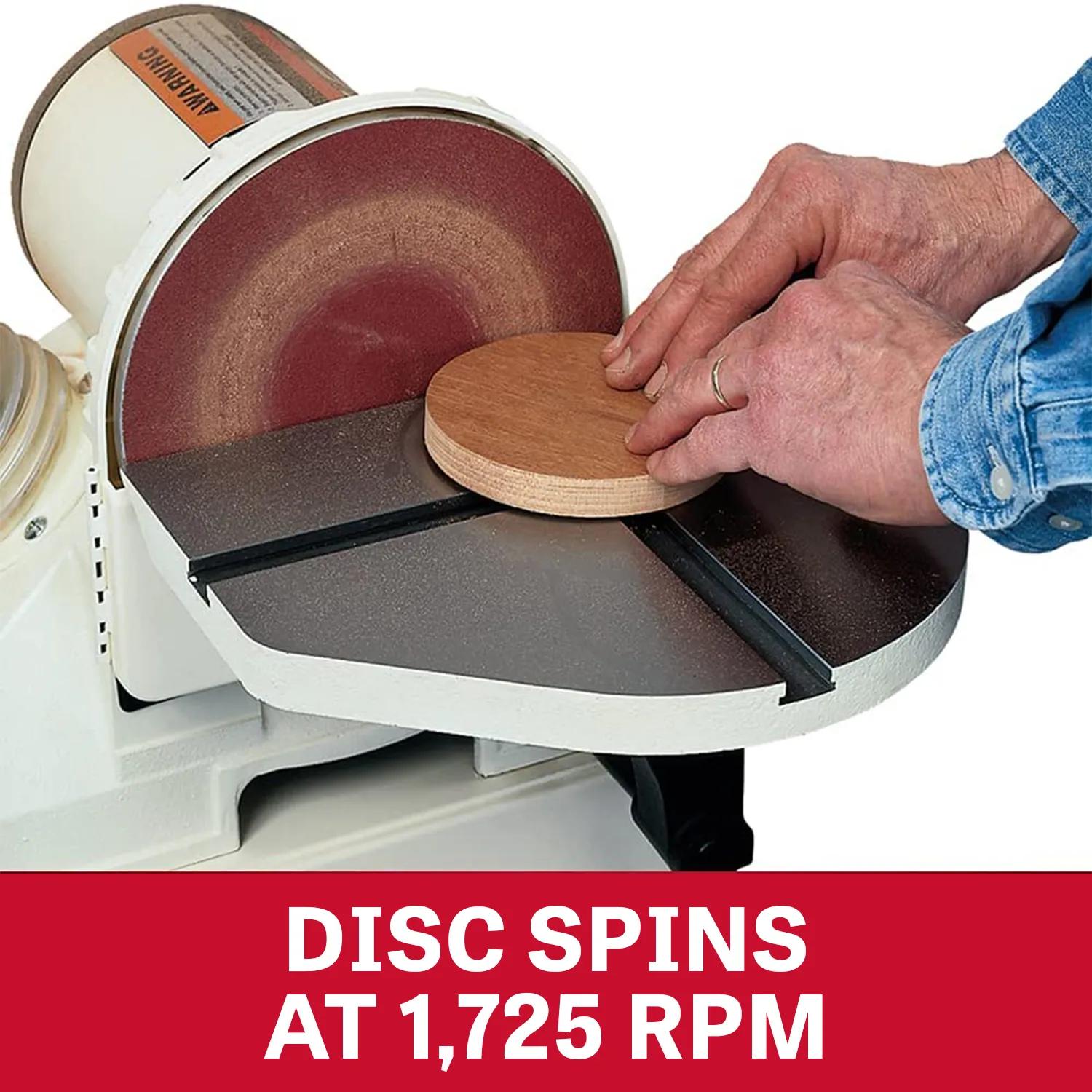

- Disc Speed1725 RPM
- Dust Port Outside Diameter4 in.
- Horse Power0.75 HP
- Input Power115 V 1 Ph
- Model NumberJSG-96OS
- Motor Amps11 A
- Motor HP0.75 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number708596K
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight159
- SAP Net weight159
- Style TypeFloorstanding
- Table Height39 in.
- Table Size11 x 5-1/2 in.
- Table Tilt (L, R, C)90 - 45 Deg.
- UPC662755279782
- WarrantyFive Years
