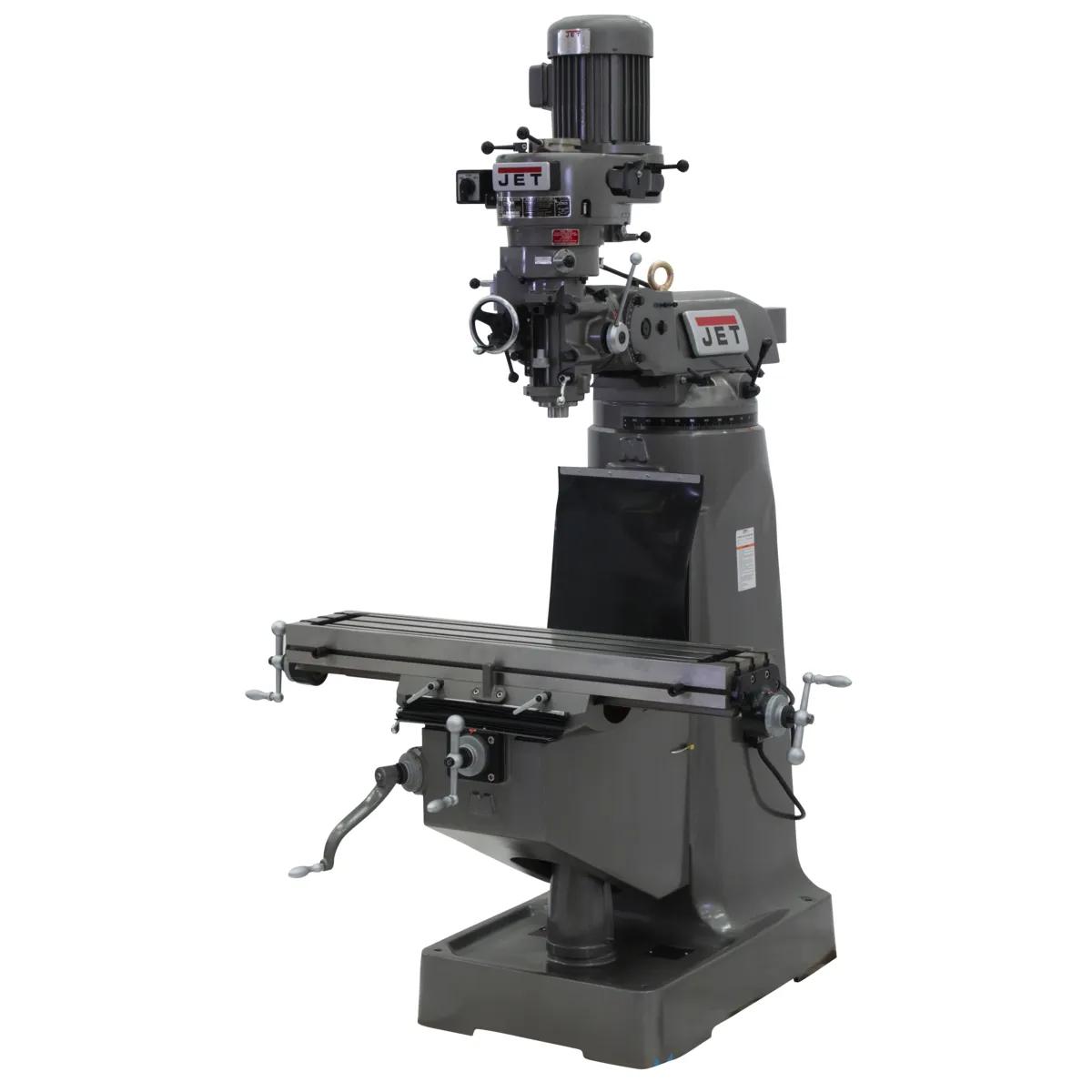

9" x 42" Mill w/ 3-Axis NMS300 DRO (Q) w/ X & Y-Axis Powerfeeds, 2HP, 230V 3PH(JTM-1)

Stock Number: JT9-692192

0 Reviews

No reviews yet.

  • 2 HP, 230V, three-phase
  • 9" x 42" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. The JTM-1 was sized for machinists who measure success in tenths. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • Industrial-grade 2 HP induction motor — holding speed under load when lighter motors stall, engineered for mixed-material work envelopes.
  • Industrial 9 in. x 42 in. table — covering the workpiece sizes daily milling generates, sized for the part library production milling actually runs.
  • Factory-tested 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across professional cutting environments.
  • Industrial-spec 80 - 5,440 RPM range — delivering operator-side speed control.
  • Vibration-dampening Meehanite knee castings keep finish quality consistent across production turning.
  • Heat-treated, ground, and matched saddle gears run as a precision system across production cycles.

Specifications

  • SKU
    JT9-692192
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    57 x 64 x 82 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    3-Axis Newall NMS300(Quill)
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Motor Amps
    6.5/5.6 A
  • Motor Speed
    3450/1720 RPM
  • Net Weight
    2,200
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    16
  • Old Material Number
    692192
  • Power Feed
    X-Axis/Y-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    80 - 5440 RPM
  • SAP Gross Weight
    2,200
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley R8
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12-1/2 in.
  • Table Longitudal Travel
    23-7/8 in.
  • Table Longitudal Travel With Powerfeed
    20-2/7 in.
  • Table Size
    9 x 42 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325453775
  • Warranty
    Two Years
  • Work Table Weight Capacity
    550 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
