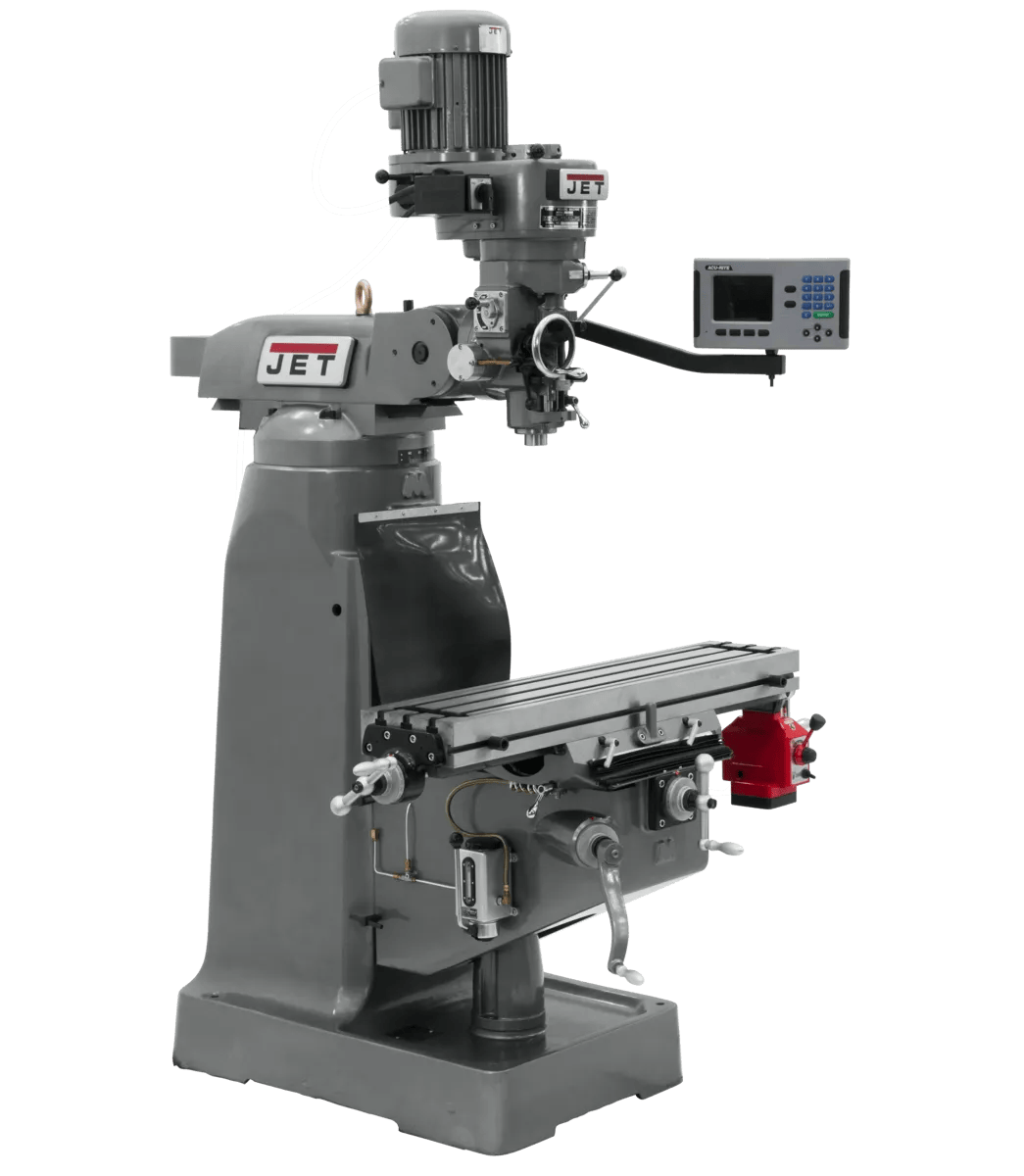

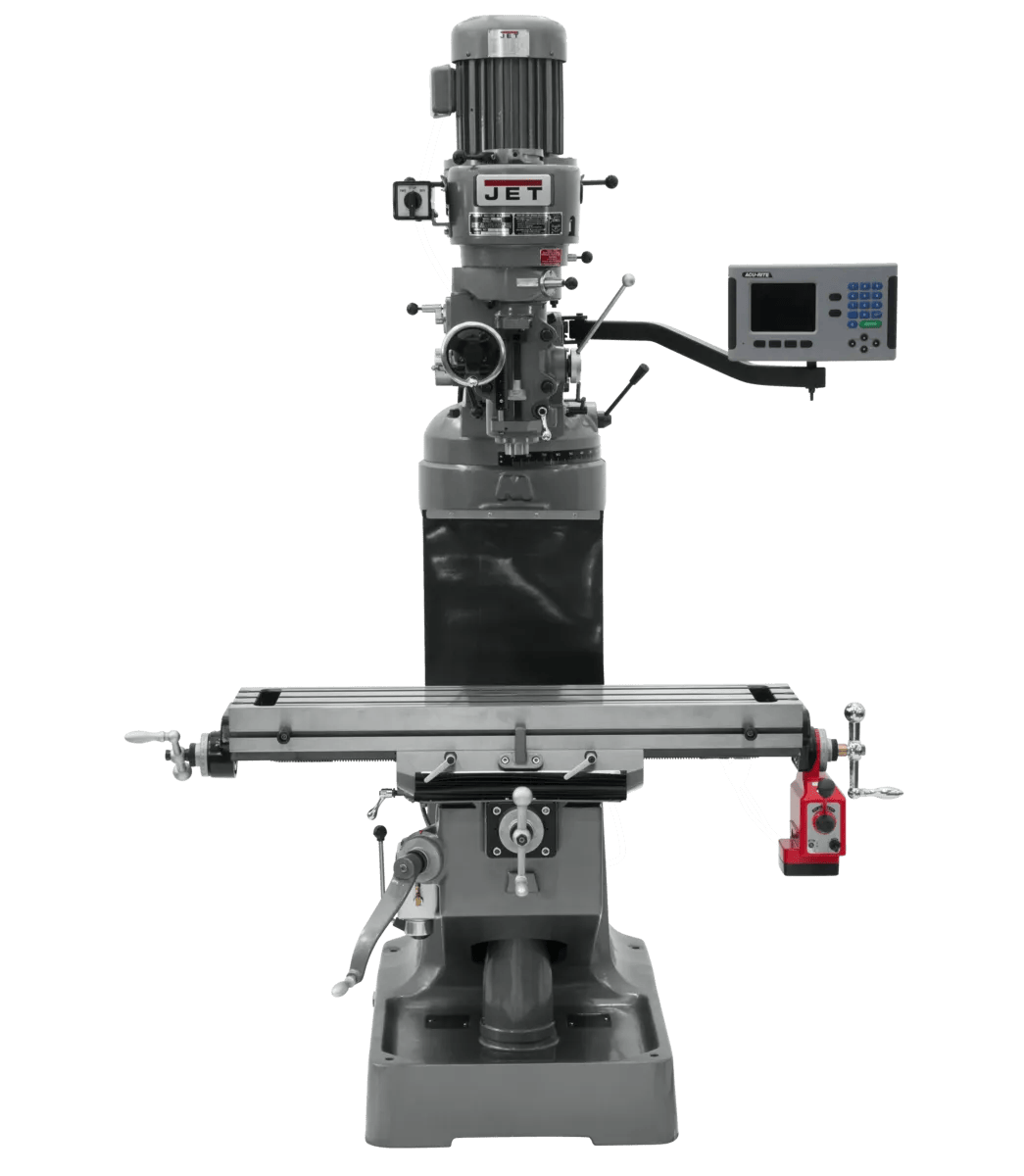

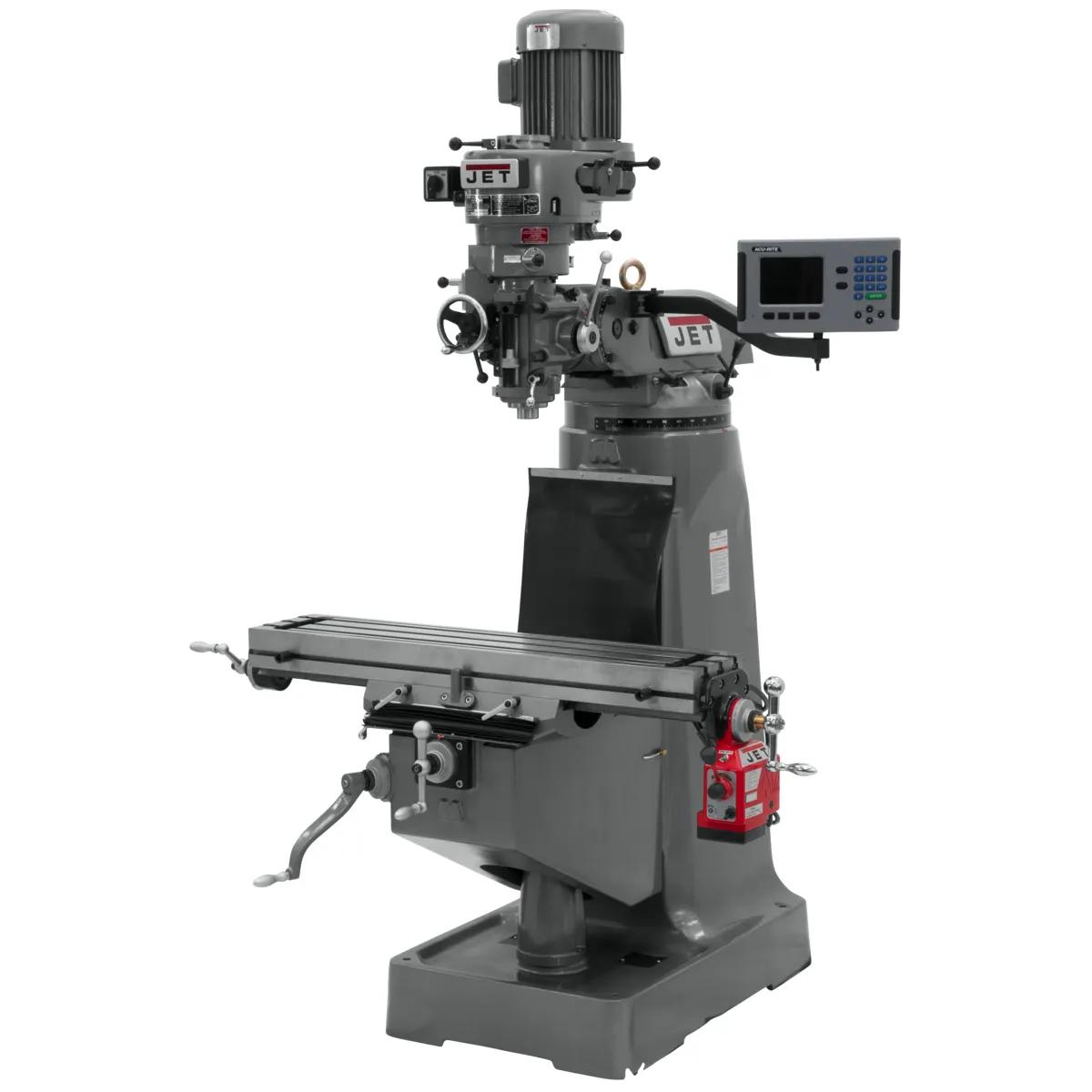

9" x 42" Mill w/ ACU-RITE 203 DRO & X-Axis Powerfeed, 2HP, 230V 3PH(JTM-1)

Stock Number: JT9-690168

0 Reviews

No reviews yet.

  • 2 HP, 230V, three-phase
  • 9" x 42" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Production-grade milling for the cuts that hold tolerance through long cycles. The JTM-1 fits production shops that turn programs into parts daily — and the cycle counts they generate. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Shop-rated 2 HP motor with sealed bearings — running quieter and cooler than equivalent open-frame designs across industrial production lines.
  • 9 in. x 42 in. table surface matches the workpiece sizes for the workholding patterns production setups generate.
  • R-8 spindle interface — handling the tooling loads production cutting generates, sized for the tooling investment production shops have already made.
  • Professional-grade 5-inch spindle travel — expanding the operating envelope without compromise across professional cutting environments.
  • Production-grade 80 - 5,440 RPM range — matching cut velocity to material density without manual reconfiguration.
  • Aged-and-stress-relieved Meehanite bed castings stay true for the harmonic dampening fine-finish work demands.

Specifications

  • SKU
    JT9-690168
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    57 x 64 x 82 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite 203
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Motor Amps
    6.5/5.6 A
  • Motor Speed
    3450/1720 RPM
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    16
  • Old Material Number
    690168
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    80 - 5440 RPM
  • SAP Gross Weight
    2,200
  • SAP Net weight
    2,200
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley R8
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12-1/2 in.
  • Table Longitudal Travel
    23-7/8 in.
  • Table Longitudal Travel With Powerfeed
    20-2/7 in.
  • Table Size
    9 x 42 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    662755516139
  • Warranty
    Two Years
  • Work Table Weight Capacity
    550 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
