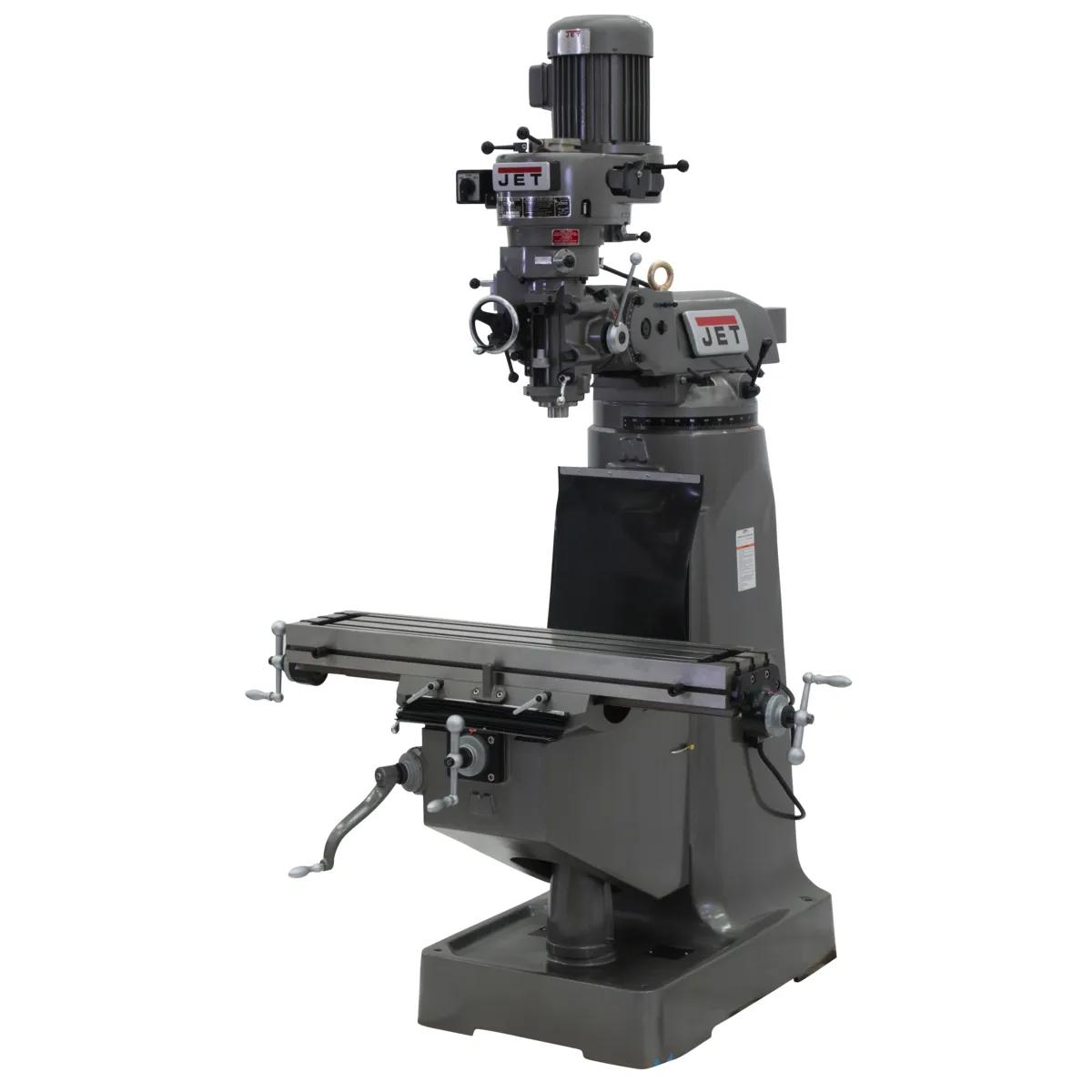

9" x 42" Mill w/ NMS300 DRO, 2HP, 230V 3PH(JTM-1)

Stock Number: JT9-692187

0 Reviews

No reviews yet.

  • 2 HP, 230V, three-phase
  • 9" x 42" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

From prototype to production, the same mill earns its place. Designed for machinists who measure success in tenths, the JTM-1 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Industrial-grade 2 HP three-phase drive — delivering production-grade power output, built for production environments.
  • Generous 9 in. x 42 in. table surface — covering the workpiece sizes daily milling generates across production fabrication.
  • Industrial-spec 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across production fabrication.
  • Engineered 80 - 5,440 RPM range — matching cut requirements without belt-pulley reconfiguration.
  • Certified Meehanite reference surfaces resist wear and deflection for the harmonic dampening fine-finish work demands.
  • Hardened and ground power-down-feed gears keep the drivetrain transmitting power for power transmission consistency across cycles.

Specifications

  • SKU
    JT9-692187
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    57 x 64 x 82 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Newall NMS300
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Motor Amps
    6.5/5.6 A
  • Motor Speed
    3450/1720 RPM
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    16
  • Old Material Number
    692187
  • Power Feed
    No
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    80 - 5440 RPM
  • SAP Gross Weight
    2,200
  • SAP Net weight
    2,200
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley R8
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12-1/2 in.
  • Table Longitudal Travel
    23-7/8 in.
  • Table Longitudal Travel With Powerfeed
    20-2/7 in.
  • Table Size
    9 x 42 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325453720
  • Warranty
    Two Years
  • Work Table Weight Capacity
    550 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
