Product Details

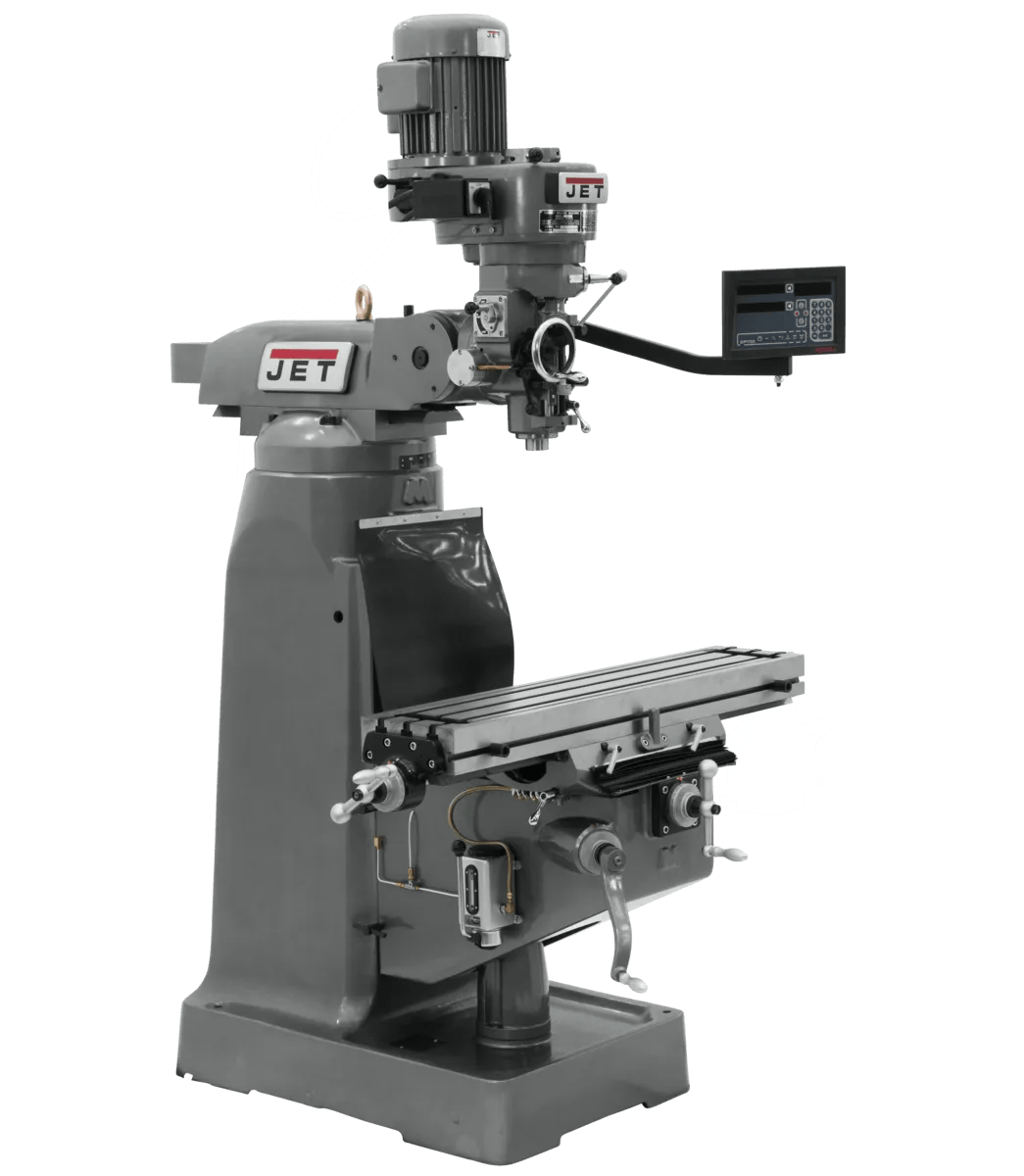

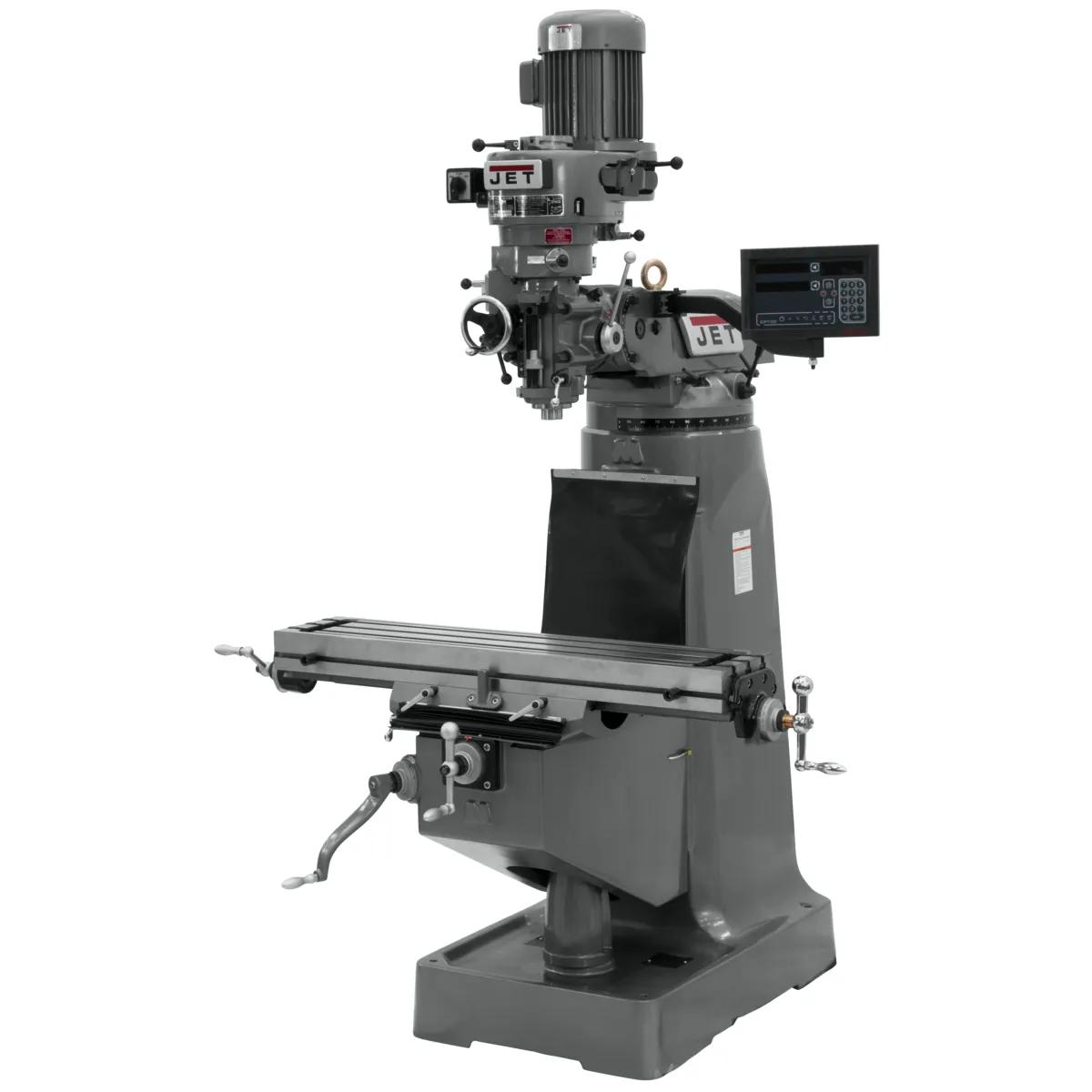

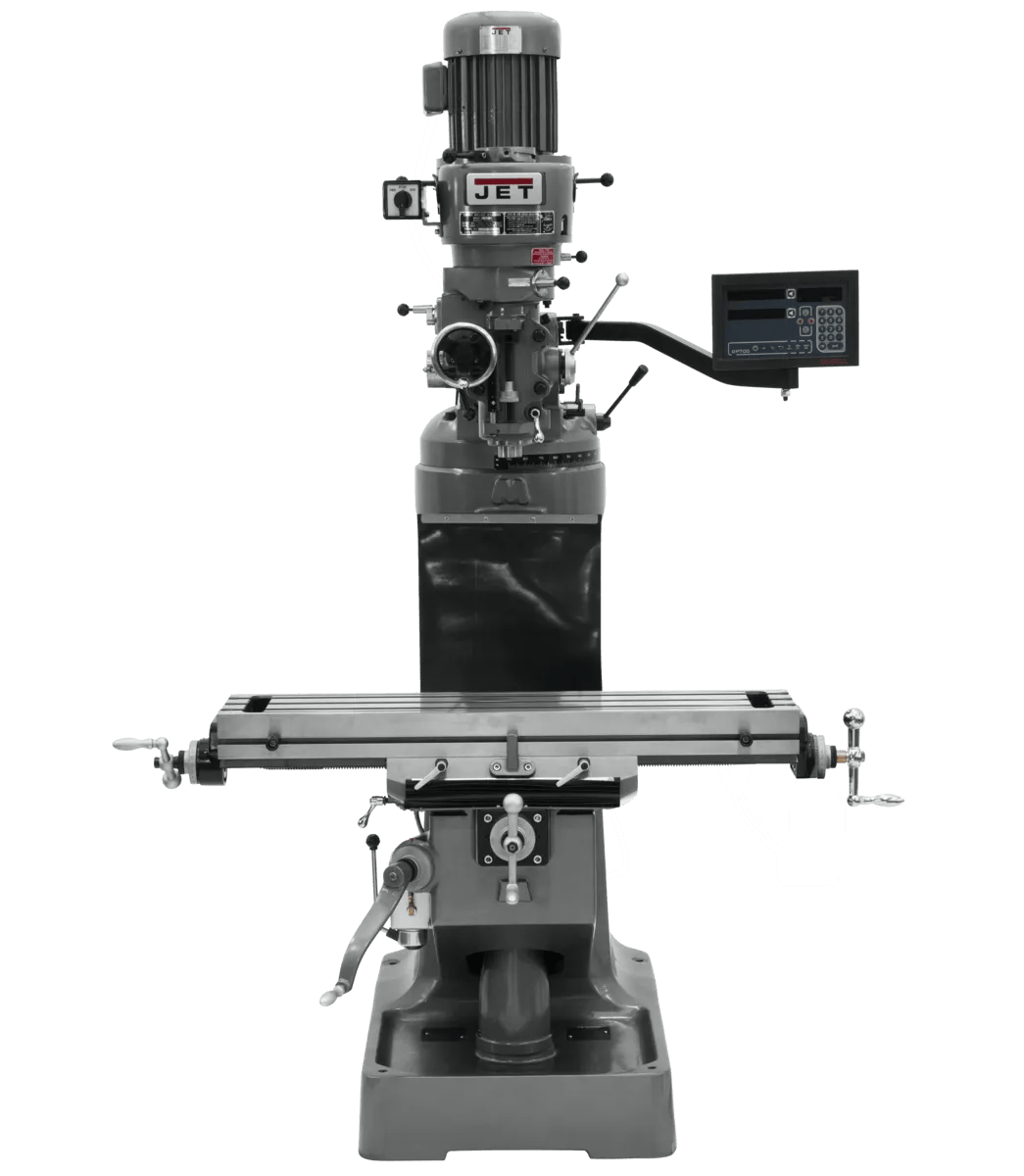

From prototype to production, the same mill earns its place. The JTM-1 fits industrial machining environments running long-cycle production — and the cycle counts they generate. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.
Features
- The 2 HP induction motor — outlasting brush-driven alternatives across decades for sustained-load operation production work demands.
- 9 in. x 42 in. table — expanding the working envelope without expanding the shop footprint.
- Working-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across production milling.
- Heavy-duty 80 - 5,440 RPM range — matching cut requirements without belt-pulley reconfiguration.
- Certified Meehanite saddle castings match structural authority for the structural authority production turning demands.
- Heavy-duty hardened drive gears — running quieter, cooler, and with less vibration than stock-grade alternatives, engineered without tolerance drift across the warranty period.
Specifications
- SKUJT9-691187
- Assembled Dimensions57 x 64 x 82 in.
- Collet Size1/8 - 7/8 in.
- Digital ReadoutNewall NMS800
- Distance Spindle to Column (Max.)19 in.
- Distance Spindle to Column (Min.)4-1/2 in.
- Head Movement90 Deg. (L&R), 45 Deg. (F&B)
- Maximum Distance Spindle To Table17-1/2 in.
- Motor Amps6.5/5.6 A
- Motor Speed3450/1720 RPM
- Noise Level Db at 3Ft75 dB
- Number of Spindle Speeds16
- Old Material Number691187
- Power FeedNo
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate.0015 - .003 - .006 IPR
- Range Of Spindle Speeds80 - 5440 RPM
- SAP Gross Weight2,200
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeStep Pulley R8
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12-1/2 in.
- Table Longitudal Travel23-7/8 in.
- Table Longitudal Travel With Powerfeed20-2/7 in.
- Table Size9 x 42 in.
- Travel Of Knee14-1/2 in.
- Travel Of Ram13-3/8 in.
- UPC662755513435
- WarrantyTwo Years
- Work Table Weight Capacity550 lbs
- Input Power230 V 3 Ph
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230 V
