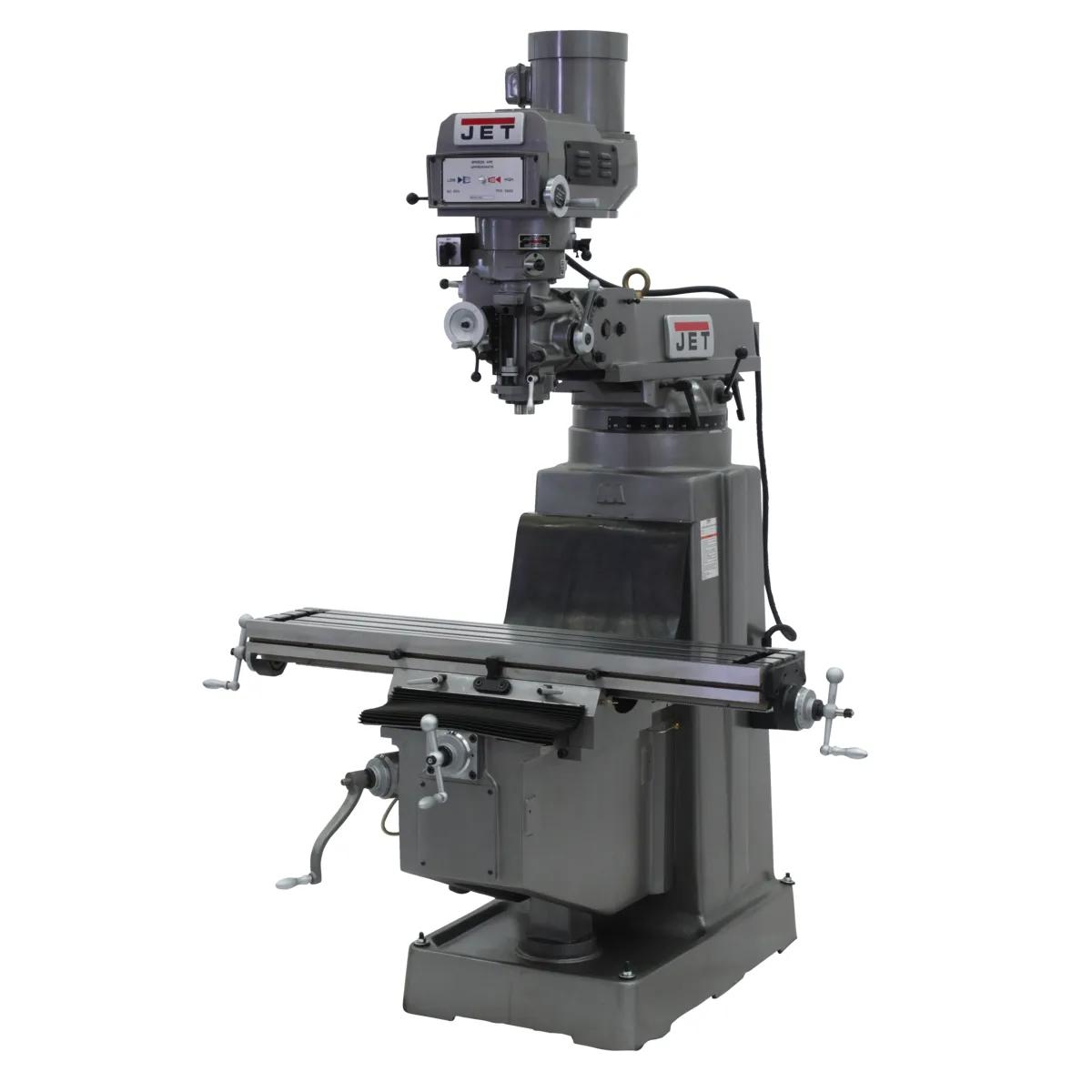

10" x 50" Mill w/ 3-Axis ACU-RITE G-2 MILLPWR CNC, 3HP, 230/460V 3PH(JTM-1050 CNC G2)

Stock Number: JT9-690940

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 10" x 50" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Production-grade milling for the cuts that hold tolerance through long cycles. The JTM-1050 CNC G2 answers the work generated by industrial machining environments running long-cycle production. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Industrial 3 HP induction motor: delivering full nameplate output, designed for industrial shop floors.
  • 10 in. x 50 in. working surface matches the fixture-and-vise library for the table-bolt patterns production shops already drill.
  • Working-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across industrial drilling.
  • Wide 70 - 3,800 RPM range — matching cut velocity to material density without manual reconfiguration.
  • Engineered Meehanite bed castings — absorbing the cutting harmonics that compromise finish quality, sized for the precision work production turning generates.
  • Heat-treated table-feed gears hold spec — outlasting stock-grade drivetrains across production cutting environments.

Specifications

  • SKU
    JT9-690940
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    96-1/2 x 77 x 87-3/4 in.
  • CNC Package
    ACU-RITE MILLPWR® G2
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite G-2 MILPWR
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    5-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    19 in.
  • Noise Level Db at 3Ft
    75 dB
  • Number of Axis
    3
  • Old Material Number
    690940
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    70 - 3800 RPM
  • SAP Gross Weight
    3,500
  • SAP Net weight
    3,500
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    CNC
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    15-1/4 in.
  • Table Longitudal Travel
    30 in.
  • Table Size
    10 x 50 in.
  • Travel Of Knee
    14-1/4 in.
  • Travel Of Ram
    20-1/2 in.
  • UPC
    731325335118
  • Warranty
    Two Years
  • Work Table Weight Capacity
    720 lbs
  • Input Power
    230/460 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
