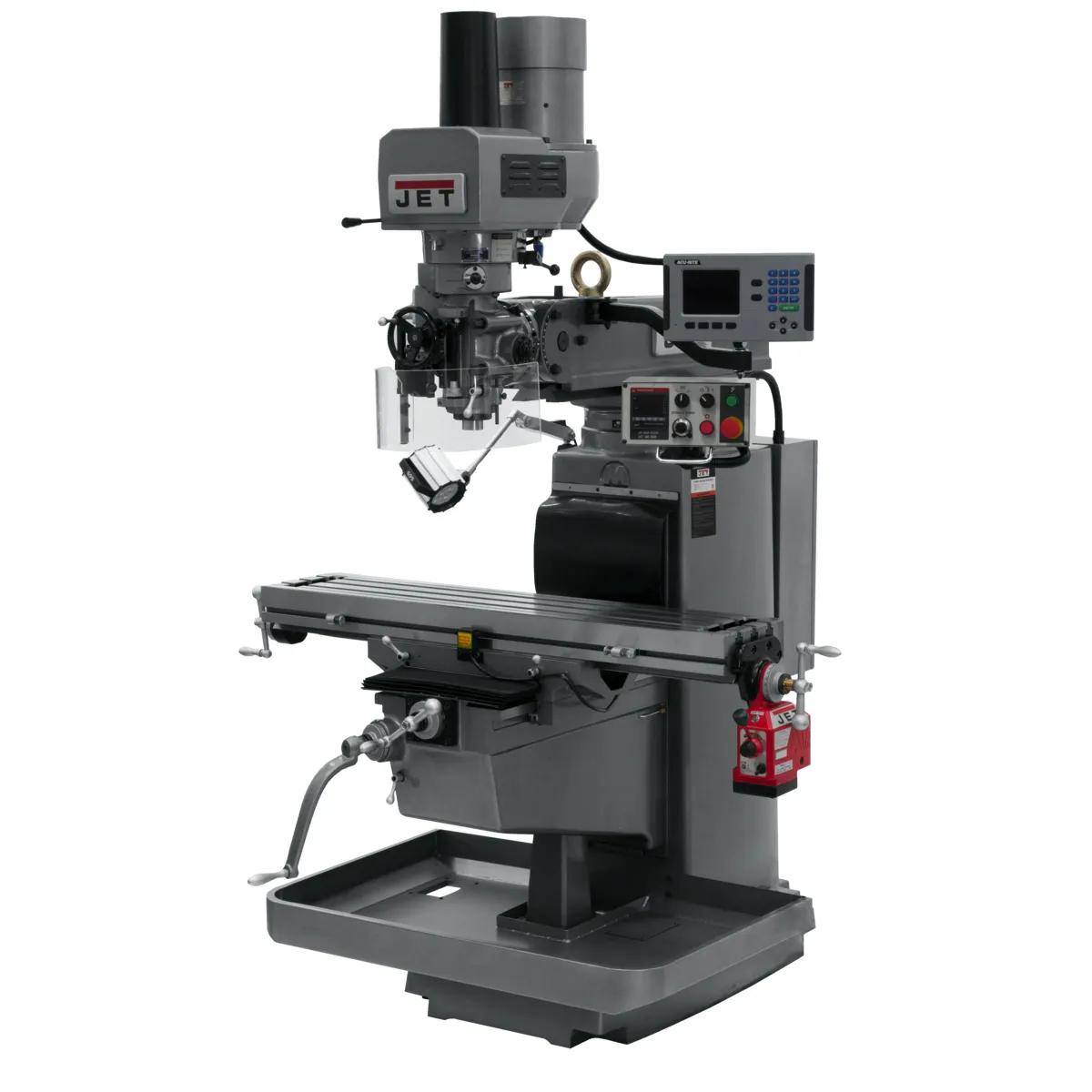

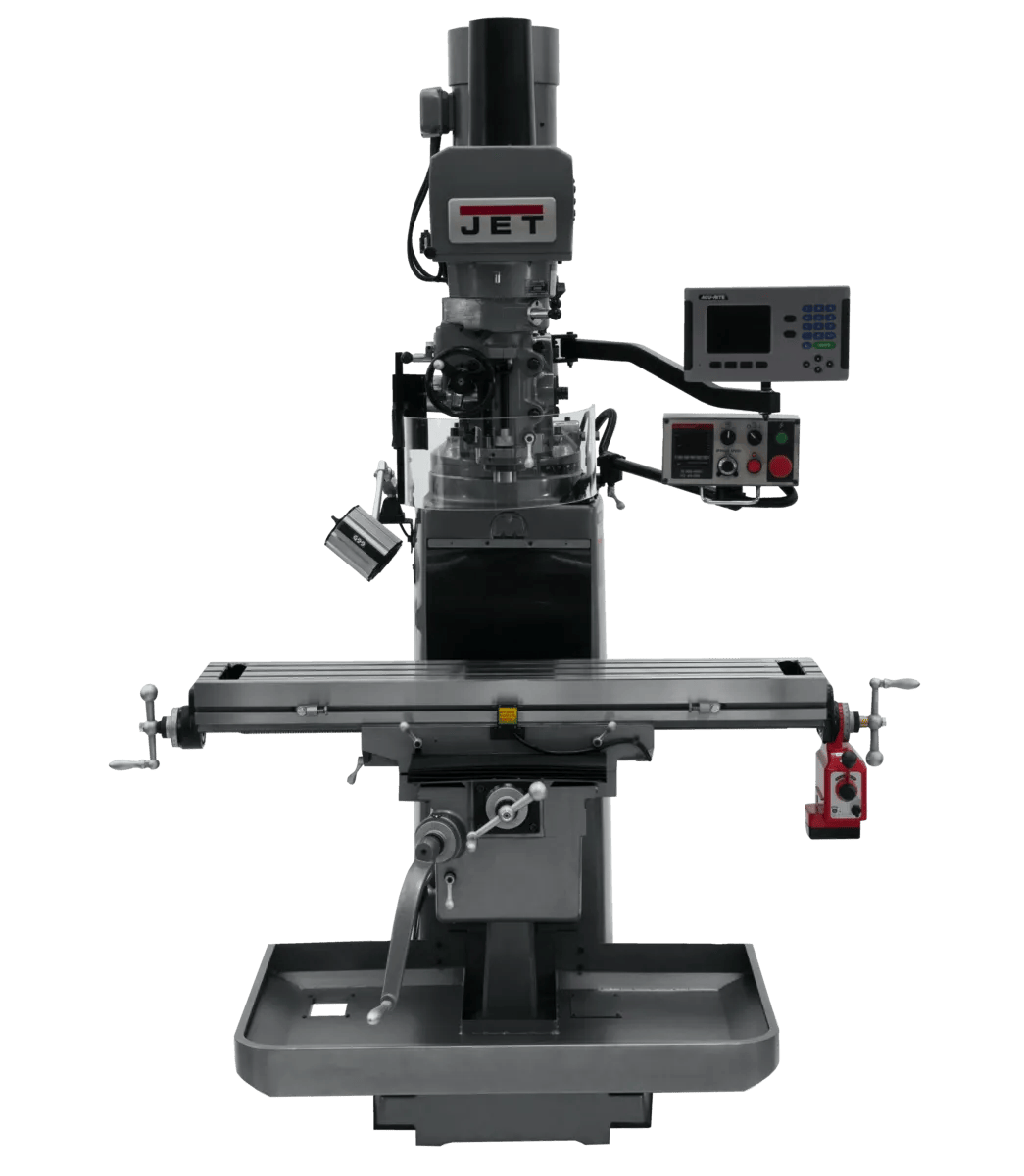

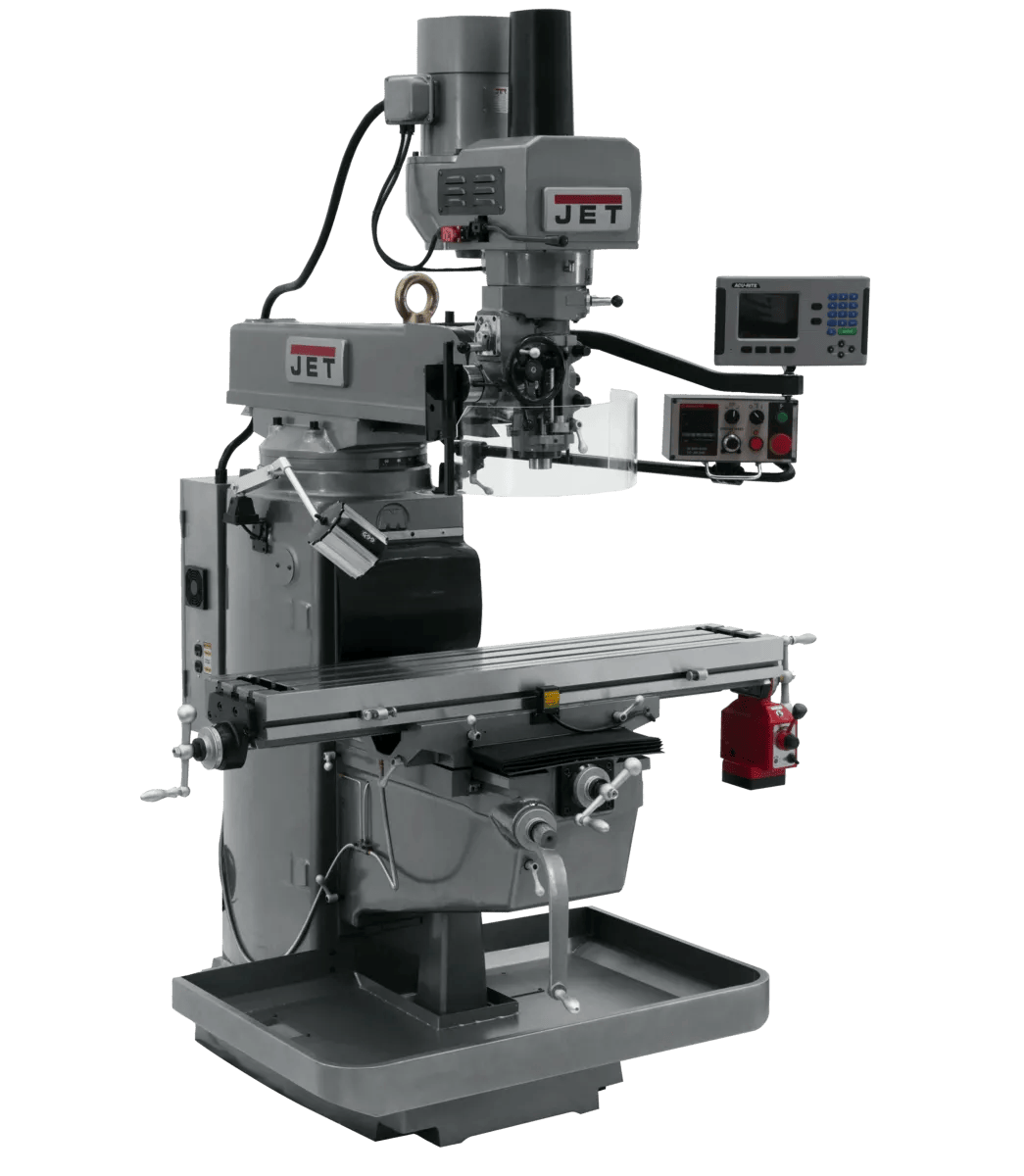

10" x 50" Mill w/ 3-Axis Acu-Rite 203DRO (Q) w/ X-Axis Powerfeed & Powered Draw Bar, 3HP, 230V 3PH(JTM-1050EVS2/230)

Stock Number: JT9-690630

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 10" x 50" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Where setups become parts. The JTM-1050EVS2/230 fits shops that hold tolerance through full production runs — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

Features

  • The 3 HP three-phase drive delivers the working torque for sustained-load operation production work demands.
  • 10 in. x 50 in. table — delivering the fixture mounting flexibility production work demands.
  • Shop-rated R-8 spindle interface — fitting the tooling library production shops already maintain.
  • Shop-rated 5-inch spindle travel — expanding the working envelope without sacrificing stroke control across tool-room machining.
  • Premium-grade 60 - 4,500 RPM range — delivering operator-side speed control.

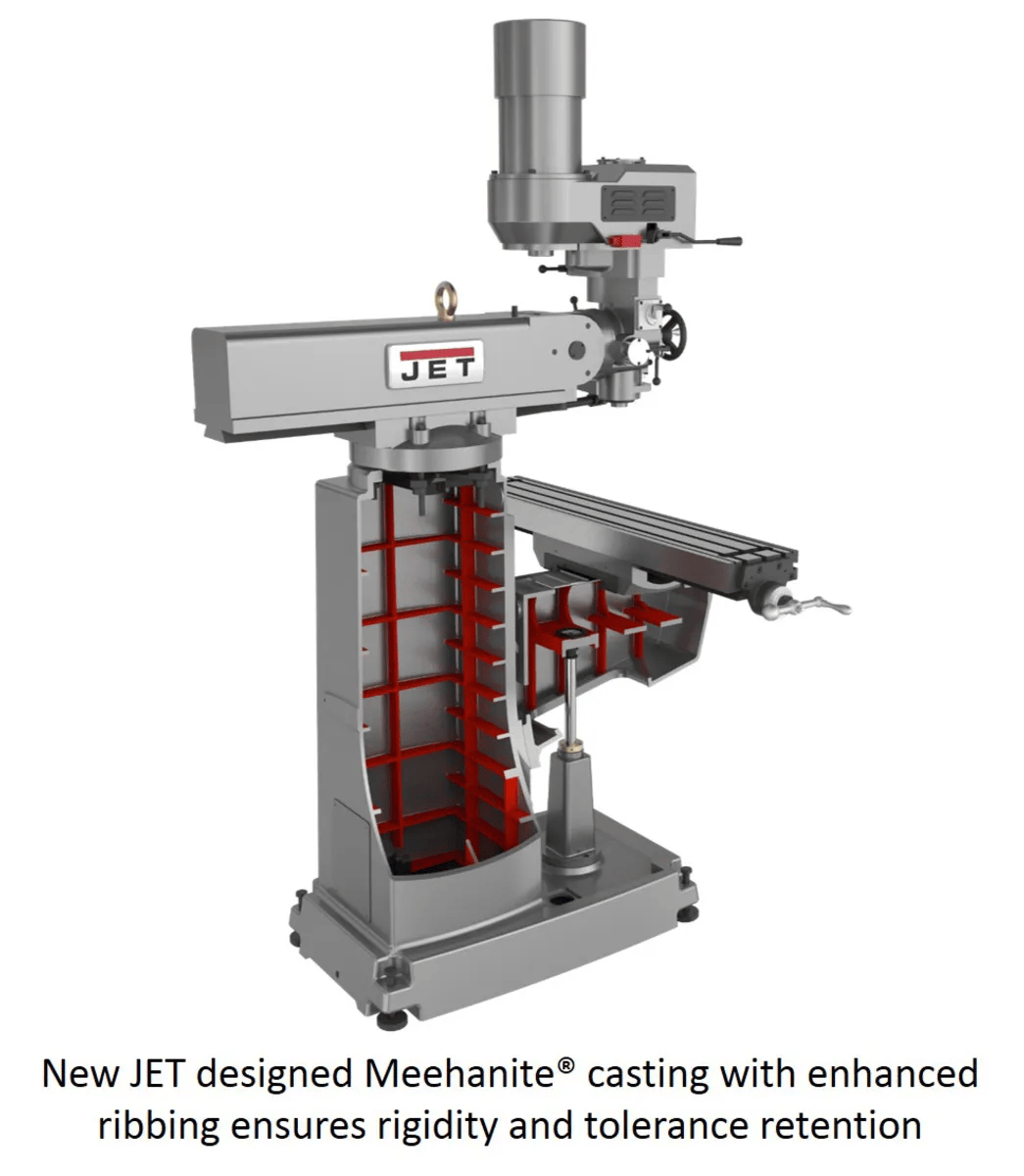

  • Meehanite knee castings match the rigidity for the structural authority production turning demands.

Specifications

  • SKU
    JT9-690630
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    65-3/4 x 63 x 85-3/4 in.
  • Collet Size
    1/8 - 7/8 in.
  • Column Width
    11-3/8 in.
  • Digital Readout
    3 Axis Acu-Rite 203(Quill)
  • Distance Spindle to Column (Max.)
    26-3/4 in.
  • Distance Spindle to Column (Min.)
    5.9 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Inverter Type
    Delta, B
  • Maximum Distance Spindle To Table
    20-3/4 in.
  • Motor Amps
    8 A
  • Motor Speed
    1720 RPM
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    60-500 / 500-4500 RPM
  • Old Material Number
    690630
  • Power Draw Bar
    Pneumatic
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    2,580
  • SAP Net weight
    2,580
  • Saddle Width
    20 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    EVS
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    14-3/4 in.
  • Table Longitudal Travel
    29-7/8 in.
  • Table Size
    10 x 50 in.
  • Travel Of Knee
    16-1/8 in.
  • Travel Of Ram
    17-3/8 in.
  • UPC
    731325452303
  • Warranty
    Two Years
  • Work Table Weight Capacity
    840 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
