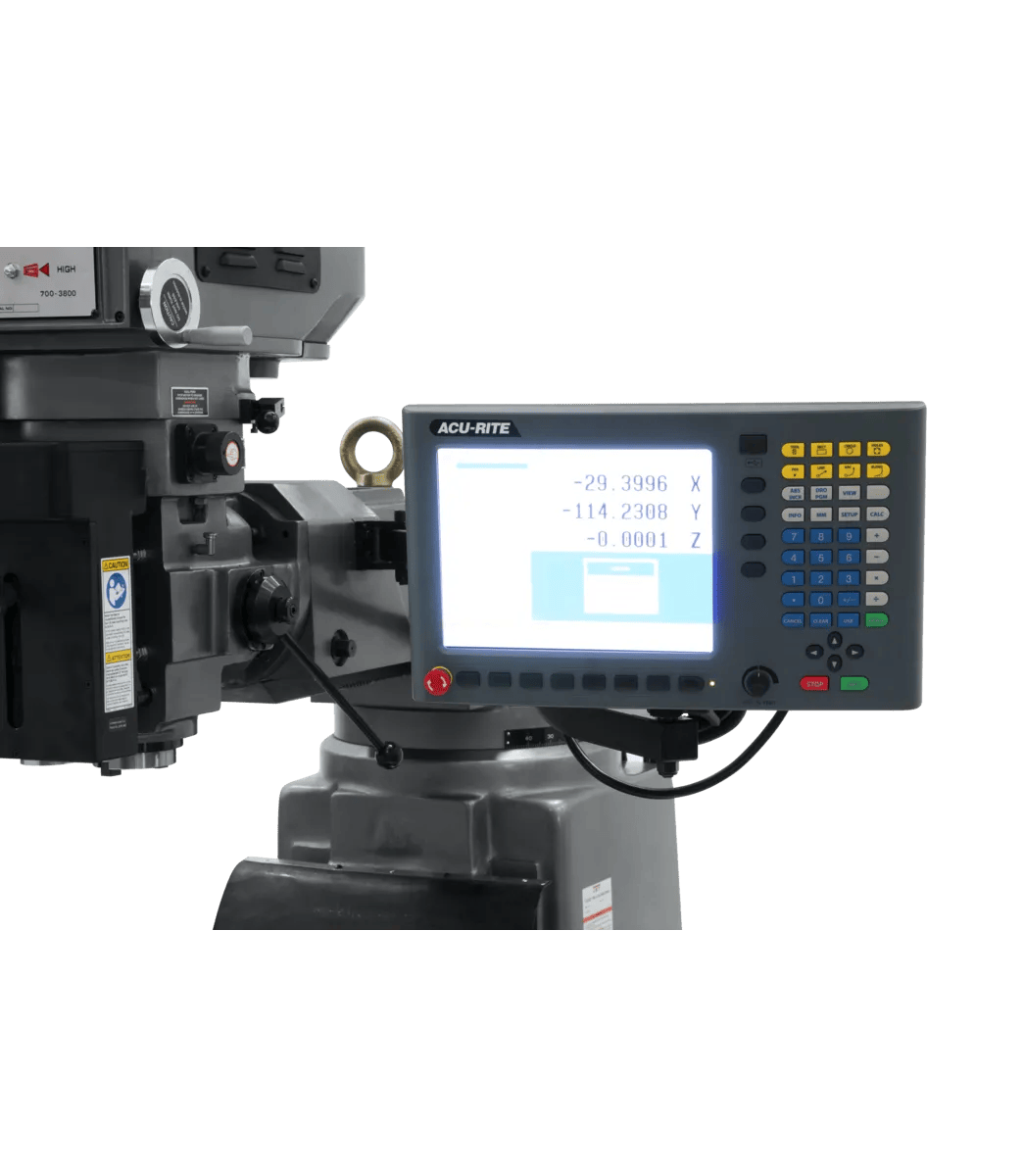

10" x 50" Mill w/ 3-Axis Acu-Rite MilPwr G2 CNC Controller w/ Powered Drawbar, 3HP, 230V 3PH(JTM-1050EVS2/230)
10" x 50" Mill w/ 3-Axis Acu-Rite MilPwr G2 CNC Controller w/ Powered Drawbar, 3HP, 230V 3PH(JTM-1050EVS2/230)
10" x 50" Mill w/ 3-Axis Acu-Rite MilPwr G2 CNC Controller w/ Powered Drawbar, 3HP, 230V 3PH(JTM-1050EVS2/230)

10" x 50" Mill w/ 3-Axis Acu-Rite MilPwr G2 CNC Controller w/ Powered Drawbar, 3HP, 230V 3PH(JTM-1050EVS2/230)

Stock Number: JT9-690684

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 10" x 50" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW

Product Details

Built for the milling that turns programs into parts. The JTM-1050EVS2/230 answers the work generated by machinists who measure success in tenths. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

Features

  • Factory-sealed 3 HP 230V induction motor stands up to service shops.
  • Generous 10 in. x 50 in. table surface — expanding the workholding envelope without sacrificing rigidity across production cutting environments.
  • Industrial-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across production fabrication.
  • Production-grade 60 - 4,500 RPM range — covering the operating range production cuts require.
  • Continuous-duty Meehanite bed castings — resisting wear and deflection, sized for the structural authority production turning demands.
  • Factory-tested hardened saddle gears — delivering the dimensional stability precision work measures, engineered without backlash drift that costs you finish quality.

Specifications

  • SKU
    JT9-690684
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    65-3/4 x 63 x 85-3/4 in.
  • CNC Package
    ACU-RITE MILLPWR® G2
  • Collet Size
    1/8 - 7/8 in.
  • Column Width
    11-3/8 in.
  • Digital Readout
    Acu-Rite 3 Axis
  • Distance Spindle to Column (Max.)
    26-3/4 in.
  • Distance Spindle to Column (Min.)
    5.9 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Inverter Type
    Delta, B
  • Maximum Distance Spindle To Table
    20-3/4 in.
  • Model Number
    JTM-1050EVS2/230
  • Motor Amps
    8 A
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Speed
    1720 RPM
  • Motor Voltage
    230 V
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    60-500 / 500-4500 RPM
  • Old Material Number
    690684
  • Power Draw Bar
    Pneumatic
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • Saddle Width
    20 in.
  • SAP Gross Weight
    3,000
  • SAP Net weight
    3,000
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    CNC
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    14-3/4 in.
  • Table Longitudal Travel
    29-7/8 in.
  • Table Size
    10 x 50 in.
  • Travel Of Knee
    16-1/8 in.
  • Travel Of Ram
    17-3/8 in.
  • UPC
    731325482102
  • Warranty
    Two Years
  • Work Table Weight Capacity
    840 lbs
