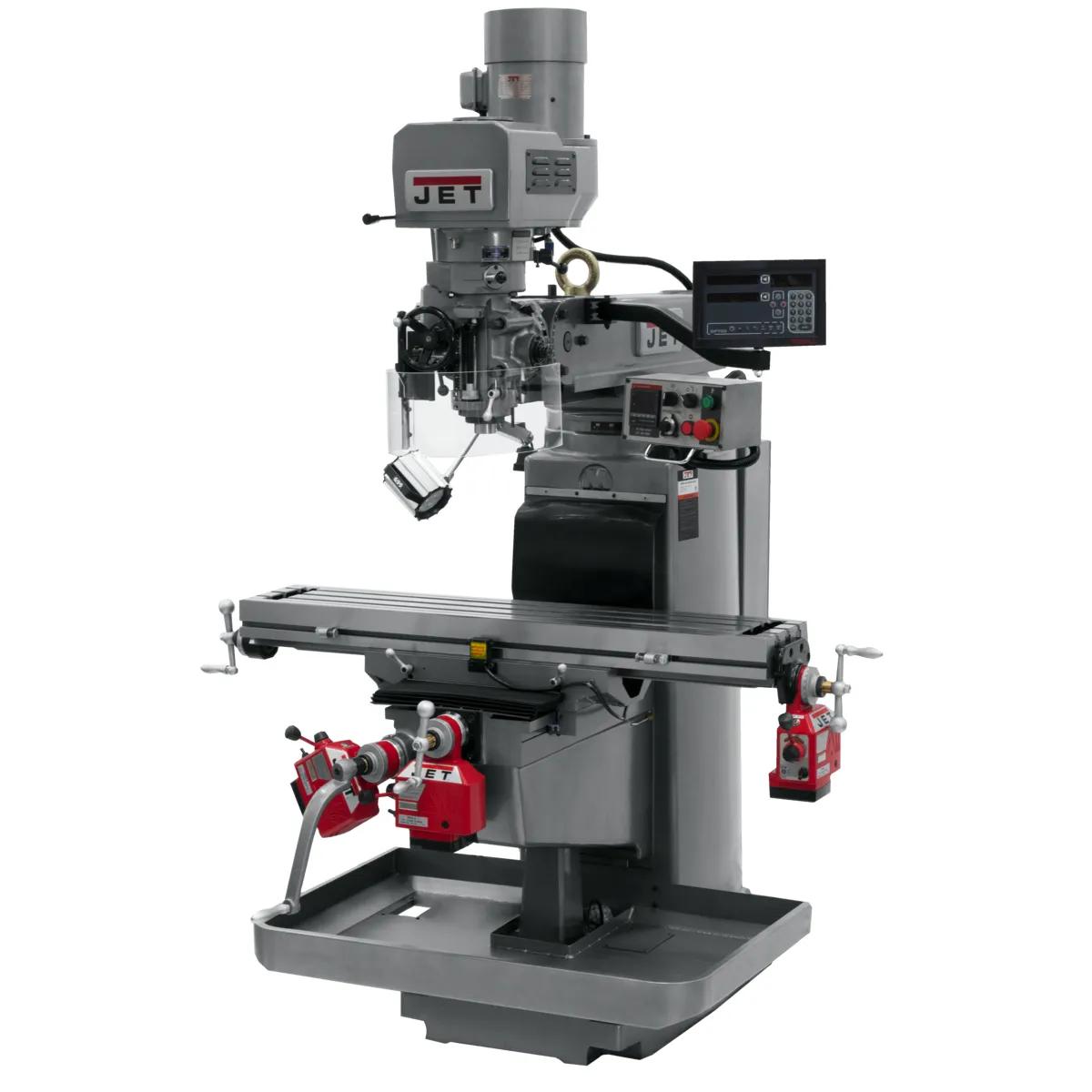

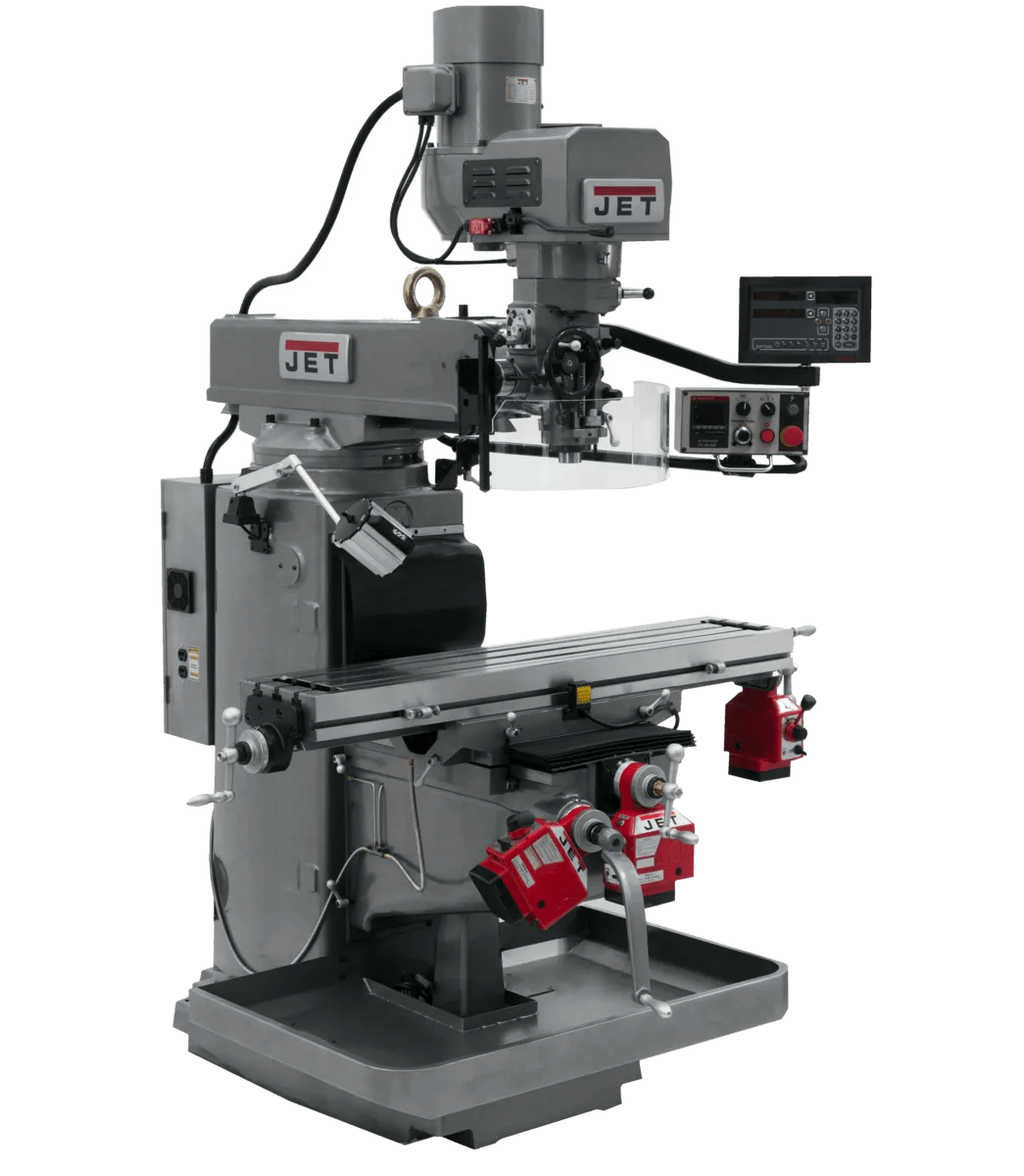

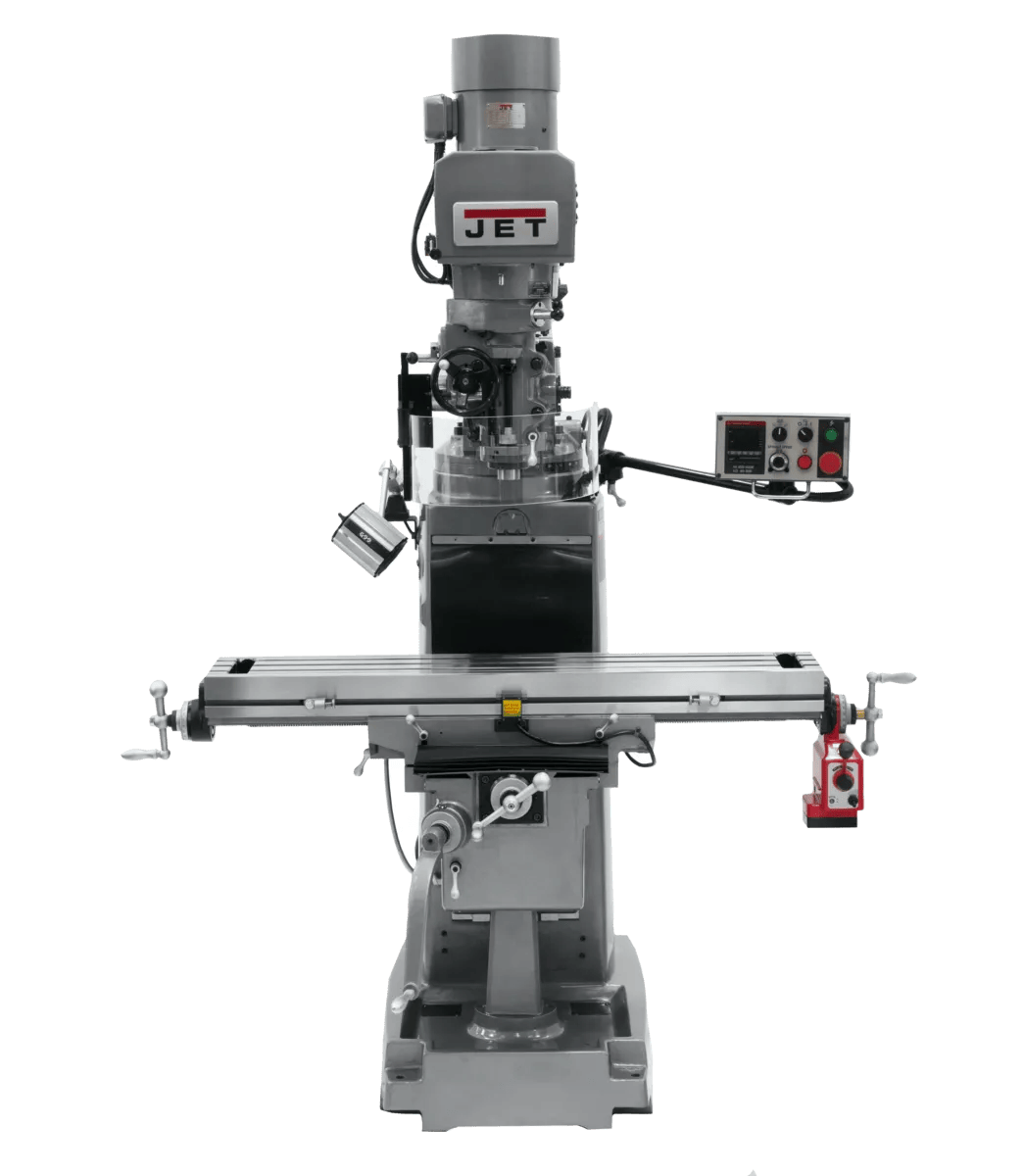

10" x 50" Mill w/ 3-Axis NMS800 DRO (K) w/ X, Y, Z-Axis Powerfeeds, 3HP, 230V 3PH(JTM-1050EVS2/230)

Stock Number: JT9-690643

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 10" x 50" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

The mill is where the work gets defined. Engineered around machinists who measure success in tenths, the JTM-1050EVS2/230 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • 3 HP three-phase induction motor sized without bogging down on full-width passes.
  • 10 in. x 50 in. table surface provides the workpiece sizes for the workholding patterns production setups generate.
  • Engineered 5-inch spindle travel — expanding the operating envelope without compromise across production fabrication.
  • Premium-grade 60 - 4,500 RPM range — matching cut velocity to material density without manual reconfiguration.
  • Certified Meehanite column castings resist wear and deflection for the cycle counts production turning generates.
  • Heat-treated drive components hold spec — transferring spindle torque without the wear softer drivetrains develop across precision production work.

Specifications

  • SKU
    JT9-690643
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    65-3/4 x 63 x 85-3/4 in.
  • Collet Size
    1/8 - 7/8 in.
  • Column Width
    11-3/8 in.
  • Digital Readout
    3 Axis Newall NMS800(Knee)
  • Distance Spindle to Column (Max.)
    26-3/4 in.
  • Distance Spindle to Column (Min.)
    5.9 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Inverter Type
    Delta, B
  • Maximum Distance Spindle To Table
    20-3/4 in.
  • Motor Amps
    8 A
  • Motor Speed
    1720 RPM
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    60-500 / 500-4500 RPM
  • Old Material Number
    690643
  • Power Feed
    X-Axis/Y-Axis/Z-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    2,580
  • SAP Net weight
    2,580
  • Saddle Width
    20 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    EVS
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    14-3/4 in.
  • Table Longitudal Travel
    29-7/8 in.
  • Table Size
    10 x 50 in.
  • Travel Of Knee
    16-1/8 in.
  • Travel Of Ram
    17-3/8 in.
  • UPC
    731325452433
  • Warranty
    Two Years
  • Work Table Weight Capacity
    840 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
