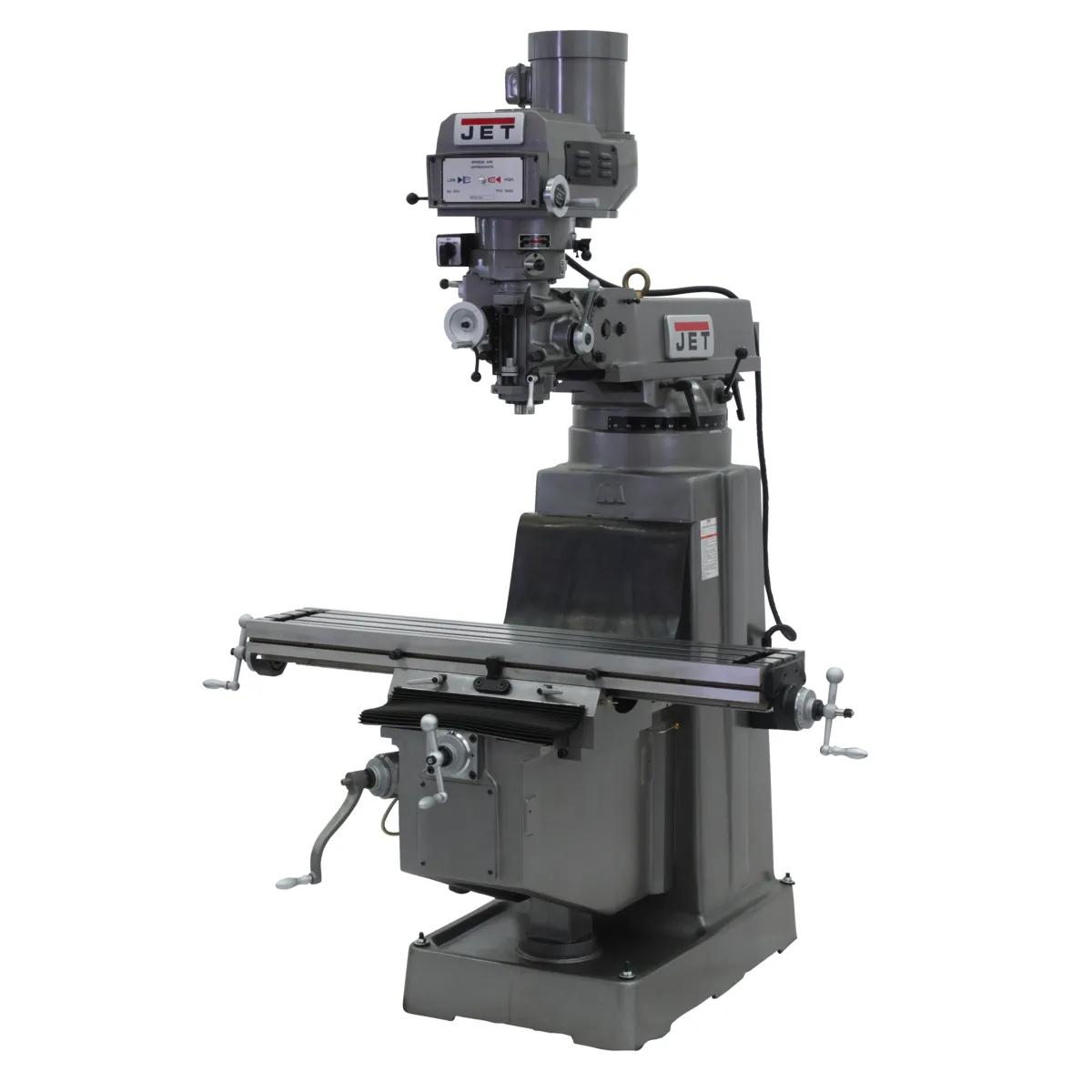

10" x 50" 203 DRO, X-PFD, APDB, 3HP, 460V 3PH(JTM-1050VS2)
10" x 50" 203 DRO, X-PFD, APDB, 3HP, 460V 3PH(JTM-1050VS2)

10" x 50" 203 DRO, X-PFD, APDB, 3HP, 460V 3PH(JTM-1050VS2)

Stock Number: JT9-691403-4

0 Reviews

No reviews yet.

  • 3 HP, 460V, three-phase
  • 10" x 50" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW

Product Details

Where setups become parts. Built around fabrication and tool-room work that demands tolerance, the JTM-1050VS2 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Heavy-duty 3 HP three-phase induction motor delivers torque for mixed-material work envelopes.
  • Generous 10 in. x 50 in. table surface — accommodating the fixture-and-vise library most production shops keep across professional machine shops.
  • 5-inch stroke matches the depth-of-cut envelope for the vertical reach production work demands.
  • Premium-grade 70 - 3,800 RPM range — eliminating the speed compromises older designs forced.
  • Aged-and-stress-relieved Meehanite main castings stay true for finish quality production cutting requires.
  • Precision-hardened and ground saddle gears hold tolerance — holding feed rates without backlash compensation.

Specifications

  • SKU
    JT9-691403-4
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    96-1/2 x 77 x 87-3/4 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    5-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    19 in.
  • Model Number
    JTM-1050VS2
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    460 V
  • Noise Level Db at 3Ft
    75 dB
  • Old Material Number
    691403-4
  • Power Draw Bar
    Pneumatic
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    70 - 3800 RPM
  • SAP Gross Weight
    2,900
  • SAP Net weight
    2,900
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    15-1/4 in.
  • Table Longitudal Travel
    30 in.
  • Table Size
    10 x 50 in.
  • Travel Of Knee
    14-1/4 in.
  • Travel Of Ram
    20-1/2 in.
  • UPC
    019907000754
  • Warranty
    Ninety Days
  • Work Table Weight Capacity
    720 lbs
