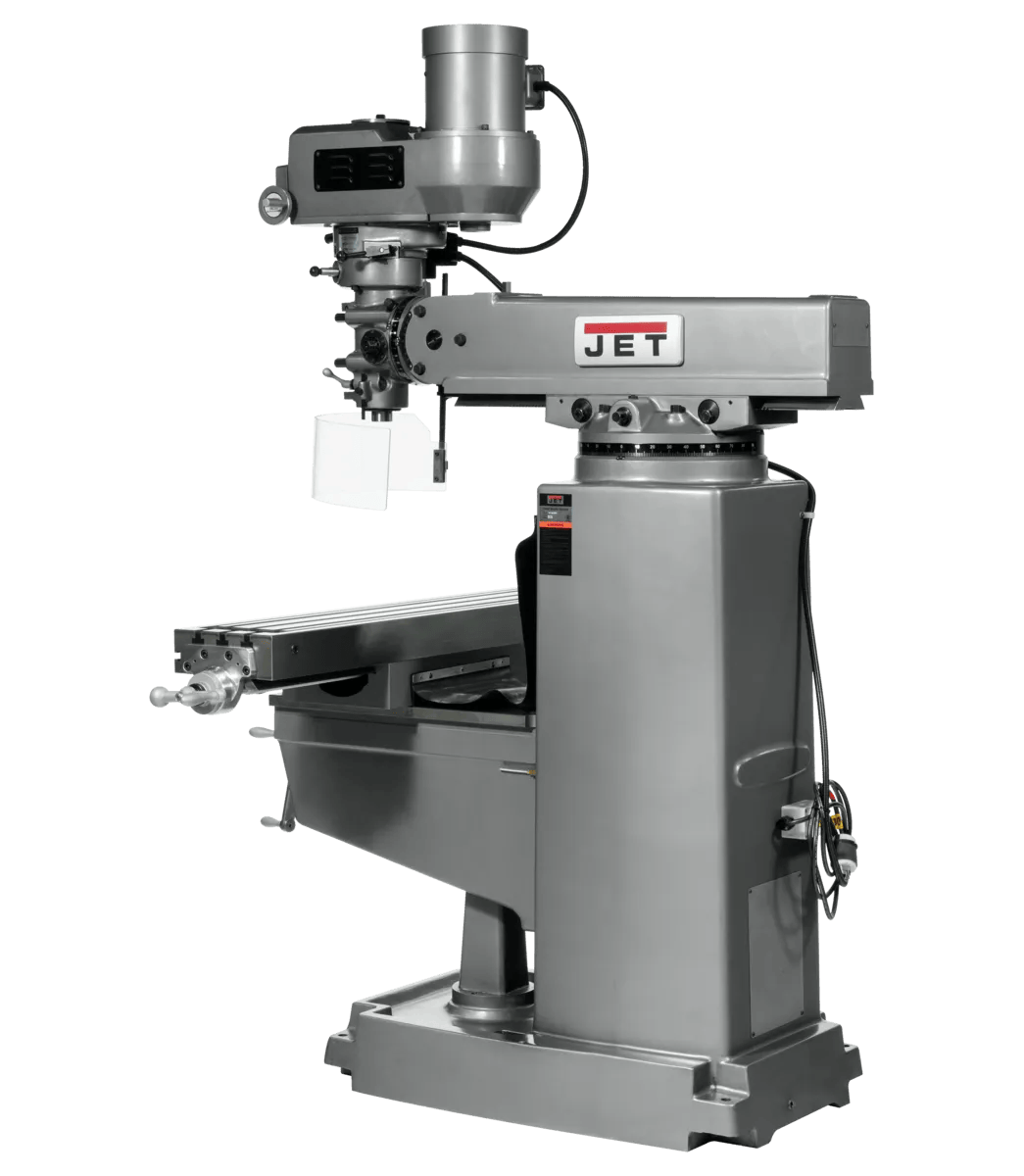

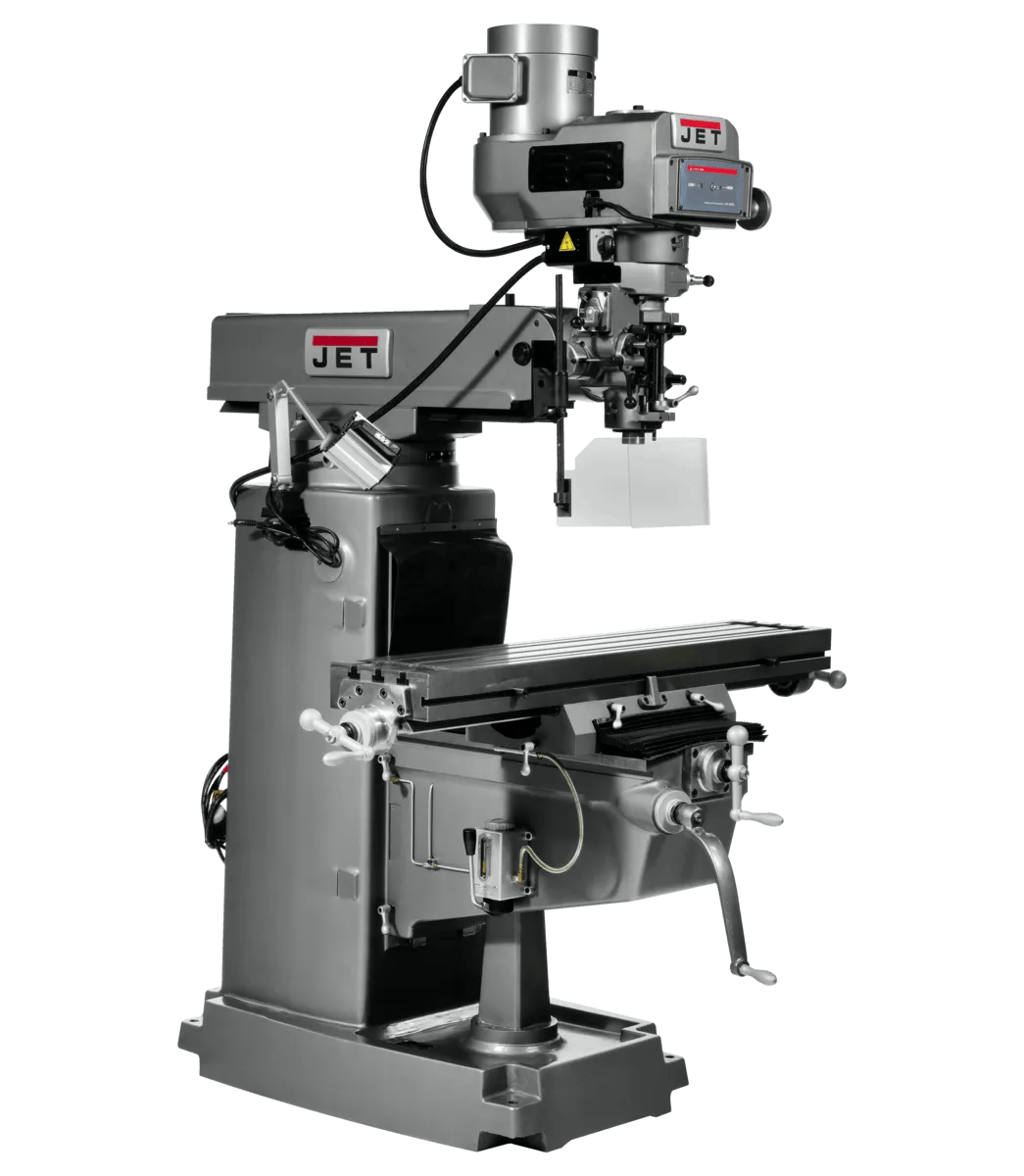

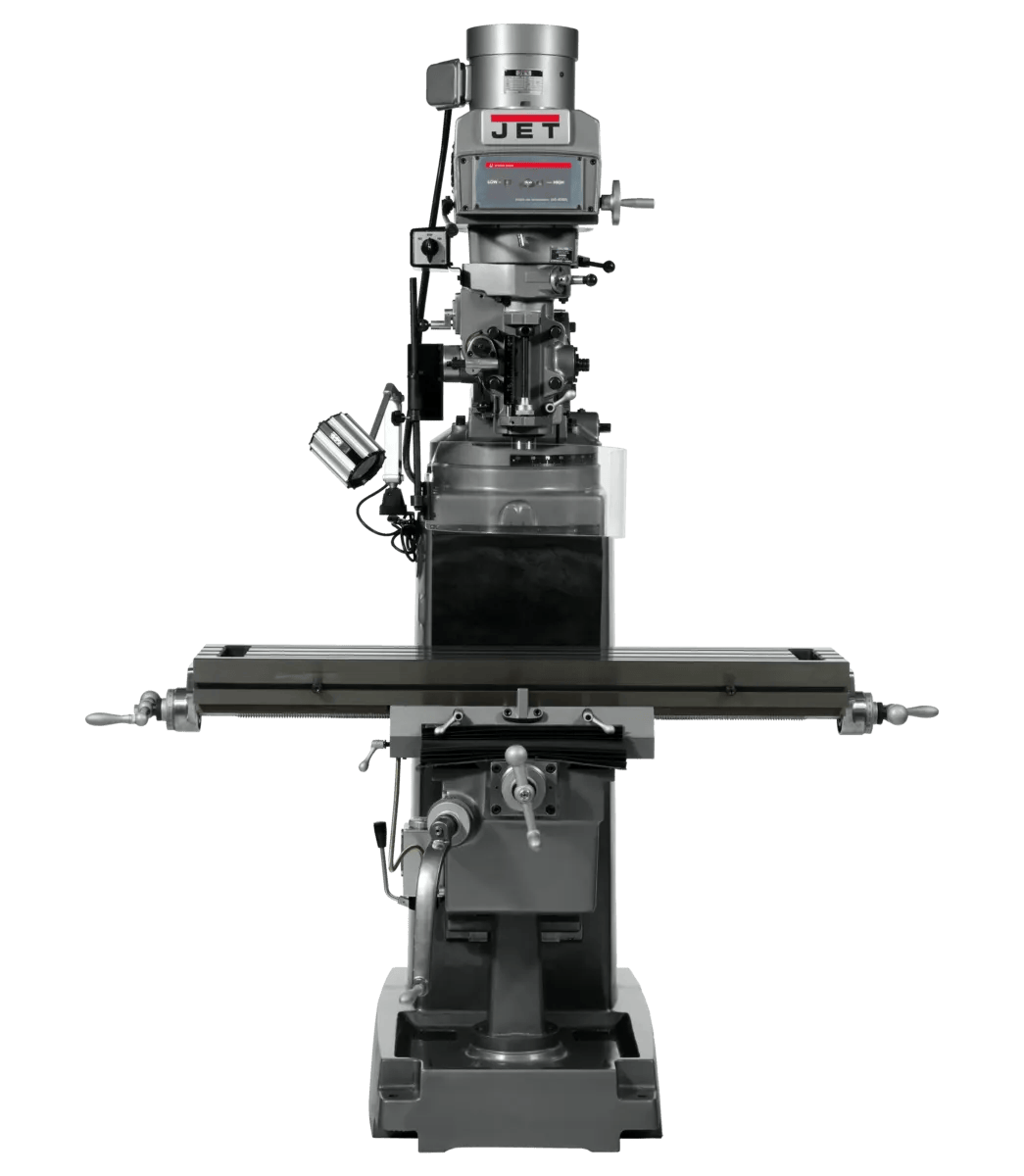

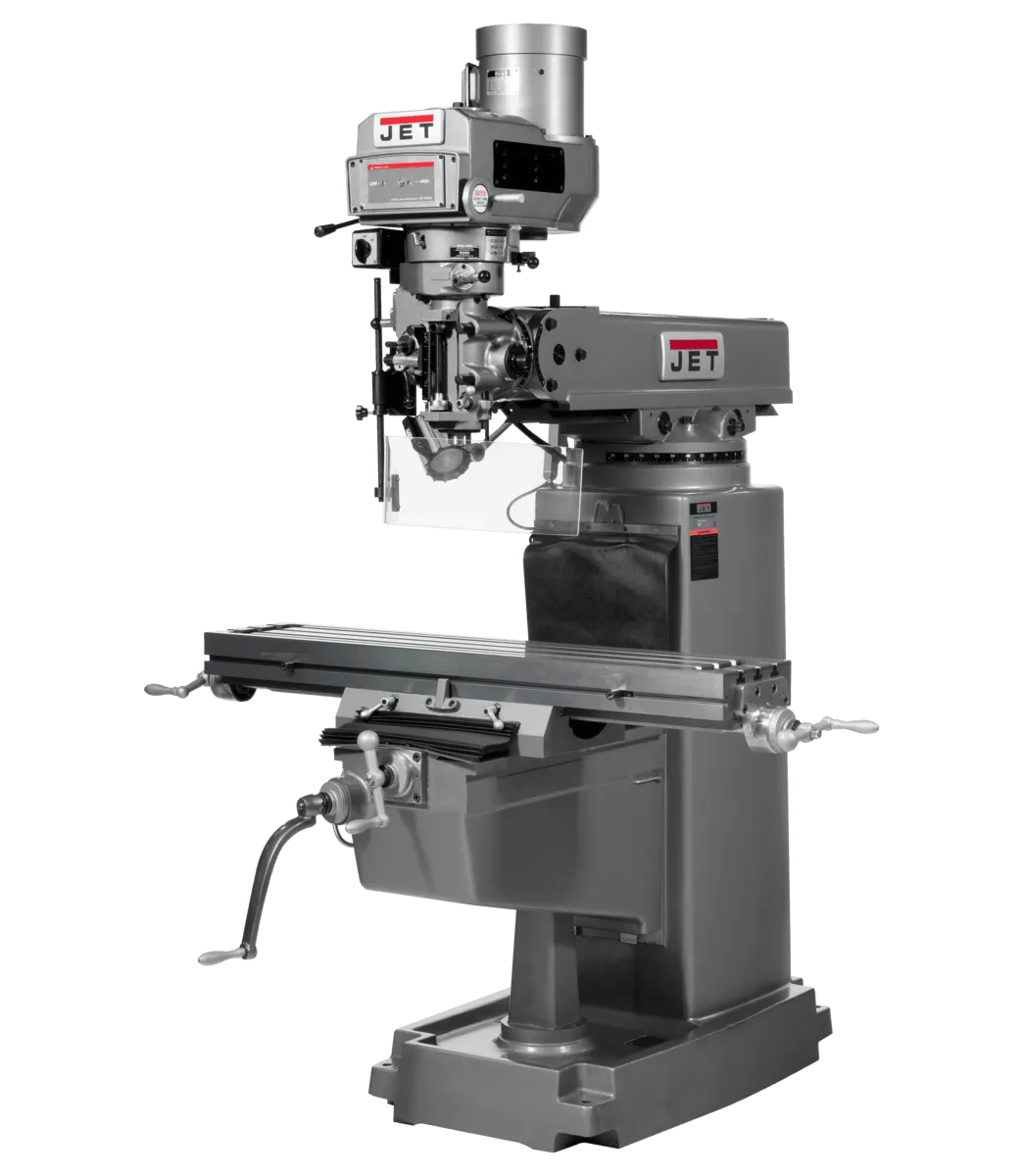

10" x 50" Mill w/ ACU-RITE 303 DRO & X-Axis Powerfeed, 3HP, 230V 3PH(JTM-1050VS2)
10" x 50" Mill w/ ACU-RITE 303 DRO & X-Axis Powerfeed, 3HP, 230V 3PH(JTM-1050VS2)
10" x 50" Mill w/ ACU-RITE 303 DRO & X-Axis Powerfeed, 3HP, 230V 3PH(JTM-1050VS2)
10" x 50" Mill w/ ACU-RITE 303 DRO & X-Axis Powerfeed, 3HP, 230V 3PH(JTM-1050VS2)
10" x 50" Mill w/ ACU-RITE 303 DRO & X-Axis Powerfeed, 3HP, 230V 3PH(JTM-1050VS2)

10" x 50" Mill w/ ACU-RITE 303 DRO & X-Axis Powerfeed, 3HP, 230V 3PH(JTM-1050VS2)

Stock Number: JT9-690306

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 10" x 50" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Production-grade milling for the cuts that hold tolerance through long cycles. The JTM-1050VS2 fits production shops that turn programs into parts daily — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • 3 HP, 230V three-phase induction motor — running tens of thousands of hours without service intervention, sized for the cycle counts industrial use generates.
  • Premium-grade 10 in. x 50 in. table accommodates production setups for the workholding patterns production milling depends on.
  • Industrial R-8 taper — expanding tooling compatibility without operator-side workarounds across production fabrication.
  • Engineered 5-inch spindle travel — expanding the operating envelope without compromise across industrial drilling.
  • Factory-tested 70 - 3,800 RPM range — covering the full material library production shops run.
  • Certified Meehanite reference surfaces support structural authority for the structural authority production turning demands.

Specifications

  • SKU
    JT9-690306
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    96-1/2 x 77 x 87-3/4 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    5-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    19 in.
  • Model Number
    JTM-1050VS2
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Noise Level Db at 3Ft
    75 dB
  • Old Material Number
    690306
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    70 - 3800 RPM
  • SAP Gross Weight
    2,570
  • SAP Net weight
    2,470
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    15-1/4 in.
  • Table Longitudal Travel
    30 in.
  • Table Size
    10 x 50 in.
  • Travel Of Knee
    14-1/4 in.
  • Travel Of Ram
    20-1/2 in.
  • UPC
    731325173772
  • Warranty
    Two Years
  • Work Table Weight Capacity
    720 lbs
