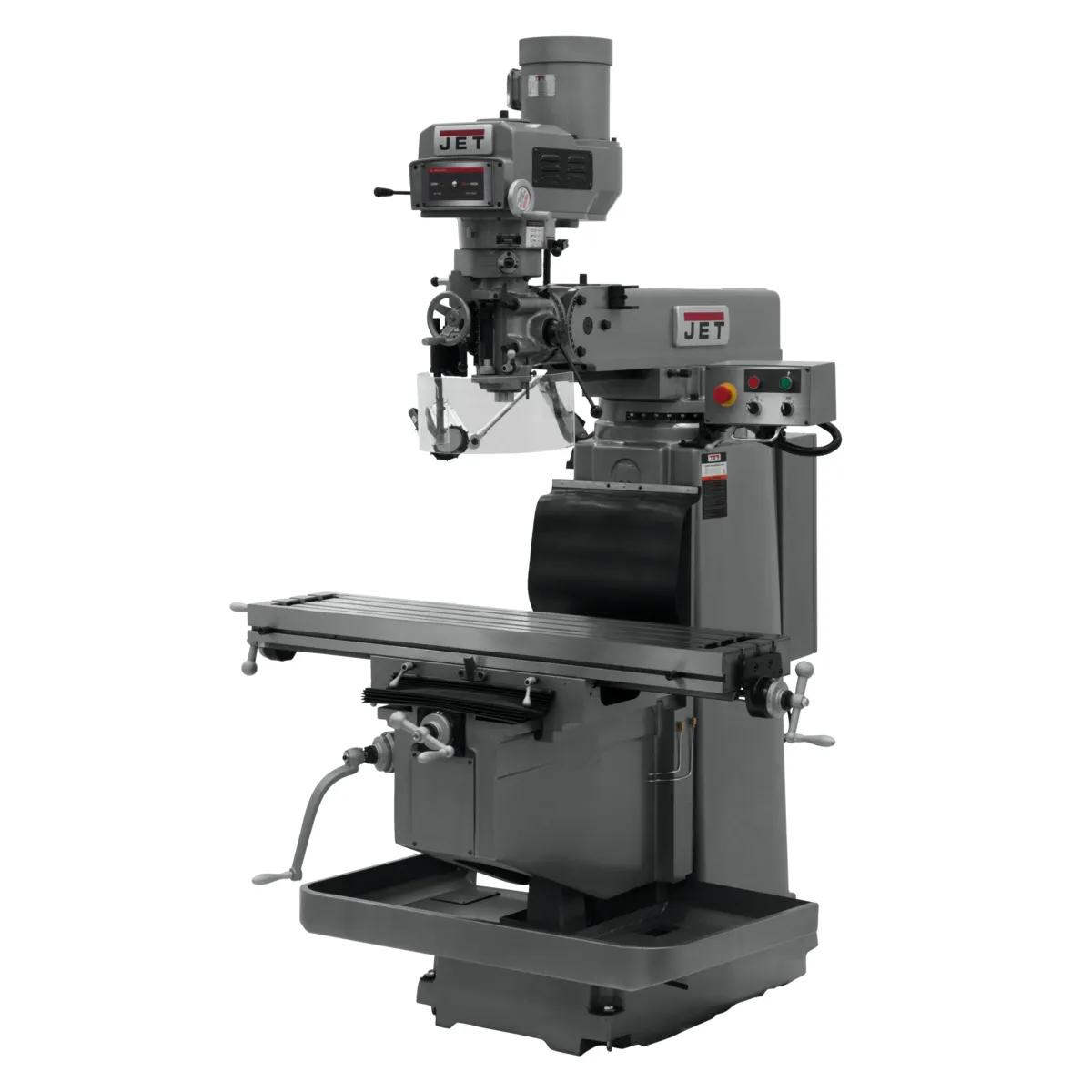

12" x 54" w/ 3-Axis ACU-RITE G-2 MILLPOWER CNC, 5HP, 230/460V 3PH(JTM-1254RVS CNC G2)

Stock Number: JT9-691944

0 Reviews

No reviews yet.

  • 5 HP, 230/460V, three-phase
  • 12" x 54" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Rigid construction, accurate cuts, repeatable results. Built around machinists who measure success in tenths, the JTM-1254RVS CNC G2 delivers production-grade results. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Continuous-duty 5 HP induction drive — delivering consistent torque without brushwear.
  • Factory-tested 12 in. x 54 in. table accommodates production setups for the workpiece sizes production milling demands.
  • Factory-tested 5-inch spindle travel — covering the workpiece envelope this machine targets across professional cutting environments.
  • Wide 80 - 3,800 RPM range — covering the operating range production cuts require.
  • Heat-treated Meehanite knee castings deliver rigidity for tolerance retention through years of cycles.
  • Heat-treated, ground, and matched power-feed gears run as a precision system across long service life.

Specifications

  • SKU
    JT9-691944
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    92-1/8 x 79-7/8 x 104-1/4 in.
  • Collet Size
    1/8 - 1 in.
  • Column Width
    14-1/4 in.
  • Digital Readout
    Acu-Rite G-2 MILPWR
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    7-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    23 in.
  • Number of Axis
    3
  • Old Material Number
    691944
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 in. - .003 in. - .008 in.
  • Range Of Spindle Speeds
    80 - 3800 RPM
  • SAP Gross Weight
    3,696
  • SAP Net weight
    3,260
  • Saddle Width
    25-5/8 in.
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    CNC
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    13-1/3 in.
  • Table Longitudal Travel
    28-1/4 in.
  • Table Size
    12 x 54 in.
  • Travel Of Knee
    19-1/4 in.
  • Travel Of Ram
    20.4 in.
  • UPC
    731325524963
  • Warranty
    Two Years
  • Work Table Weight Capacity
    925 lbs
  • Input Power
    230/460 V 3 Ph
  • Motor HP
    5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
