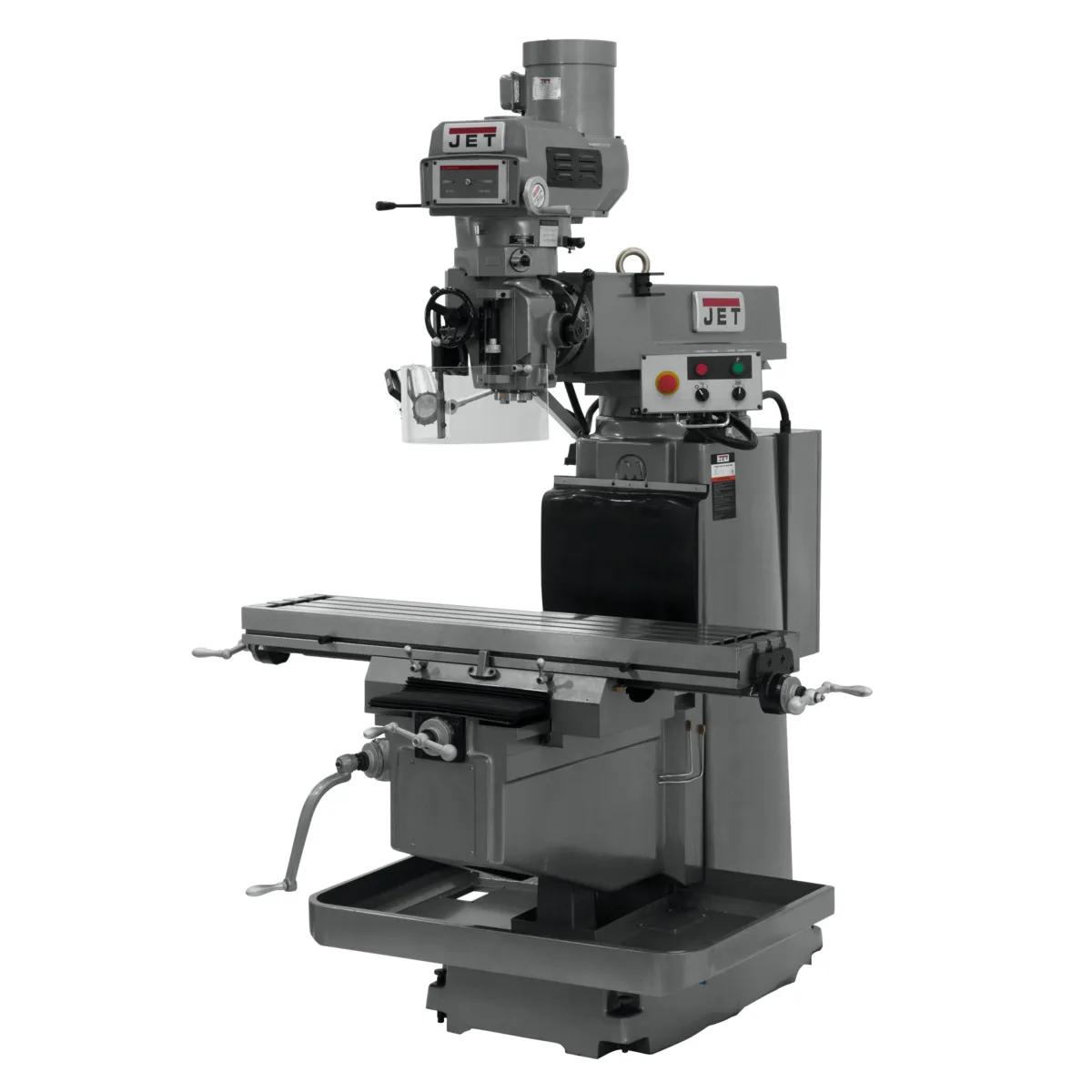

12" x 54" w/ 3-Axis ACU-RITE G-2 MILLPOWER CNC, 5HP, 230/460V 3PH(JTM-1254VS CNC G2)

Stock Number: JT9-691941

0 Reviews

No reviews yet.

  • 5 HP, 230/460V, three-phase
  • 12" x 54" table
  • NT40 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. The JTM-1254VS CNC G2 fits industrial machining environments running long-cycle production — and the cycle counts they generate. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Precision-rated 5 HP drive provides consistent torque for the duty range working shops actually run.
  • Production-spec 12 in. x 54 in. table accommodates production setups for the workpiece sizes production milling actually generates.
  • NT40 spindle taper accepts the tooling library for the collet-and-chuck library industrial shops already keep.
  • Industrial 5-inch spindle travel — covering the workpiece envelope this machine targets across tool-room machining.
  • Production-spec 80 - 3,800 RPM range — matching cut velocity to material density without manual reconfiguration.
  • Heat-treated Meehanite column castings deliver rigidity for the dimensional stability tolerance work measures.

Specifications

  • SKU
    JT9-691941
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    92-1/8 x 79-7/8 x 104-1/4 in.
  • Collet Size
    1/8 - 1 in.
  • Column Width
    14-1/4 in.
  • Digital Readout
    Acu-Rite G-2 MILPWR
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    7-1/2 in.
  • Head Movement
    90 Deg. (L&R)
  • Maximum Distance Spindle To Table
    23 in.
  • Noise Level Db at 3Ft
    72 dB
  • Number of Axis
    3
  • Old Material Number
    691941
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    4-1/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .008 in.
  • Range Of Spindle Speeds
    80 - 3800 RPM
  • SAP Gross Weight
    3,696
  • SAP Net weight
    3,260
  • Saddle Width
    25-5/8 in.
  • Spindle Taper
    NT40
  • Spindle Taper X Tpi
    NT40
  • Spindle Travel
    5 in.
  • Style Type
    CNC
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    13-1/3 in.
  • Table Longitudal Travel
    28-1/4 in.
  • Table Size
    12 x 54 in.
  • Travel Of Knee
    19-1/4 in.
  • Travel Of Ram
    20.4 in.
  • UPC
    731325524932
  • Warranty
    Two Years
  • Work Table Weight Capacity
    925 lbs
  • Input Power
    230/460 V 3 Ph
  • Motor HP
    5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
