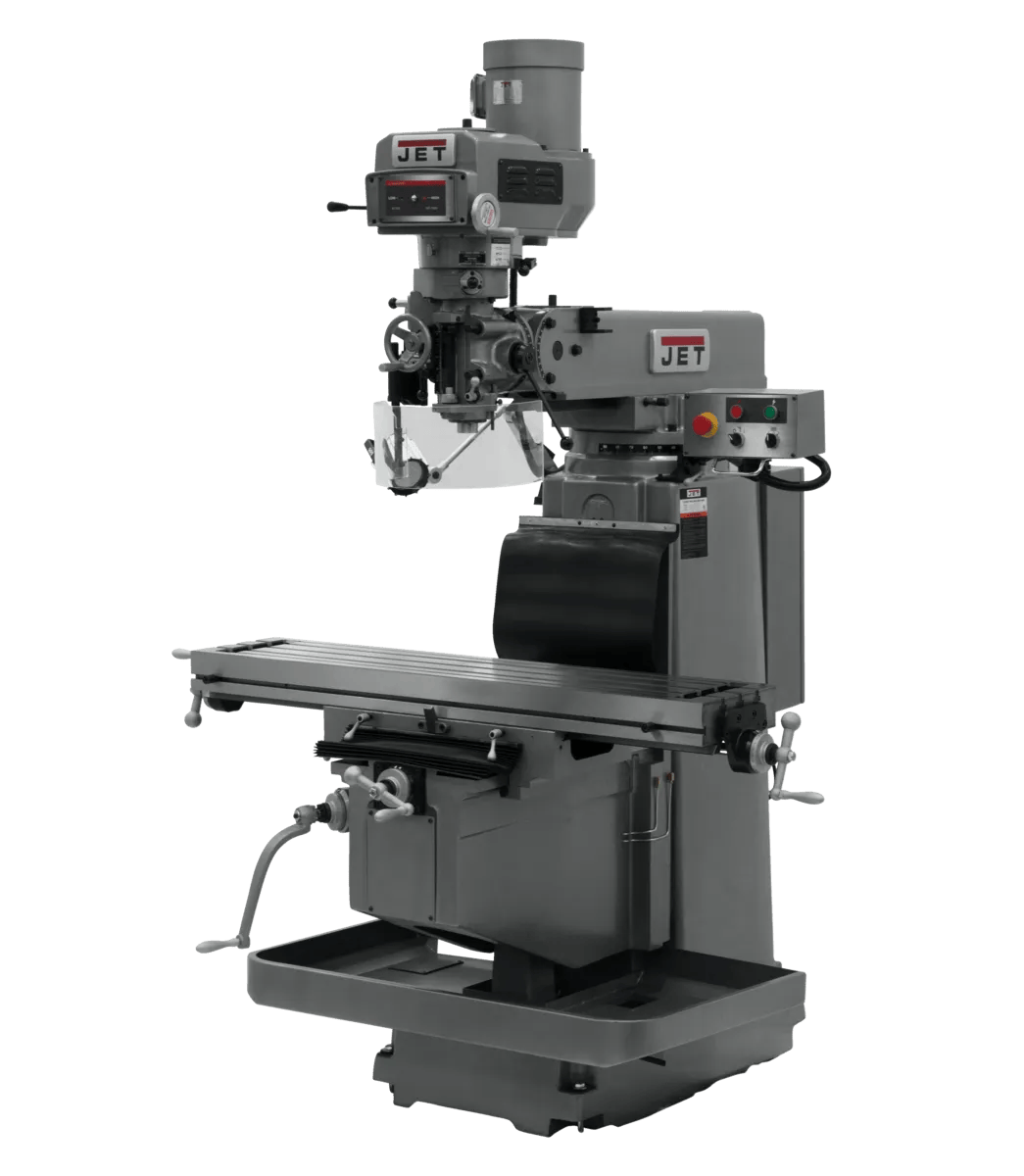

12" x 54" Vari. Speed Vert. Mill w/ Acu-Rite 303 3X (Q) DRO, X Powerfeed & Power Drawbar, 5HP, 230/460V 3PH(JTM-1254VS)
12" x 54" Vari. Speed Vert. Mill w/ Acu-Rite 303 3X (Q) DRO, X Powerfeed & Power Drawbar, 5HP, 230/460V 3PH(JTM-1254VS)

12" x 54" Vari. Speed Vert. Mill w/ Acu-Rite 303 3X (Q) DRO, X Powerfeed & Power Drawbar, 5HP, 230/460V 3PH(JTM-1254VS)

Stock Number: JT9-698159

0 Reviews

No reviews yet.

  • 5 HP, 230/460V, three-phase
  • 12" x 54" table
  • NT40 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Built for the milling that turns programs into parts. The JTM-1254VS answers the work generated by shops that hold tolerance through full production runs. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • Heavy-duty 5 HP induction motor handles working speed under load — delivering full nameplate output.
  • Industrial 12 in. x 54 in. table — expanding the working envelope without expanding the shop footprint, sized for the workpiece sizes production milling demands.
  • NT40 spindle taper supports the standard end-mill library for the standard tool-holding interface production shops use.
  • Premium-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across tool-room machining.
  • 80 - 3,800 RPM envelope covers the speed range for the working envelope production cutting generates.
  • Industrial Meehanite knee castings — dampening vibration that lesser castings transmit straight to the cut across precision turning environments.

Specifications

  • SKU
    JT9-698159
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    92-1/8 x 79-7/8 x 104-1/4 in.
  • Collet Size
    1/8 - 1 in.
  • Column Width
    14-1/4 in.
  • Digital Readout
    Acu-Rite 3 Axis
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    7-1/2 in.
  • Head Movement
    90 Deg. (L&R)
  • Maximum Distance Spindle To Table
    23 in.
  • Model Number
    JTM-1254VS
  • Motor Amps
    13/6.5 A
  • Motor HP
    5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
  • Net Weight
    3,260
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    Variable within specified range
  • Old Material Number
    698159
  • Power Draw Bar
    Pneumatic
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    4-1/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .008 in.
  • Range Of Spindle Speeds
    80 - 3800 RPM
  • Saddle Width
    25-5/8 in.
  • SAP Gross Weight
    3,696
  • Spindle Taper
    NT40
  • Spindle Taper X Tpi
    NT40
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    13-1/3 in.
  • Table Longitudal Travel
    28-1/4 in.
  • Table Size
    12 x 54 in.
  • Travel Of Knee
    19-1/4 in.
  • Travel Of Ram
    20.4 in.
  • UPC
    731325517453
  • Warranty
    Two Years
  • Work Table Weight Capacity
    925 lbs
