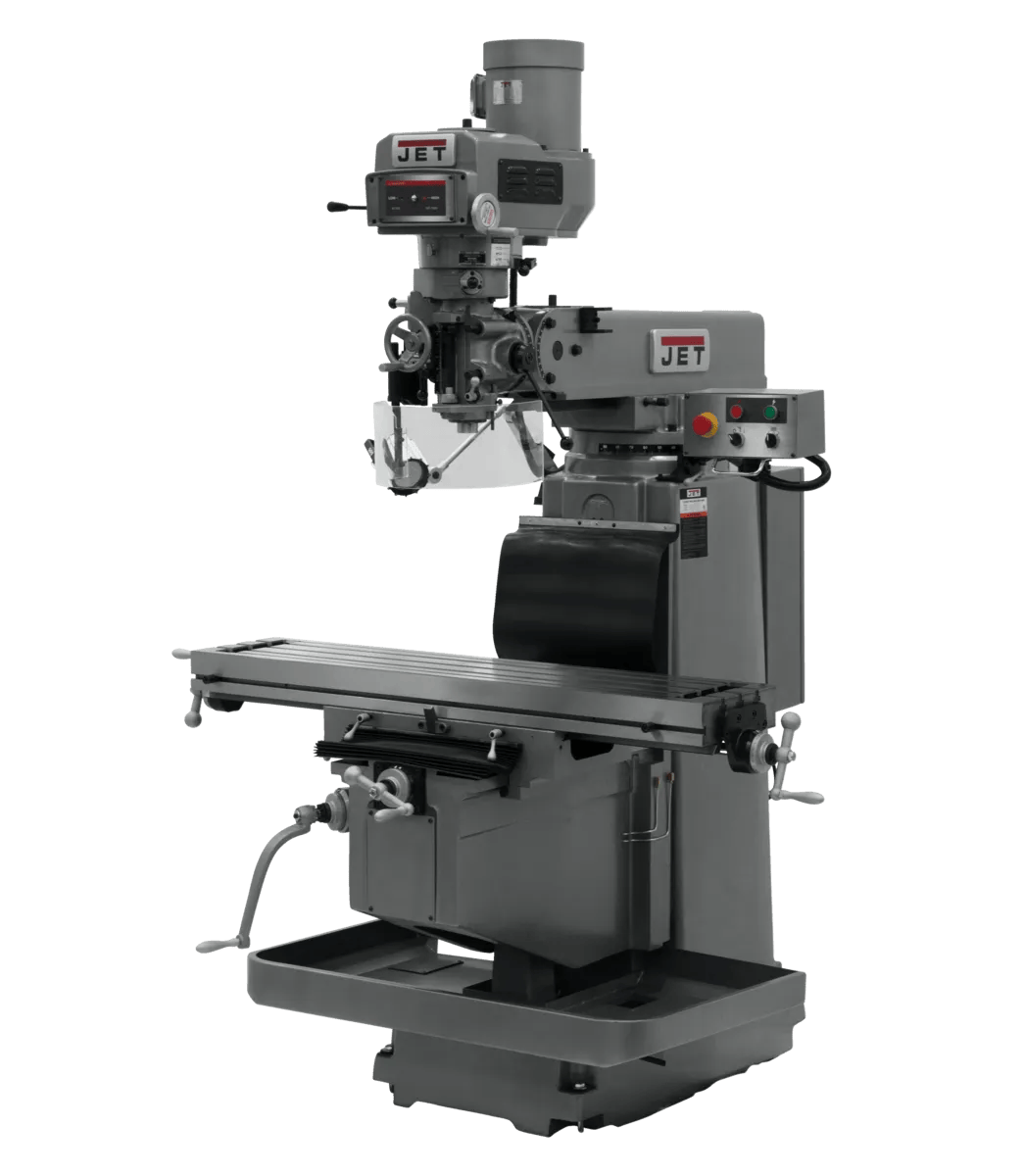

12" x 54" Vari. Speed Vert. Mill w/ Acu-Rite 303 DRO X & Y Powerfeeds & Power Drawbar, 5HP, 230/460V 3PH(JTM-1254VS)
12" x 54" Vari. Speed Vert. Mill w/ Acu-Rite 303 DRO X & Y Powerfeeds & Power Drawbar, 5HP, 230/460V 3PH(JTM-1254VS)

12" x 54" Vari. Speed Vert. Mill w/ Acu-Rite 303 DRO X & Y Powerfeeds & Power Drawbar, 5HP, 230/460V 3PH(JTM-1254VS)

Stock Number: JT9-698149

0 Reviews

No reviews yet.

  • 5 HP, 230/460V, three-phase
  • 12" x 54" table
  • NT40 spindle taper
  • 5" spindle travel
BUY NOW

Product Details

The mill is where the work gets defined. The JTM-1254VS was sized for machinists who measure success in tenths. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Heavy-duty 5 HP induction motor — running quieter and cooler than equivalent open-frame designs, engineered for the operating envelope production demands.
  • Generous 12 in. x 54 in. table surface — putting larger-part milling in reach without compromise across tool-room work.
  • NT40 spindle taper accepts the tooling library for the standard tool-holding interface production shops use.
  • Engineered 5-inch spindle travel — covering the workpiece envelope this machine targets across industrial drilling.
  • Professional-grade 80 - 3,800 RPM range — handling slow torque-heavy work and high-speed finishing in one machine.
  • Industrial Meehanite bed castings — outlasting commercial-grade iron in the same operating envelope across production turning.

Specifications

  • SKU
    JT9-698149
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    92-1/8 x 79-7/8 x 104-1/4 in.
  • Collet Size
    1/8 - 1 in.
  • Column Width
    14-1/4 in.
  • Digital Readout
    Acu-Rite
  • Distance Spindle to Column (Max.)
    26-1/2 in.
  • Distance Spindle to Column (Min.)
    7-1/2 in.
  • Head Movement
    90 Deg. (L&R)
  • Maximum Distance Spindle To Table
    23 in.
  • Model Number
    JTM-1254VS
  • Motor Amps
    13/6.5 A
  • Motor HP
    5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    Variable within specified range
  • Old Material Number
    698149
  • Power Draw Bar
    Pneumatic
  • Power Feed
    X-Axis/Y-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    4-1/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .008 in.
  • Range Of Spindle Speeds
    80 - 3800 RPM
  • Saddle Width
    25-5/8 in.
  • SAP Gross Weight
    3,696
  • SAP Net weight
    3,260
  • Spindle Taper
    NT40
  • Spindle Taper X Tpi
    NT40
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    13-1/3 in.
  • Table Longitudal Travel
    28-1/4 in.
  • Table Size
    12 x 54 in.
  • Travel Of Knee
    19-1/4 in.
  • Travel Of Ram
    20.4 in.
  • UPC
    731325517354
  • Warranty
    Two Years
  • Work Table Weight Capacity
    925 lbs
