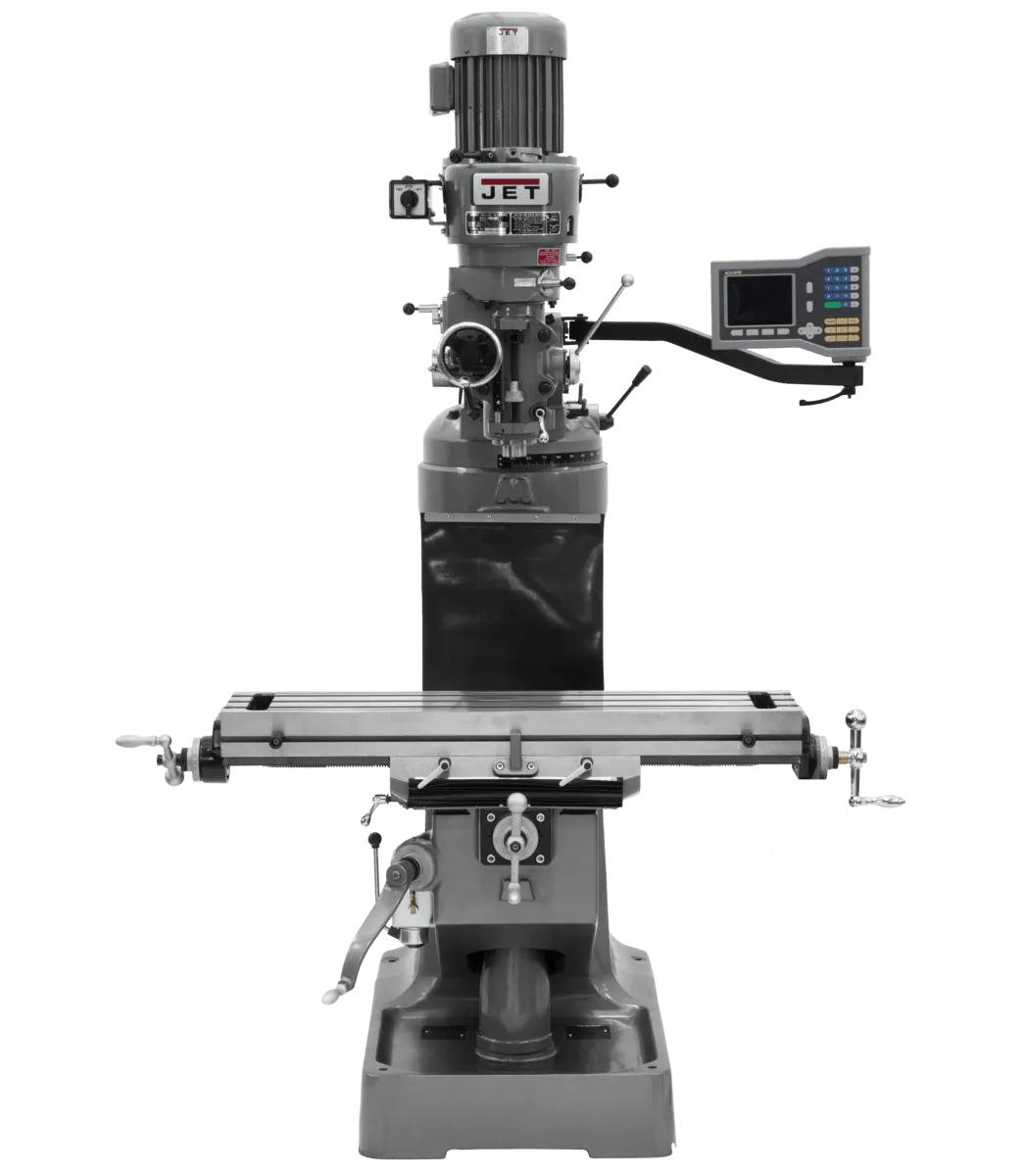

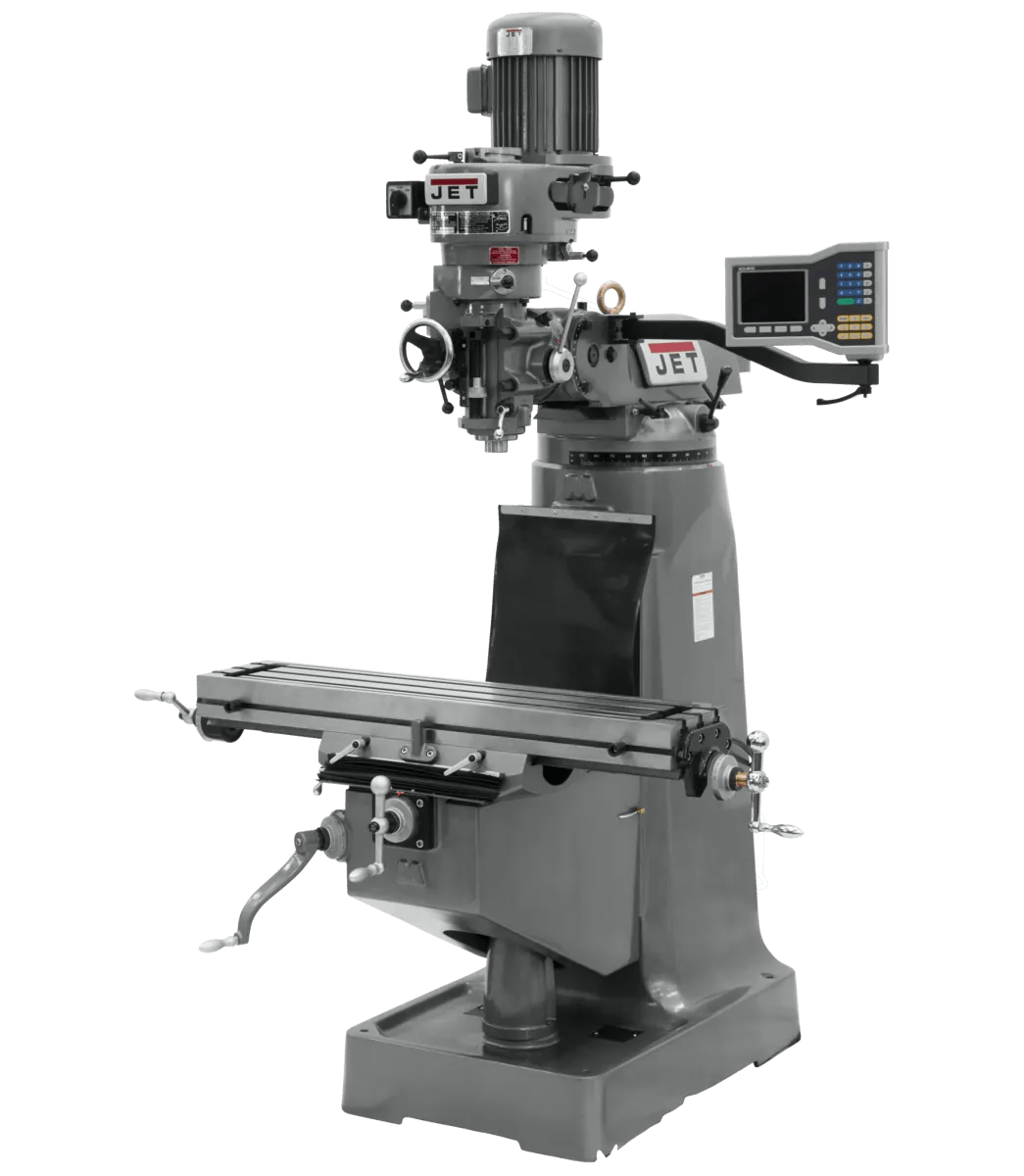

9" x 42" Mill w/ ACU-RITE 203 DRO, 2HP, 115/230V 1PH(JTM-2)
9" x 42" Mill w/ ACU-RITE 203 DRO, 2HP, 115/230V 1PH(JTM-2)
9" x 42" Mill w/ ACU-RITE 203 DRO, 2HP, 115/230V 1PH(JTM-2)

9" x 42" Mill w/ ACU-RITE 203 DRO, 2HP, 115/230V 1PH(JTM-2)

Stock Number: JT9-690283

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9" x 42" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Rigid construction, accurate cuts, repeatable results. The JTM-2 answers the work generated by production shops that turn programs into parts daily. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • Industrial-grade 2 HP single-phase drive — handling startup loads where smaller motors trip, built for professional shop floors.
  • 9 in. x 42 in. table — matching the workpiece library production milling targets.
  • Engineered R-8 spindle interface — expanding tooling compatibility without operator-side workarounds.
  • Production-spec 5-inch spindle travel — covering the workpiece envelope this machine targets across production milling.
  • Engineered 80 - 2,720 RPM range — covering the full material library production shops run.
  • Aged-and-stress-relieved Meehanite main castings stay true for the structural rigidity tolerance-grade work demands.

Specifications

  • SKU
    JT9-690283
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    57 x 64 x 82 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Model Number
    JTM-2
  • Motor Amps
    28/14 A
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Speed
    1720 RPM
  • Motor Voltage
    115/230 V
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    8
  • Old Material Number
    690283
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    80 - 2720 RPM
  • SAP Gross Weight
    2,350
  • SAP Net weight
    2,250
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley R8
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12-1/2 in.
  • Table Longitudal Travel
    23-7/8 in.
  • Table Longitudal Travel With Powerfeed
    20-2/7 in.
  • Table Size
    9 x 42 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    662755988639
  • Warranty
    Two Years
  • Work Table Weight Capacity
    550 lbs
