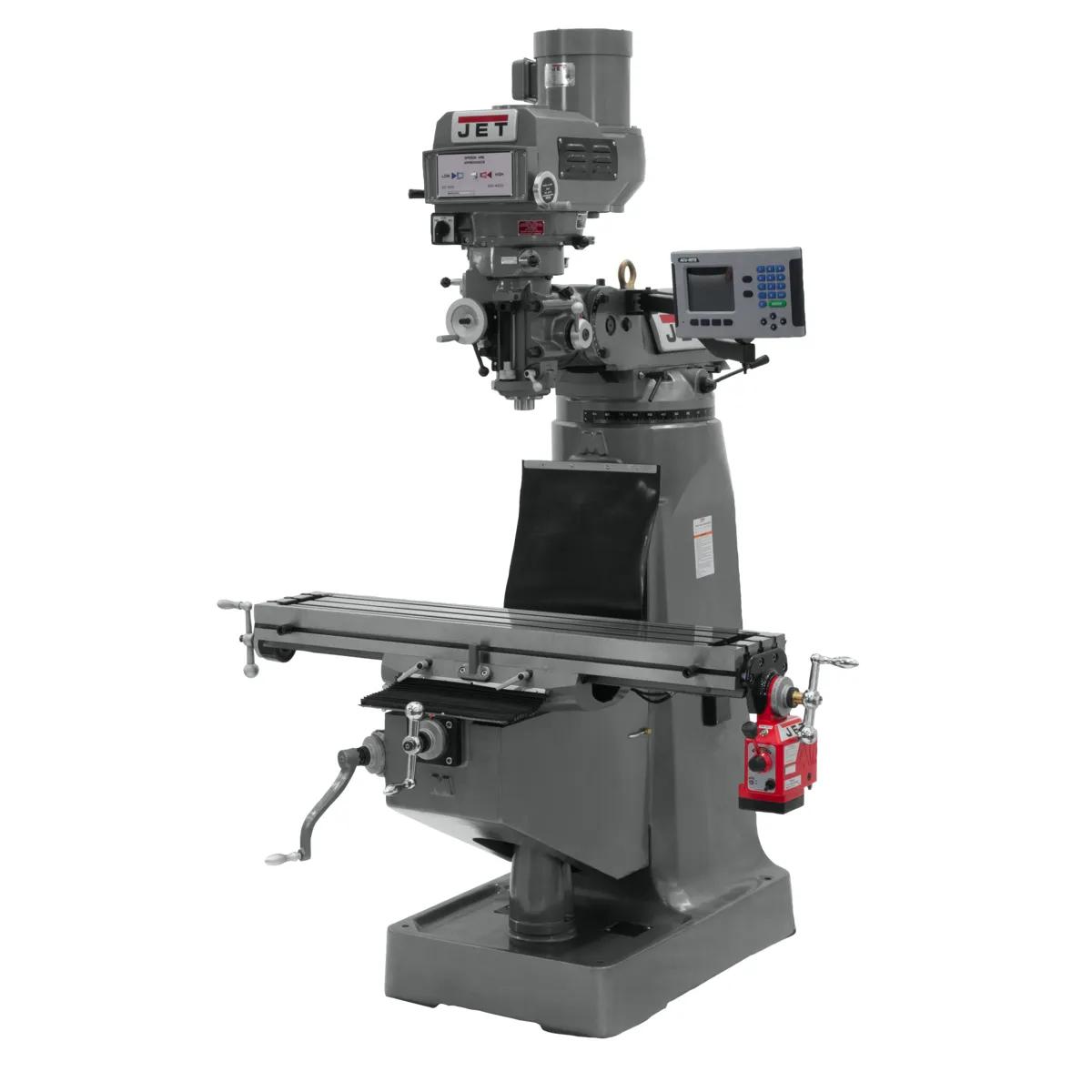

9" x 49" Mill w/ 3-Axis ACU-RITE 203 DRO (K) w/ X-Axis Powerfeed, 2HP, 115/230V 1PH(JTM-4VS-1)

Stock Number: JT9-691411

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built around the spindle, the table, and the operator who runs them. Designed for machinists who measure success in tenths, the JTM-4VS-1 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

Features

  • Tolerance-grade 2 HP motor with sealed bearings — running cooler under sustained load than equivalents across service shops.
  • Industrial 9 in. x 49 in. table — delivering the workholding envelope production milling targets, sized for the table-bolt patterns production shops already drill.
  • Factory-tested 5-inch spindle travel — expanding the working envelope without sacrificing stroke control across production fabrication.
  • Spindle RPM range of 60 - 4,200 matches the cuts for matching cuts to material across the operating envelope.
  • Certified Meehanite reference surfaces cover structural authority for the dimensional stability tolerance work measures.
  • Precision-rated hardened and ground quill components deliver dimensional stability without the slop softer drivetrains develop.

Specifications

  • SKU
    JT9-691411
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    3 Axis Acu-Rite 203(Knee)
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Net Weight
    2,489
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    691411
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,489
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325215519
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
