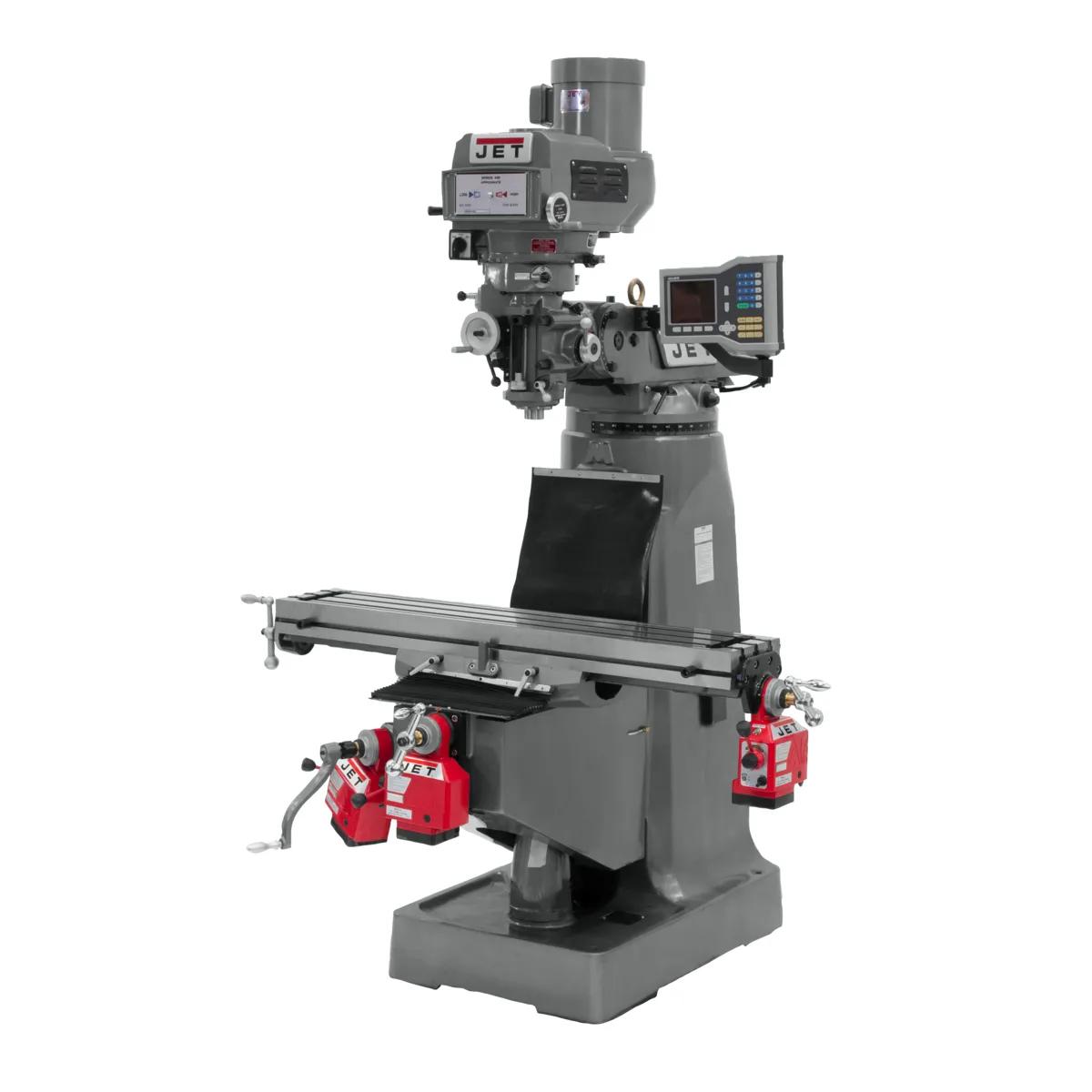

9" x 49" Mill w/ 3-Axis ACU-RITE 203 DRO (K) w/ X, Y, Z-Axis Powerfeeds, 2HP, 115/230V 1PH(JTM-4VS-1)

Stock Number: JT9-690424

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

The mill is where the work gets defined. The JTM-4VS-1 fits industrial machining environments running long-cycle production — and the cycle counts they generate. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Tolerance-grade 2 HP induction motor — holding speed under load when lighter motors stall, engineered for the duty range working shops actually run.
  • Industrial 9 in. x 49 in. table — delivering the fixture mounting flexibility production work demands, sized for the workholding patterns production milling depends on.
  • Industrial R-8 taper — delivering the standard interface production milling expects across industrial cutting environments.
  • 5-inch stroke covers the depth-of-cut envelope for deep-hole and through-hole production work.
  • Spindle RPM range of 60 - 4,200 matches the cuts for variable cuts across hardwood, steel, and aluminum.
  • Certified Meehanite main castings deliver structural authority for the cycle counts production turning generates.

Specifications

  • SKU
    JT9-690424
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite 203
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690424
  • Power Feed
    X-Axis/Y-Axis/Z-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,600
  • SAP Net weight
    2,500
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325242218
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
