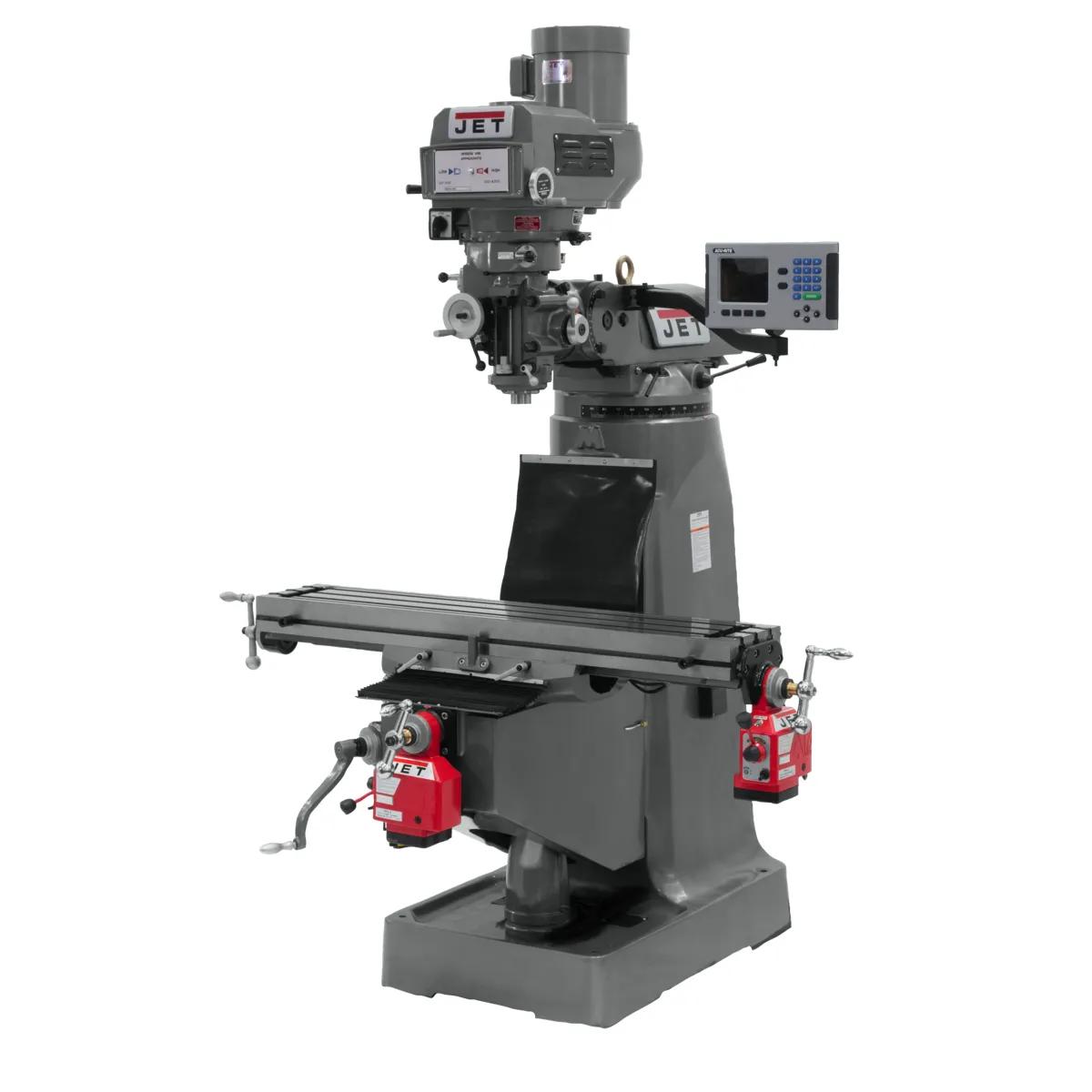

9" x 49" Mill w/ 3-Axis ACU-RITE 203 DRO (Q) w/ X-Axis, Y-Axis Powerfeeds, 2HP, 115/230V 1PH(JTM-4VS-1)

Stock Number: JT9-690068

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo

Product Details

Engineered for the long cuts and the tight tolerances. Engineered around production shops that turn programs into parts daily, the JTM-4VS-1 earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

Features

  • Shop-rated 2 HP induction motor — holding RPM under cutting load that would stall lighter motors, engineered for full-shift continuous operation.
  • 9 in. x 49 in. table — covering the workpiece sizes daily milling generates.
  • Industrial R-8 taper — fitting the tooling library production shops already maintain across production milling.
  • Premium-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across professional cutting environments.
  • Tolerance-grade 60 - 4,200 RPM range — matching cut requirements without belt-pulley reconfiguration.
  • Industrial Meehanite bed castings — delivering structural authority commercial-grade iron lacks across tolerance-grade production.

Specifications

  • SKU
    JT9-690068
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    3 Axis Acu-Rite 203(Quill)
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690068
  • Power Feed
    X-Axis/Y-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,520
  • SAP Net weight
    2,420
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325173505
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
