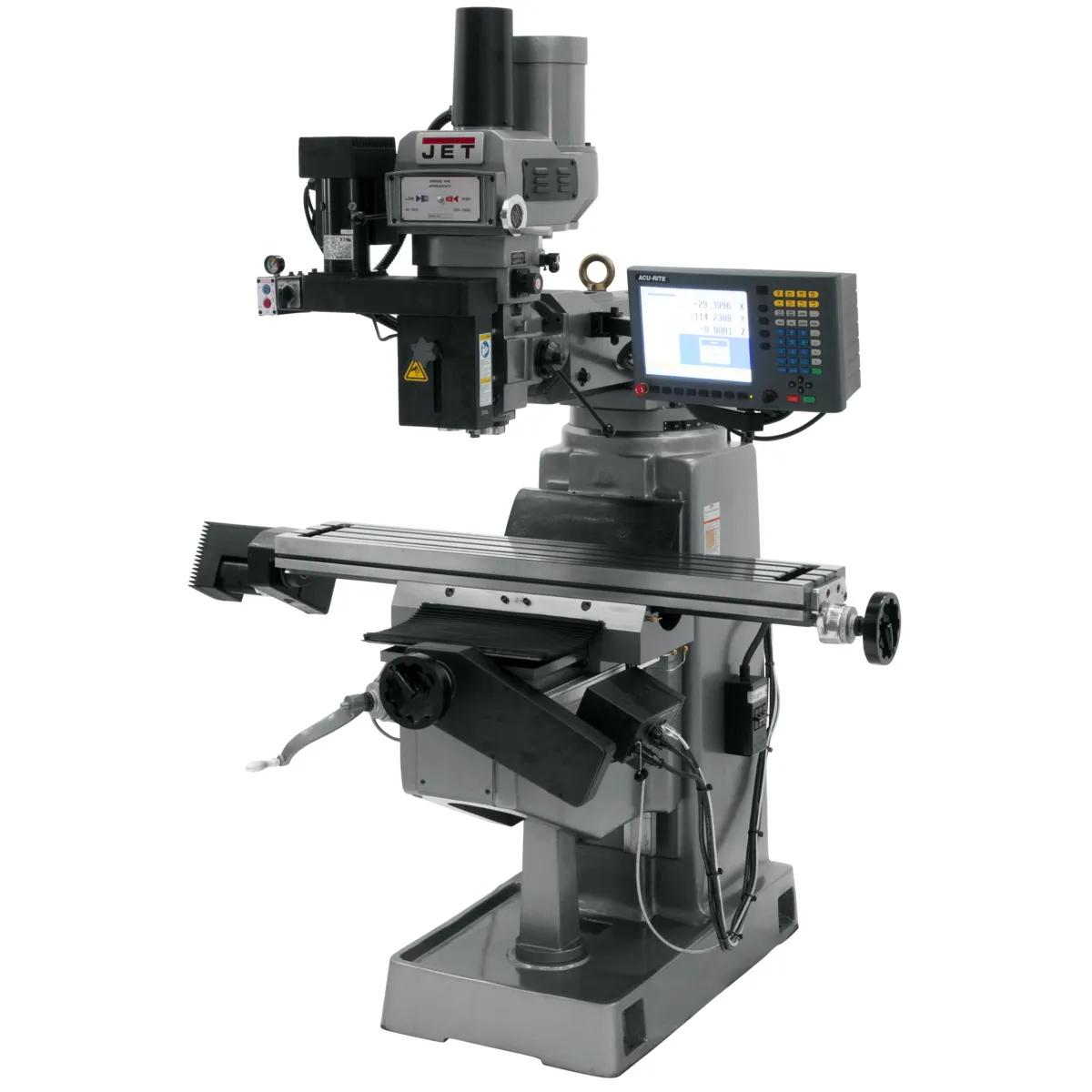

9" x 49" Mill w/ 3-Axis ACU-RITE G-2 MILLPWR CNC, 2HP, 115/230V 1PH(JTM-4VS-1 CNC G2)

Stock Number: JT9-690950

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Production-grade milling for the cuts that hold tolerance through long cycles. Designed for fabrication and tool-room work that demands tolerance, the JTM-4VS-1 CNC G2 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

Features

  • Engineered 2 HP single-phase induction drive: delivering full nameplate output, sized for the duty cycles production schedules generate.
  • 9 in. x 49 in. table surface matches the workpiece sizes for the workholding patterns production setups generate.
  • Premium-grade 5-inch spindle travel — putting deep-hole work in reach without secondary setups across professional cutting environments.
  • Production-spec 60 - 4,200 RPM range — handling slow torque-heavy work and high-speed finishing in one machine.
  • Vibration-dampening Meehanite reference surfaces keep finish quality consistent across tolerance-grade production.
  • Engineered hardened drive train components — running quieter, cooler, and with less vibration than stock-grade alternatives, engineered for the cycle counts industrial use generates.

Specifications

  • SKU
    JT9-690950
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • CNC Package
    ACU-RITE MILLPWR® G2
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite G-2 MILPWR
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Number of Axis
    3
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690950
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,420
  • SAP Net weight
    2,420
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    CNC
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325343823
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
