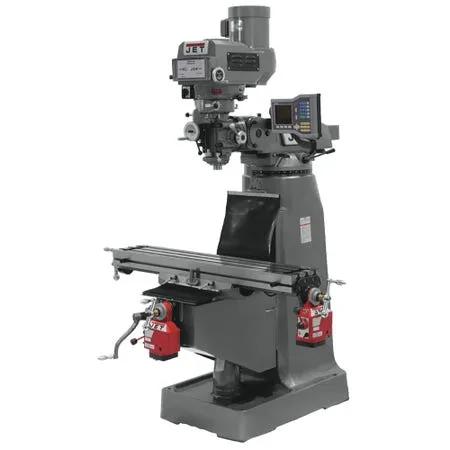

9" x 49" Mill w/ X-Axis, Y-Axis Powerfeeds, 2HP, 115/230V 1PH(JTM-4VS-1)

Stock Number: JT9-690197

0 Reviews

No reviews yet.

  • 2 HP, 115/230V, single-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. Designed for production shops that turn programs into parts daily, the JTM-4VS-1 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Shop-rated 2 HP drive provides consistent torque for the duty cycles production schedules generate.
  • Industrial-grade 9 in. x 49 in. table accommodates production setups for the workholding patterns production milling depends on.
  • Industrial R-8 taper — delivering tooling compatibility shops already own across production milling.
  • Tolerance-grade 5-inch spindle travel — putting deep-hole work in reach without secondary setups across tool-room machining.
  • Spindle RPM range of 60 - 4,200 matches the cuts for slow torque-heavy work and high-speed finishing in one machine.
  • Certified Meehanite saddle castings provide structural authority for the precision work production turning generates.

Specifications

  • SKU
    JT9-690197
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    No
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690197
  • Power Feed
    X-Axis/Y-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,600
  • SAP Net weight
    2,500
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325173550
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    115/230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
