Product Details

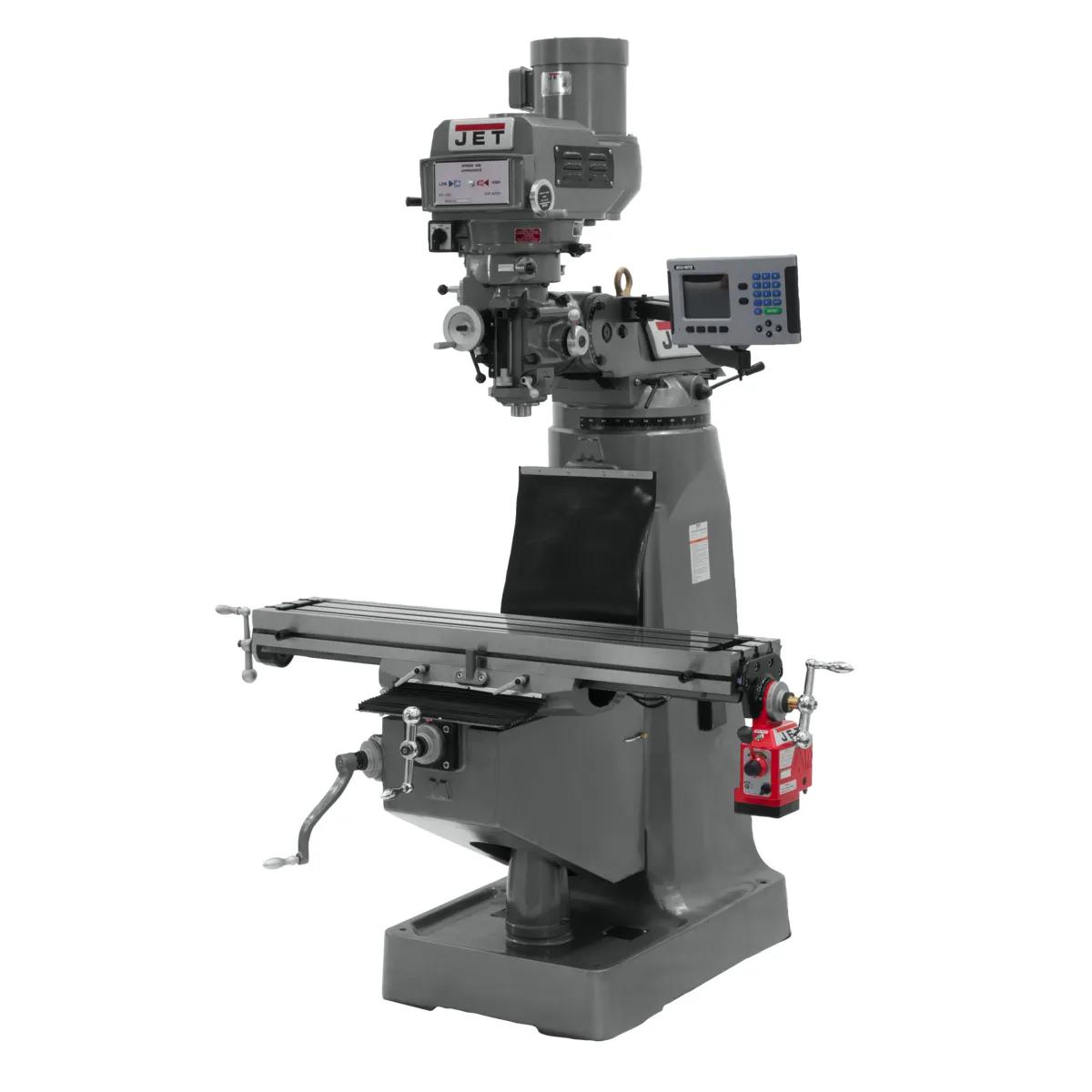

From prototype to production, the same mill earns its place. Designed for shops that hold tolerance through full production runs, the JTM-4VS-1 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.
Features
- 2 HP single-phase induction motor sized for the working loads daily production generates.
- Generous 9 in. x 49 in. table surface — accommodating the fixture-and-vise library most production shops keep across tool-room work.
- Industrial-grade R-8 spindle interface — delivering the standard interface production milling expects.
- Industrial 5-inch spindle travel — putting deep-hole work in reach without secondary setups across industrial drilling.
- 60 - 4,200 RPM envelope covers the speed range for the speed library industrial cutting requires.
- Meehanite-cast reference surfaces dampen vibration — holding true under loads that warp commercial-grade iron.
Specifications
- SKUJT9-690178
- Assembled Dimensions66 x 63 x 85 in.
- Collet Size1/8 - 7/8 in.
- Digital ReadoutNo
- Distance Spindle to Column (Max.)19 in.
- Distance Spindle to Column (Min.)4-1/2 in.
- Head Movement90 Deg. (L&R), 45 Deg. (F&B)
- Maximum Distance Spindle To Table17-1/2 in.
- Number of Spindle SpeedsVariable
- Old Material Number690178
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate.0015 - .003 - .006 IPR
- Range Of Spindle Speeds60 - 4200 RPM
- SAP Gross Weight2,250
- SAP Net weight2,250
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel34 in.
- Table Longitudal Travel With Powerfeed28-3/4 in.
- Table Size9 x 49 in.
- Travel Of Knee14-1/2 in.
- Travel Of Ram13-3/8 in.
- UPC662755956935
- WarrantyTwo Years
- Work Table Weight Capacity660 lbs
- Input Power115/230 V 1 Ph
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
