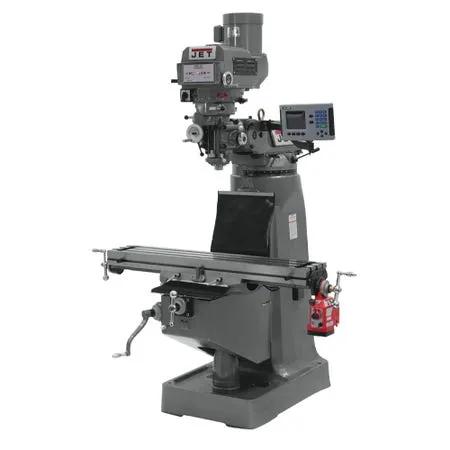

9" x 49" Mill w/ 4X DP1200 DRO (Q), X, Y, Z-Axis Powerfeeds & Power Drawbar, 3HP, 230/460V 3PH(JTM-4VS)
9" x 49" Mill w/ 4X DP1200 DRO (Q), X, Y, Z-Axis Powerfeeds & Power Drawbar, 3HP, 230/460V 3PH(JTM-4VS)

9" x 49" Mill w/ 4X DP1200 DRO (Q), X, Y, Z-Axis Powerfeeds & Power Drawbar, 3HP, 230/460V 3PH(JTM-4VS)

Stock Number: JT9-691401

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW

Product Details

Rigid construction, accurate cuts, repeatable results. The JTM-4VS fits machinists who measure success in tenths — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

Features

  • Industrial 3 HP induction motor: holding RPM under cutting load that would stall lighter motors, designed for fabrication shops.
  • Industrial-spec 9 in. x 49 in. table accommodates production setups for the workholding patterns production milling depends on.
  • Industrial-grade 5-inch spindle travel — putting deep-hole work in reach without secondary setups across professional cutting environments.
  • Precision-rated 60 - 4,200 RPM range — handling slow torque-heavy work and high-speed finishing in one machine.
  • Premium Meehanite saddle castings earn their place for tolerance retention through years of cycles.
  • Premium-grade hardened cross-feed gears — running quieter, cooler, and with less vibration than stock-grade alternatives, engineered for repeatable feed rates across long cycles.

Specifications

  • SKU
    JT9-691401
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Yes
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Model Number
    JTM-4VS
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    691401
  • Power Draw Bar
    Pneumatic
  • Power Feed
    X-Axis/Y-Axis/Z-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,420
  • SAP Net weight
    2,420
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325753318
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
