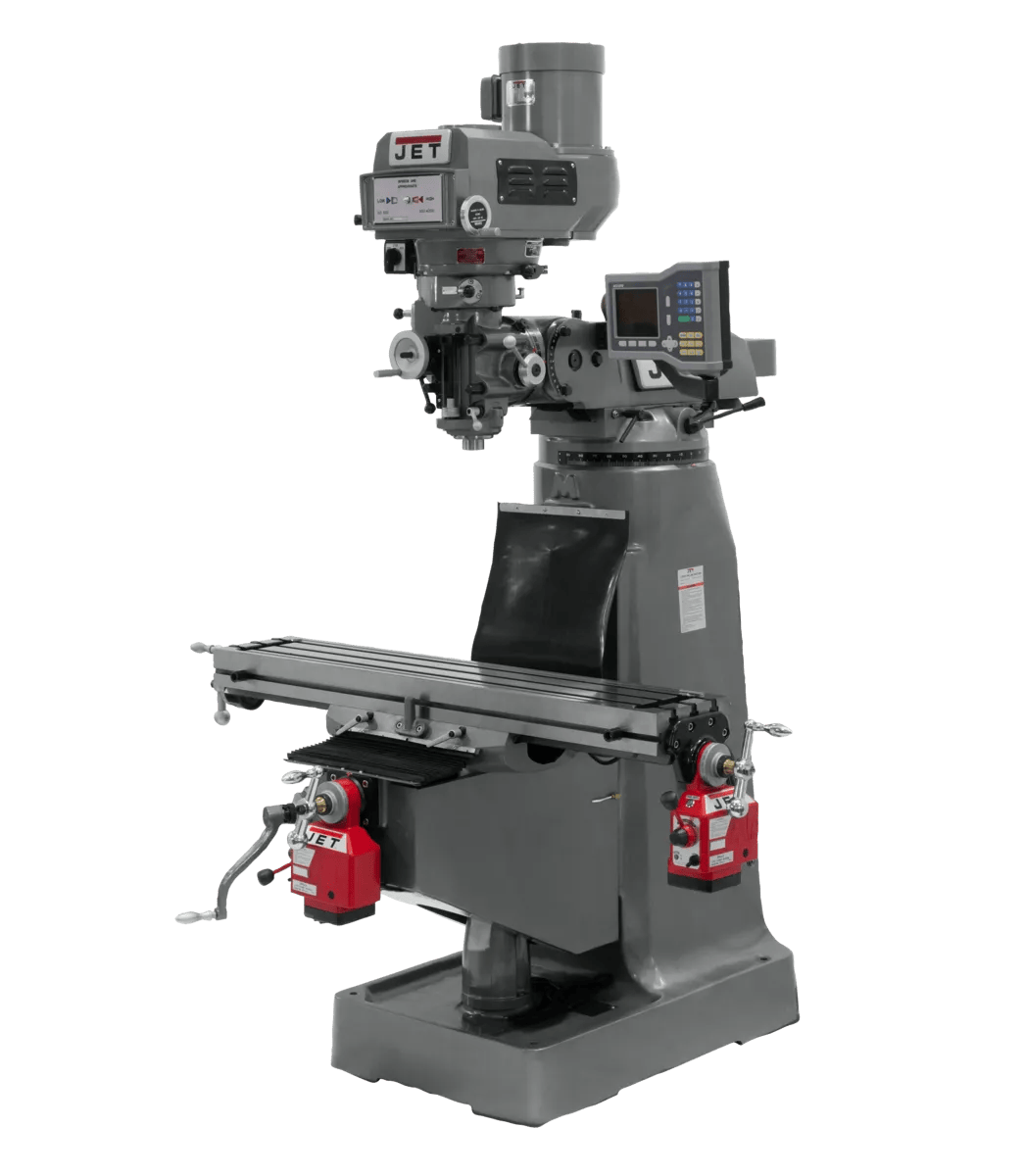

9" x 49" Mill w/ ACU-RITE 203 DRO w/ X-Axis, Z-Axis Powerfeeds, 3HP, 230/460V 3PH(JTM-4VS)
9" x 49" Mill w/ ACU-RITE 203 DRO w/ X-Axis, Z-Axis Powerfeeds, 3HP, 230/460V 3PH(JTM-4VS)

9" x 49" Mill w/ ACU-RITE 203 DRO w/ X-Axis, Z-Axis Powerfeeds, 3HP, 230/460V 3PH(JTM-4VS)

Stock Number: JT9-690015

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

The mill is where the work gets defined. The JTM-4VS is built for shops that hold tolerance through full production runs. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • 3 HP three-phase induction motor sized for sustained-load operation production work demands.
  • Heavy 9 in. x 49 in. table delivers the workholding envelope for the table-bolt patterns production shops already drill.
  • R-8 spindle interface — accepting the end mills, drill chucks, and collets this market depends on, sized for the standard tool-holding interface production shops use.
  • Tolerance-grade 5-inch spindle travel — expanding the operating envelope without compromise across tool-room machining.
  • 60-4,200 RPM envelope covers the speed range for the cutting envelope production cuts demand.
  • Meehanite reference surfaces provide the rigidity for the cycle counts production turning generates.

Specifications

  • SKU
    JT9-690015
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Model Number
    JTM-4VS
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690015
  • Power Feed
    X-Axis/Z-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,400
  • SAP Net weight
    2,400
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    731325475104
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
