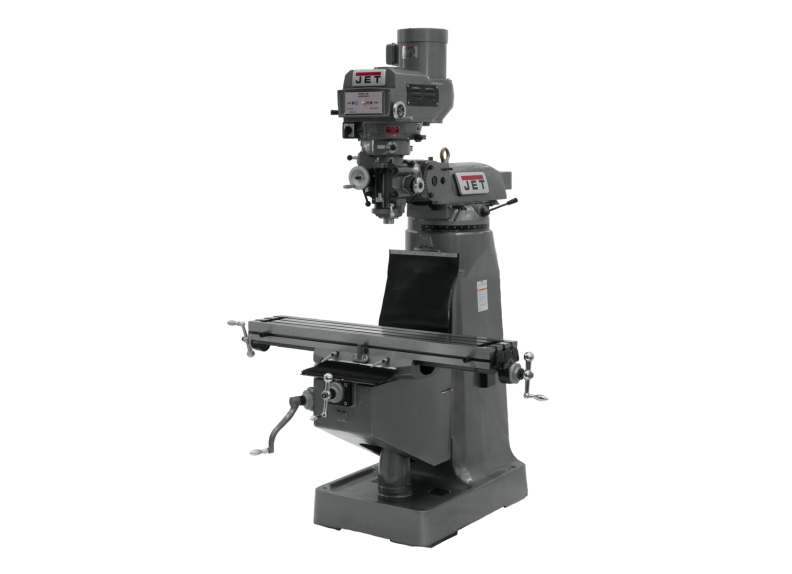

9" x 49" Vari. Speed Vert. Milling , 3HP, 230/460V 3PH(JTM-4VS)

Stock Number: JT9-691200

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo

Product Details

Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.

Features

  • Adjustable gibs throughout
  • Heavy duty splined motor drive
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Tolerance test sheet included

Specifications

  • SKU
    JT9-691200
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Newall NMS800
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Product Type
    Machines
  • Quill Diameter
    3-3/8 in.
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    662755513572
