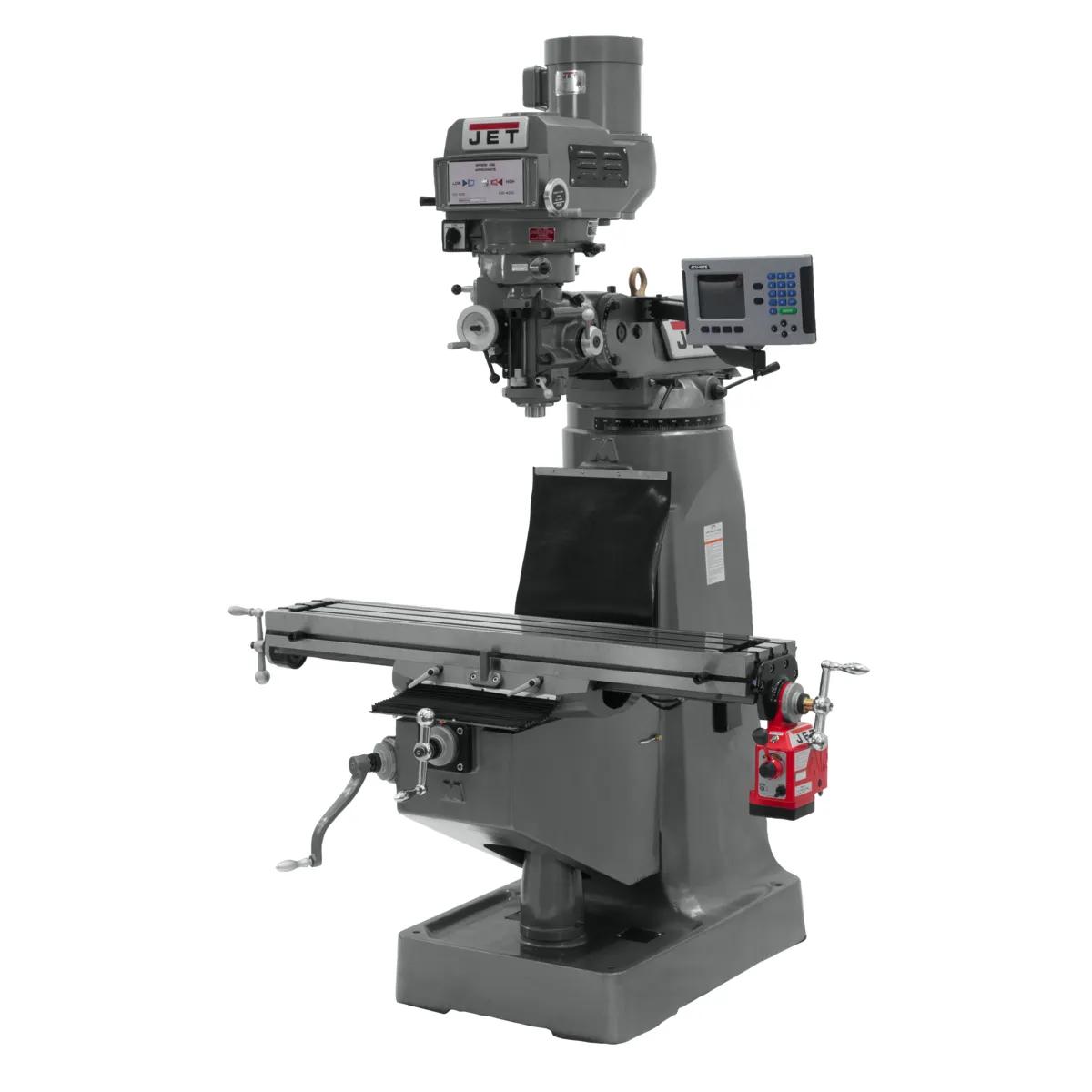

9" x 49" Mill w/ X-Axis Powerfeed, 3HP, 230/460V 3PH(JTM-4VS)

Stock Number: JT9-690183

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. The JTM-4VS fits production shops that turn programs into parts daily — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.

Features

  • 3 HP three-phase induction motor sized for long-cycle production work.
  • 9 in. x 49 in. working surface provides the fixture-and-vise library for the workpiece envelope production milling targets.
  • R-8 spindle interface — accepting the end mills, drill chucks, and collets this market depends on, sized for the tooling investment production shops have already made.
  • Tolerance-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across production milling.
  • Operating range of 60 - 4,200 RPM covers the cuts for the speed library industrial cutting requires.
  • Premium Meehanite column castings earn their place for the cycle counts production turning generates.

Specifications

  • SKU
    JT9-690183
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    No
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690183
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • SAP Gross Weight
    2,420
  • SAP Net weight
    2,420
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    662755516207
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    230/460 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
