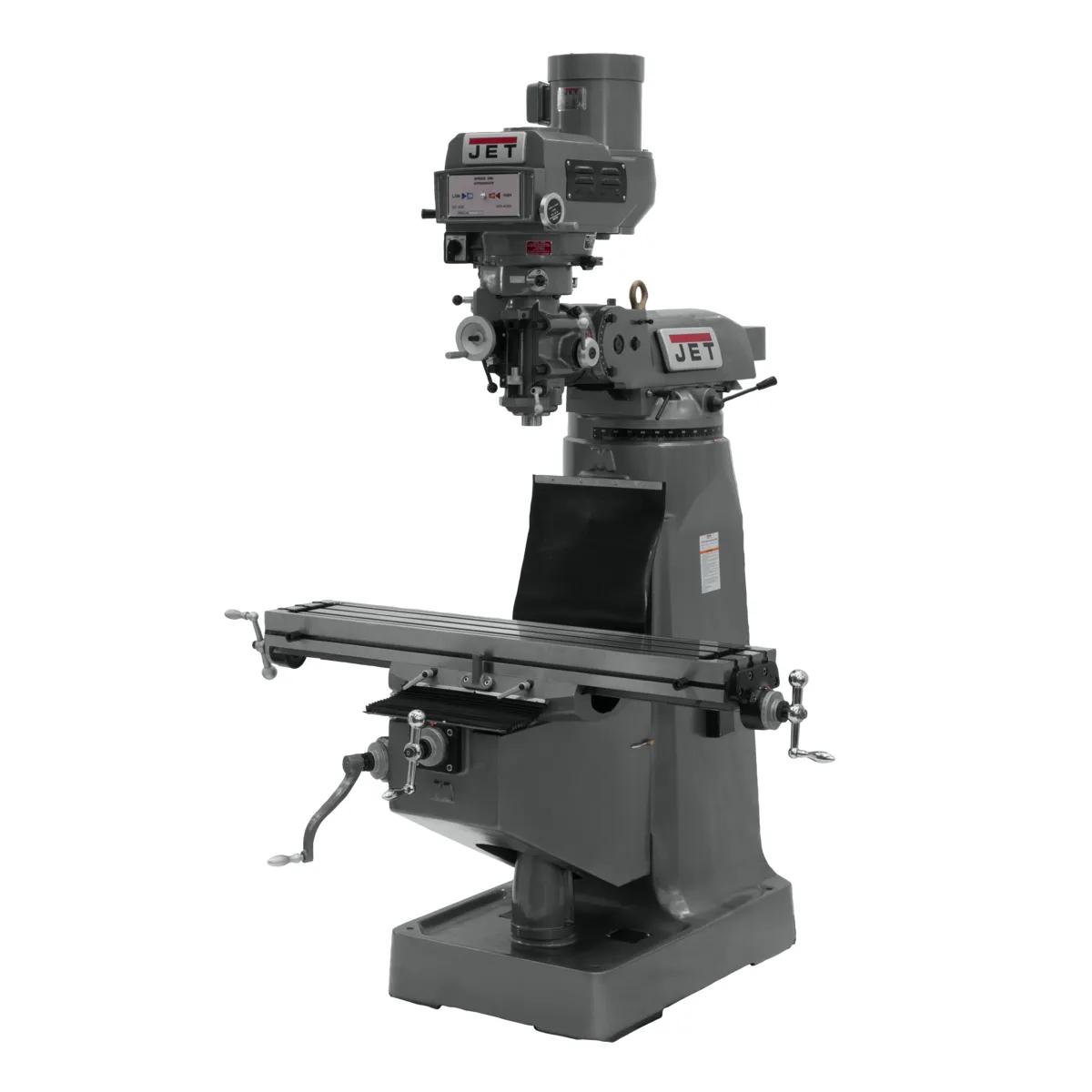

9" x 49" Vari. Speed Vert. Milling , 3HP, 230/460V 3PH(JTM-4VS)

Stock Number: JT9-690182

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts
9" x 49" Vari. Speed Vert. Milling , 3HP, 230/460V 3PH(JTM-4VS)

Product Details

Built around the spindle, the table, and the operator who runs them. Engineered around shops that hold tolerance through full production runs, the JTM-4VS earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.

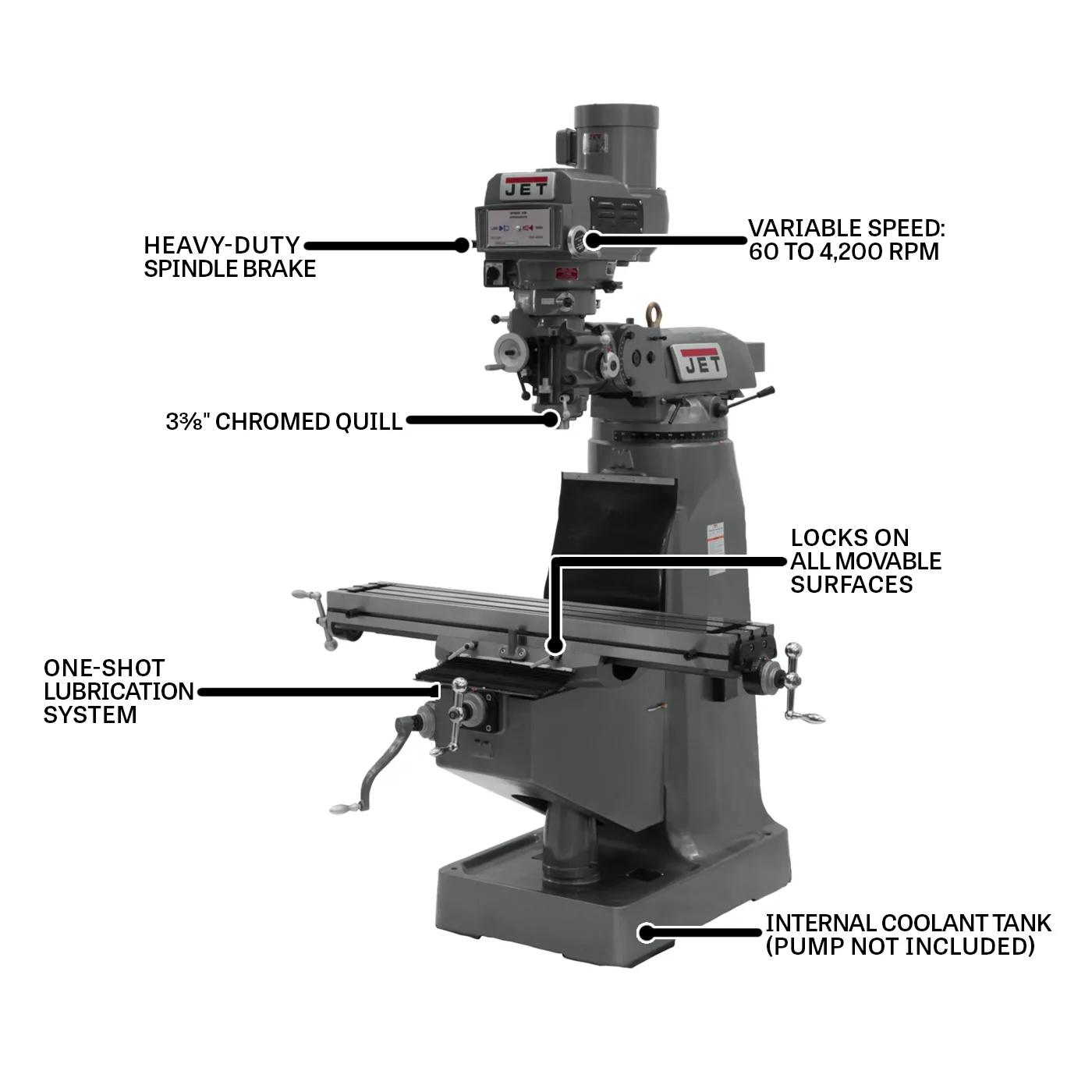

Features

  • Factory-sealed 3 HP 230/460V induction motor stands up to working shops.
  • 9 in. x 49 in. working surface covers the fixture-and-vise library for the workpiece sizes production milling demands.
  • R-8 spindle taper supports the standard end-mill library for the collet-and-chuck library industrial shops already keep.
  • Tolerance-grade 5-inch spindle travel — delivering vertical reach production work actually requires across production milling.
  • Variable spindle speeds across 60 - 4,200 RPM eliminate speed compromises for the speed range production work generates.
  • Industrial Meehanite main castings — absorbing the cutting harmonics that compromise finish quality across tolerance-grade production.

Specifications

  • SKU
    JT9-690182
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    66 x 63 x 85 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    No
  • Distance Spindle to Column (Max.)
    19 in.
  • Distance Spindle to Column (Min.)
    4-1/2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Maximum Distance Spindle To Table
    17-1/2 in.
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    690182
  • Power Feed
    No
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4200 RPM
  • Reference Type
    Base Machine
  • SAP Gross Weight
    2,226
  • SAP Net weight
    2,175
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    34 in.
  • Table Longitudal Travel With Powerfeed
    28-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    14-1/2 in.
  • Travel Of Ram
    13-3/8 in.
  • UPC
    662755105913
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    230/460 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
