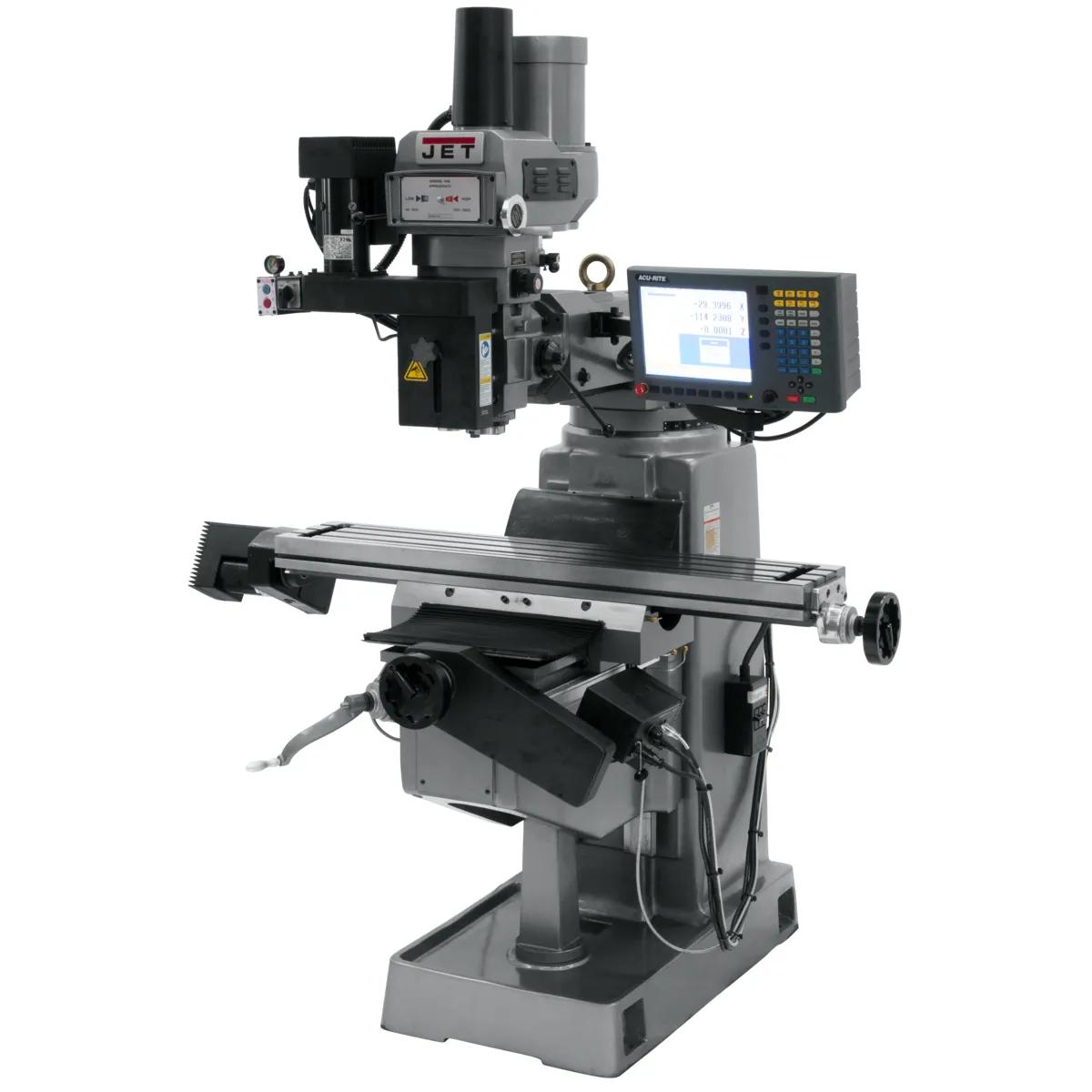

9" x 49" Mill w/ 3-Axis ACU-RITE G-2 MILLPWR CNC, 3HP, 230V 3PH(JTM-949EVS/230)

Stock Number: JT9-690576

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

The mill is where the work gets defined. Built around machinists who measure success in tenths, the JTM-949EVS/230 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Continuous-duty 3 HP induction drive — handling startup loads where smaller motors trip.
  • Generous 9 in. x 49 in. table surface — expanding the working envelope without expanding the shop footprint across production milling.
  • Industrial-spec R-8 spindle interface — accepting the end mills, drill chucks, and collets this market depends on.
  • Engineered 5-inch spindle travel — covering the workpiece envelope this machine targets across production milling.
  • Continuous-duty 60 - 4,500 RPM range — covering the operating range production cuts require.
  • Industrial Meehanite saddle castings — holding reference flat across production turning.

Specifications

  • SKU
    JT9-690576
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    65-3/4 x 63 x 85-3/4 in.
  • CNC Package
    ACU-RITE MILLPWR® G2
  • Collet Size
    1/8 - 7/8 in.
  • Column Width
    11-3/8 in.
  • Digital Readout
    Acu-Rite G-2 MILPWR
  • Distance Spindle to Column (Max.)
    18-1/8 in.
  • Distance Spindle to Column (Min.)
    5.2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Inverter Type
    Delta, B
  • Maximum Distance Spindle To Table
    20-3/4 in.
  • Motor Amps
    8 A
  • Motor Speed
    1720 RPM
  • Noise Level Db at 3Ft
    72 dB
  • Number of Axis
    3
  • Number of Spindle Speeds
    60-500 / 500-4500 RPM
  • Old Material Number
    690576
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    3,000
  • SAP Net weight
    3,000
  • Saddle Width
    20 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    CNC
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Longitudal Travel With Powerfeed
    30-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    15-3/4 in.
  • Travel Of Ram
    8-1/8 in.
  • UPC
    731325452563
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
