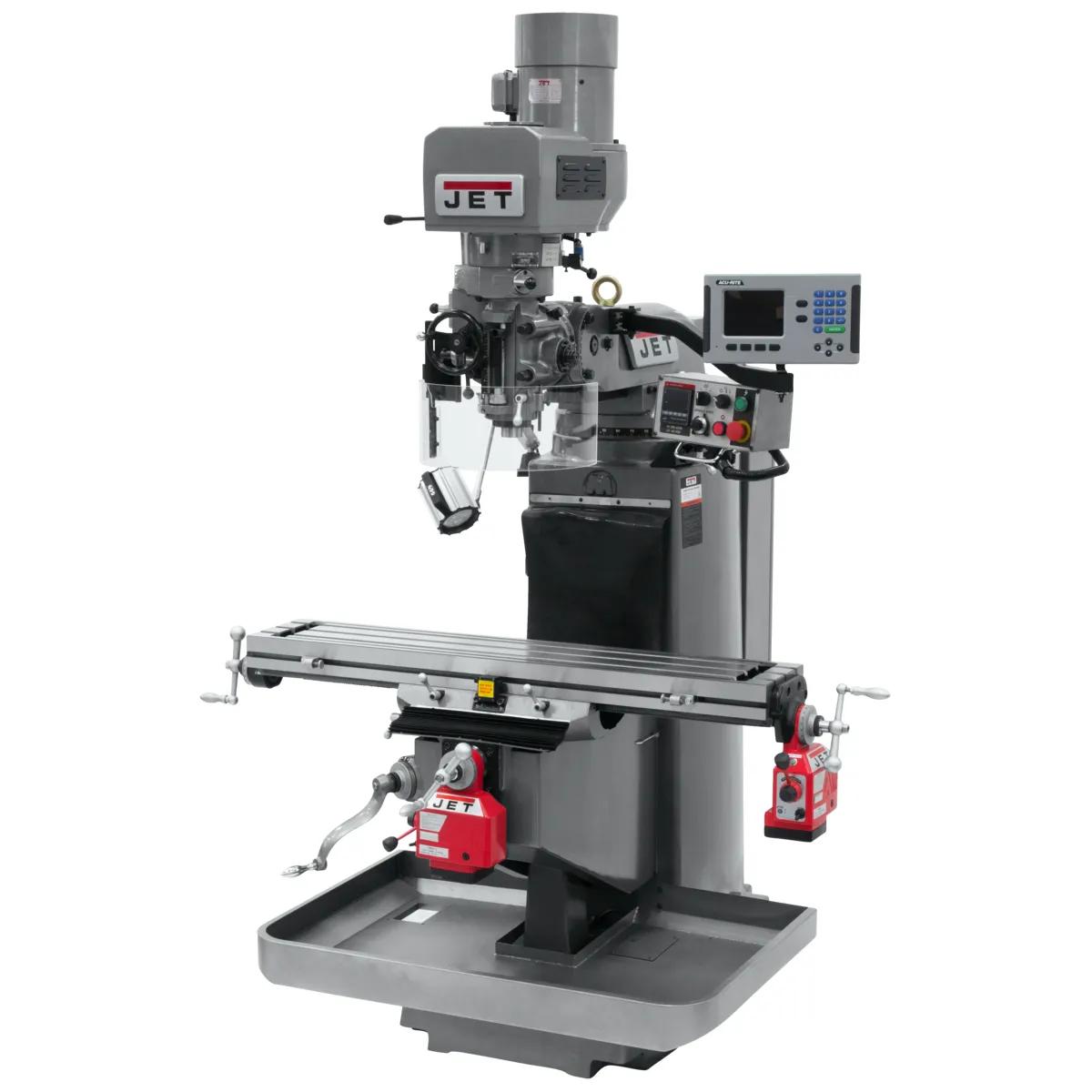

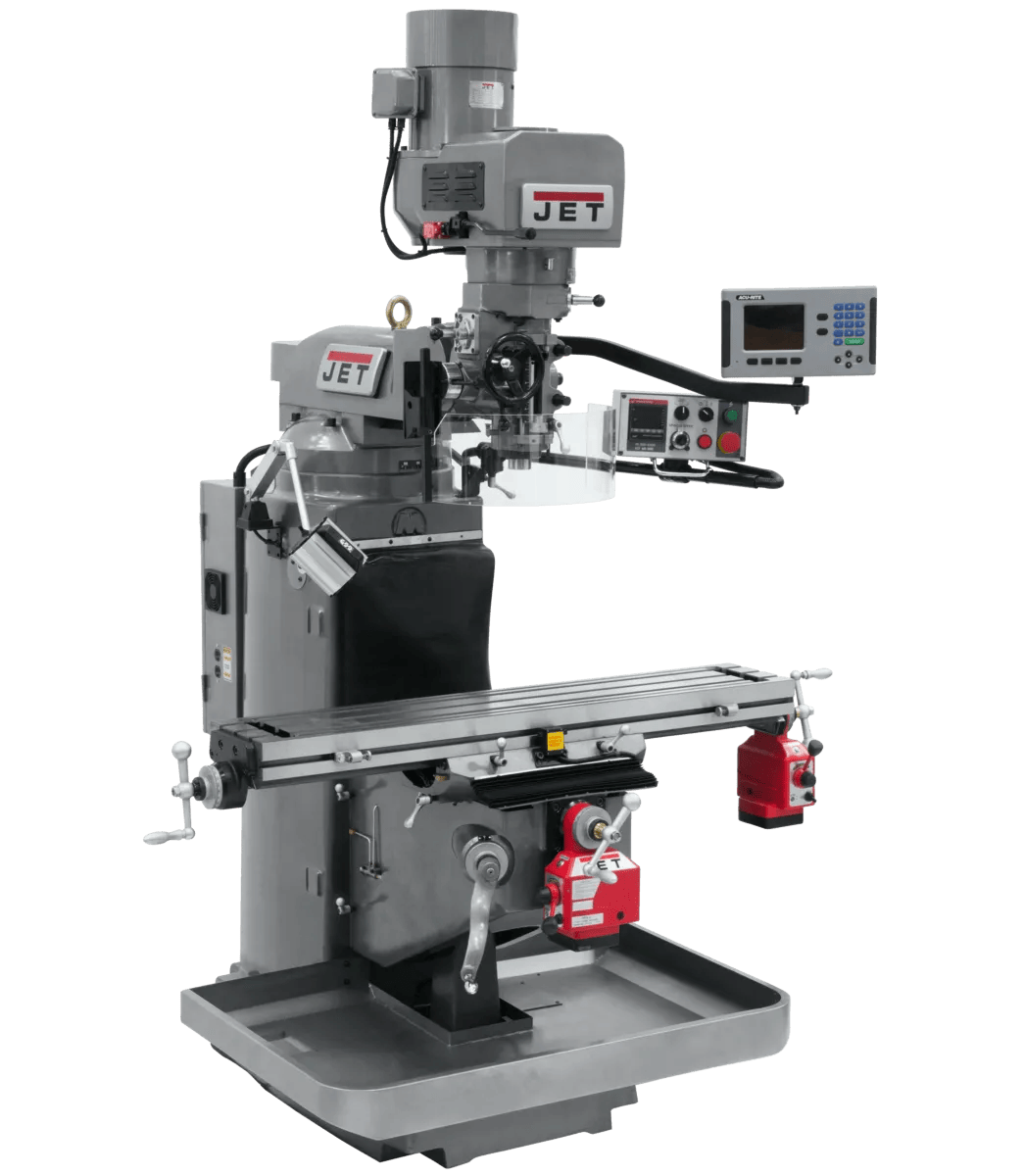

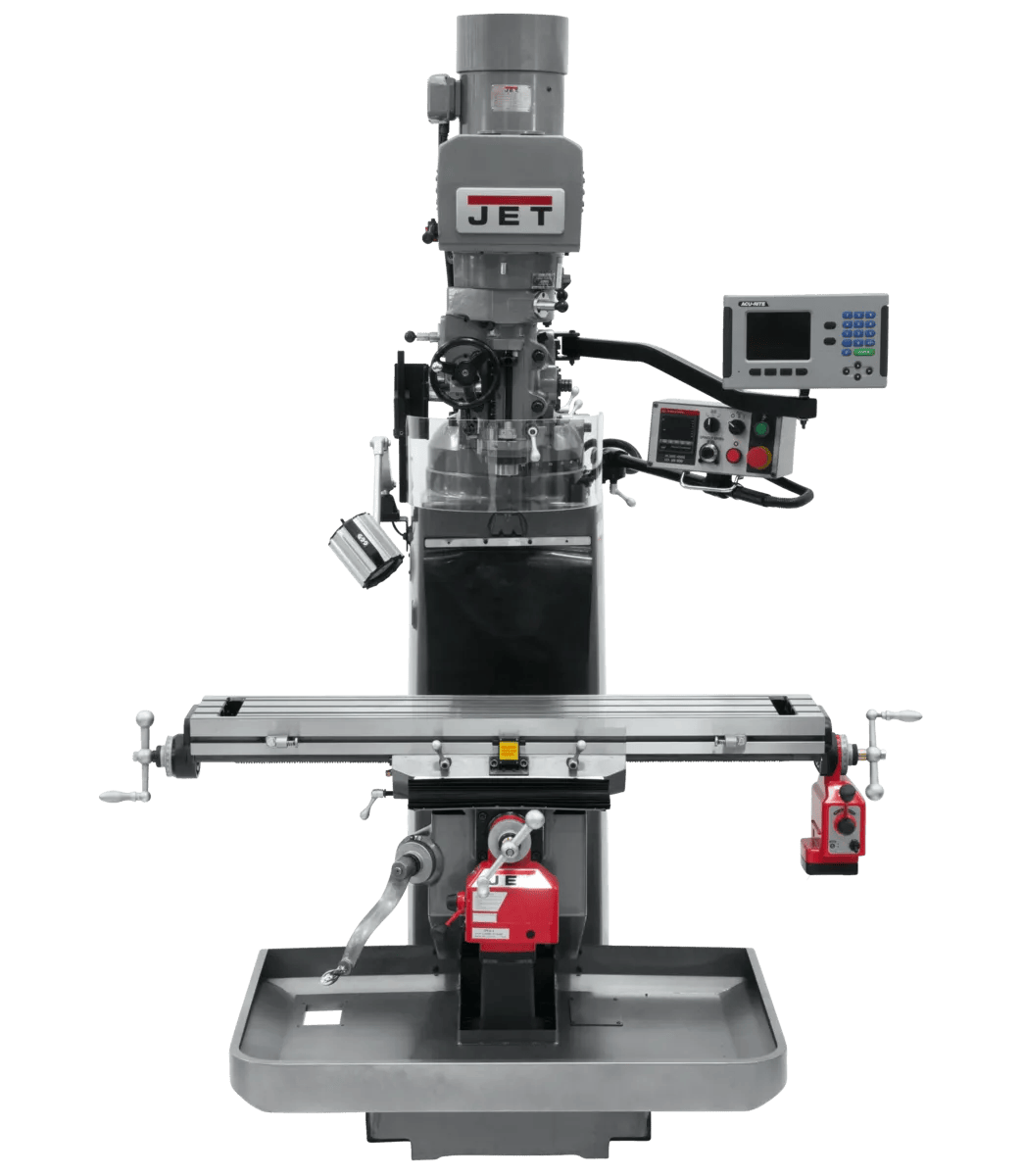

9" x 49" Mill w/ 3-Axis Acu-Rite 203 DRO (K) w/ X-Axis, Y-Axis Powerfeeds, 3HP, 230/460V 3PH(JTM-949EVS/230)

Stock Number: JT9-690527

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Rigid construction, accurate cuts, repeatable results. Engineered around fabrication and tool-room work that demands tolerance, the JTM-949EVS/230 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Sealed 3 HP induction motor protects against the dust, chips, and humidity of production cutting.
  • Industrial 9 in. x 49 in. table — expanding the workholding envelope without sacrificing rigidity, sized for the table-bolt patterns production shops already drill.
  • Factory-tested R-8 spindle interface — fitting the tooling library production shops already maintain.
  • Production-grade 5-inch spindle travel — putting deep-hole work in reach without secondary setups across tool-room machining.
  • Wide 60 - 4,500 RPM range — eliminating the speed compromises older designs forced.
  • Certified Meehanite saddle castings resist wear and deflection for the structural rigidity tolerance-grade work demands.

Specifications

  • SKU
    JT9-690527
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    65-3/4 x 63 x 85-3/4 in.
  • Collet Size
    1/8 - 7/8 in.
  • Column Width
    11-3/8 in.
  • Digital Readout
    3 Axis Acu-Rite 203(Knee)
  • Distance Spindle to Column (Max.)
    18-1/8 in.
  • Distance Spindle to Column (Min.)
    5.2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Inverter Type
    Delta, B
  • Maximum Distance Spindle To Table
    20-3/4 in.
  • Motor Amps
    8 A
  • Motor Speed
    1720 RPM
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    60-500 / 500-4500 RPM
  • Old Material Number
    690527
  • Power Feed
    X-Axis/Y-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    2,420
  • SAP Net weight
    2,420
  • Saddle Width
    20 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    EVS
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Longitudal Travel With Powerfeed
    30-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    15-3/4 in.
  • Travel Of Ram
    8-1/8 in.
  • UPC
    731325451795
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
